2015 NISSAN VERSA SEDAN Quick Reference Guide

7
REAR TRUNK RELEASE
(if so equipped)
Use one of the following methods to
open the trunk:



•

Push the trunk opener request switc
h
1,
located under the center of the trunk handle, for
more than 1 second while carrying the NISSAN
Intelligent Key
® (if so equipped) with you.



•


Press the trunk release button 2 on

the Intelligent Key (if so equipped) for more than
1 second.
For more information, refer to the “Pre-driving checks and
adjustments (section 3)” of your Owner’s Manual.
SEAT ADJUSTMENTS
To slide the front seat forward or backward, pull
up on the lever
1 under the front of the seat
and slide forward or backward. Release the lever
to lock the seat in position.
To recline the seatback, pull up on the lever
2
and lean back. To bring the seatback forward,
pull the lever up and lean your body forward.
Release the lever to lock the seatback in position.
SEAT LIFTER (if so equipped for driver’s seat)
To adjust the seat height, pull up or push down
on the adjusting lever
3 repeatedly.
For more information, refer to the “Safety — Seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.
1
23
2
1
POWER OUTSIDE MIRROR CONTROL SWITCH (if so equipped)
Move the switc
h
1 right or left to select the
right or left mirror.
Adjust eac h mirror to the desired position using
the switch
2.
Move the switc h
1 to the middle (neutral)
position to prevent accidentally moving the mirrors.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1
2
1804921_15c_Versa_Sedan_QRG_080714.indd 78/7/14 2:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

8
HEADLIGHT CONTROL SWITCH
HEADLIGHT CONTROL
Turn the headlight control switch to the
position 1 to turn on the front parking, tail,
license plate and instrument panel lights. Turn
the switch to the
position
2 to turn on
the headlights.
1
2
STARTING/STOPPING THE ENGINE
STARTING THE ENGINE
It is import ant to make sure the Intelligent Key is
with you (that is, in your pocket or purse).
CONTINUOUSLY VARIABLE TRANSMISSION
(NISSAN Intelligent Key
® models only - if so equipped)
Depress the brake pedal.



•

If the brake pedal is not depressed, pushing the
ignition switc

h once enters the ACC mode.



•

If the ignition is pushed a second time, the vehicle will enter the O
N mode.
Move the shift lever to the P (PARK) position.
Push the ignition switch to start or stop the engine.
CONTINUOUSLY VARIABLE TRANSMISSION/ AUTOMATIC/MANUAL TRANSMISSION
(if so equipped)
Depress the brake pedal.
Move the shift lever to the N (NEUTRAL)
position (manual transmission only).
Depress the clutc h (manual transmission only)
pedal to the floor.
Turn the ignition switch to START.
TURNING THE ENGINE OFF
For a Continuously Variable Transmission (NISSAN Intelligent Key® models only - if so
equipped), apply the brake pedal, move the shift lever to the P (PARK) position, apply
the parking brake and push the ignition START/STOP switch to turn the engine off.
For a manual transmission, apply the brake pedal, place the vehicle in 1s\
t gear, apply the parking brake and turn the ignition switch to the LOCK position.
For automatic transmission and Continuously Variable Transmission, apply the brake pedal, move the shift lever to P (PARK) position, apply the parking brake and turn the
ignition switch to the LOCK position.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
FIRST DRIVE FEATURES
1804921_15c_Versa_Sedan_QRG_080714.indd 88/7/14 2:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

9

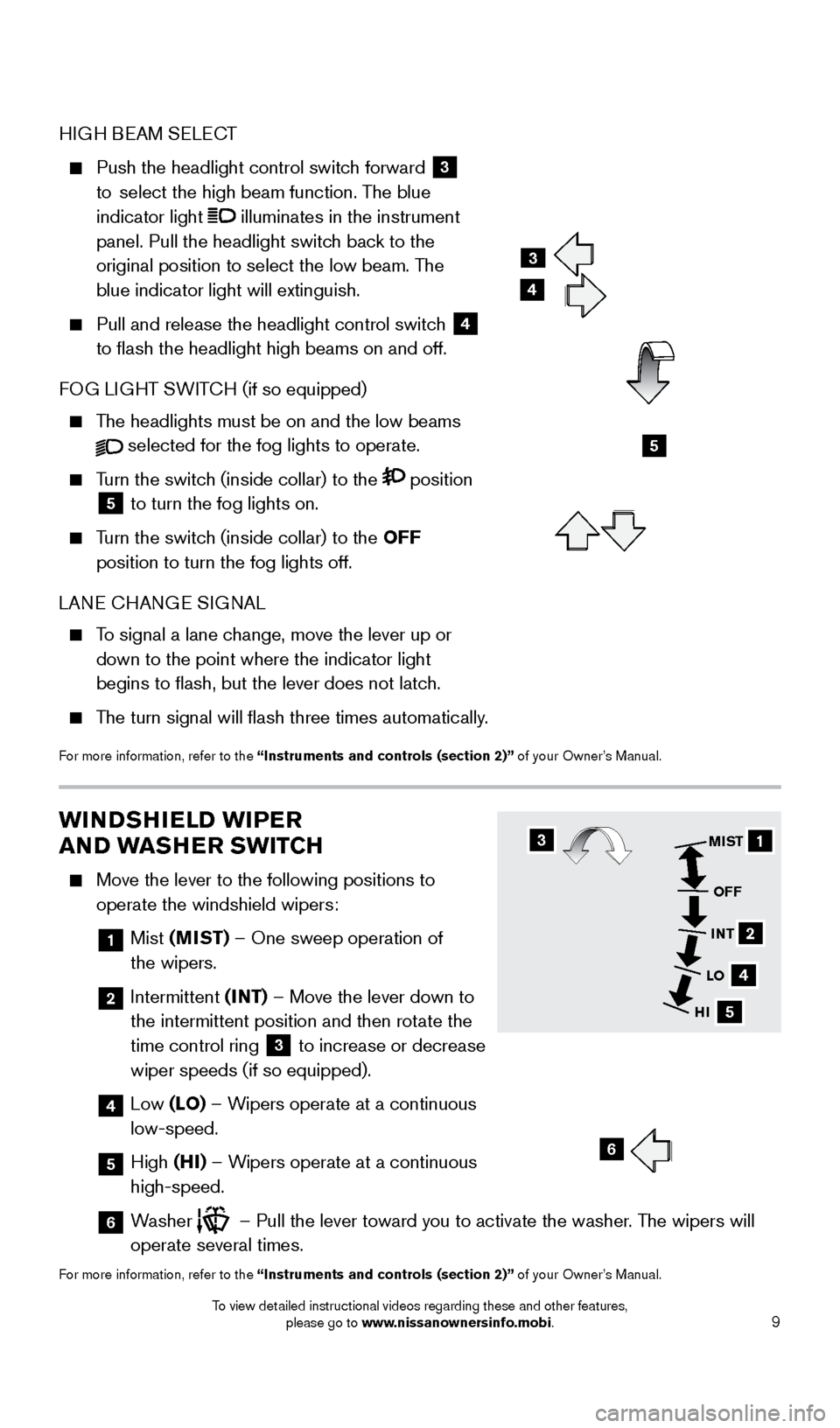

WINDSHIELD WIPER
AND WASHER SWITCH
Move the lever to the following positions to
operate the windshield wipers:
1 Mist (MIST) – One sweep operation of
the wipers.
2 Intermittent (INT) – Move the lever down to
the intermittent position and then rotate the
time control ring
3 to increase or decrease
wiper speeds (if so equipped).
4 Low (LO) – Wipers operate at a continuous
low-speed.
5 High (HI) – Wipers operate at a continuous
high-speed.
6 Washer
– Pull the lever toward you to activate the washer. The wipers will
operate several times.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
31
2
4
5
MIST
OFF
INT
LO
HI
6
HIGH BEAM SELECT
Push the headlight control switc h forward
3
to
select the high beam function. T
he blue
indicator light
illuminates in the instrument
panel. Pull the headlight switch back to the
original position to select the low beam. The
blue indicator light will extinguish.
Pull and release the headlight control switc h
4
to flash the headlight high beams on and off.
FOG LIGHT SWITCH (if so equipped)
The headlights must be on and the low beams
selected for the fog lights to operate.
Turn the switch (inside collar) to the position

5 to turn the fog lights on.
Turn the switch (inside collar)
to the OFF
position to turn the fog lights off.
LANE CHANGE SIGNAL
To signal a lane change, move the lever up or down to the point where the indicator light
begins to flash, but the lever does not latch.
The turn signal will flash three times automatically.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
3
4
5
1804921_15c_Versa_Sedan_QRG_080714.indd 98/7/14 2:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

10
FIRST DRIVE FEATURES
MANUAL CLIMATE CONTROLS
1 FAN SPEED CONTROL DIAL
Turn the dial to the left to decrease fan speed or to the right to increa\
se fan speed.
2 AI R FLOW CONTROL DIAL
Turn the dial to select the
following air flow outlets:



Air flows from the
center and side vents.



Air flows from the
center , side and
foot vents.



Air flows mainly from
the foot vents.



Air flows from
the defroster and
foot vents.


Air flows mainly from
the defroster vents.
3 TE MPERATURE CONTROL DIAL
Turn the temperature control dial left for cooler air or right for warmer\
air.
4 DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS
First, move the air int
ake lever
5 to the
left position to draw fresh air into

the vehicle.
Then turn the air flow control dial 2 to the front window defroster mode
.
Align the left and right side vents to direct airflow towards the fron\
t side windows.
When the
or
position is selected, the air conditioner will turn on automatically
for better performance. This will dehumidify the air and help defog the windows.
6 R EAR WINDOW DEFROSTER SWITCH
Push the rear window defroster switc
h
to turn the system on or off.
7 A/C B UTTON
Press the
A/C button to turn the air conditioner on. This system helps cool and
dehumidify the air inside the cabin and defog the windows.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of
your Owner’s Manual.
1
23
4
5
67
1804921_15c_Versa_Sedan_QRG_080714.indd 108/7/14 2:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

11
FM/AM/SiriusXM®* SATELLITE RADIO WITH CD PLAYER
(if so equipped)
1 ON•OFF B UTTON/VOL (volume) CONTROL KNOB
Press the
ON•OFF button to turn the system on or off.
Turn the VOL control knob to the right or left to increase or decrease the volume.
2 AUDIO BUTTON/TUNE KNOB
Press the
AUDIO button to go to the audio settings screen.
To manually tune the radio, turn the TUNE knob left or right.
3 SEEK BUTTONS
To tune and stop at the previous or next broadcast station, press the seek buttons
or .
For satellite radio, to switch to the first channel of the previous or next category,
press the seek buttons
or .
To change tracks on a CD, press the seek buttons or .
To rewind or fast forward a track on a CD, press and hold the seek buttons or .
4 ST ATION SELECT BUTTONS
Twelve stations can be set for the FM band, 6 for the AM band and 18 for
satellite radio.
To store a station in a preset, you must first select a radio band by pressing the \
FM•AM button
5 or the SXM button 6 then tune to the desired FM, AM or
satellite radio station.
Now select and hold the desired st ation memory key (1-6) 4 until the preset
number is updated on the display and a beep is heard. Programing is
now complete.
To retrieve a previously set station, select the radio band where the preset was stored, then select the corresponding station memory key (1-6)
4.
*SiriusXM® Satellite Radio is only available on vehicles equipped with an optional s\
atellite radio subscription service.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of
your Owner’s Manual.
56
3
1
4
2
1804921_15c_Versa_Sedan_QRG_080714.indd 118/7/14 2:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

12
CRUISE CONTROL (if so equipped)
The cruise control system enables you to set a constant cruising speed once the vehicle has
reached 25 mph (40 km/h).
The system will automatically maintain the set speed until you tap the brake pedal, accelerate,
cancel or turn the system off.
To activate the cruise control, push the CRUISE
ON/OFF switch
1. The CRUISE indicator
light in the instrument panel will illuminate.
To set cruising speed, accelerate the vehicle to the desired speed, push \
the COAST/SET switch
2 and release. Take your foot off the accelerator pedal.
Your vehicle will maintain the set speed.
To reset at a faster cruising speed, push and hold the ACCEL/RES switch
3.
When the vehicle attains the desired speed, release the switch.
To reset at a slower cruising speed, push and hold the COAST/SET switch 2.
Release the switch when the vehicle slows to the desired speed.
To cancel the preset speed, push the CANCEL switch 4.
To turn off cruise control, push the CRUISE ON/OFF switch 1. The CRUISE
indicator light in the instrument panel will extinguish.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
4
3
2
1
FIRST DRIVE FEATURES
1804921_15c_Versa_Sedan_QRG_080714.indd 128/7/14 2:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

13
SYSTEM GUIDE
BLUETOOTH® HANDS-FREE PHONE SYSTEM
A cellular telephone should not be used
while driving so full attention may be given to
vehicle operation.*
SYSTEM OPERATING TIPS
Press the button to interrupt the voice
prompts at any time and speak a command after
the tone.
To use the system faster, you may speak the second level commands with the main menu
command on the main menu. For example,
press the
button and after the tone say
“Call Redial”.
The “Help” command can be used to hear a list
of available commands at any time.
Reduce bac kground noise as much as possible
by closing windows and pointing HVAC vents away from the ceiling.
Speak naturally without long pauses and without raising your voice.
When speaking Phonebook names, please be aware some phones require the la\
st name to be spoken before the first name. For example, “Michael Smith” may be
spoken as “Smith Michael”.
To cancel a voice recognition session, simply wait 5 seconds, say “Cancel” or “Quit”, or press and hold the
button for 5 seconds.
To increase or decrease the volume of the voice prompts, push the volume \
control switches + or – on the steering wheel or turn the control dial on the audio system
while the audio system is responding.
If the Voice Recognition system does not recognize your voice commands, train the system using the Voice Adaptation Mode. See your Owner’s Manual for
detailed information.
For more detailed information and instructions, refer to your cellular phone’s Owner’s Manual and visit www.nissanusa.com/bluetooth.
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.
NISSANCONNECTsm WITH MOBILE APPS SMARTPHONE
INTEGRATION (if so equipped)
Integrates popular smartphone apps and services into your vehicle.
The NissanConnectsm App must be downloaded to your smartphone and you must
be enrolled.
For more information on how to pair your phone and set up NissanConnectsm with
Mobile Apps, visit: www.nissanusa.com/connect/support.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4) ” of
your Owner’s Manual.
1804921_15c_Versa_Sedan_QRG_080714.indd 138/7/14 2:23 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

14
SYSTEM GUIDE
BLUETOOTH® SYSTEM WITHOUT NAVIGATION (if so equipped)
CONNECTING PROCEDURE
The vehicle must be stationary when connecting the phone.
1.

Press the
button on the steering wheel. The system announces the
available commands.
2.


S

ay: “Connect phone”. The system acknowledges the command and announces the
next set of available commands.
3.


S

ay: “Add phone”. The system acknowledges the command and asks you to initiate
connecting from the phone handset.
4.


Initiate connecting from the phone:



•


T

he connecting procedure varies according to each cellular phone model.
For detailed connecting instructions and compatible phones, please visit
www.nissanusa.com/bluetooth.



•


W

hen prompted for a PIN code, enter “1234” from the handset.
(The PIN code is assigned by NISSAN and cannot be changed.)
5.


S

ay a name for the phone when the system asks you to provide one. You can give the
phone a name of your choice.
PHONEBOOK SETUP
The phonebook stores up to 1,000 entries for each phone paired with the system.
Depending on your cellular phone, the system
may automatically download your cellular
phone’s entire phonebook to the vehicle’s
Bluetooth
® system.
If the phonebook does not download a utomatically,
entries can be individually downloaded.
To manually download entries:



1.

Push the button on the steering wheel.

2.
After the tone, s ay “Phonebook”.



3.


After the next tone, s
ay “Transfer Entry”. The system acknowledges the command
and asks you to initiate the transfer from the phone handset. The new contact phone
number will be transferred from the cellular phone to the vehicle.



•


T

he transfer procedure varies according to each cellular phone.
See your cellular phone’s Owner’s Manual for details. You can also visit
www.nissanusa.com/bluetooth for instructions on transferring phone
numbers from NISSAN-recommended cellular phones.



4.


T

he system repeats the number and prompts you for the next command. When you
have finished entering numbers or transferring an entry, choose “Store”.



5.


T

he system confirms the name, location and number.
1804921_15c_Versa_Sedan_QRG_080714.indd 148/7/14 2:23 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
