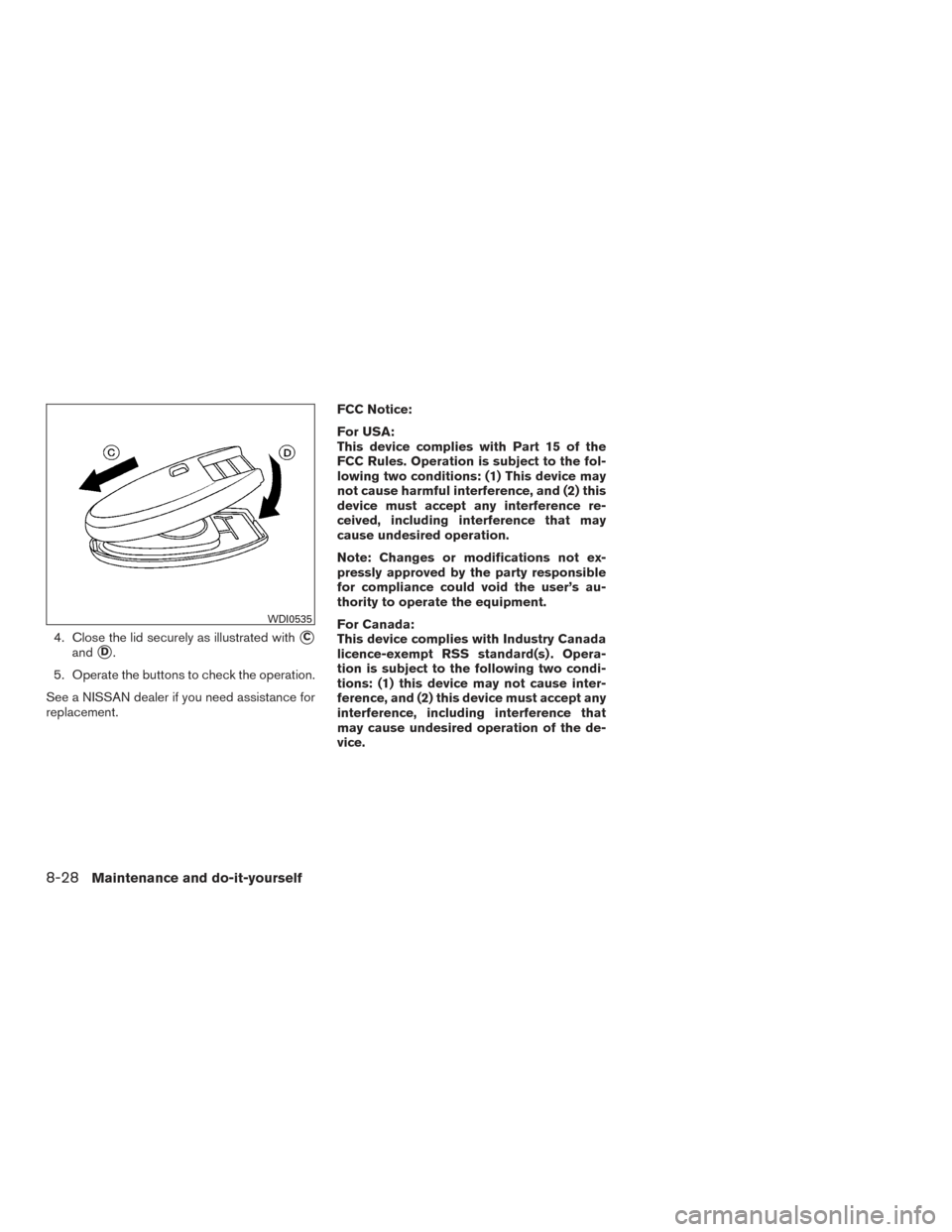

4. Close the lid securely as illustrated withC
andD.
5. Operate the buttons to check the operation.
See a NISSAN dealer if you need assistance for
replacement. FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s au-
thority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.
WDI0535
8-28Maintenance and do-it-yourself

HEADLIGHTSReplacing the halogen headlight bulb
NOTE:
The headlight is a semi-sealed beam type
which used a replaceable headlight (halo-
gen) bulb. They can be replaced from inside
the engine compartment without removing
the headlight assembly.
CAUTION
●Aiming is not necessary after replacing
the bulb. When aiming adjustment is
necessary, contact a NISSAN dealer.
● Do not leave the headlight assembly
open without a bulb installed for a long
period of time. Dust, moisture, smoke,
etc. entering the headlight body may
affect bulb performance. Remove the
bulb from the headlight assembly just
before a replacement bulb is installed.
● Only touch the base when handling the
bulb. Never touch the glass envelope.
Touching the glass could significantly
affect bulb life and/or headlight
performance.
LDI2645
LIGHTS
Maintenance and do-it-yourself8-29

●High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● Use the same number and wattage as
shown in the chart.
1. Disconnect the negative battery cable.
2. Release the core support cover fasteners
A.
3. Access the rear of front headlight
B.
4. Position core support cover aside.
5. Rotate the (high beam) cover
Ccounter-
clockwise to access the (high beam) bulb
socket
E. Rotate the bulb socketEcoun-
terclockwise and remove bulb.
6. Rotate the (low beam) cover
Dcounter-
clockwise to access the (low beam) bulb
socket
F. Rotate the bulb socketFcoun-
terclockwise and remove bulb.
7. Rotate the side marker bulb socket
Gcoun-
terclockwise and remove bulb.
8. Rotate the turn signal bulb socket
Hcoun-
terclockwise and remove bulb
I. Reverse instructions to install bulbs and replace
fender protector.
WARNING
Do not touch bulb by hand while it is lit or
right after being turned off. Burning may
result.
CAUTION
• Do not touch glass surface of the bulb
with bare hands or allow oil or grease to
get on it to prevent damage to bulb.
• Do not leave the bulb out of the lamp
reflector for a long time because dust,
moisture, smoke, etc. may affect the per-
formance of the lamp.
• Fog may temporarily form inside the lens
of the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the
lens, contact a NISSAN dealer.
LDI2361
8-30Maintenance and do-it-yourself

TURN SIGNAL BULB
To replace the turn signal bulb follow the instruc-
tions listed in the “Replacing the halogen head-
light bulb” found in this section.
FOG LIGHTS (if so equipped)
LDI2179
Maintenance and do-it-yourself8-31

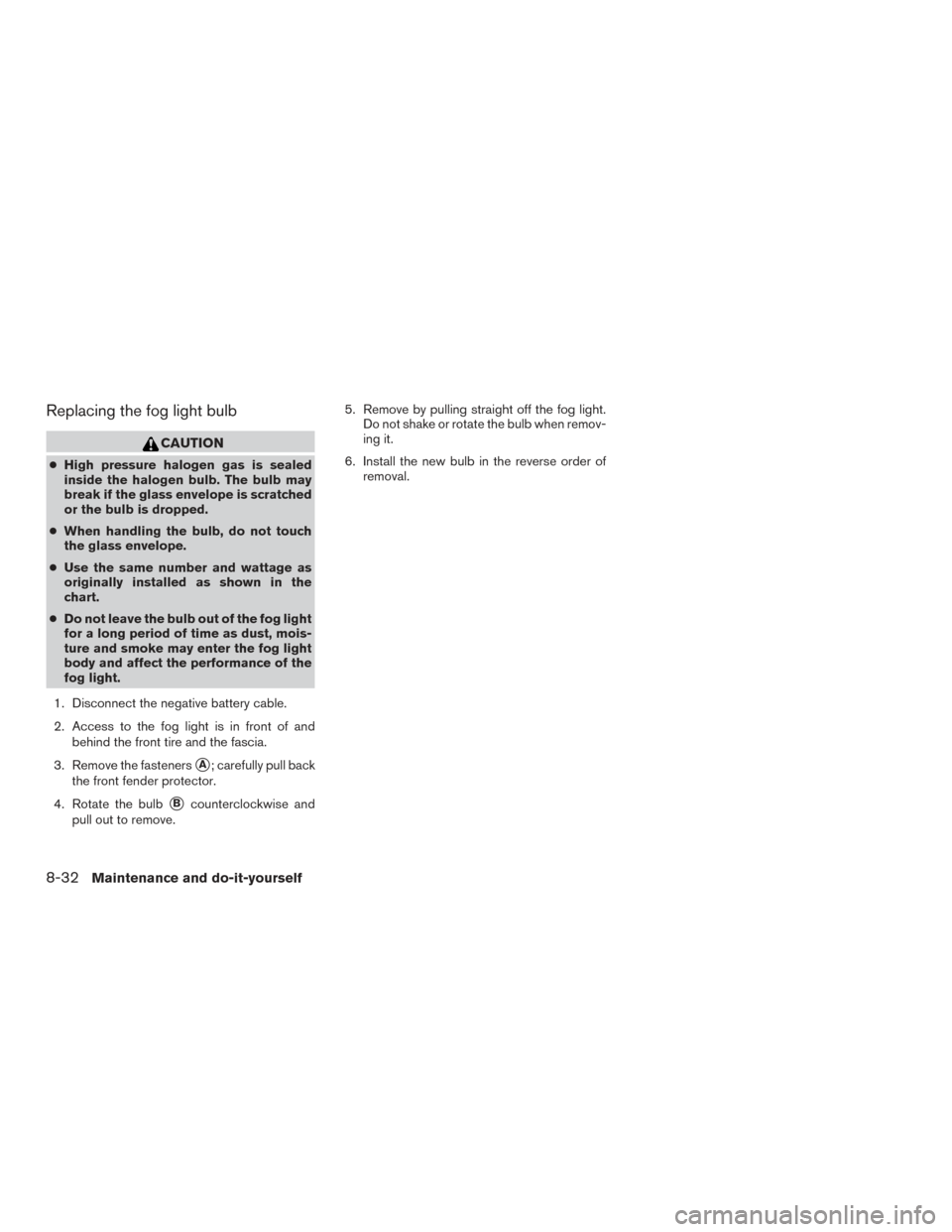

Replacing the fog light bulb
CAUTION
●High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● When handling the bulb, do not touch
the glass envelope.
● Use the same number and wattage as
originally installed as shown in the
chart.
● Do not leave the bulb out of the fog light
for a long period of time as dust, mois-
ture and smoke may enter the fog light
body and affect the performance of the
fog light.
1. Disconnect the negative battery cable.
2. Access to the fog light is in front of and behind the front tire and the fascia.
3. Remove the fasteners
A; carefully pull back
the front fender protector.
4. Rotate the bulb
Bcounterclockwise and
pull out to remove. 5. Remove by pulling straight off the fog light.
Do not shake or rotate the bulb when remov-
ing it.
6. Install the new bulb in the reverse order of removal.
8-32Maintenance and do-it-yourself

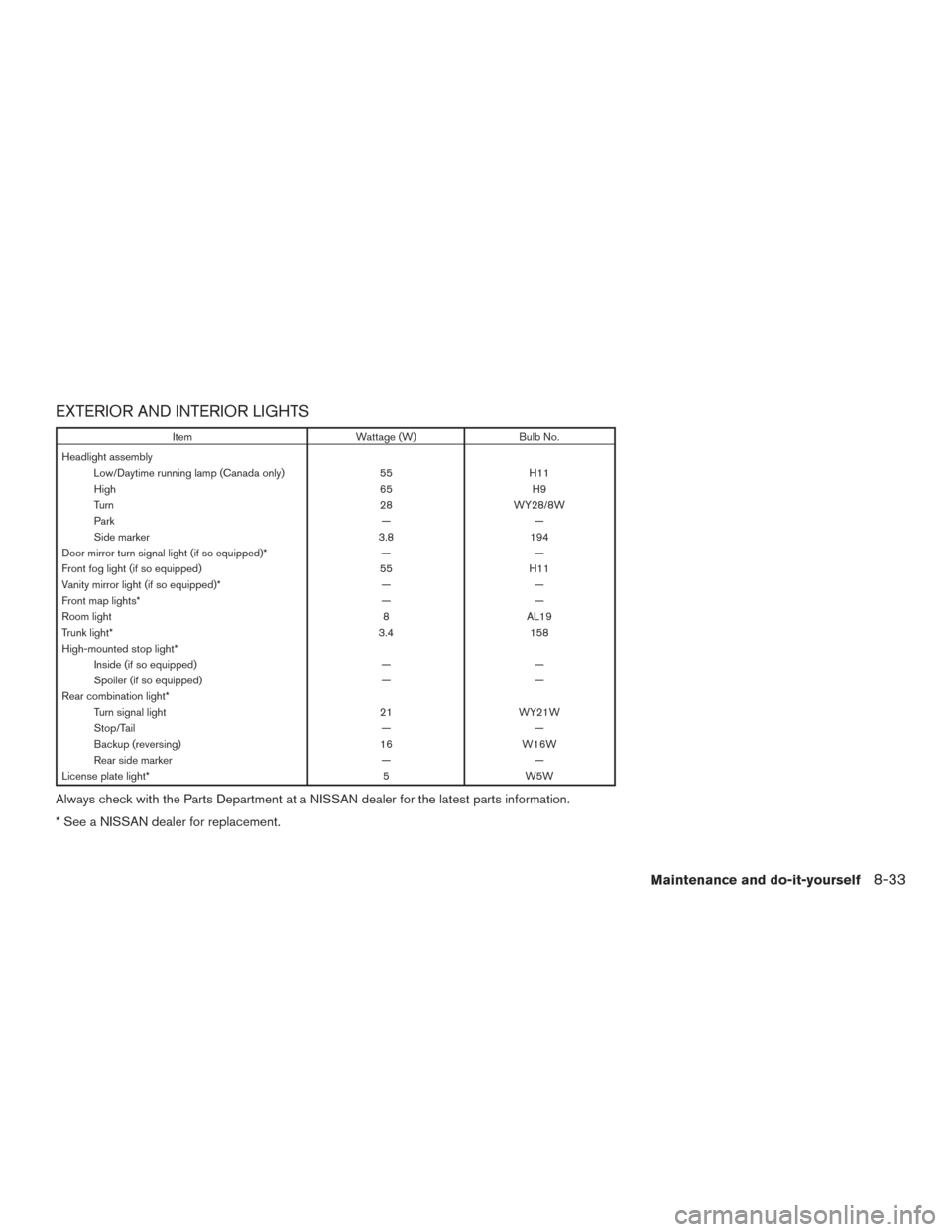

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight assembly Low/Daytime running lamp (Canada only) 55H11
High 65H9
Turn 28WY28/8W
Park ——
Side marker 3.8194
Door mirror turn signal light (if so equipped)* ——
Front fog light (if so equipped) 55H11
Vanity mirror light (if so equipped)* ——
Front map lights* ——
Room light 8AL19
Trunk light* 3.4158
High-mounted stop light* Inside (if so equipped) ——
Spoiler (if so equipped) ——
Rear combination light* Turn signal light 21WY21W
Stop/Tail ——
Backup (reversing) 16W16W
Rear side marker ——
License plate light* 5W5W
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
* See a NISSAN dealer for replacement.
Maintenance and do-it-yourself8-33

1. Map light
2. Interior light
3. Door mirror turn signal light (if soequipped)
4. Headlight assembly
5. Fog light (if so equipped)
6. High-mount stop light
7. Trunk light
8. License plate light
9. Rear combination light
Indicates bulb removal
Indicates bulb replacement
Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens and/or
cover.
LDI2173
WDI0257
8-34Maintenance and do-it-yourself

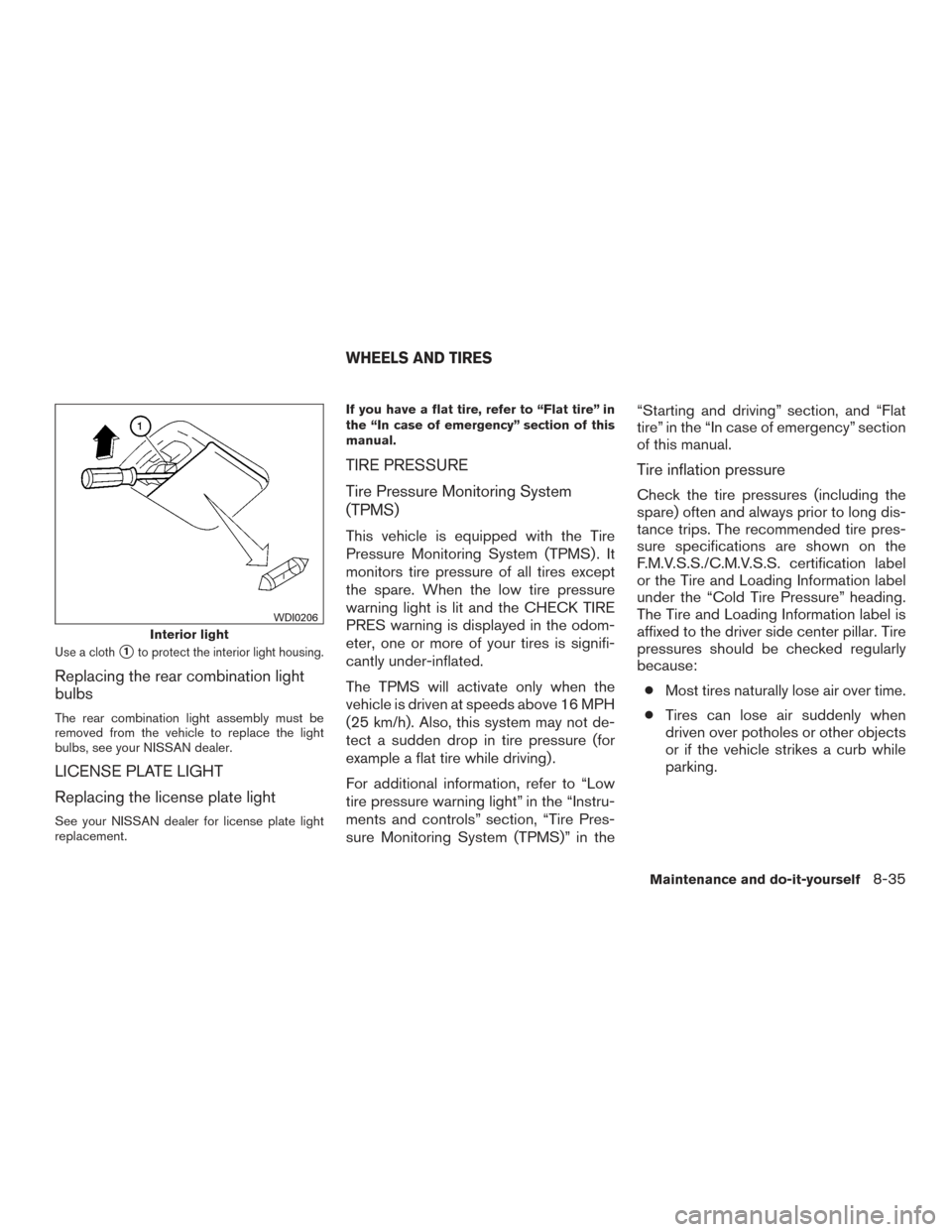

Use a cloth1to protect the interior light housing.
Replacing the rear combination light
bulbs
The rear combination light assembly must be
removed from the vehicle to replace the light
bulbs, see your NISSAN dealer.
LICENSE PLATE LIGHT
Replacing the license plate light
See your NISSAN dealer for license plate light
replacement.If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS) . It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRES warning is displayed in the odom-
eter, one or more of your tires is signifi-
cantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not de-
tect a sudden drop in tire pressure (for
example a flat tire while driving) .
For additional information, refer to “Low
tire pressure warning light” in the “Instru-
ments and controls” section, “Tire Pres-
sure Monitoring System (TPMS)” in the
“Starting and driving” section, and “Flat
tire” in the “In case of emergency” section
of this manual.
Tire inflation pressure
Check the tire pressures (including the
spare) often and always prior to long dis-
tance trips. The recommended tire pres-
sure specifications are shown on the
F.M.V.S.S./C.M.V.S.S. certification label
or the Tire and Loading Information label
under the “Cold Tire Pressure” heading.
The Tire and Loading Information label is
affixed to the driver side center pillar. Tire
pressures should be checked regularly
because:
● Most tires naturally lose air over time.
● Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
Interior light
WDI0206
WHEELS AND TIRES
