●If you need to dispose of the supple-
mental air bag or pretensioner systems
or scrap the vehicle, contact a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury.
● If there is an impact to your vehicle from
any direction, your Occupant Classifica-
tion Sensor (OCS) should be checked
by a NISSAN dealer to verify it is still
functioning correctly. The OCS should
be checked even if no air bags deploy as
a result of the impact. Failure to verify
proper OCS function may result in an
improper air bag deployment resulting
in injury or death.
NOTE:
In the event of a crash involving an air bag
deployment (side, front or both) , the vehi-
cle’s hazard lamps (turn indicators) will ac-
tivate.
1-56Safety—Seats, seat belts and supplemental restraint system

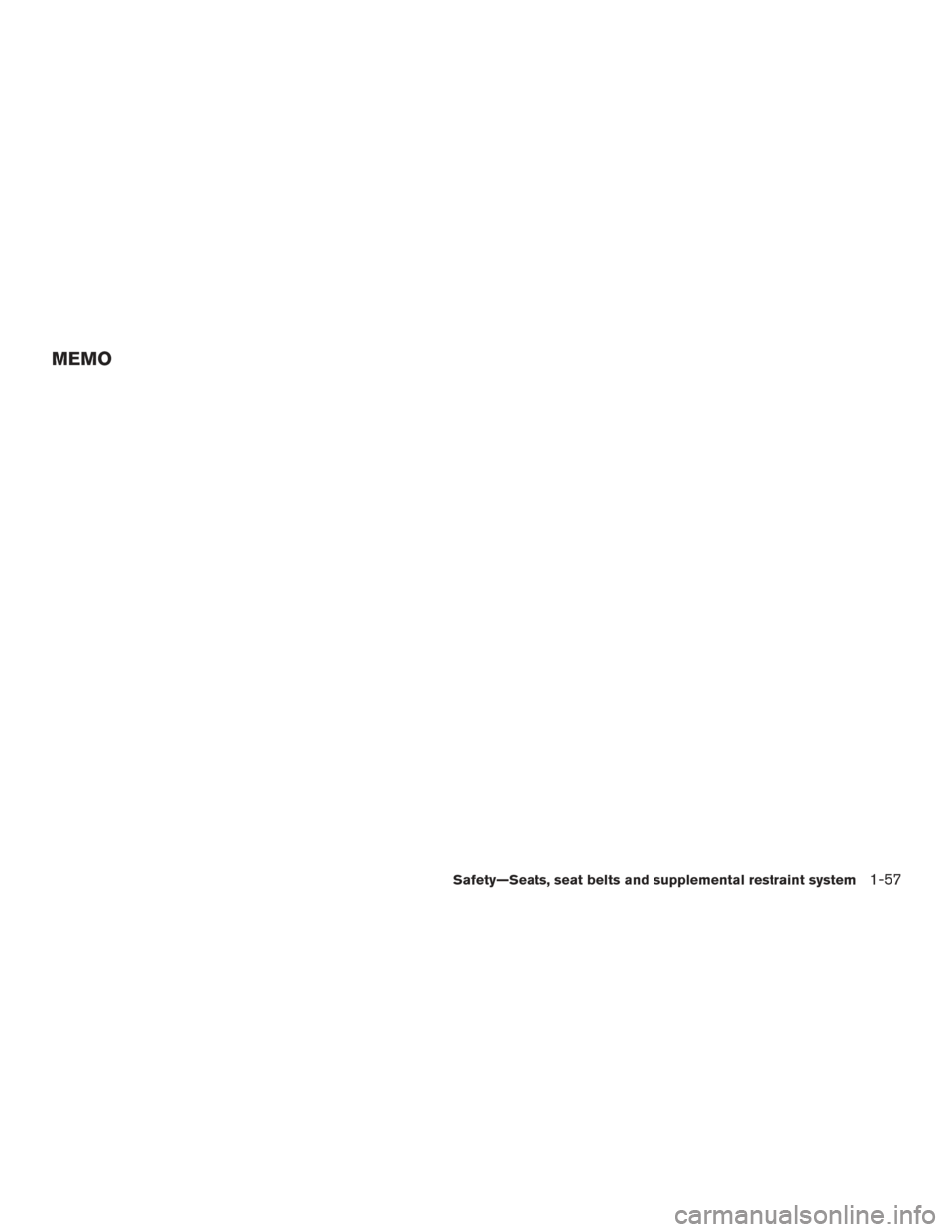

MEMO
Safety—Seats, seat belts and supplemental restraint system1-57

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-4
Tachometer ....................................2-6
Engine coolant temperature gauge ...............2-6
Fuel gauge ....................................2-7
Trip computer ..................................2-8
Outside temperature display ....................2-10
Compass display (if so equipped) ..................2-10
Compass display .............................. 2-11
Warning/indicator lights and audible reminders ......2-14
Checking bulbs ............................... 2-15
Warning lights ................................ 2-15
Indicator lights ................................ 2-19
Audible reminders ............................. 2-22
Security systems ................................. 2-23
Vehicle security system (if so equipped) ..........2-23
NISSAN vehicle immobilizer system .............2-24
Windshield wiper and washer switch ...............2-26
Switch operation .............................. 2-26
Rear window and outside mirror (if so equipped)
defroster switch .................................. 2-27
Headlight and turn signal switch ....................2-27Headlight control switch
........................ 2-27
Daytime running light system (Canada only) ......2-29
Instrument brightness control ...................2-29
Turn signal switch ............................. 2-30
Fog light switch (if so equipped) ................2-30
Horn ............................................ 2-31
Heated seats (if so equipped) ......................2-31
Vehicle Dynamic Control (VDC) off switch ...........2-32
Power outlet ..................................... 2-33
Storage ......................................... 2-34
Map pockets .................................. 2-34
Storage trays ................................. 2-35
Storage pouch ................................ 2-35
Seatback pockets (if so equipped) ..............2-36
Sunglasses

holder ............................. 2-36
Cup holders .................................. 2-37
Glove box .................................... 2-38
Console box .................................. 2-38
Slide front armrest (if so equipped) ..............2-39
Cargo net (if so equipped) ......................2-40
Windows ........................................ 2-40
Power windows ............................... 2-40
Moonroof (if so equipped) ......................... 2-43

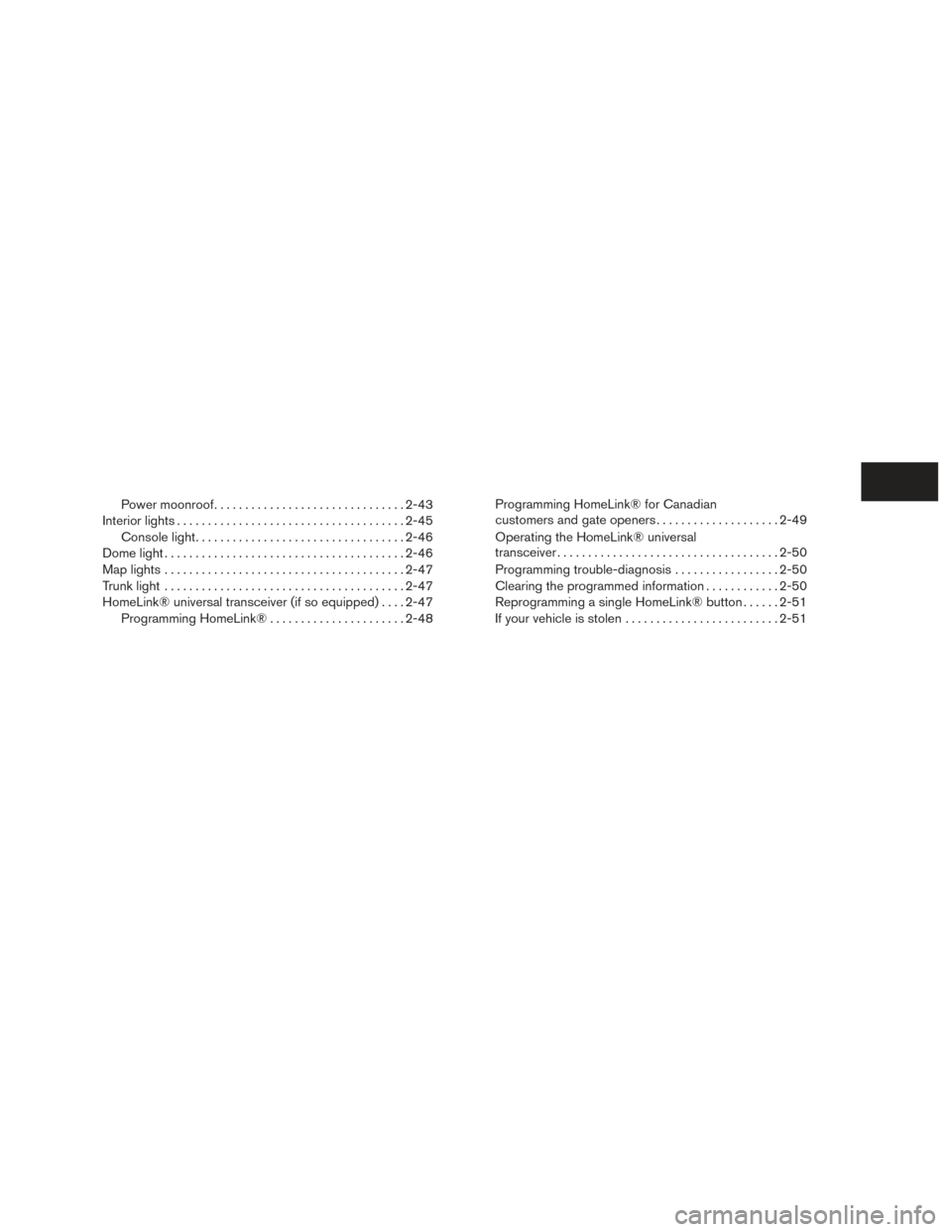

Power moonroof............................... 2-43
Interior lights ..................................... 2-45
Console light .................................. 2-46
Dome light ....................................... 2-46
Map lights ....................................... 2-47
Trunk light ....................................... 2-47
HomeLink® universal transceiver (if so equipped) . . . . 2-47 Programming HomeLink® ......................2-48Programming HomeLink® for Canadian
customers and gate openers
....................2-49
Operating the HomeLink® universal
transceiver .................................... 2-50
Programming trouble-diagnosis .................2-50
Clearing the programmed information ............2-50
Reprogramming a single HomeLink® button ......2-51
If your vehicle is stolen ......................... 2-51

1. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-27)
2. Steering wheel switch for trip
computer, audio control and
Bluetooth® Hands-free Phone System
(if so equipped) (P. 4-93, 4-67)
3. Driver’s supplemental air bag/Horn
(P. 1-44, 2-31)
4. Meters and gauges (P. 2-3)
5. Cruise control main/set switches
(P. 5-24)
6. Windshield wiper/washer switch
(P. 2-26)
7. Vent (P. 4-15)
8. Hazard warning flasher switch (P. 6-2)
9. Audio system (P. 4-27)
10. Passenger’s supplemental air bag
(P. 1-44)
11. Glove box (P. 2-38)
12. Front passenger air bag status light
(P. 2-20)
13. Shift lever (P. 5-17)
14. Climate control (P. 4-16)
15. Ignition switch (if so equipped)/
Push-button ignition switch (if so
equipped) (P. 5-8, 5-10)
16. Telescopic steering (P.3-28)
LIC3145
INSTRUMENT PANEL
2-2Instruments and controls

17. Hood release (P. 3-23)
18. Fuel filler door release (P. 3-25)
19. ECO mode switch (P. 5-23); SPORTmode switch (P. 5-23); Vehicle
Dynamic Control (VDC) OFF switch
(P. 2-32)
20. Instrument brightness control (P. 2-29);
Power mirror switch (P. 3-31); Trunk
release (P. 3-24)
* Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
1. Engine coolant temperature gauge
2. Fuel gauge
3. Speedometer 4. Odometer/Ill control/twin trip odometer/
trip computer/fuel economy/Eco Pedal
Indicator/Temperature/Accel guide/GSI
indication
5. Tachometer
LIC2658
METERS AND GAUGES
Instruments and controls2-3

SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located within the vehicle information display.
Speedometer
The speedometer indicates the vehicle speed.
Odometer/Twin trip odometer
The odometer2and the twin trip odometer1
are displayed when the ignition switch is placed
in the ON position.
The odometer records the total distance the ve-
hicle has been driven.
The twin trip odometer records the distance of
individual trips.
To switch between the odometer and the twin trip
odometers press the
button on the steer-
ing wheel.
LIC2255LIC3050
2-4Instruments and controls

Changing the display
Press the
button on the steering wheel to
change the display as follows:
Accel guide/Average fuel economy →Instant fuel
economy/Average fuel economy →Average fuel
economy →Average speed →Distance to empty
→ Trip A →Trip B
Resetting the trip odometer
Press the
button on the steering wheel for
more than 1 second to reset the currently dis-
played trip odometer to zero.
Loose fuel cap warning message
Push the reset buttonAfor more than 1 second
to reset the LOOSE FUEL CAP warning mes-
sage
Bafter the fuel cap has been tightened.
For additional information, refer to “Fuel-filler
cap” in the “Pre-driving checks and adjustments”
section of this manual.
Check tire pressure warning message
The CHECK TIRE PRES warning message is
displayed when the low tire pressure warning
light is illuminated and low tire pressure is de-
tected. Check and adjust the tire pressure to the
recommended COLD tire pressure shown on the
Tire and Loading Information label. The CHECK
TIRE PRES warning message can be turned off
using the reset button
Aon the steering wheel.
The low tire pressure warning light will not be
turned off.
LPD2124LIC2678
