2015 NISSAN ROGUE Quick Reference Guide

15
WINDSHIELD WIPER AND WASHER SWITCH
Move the lever to one of the following positions to operate the windshield wipers:

1 Mist — One sweep operation of the
front wipers.

2 Intermittent — Front wipers operate
intermittently, and the speed can be
adjusted by twisting the time control ring
3 to increase or decrease wiper speed.

4 Low — Front wipers operate at a
continuous low-speed.

5 High — Front wipers operate at a
continuous high-speed.

6 Front Washer — Pull the lever toward
you to activate the front washer. The front
wipers will operate several times.
REAR WINDSHIELD WIPER AND WASHER

7 Intermittent — Rear wiper
operates intermittently.

8 Low — Rear wiper operates at a
continuous low-speed.

9 Rear Washer — Push the lever
forward to activate the rear washer. The
rear wiper will operate several times.
WIPER BLADE REPLACEMENT PROCEDURE
The windshield wipers must be in the service position in order to replace the wiper
blades. To move the wiper blades to the service position, follow this procedure:

When the ignition switch is in the ON position or within 60 seconds of placing the
ignition switch to the OFF position, lift the windshield wiper and washer lever up to
the Mist
position 1 two times in less than 0.5 seconds. The windshield wipers will
move to the service position automatically, and the wiper blades can now be replaced.
To move the wiper blades back to the original position:

Lift the windshield wiper and washer lever up for more than 1 second or lower the
lever down to operate at any wiper speed.
For more information, refer to the “Instruments and controls (section 2)” and the “Maintenance and do-it-
yourself (section 8)” of your Owner’s Manual.
31
2
4
5
MIST
OFFINT
LO
HI
69
INT
ON7
8
LANE CHANGE SIGNAL

Move the lever up or down until the turn signal begins to flash, but t\
he lever does not
latch, to signal a lane change. Hold the lever until the lane change is completed.

Move the lever up or down until the turn signal begins to flash, but t\
he lever does not
latch, and release the lever. The turn signal will automatically flash 3 times.

Choose the appropriate method to signal a lane change based on the road and
traffic conditions.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
1904704_15d_Rogue_QRG_031915.indd 153/19/15 1:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

16
AUTOMATIC CLIMATE CONTROLS (if so equipped)
1 DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS

Press the front window defroster mode
button. If it is difficult to defog the
windows, press the A/C button 6. This feature removes humidity from the air.

Turn the temperature control dial left or right to set the desired temper\
ature.

To set the defroster on high, press both the fan speed
button
5 all the way up
and the driver’s side temperature control dial
3 all the way to the right.
2 DEFROSTING REAR WINDOW

Push the rear window defroster
switch
2. Push the switch again to manually turn
the defroster off. This function automatically turns off after approximately 15 minutes.
3 ON•OFF BUTTON/DRIVER’S SIDE TEMPERATURE CONTROL DIAL

Push the ON/OFF button to turn the climate controls on or off. Turn the temperature
control dial to the left for cooler air or right for warmer air.
4 MODE BUTTON

Press the MODE button to cycle through the following air flow outlets:

Air flows from the center and side vents.

Air flows from the center, side and foot vents.

Air flows mainly from the foot vents.

Air flows from the defroster and foot vents.
5 FAN SPEED CONTROL BUTTONS

Press the fan speed control button for low fan speeds or
for high fan speeds.
6 A/C ON•OFF BUTTON

Press the A/C button to turn the air conditioner system on or off. This system helps
cool and dehumidify the air inside the cabin and defog the windows.
7 DUAL BUTTON/PASSENGER’S SIDE TEMPERATURE CONTROL DIAL

Press the D UAL button to turn the passenger’s side temperature controls on or off.
This will allow the passenger’s side temperature to be adjusted independently from
the driver’s side by turning the passenger’s side temperature control dial.

Turn the passenger’s side temperature control dial left for cooler air or right for
warmer air.
8 AIR RECIRCULATION BUTTON

The air recirculation button is used to avoid outside odors.
1
3
25
9
4
8
6
10
7
FIRST DRIVE FEATURES
1904704_15d_Rogue_QRG_031915.indd 163/19/15 1:23 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

17
FM/AM/SiriusXM®* SATELLITE RADIO WITH CD PLAYER
(if so equipped)
1 VOLUME CONTROL KNOB/POWER BUTTON

Turn the VOLUME control knob to the right or left to increase or decrease the volume.

Press the POWE R button to turn the system on or off.
2 TUNE•SCROLL KNOB/ENTER|AUDIO BUTTON

To manually tune the radio, turn the TUNE•SCROLL knob left or right.

Press the ENTER|AUDIO button to go to the audio settings screen.
3
SEEK BUTTONS

To tune and stop at the previous or next broadcast station, press the seek buttons
or .

For satellite radio to switch to the first channel of the previous or next category,
press the seek buttons
or .

To change tracks on a CD, press the seek buttons or .

To rewind or fast forward a track on a CD, press and hold the seek buttons or .
*SiriusXM® Satellite Radio is only available on vehicles equipped with an optional s\
atellite radio subscription service.
6
4
3
5
12
Press the air recirculation button
once to turn on and press again to turn off.

The air recirculation mode cannot be activated when the climate control s\
ystem is in
the front defroster mode
or the front defroster and foot vent mode .
9 AUTO BUTTON

Press the AUTO button to turn the system on, and the system will automatically
control the inside temperature (automatic cooling and/or dehumidified\
heating), air
flow distribution and fan speed.
10 FRESH AIR INTAKE BUTTON

Press the fresh air intake
button to draw outside air into the passenger
compartment. The fresh air intake indicator light on the button will illuminate.
For more information, refer to the “Instruments and controls (section 2)” and the “Monitor, climate, audio, phone
and voice recognition systems (section 4)” of your Owner’s Manual.
1904704_15d_Rogue_QRG_031915.indd 173/19/15 1:23 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

18

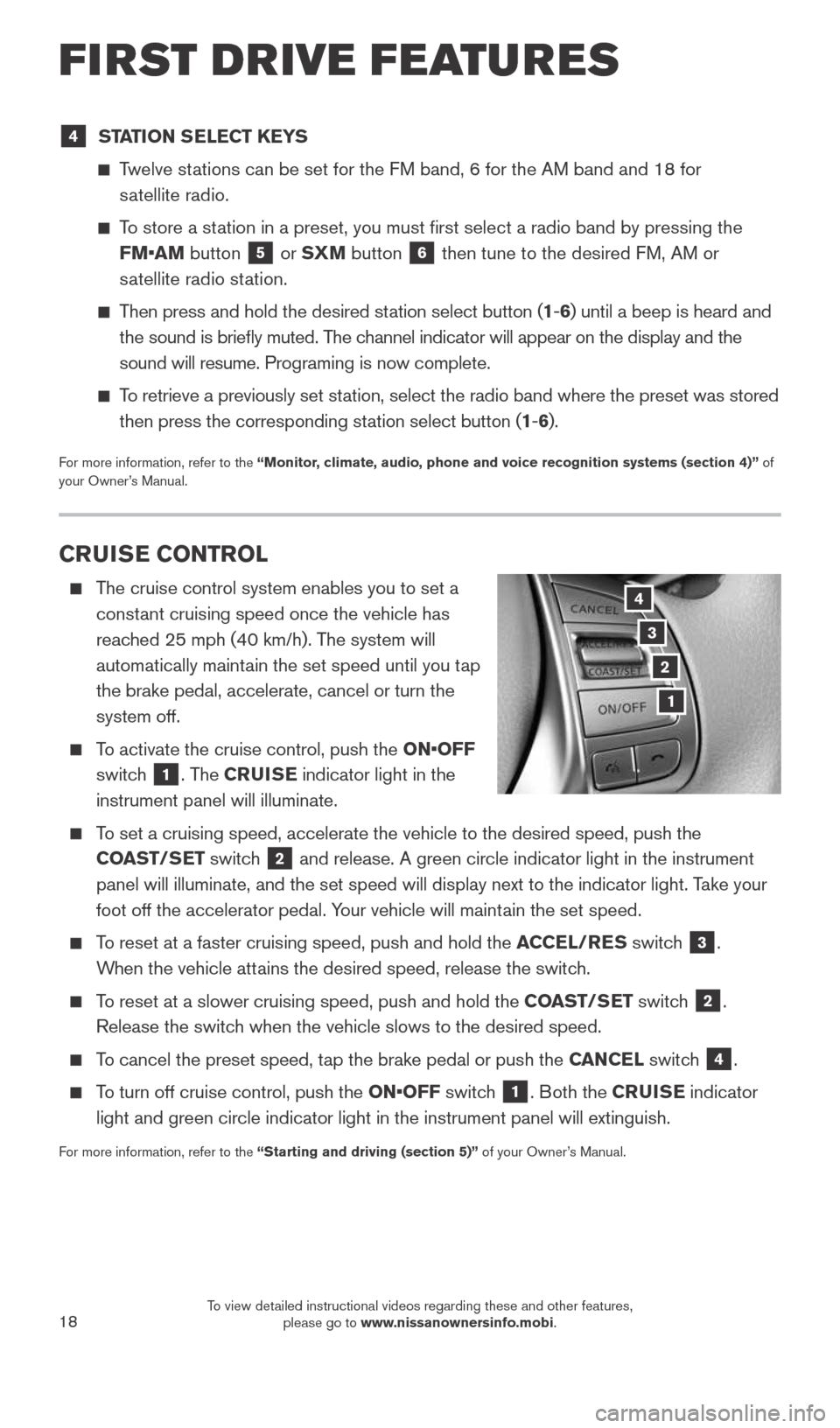

CRUISE CONTROL
The cruise control system enables you to set a
constant cruising speed once the vehicle has
reached 25 mph (40 km/h). The system will
automatically maintain the set speed until you tap
the brake pedal, accelerate, cancel or turn the
system off.

To activate the cruise control, push the ON•OFF
switch
1. The CRUISE indicator light in the
instrument panel will illuminate.

To set a cruising speed, accelerate the vehicle to the desired speed, pus\
h the
COAST/SET switch
2 and release. A green circle indicator light in the instrument
panel will illuminate, and the set speed will display next to the indica\
tor light. Take your
foot off the accelerator pedal. Your vehicle will maintain the set speed.

To reset at a faster cruising speed, push and hold the ACCEL/RES switch 3.
When the vehicle attains the desired speed, release the switch.

To reset at a slower cruising speed, push and hold the COAST/SET switch 2.
Release the switch when the vehicle slows to the desired speed.

To cancel the preset speed, tap the brake pedal or push the CANCEL switch 4.

To turn off cruise control, push the ON•OFF switch 1. Both the CRUISE indicator
light and green circle indicator light in the instrument panel will exti\
nguish.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
3
2
1
4
4 STATION SELECT KEYS

Twelve stations can be set for the FM band, 6 for the AM band and 18 for
satellite radio.

To store a station in a preset, you must first select a radio band by pressing the \

FM•AM button
5 or SXM button 6 then tune to the desired FM, AM or
satellite radio station.

Then press and hold the desired station select button (1 -6 ) until a beep is heard and
the sound is briefly muted. The channel indicator will appear on the display and the
sound will resume. Programing is now complete.

To retrieve a previously set station, select the radio band where the preset was stored
then press the corresponding station select button (1 -6 ).
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of
your Owner’s Manual.
FIRST DRIVE FEATURES
1904704_15d_Rogue_QRG_031915.indd 183/19/15 1:23 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

19

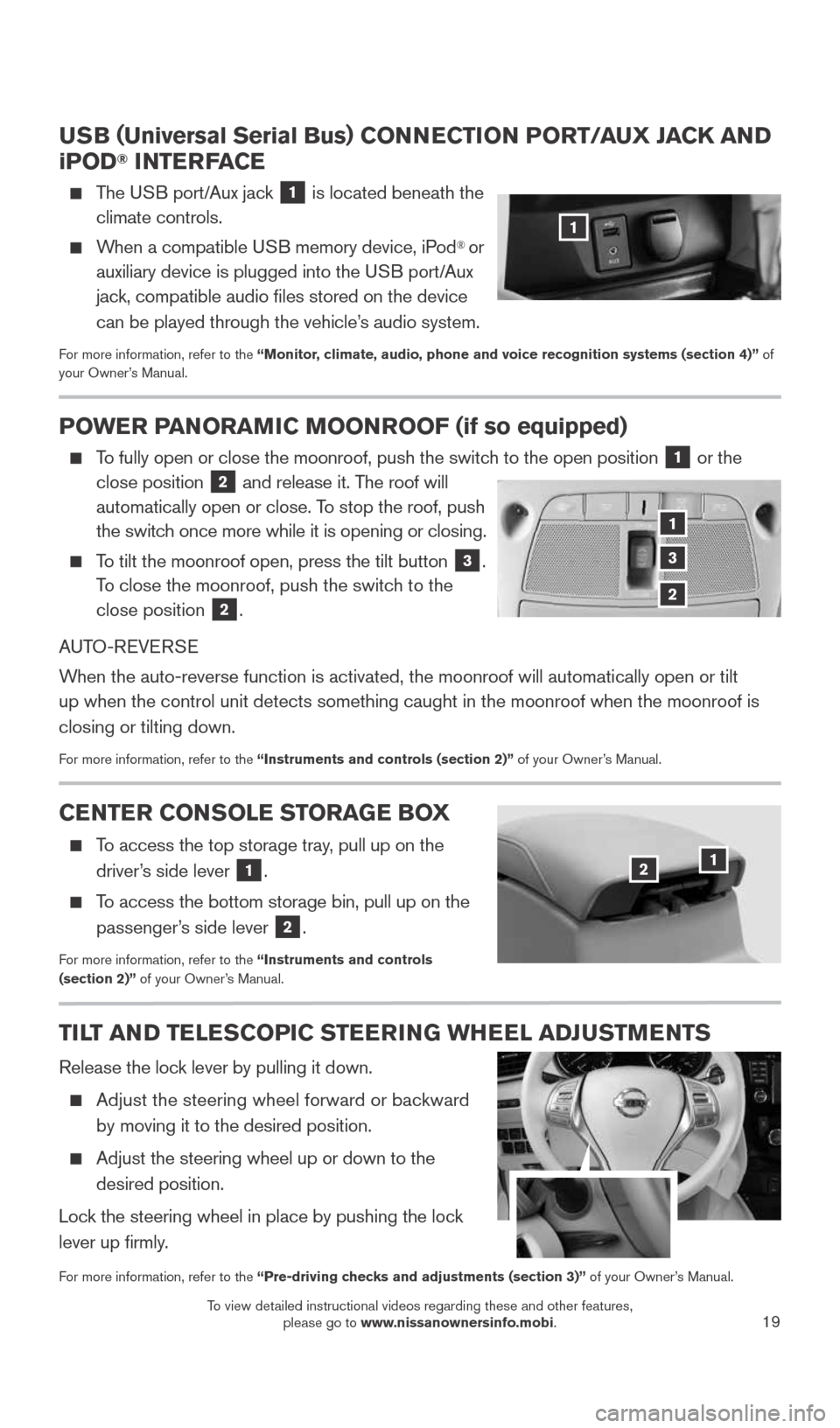

USB (Universal Serial Bus) CONNECTION PORT/ AUX JACK AND
iPOD® INTERFACE
The USB port/Aux jack 1 is located beneath the
climate controls.

When a compatible USB memory device, iPod® or
auxiliary device is plugged into the USB port/Aux
jack, compatible audio files stored on the device
can be played through the vehicle’s audio system.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of
your Owner’s Manual.
1
POWER PANORAMIC MOONROOF (if so equipped)
To fully open or close the moonroof, push the switch to the open position 1 or the
close position
2 and release it. The roof will
automatically open or close. To stop the roof, push
the switch once more while it is opening or closing.

To tilt the moonroof open, press the tilt button 3.
To close the moonroof, push the switch to the
close position
2.
AUTO-REVERSE
When the auto-reverse function is activated, the moonroof will automatica\
lly open or tilt
up when the control unit detects something caught in the moonroof when t\
he moonroof is
closing or tilting down.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
1
3
2
CENTER CONSOLE STORAGE BOX
To access the top storage tray, pull up on the
driver’s side lever
1.

To access the bottom storage bin, pull up on the
passenger’s side lever
2.
For more information, refer to the “Instruments and controls
(section 2)” of your Owner’s Manual.
TILT AND TELESCOPIC STEERING WHEEL ADJUSTMENTS
Release the lock lever by pulling it down.

Adjust the steering wheel forward or backward
by moving it to the desired position.

Adjust the steering wheel up or down to the
desired position.
Lock the steering wheel in place by pushing the lock
lever up firmly.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
12
1904704_15d_Rogue_QRG_031915.indd 193/19/15 1:23 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

20
SYSTEM GUIDE
VEHICLE INFORMATION DISPLAY
The vehicle information display 1 displays such items as:

Vehicle settings

Trip computer information

Drive system warnings and settings
(if so equipped)

Audio information

Navigation turn-by-turn

Cruise control system information

NISSAN Intelligent Key® operation information

Indicators and warnings

Tire pressure information
USING THE VEHICLE INFORMATION DISPLAY
The vehicle information display can be changed using
the
button 2 and the ENTER buttons 3
located on the steering wheel.

Press the button2 to change the
display mode.

Move the switch 3 up or down to navigate
through the vehicle information display menu.

Press the ENTER button 4 to change
or select an item.

Press 5 to go back to the previous menu.
START-UP DISPLAY
When the ignition is in the ON position, the vehicle information display will support four of
the following modes:

Active system status (if so equipped) Fuel economy

Trip computer Warnings (if there are any)

Tire pressure information
RESETTING THE TRIP COMPUTER
1. Press the
button 2 until you reach the trip computer mode.
2. Press the
button 2 for more than 1.5 seconds to reset fuel consumption, average
speed, distance to empty and journey time.
3. Pushing the TRIP RESET switch
6 for more than 1 second resets the currently
displayed trip odometer to zero.
SETTINGS
The setting mode allows you to change the information displayed in the vehicle
information display:

Driver Assistance Tire Pressures Meter Settings

Unit Vehicle Settings Language

Maintenance Factory Reset Alerts
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
5
3
2
4
6
1
1904704_15d_Rogue_QRG_031915.indd 203/19/15 1:23 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

21
NISSANCONNECTSM MOBILE APPS
Integrates popular smartphone apps and services into your vehicle.

The NissanConnect Mobile Apps companion app must be downloaded to your smartphone, and you must be enrolled.
FOR SYSTEM WITH NAVIGATION
• iPhone
®: Please connect over USB when using an iPhone® with NissanConnect
M obile Apps.
• Android: Please connect over Bluetooth
® when using an Android device with
NissanConnect Mobile Apps.
FOR SYSTEM WITHOUT NAVIGATION
• iPhone
®: Please connect over Bluetooth® when using an iPhone® with NissanConnect
Mobile Apps.
• Android: Please connect over Bluetooth
® when using an Android device with
NissanConnect M obile Apps.

For more information on how to pair your phone and set up NissanConnect Mobile
Apps, visit: www.nissanusa.com/connect/support.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4) ” of
your Owner’s Manual.
TEXT MESSAGING* (if so equipped)

This system allows for sending and receiving text
messages through the vehicle’s interface.

Using predefined or custom messages, send a
text to a name or phone number stored in your
Bluetooth
® Hands-free Phone System.

Once enabled, the text message, sender and
delivery time are shown on the control panel display screen.

Text messages have the option of being read aloud.

Many cellular phones require special permission to enable Text Messaging. Check
the cellular phone’s screen during Bluetooth® pairing or in the cellular phone’s Bluetooth®
Settings to enable messages or notifications.

Text messages are only displayed on the control panel if the vehicle speed is les\
s than
5 mph (8 km/h).

Many cellular phones may require special permission to enable text messaging. Check
the cellular phone’s screen during Bluetooth® pairing. For some cellular phones, you may
need to enable “Notifications” in the cellular phone’s Bluetooth® menu for text messages to
appear on the touch-screen display. For more detailed information and instructions, refer to
your cellular phone’s Owner’s Manual.

Text message integration requires that the cellular phone support Message Access Profile
(MAP) for both receiving and sending text messages. Some cellular phone’s may not
support all text messaging features. Please see www.nissanusa.com/bluetooth for
compatibility information as well as your device’s Owner’s Manual.
*Laws in some jurisdictions may restrict the use of “Text-to-Speech”. Some of the applications and features, such as social
networking and texting, may also be restricted. Check local regulations for any requirements before using
these features.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4)” of your
Owner’s Manual.
1904704_15d_Rogue_QRG_031915.indd 213/19/15 1:23 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

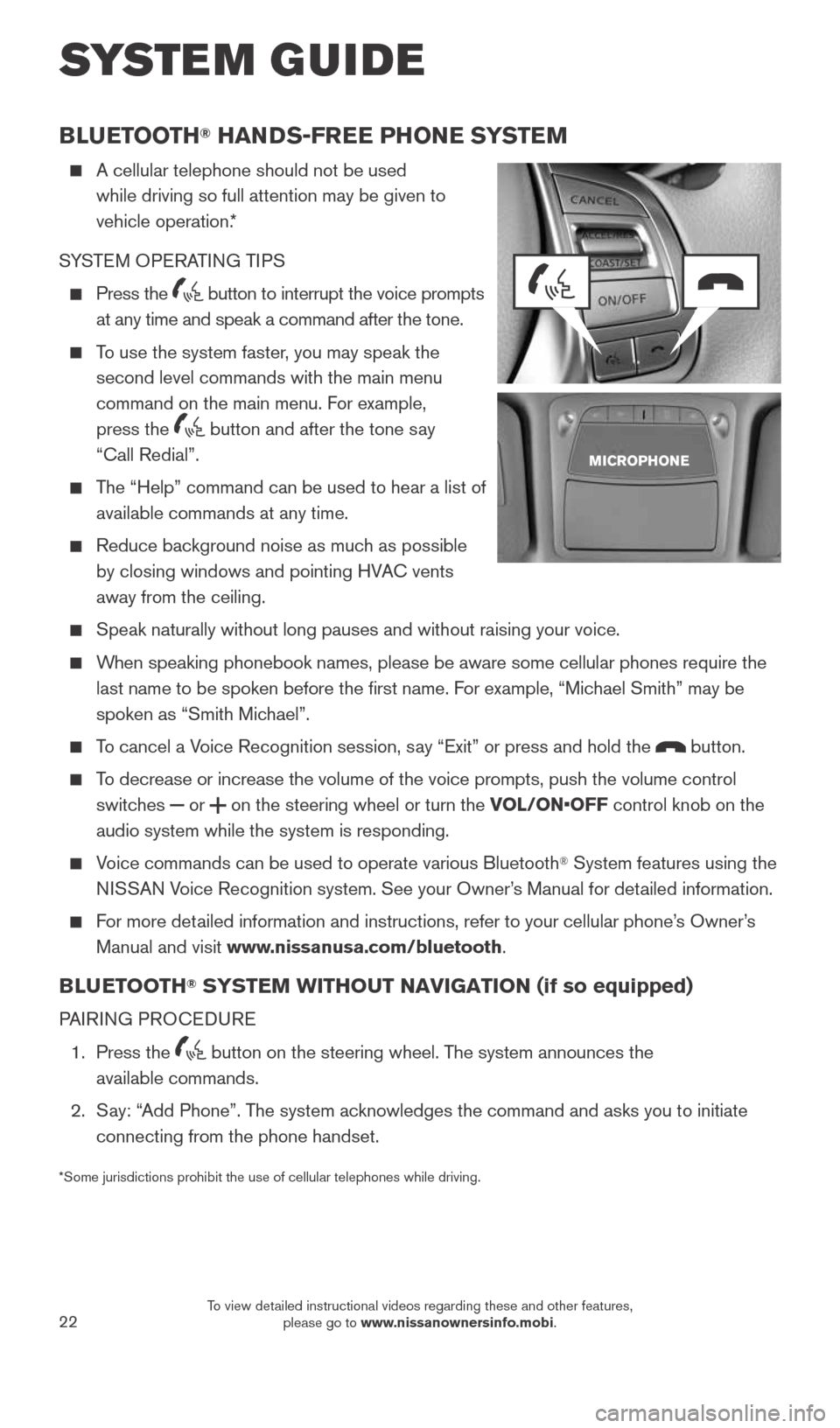

22
SYSTEM GUIDE
BLUETOOTH® HANDS-FREE PHONE SYSTEM
A cellular telephone should not be used
while driving so full attention may be given to
vehicle operation.*
SYSTEM OPERATING TIPS

Press the button to interrupt the voice prompts
at any time and speak a command after the tone.

To use the system faster, you may speak the
second level commands with the main menu
command on the main menu. For example,
press the
button and after the tone say
“Call Redial”.

The “Help” command can be used to hear a list of
available commands at any time.

Reduce background noise as much as possible
by closing windows and pointing HVAC vents
away from the ceiling.

Speak naturally without long pauses and without raising your voice.

When speaking phonebook names, please be aware some cellular phones requi\
re the
last name to be spoken before the first name. For example, “Michael Smith” may be
spoken as “Smith Michael”.

To cancel a Voice Recognition session, say “Exit” or press and hold the button.

To decrease or increase the volume of the voice prompts, push the volume \
control
switches
or on the steering wheel or turn the VOL/ON•OFF control knob on the
audio system while the system is responding.

Voice commands can be used to operate various Bluetooth® System features using the
NISSAN Voice Recognition system. See your Owner’s Manual for detailed information.

For more detailed information and instructions, refer to your cellular phone’s Owner’s
Manual and visit www.nissanusa.com/bluetooth.
BLUETOOTH® SYSTEM WITHOUT NAVIGATION (if so equipped)
PAIRING PROCEDURE
1. Press the

button on the steering wheel. The system announces the

available commands.
2. Say: “Add Phone”. The system acknowledges the command and asks you to initiate
connecting from the phone handset.
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.
1904704_15d_Rogue_QRG_031915.indd 223/19/15 1:23 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
