2015 NISSAN ROGUE Quick Reference Guide

7
ESSE NTIAL I N FOR MATION

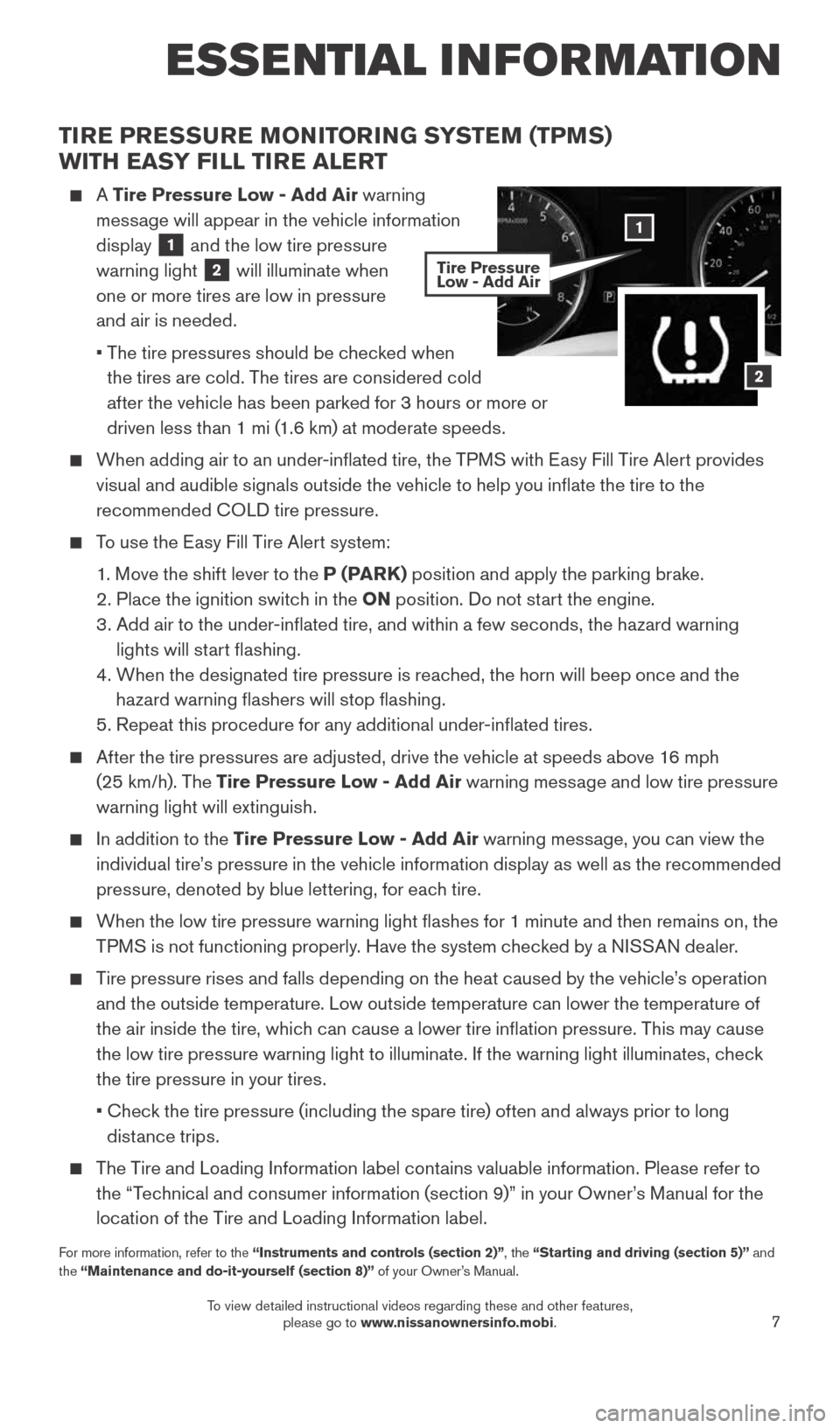

TIRE PRESSURE MONITORING SYSTEM (TPMS)
WITH EASY FILL TIRE ALERT
A Tire Pressure Low - Add Air warning
message will appear in the vehicle information
display
1 and the low tire pressure
warning light
2 will illuminate when
one or more tires are low in pressure
and air is needed.
• The tire pressures should be checked when
the tires are cold. The tires are considered cold
after the vehicle has been parked for 3 hours or more or
driven less than 1 mi (1.6 km) at moderate speeds.

When adding air to an under-inflated tire, the TPMS with Easy Fill Tire Alert provides
visual and audible signals outside the vehicle to help you inflate the tire to the
recommended COLD tire pressure.

To use the Easy Fill Tire Alert system:
1. Move the shift lever to the P (PARK ) position and apply the parking brake.
2. Place the ignition switch in the ON position. Do not start the engine.
3. Add air to the under-inflated tire, and within a few seconds, the hazard warning
lights will start flashing.
4. When the designated tire pressure is reached, the horn will beep once and the
hazard warning flashers will stop flashing.
5. Repeat this procedure for any additional under-inflated tires.

After the tire pressures are adjusted, drive the vehicle at speeds above 16 mph
(25 km/h). The Tire Pressure Low - Add Air warning message and low tire pressure
warning light will extinguish.

In addition to the Tire Pressure Low - Add Air warning message, you can view the
individual tire’s pressure in the vehicle information display as well as the recommended
pressure, denoted by blue lettering, for each tire.

When the low tire pressure warning light flashes for 1 minute and then remains on, the
TPMS is not functioning properly. Have the system checked by a NISSAN dealer.

Tire pressure rises and falls depending on the heat caused by the vehicle’s operation
and the outside temperature. Low outside temperature can lower the temperature of
the air inside the tire, which can cause a lower tire inflation pressure. This may cause
the low tire pressure warning light to illuminate. If the warning light illuminates, check
the tire pressure in your tires.
• Check the tire pressure (including the spare tire) often and always prior to long
distance trips.

The Tire and Loading Information label contains valuable information. Please refer to
the “Technical and consumer information (section 9)” in your Owner’s Manual for the
location of the Tire and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)” and
the “Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
2
1
Tire Pressure
Low - Add Air
1904704_15d_Rogue_QRG_031915.indd 73/19/15 1:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

8
LOOSE FUEL CAP
A Loose Fuel Cap warning message will appear
in the vehicle information display
1 when the
fuel-filler cap is not tightened correctly.

To tighten, turn the cap clockwise until a single
click is heard.

The warning message will extinguish when the
vehicle detects the fuel-filler cap is properly
tightened and the
button, located on the steering wheel, is pressed.

If the cap is not properly tightened, the Malfunction Indicator Light may illuminate.
For more information, refer to the “Instruments and controls (section 2)” and the “Pre-driving checks and
adjustments (section 3)” of your Owner’s Manual.
1
TOWING YOUR VEHICLE
ALL-WHEEL DRIVE (AWD) VEHICLE ( if so equipped)
• An all-wheel drive vehicle must be towed with all wheels off the gr\
ound.

For proper towing and to avoid accidental damage to your vehicle, NISSAN
recommends that a service operator tow your vehicle after carefully reading the Own\
er’s
Manual precautions.
For more information, refer to the “In case of emergency (section 6)” of your Owner’s Manual.
FUEL-FILLER DOOR
The fuel-filler door is located on the passenger’s
side of the vehicle.

To open the fuel-filler door, pull the release
lever
1, located on the instrument panel to
the left of the steering wheel.
For more information, refer to the “Pre-driving checks and
adjustments (section 3)” of your Owner’s Manual.
1
ESSE NTIAL I N FOR MATION
1904704_15d_Rogue_QRG_031915.indd 83/19/15 1:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

9
OUTSIDE TEMPERATURE DISPLAY
When the ignition switch is in the ON position, the
outside air temperature will appear in the vehicle
information display
1.

If the outside air temperature is below 25°F
(-4°C), the outside temperature display will blink
for 20 seconds then remain on when the ignition
is switched on.

If the outside air temperature is between 27°F and
37°F (-3°C and +3°C), the outside temperature display will bli\
nk continuously with the
ignition switch in the ON position.

To stop the outside temperature display from blinking, stop the vehicle i\
n a safe place
and move the shift lever to the (P) PARK position. Perform the following procedure:
1. Press the
button on the steering wheel until the Settings mode is displayed.
2. Move the

button on the steering wheel until it reaches the Alarm mode then press
E NTE R to select.
3. Move the

button until it reaches the Outside temp mode then press E NTE R

to select.
4. Move the

button until it reaches the Off mode then press E NTE R to select.
5. To exit, press the button on the steering wheel again.
LOW OUTSIDE TEMPERATURE WARNING

The Low Outside Temperature warning message 2 will appear in the vehicle
information display
1 when the outside temperature drops below 37°F (+3°C) with
the ignition switch in the ON position.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
1
2
DIVIDE-N-HIDE® FLOOR
(if so equipped)
Do not place more than 30 lbs (13.6 kg) on the
adjustable floor when it is in the upper position.
Do not place more than 165 lbs (75 kg) on the
adjustable floor when it is in the middle position.

There are multiple positions for the adjustable
floor. The upper position allows for additional
storage below the adjustable floor
1.
To move the adjustable floor from the lower position
2 to the upper position:
1. Use the handle to lift the adjustable floor.
2. Move the adjustable floor to the upper guide
track and make sure it is securely in place.
For more information, refer to the “Starting and driving (section 5)”
of your Owner’s Manual.
1
2
1904704_15d_Rogue_QRG_031915.indd 93/19/15 1:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

10

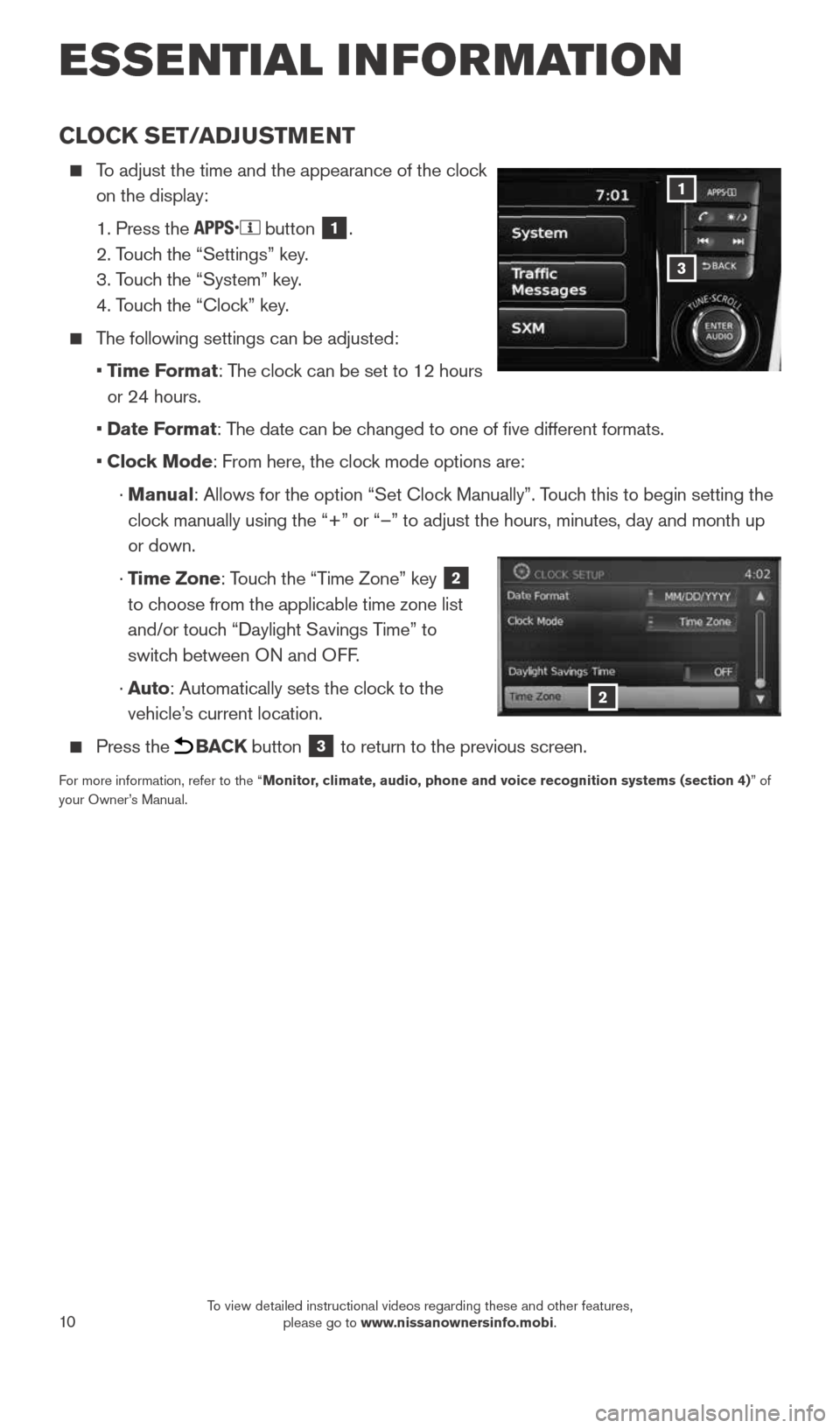

CLOCK SET/ADJUSTMENT
To adjust the time and the appearance of the clock
on the display:
1. Press the
button 1.
2. Touch the “Settings” key.
3. Touch the “System” key.
4. Touch the “Clock” key.

The following settings can be adjusted:
• Time Format: The clock can be set to 12 hours
or 24 hours.
• Date Format: The date can be changed to one of five different formats.
• Clock Mode: From here, the clock mode options are:
· Manual: Allows for the option “Set Clock Manually”. Touch this to begin setting the
clock manually using the “+” or “–” to adjust the hours, minu\
tes, day and month up
or down.
· Time Zone: Touch the “Time Zone” key
2
to choose from the applicable time zone list
and/or touch “Daylight Savings Time” to
switch between ON and OFF.
· Auto: Automatically sets the clock to the
vehicle’s current location.

Press the BACK button 3 to return to the previous screen.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4) ” of
your Owner’s Manual.
3
1
2
ESSE NTIAL I N FOR MATION
1904704_15d_Rogue_QRG_031915.indd 103/19/15 1:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

11
FIRST DRIVE FEATURES
NISSAN INTELLIGENT KEY® SYSTEM (if so equipped)
The NISSAN Intelligent Key® System allows you to lock
or unlock the vehicle, open your liftgate and start the
engine. It is important to make sure the Intelligent Key
is with you (that is, in your pocket or purse).

The operating range of the Intelligent Key is
within 31.5 in (80 cm) from each request switch.

To lock the vehicle, push either door handle
request switch
1, push the liftgate opener
switch
2 or press the button 3 on the
key fob.

To unlock the vehicle, perform one of the
following procedures:
• Push either door handle request switch
1 once or the liftgate opener switch 2
once; the corresponding door will unlock. Push the request switch again within 5
seconds; all other doors will unlock, or
• Press the

button 4 on the key fob to unlock
the driver’s side door. Press the
button 4
again; all other doors will unlock.
LIFTGATE RELEASE

To open the rear liftgate, press the
button 5 for longer than 1 second.

To close the rear liftgate, press the
button 5 again for longer than 1 second.

The Intelligent Key can also be used to activate
the panic alarm by pressing and holding the

button 6 for more than 1 second.
Once activated, the panic alarm and headlights will stay on for a period of time.
INTELLIGENT KEY BATTERY DISCHARGE

If the battery of the Intelligent Key is discharged or environmental conditions interfere
with the Intelligent Key operation, start the engine according to the following procedure:
1. Move the shift lever to the P (PARK) position.
2. Firmly apply the foot brake.
3. Touch the ignition switch with the Intelligent Key, and a chime will sound.
4. Within 10 seconds after the chime sounds, push the ignition switch while depressing
the brake pedal, and the engine will start.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1
3
4
5
2
6
1904704_15d_Rogue_QRG_031915.indd 113/19/15 1:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

12

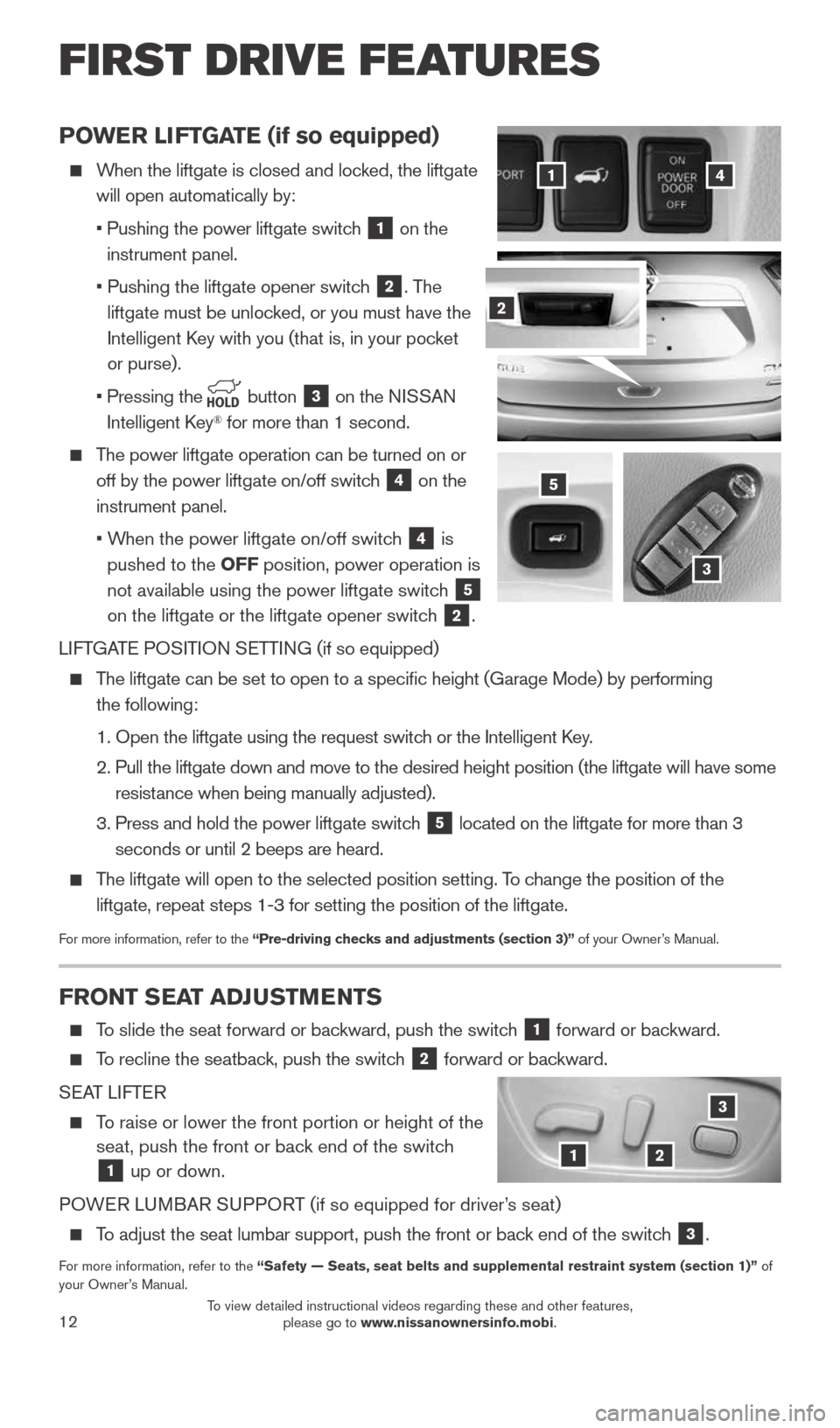

POWER LIFTGATE (if so equipped)
When the liftgate is closed and locked, the liftgate
will open automatically by:
• Pushing the power liftgate switch
1 on the
instrument panel.
• Pushing the liftgate opener switch
2. The
liftgate must be unlocked, or you must have the
Intelligent Key with you (that is, in your pocket
or purse).
• Pressing the

button 3 on the NISSAN
Intelligent Key® for more than 1 second.

The power liftgate operation can be turned on or
off by the power liftgate on/off switch
4 on the
instrument panel.
• When the power liftgate on/off switch
4 is
pushed to the OFF position, power operation is
not available using the power liftgate switch
5
on the liftgate or the liftgate opener switch
2.
LIFTGATE POSITION SETTING (if so equipped)

The liftgate can be set to open to a specific height (Garage Mode) by\
performing
the following:
1. Open the liftgate using the request switch or the Intelligent Key.
2. Pull the liftgate down and move to the desired height position (the lif\
tgate will have some
resistance when being manually adjusted).
3. Press and hold the power liftgate switch
5 located on the liftgate for more than 3
seconds or until 2 beeps are heard.

The liftgate will open to the selected position setting. To change the position of the
liftgate, repeat steps 1-3 for setting the position of the liftgate.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
3
41
2
5
FRONT SEAT ADJUSTMENTS
To slide the seat forward or backward, push the switch 1 forward or backward.

To recline the seatback, push the switch 2 forward or backward.
SEAT LIFTER

To raise or lower the front portion or height of the
seat, push the front or back end of the switch
1 up or down.
POWER LUMBAR SUPPORT (if so equipped for driver’s seat)

To adjust the seat lumbar support, push the front or back end of the switch 3.
For more information, refer to the “Safety — Seats, seat belts and supplemental restraint system (se\
ction 1)” of
your Owner’s Manual.
12
3
FIRST DRIVE FEATURES
1904704_15d_Rogue_QRG_031915.indd 123/19/15 1:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

13

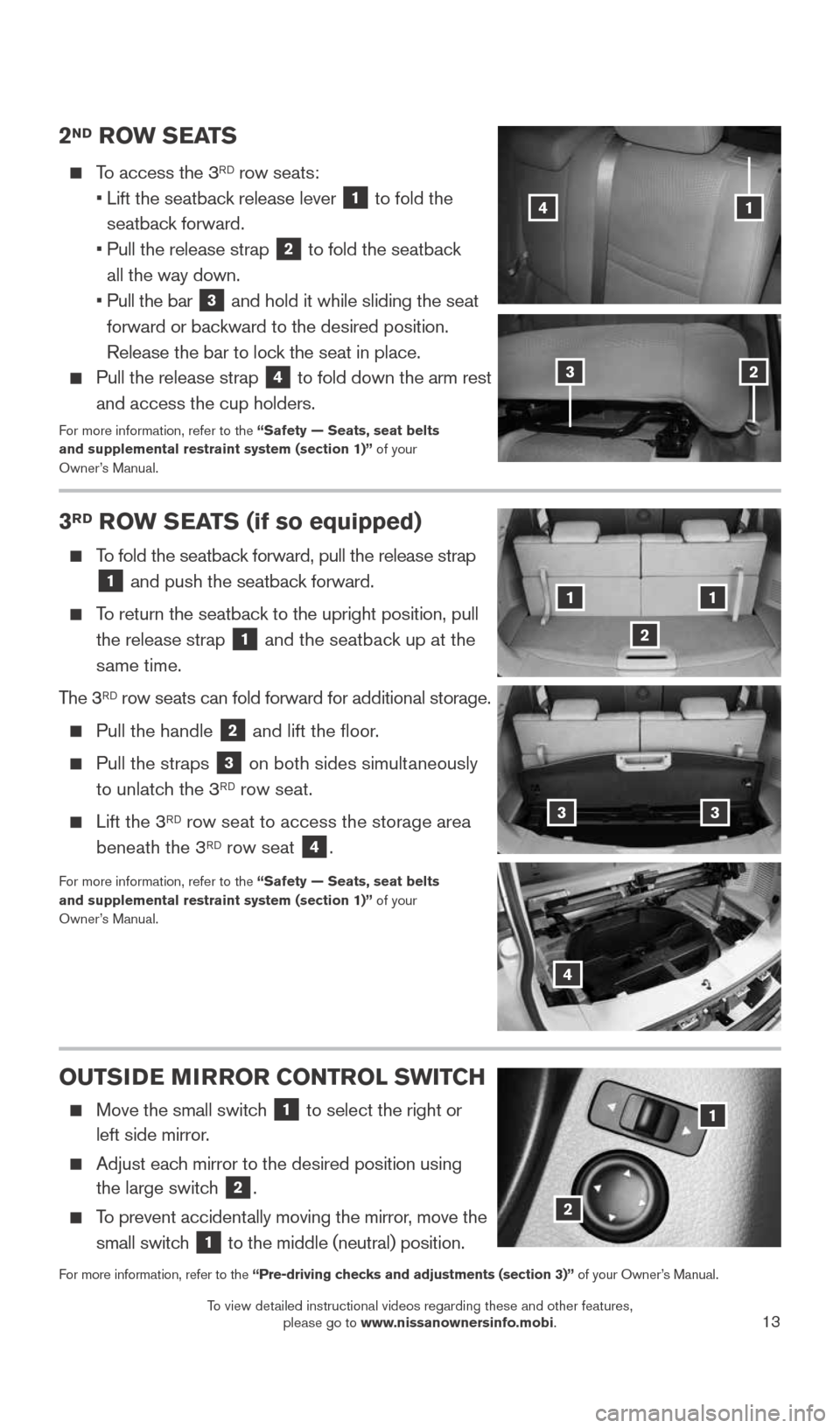

2ND ROW SEATS
To access the 3RD row seats:
• Lift the seatback release lever
1 to fold the
seatback forward.
• Pull the release strap
2 to fold the seatback
all the way down.
• Pull the bar
3 and hold it while sliding the seat
forward or backward to the desired position.
Release the bar to lock the seat in place.

Pull the release strap 4 to fold down the arm rest
and access the cup holders.
For more information, refer to the “Safety — Seats, seat belts
and supplemental restraint system (section 1)” of your
Owner’s Manual.
OUTSIDE MIRROR CONTROL SWITCH
Move the small switch 1 to select the right or
left side mirror.

Adjust each mirror to the desired position using
the large switch
2.

To prevent accidentally moving the mirror, move the
small switch
1 to the middle (neutral) position.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
1
2
3RD ROW SEATS (if so equipped)
To fold the seatback forward, pull the release strap
1 and push the seatback forward.

To return the seatback to the upright position, pull
the release strap
1 and the seatback up at the
same time.
The 3
RD row seats can fold forward for additional storage.

Pull the handle 2 and lift the floor.

Pull the straps 3 on both sides simultaneously
to unlatch the 3RD row seat.

Lift the 3RD row seat to access the storage area
beneath the 3RD row seat 4.
For more information, refer to the “Safety — Seats, seat belts
and supplemental restraint system (section 1)” of your
Owner’s Manual.
11
2
33
4
1
32
4
1904704_15d_Rogue_QRG_031915.indd 133/19/15 1:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

14

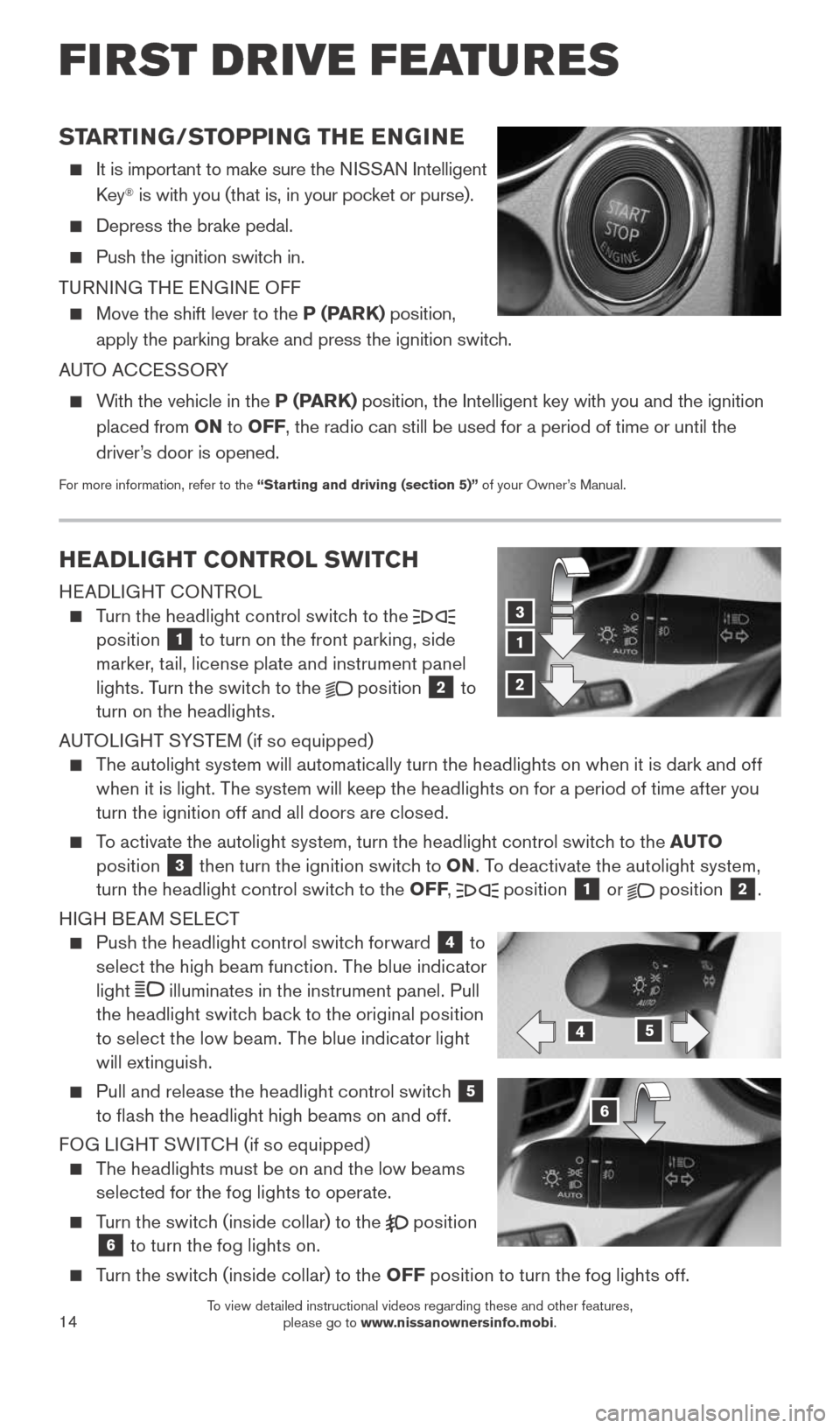

HEADLIGHT CONTROL SWITCH
HEADLIGHT CONTROL

Turn the headlight control switch to the

position 1 to turn on the front parking, side
marker, tail, license plate and instrument panel
lights. Turn the switch to the
position 2 to
turn on the headlights.
AUTOLIGHT SYSTEM (if so equipped)

The autolight system will automatically turn the headlights on when it is dark and off
when it is light. The system will keep the headlights on for a period of time after you
turn the ignition off and all doors are closed.

To activate the autolight system, turn the headlight control switch to the AUTO
position 3 then turn the ignition switch to ON . To deactivate the autolight system,
turn the headlight control switch to the OFF ,

position
1 or
position 2.
HIGH BEAM SELECT

Push the headlight control switch forward 4 to
select the high beam function. The blue indicator
light
illuminates in the instrument panel. Pull
the headlight switch back to the original position
to select the low beam. The blue indicator light
will extinguish.

Pull and release the headlight control switch 5

to flash the headlight high beams on and off.
FOG LIGHT SWITCH (if so equipped)

The headlights must be on and the low beams
selected for the fog lights to operate.

Turn the switch (inside collar) to the
position 6 to turn the fog lights on.

Turn the switch (inside collar) to the OFF position to turn the fog lights off.
1
3
2
45
6
STARTING/STOPPING THE ENGINE
It is important to make sure the NISSAN Intelligent
Key® is with you (that is, in your pocket or purse).

Depress the brake pedal.

Push the ignition switch in.
TURNING THE ENGINE OFF

Move the shift lever to the P (PARK) position,
apply the parking brake and press the ignition switch.
AUTO ACCESSORY

With the vehicle in the P (PARK) position, the Intelligent key with you and the ignition
placed from ON to OFF, the radio can still be used for a period of time or until the
driver’s door is opened.
For more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
FIRST DRIVE FEATURES
1904704_15d_Rogue_QRG_031915.indd 143/19/15 1:22 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
