– When installing a spare tire, makesure that it is the proper size and
type as specified on the Tire and
Loading Information label. For ad-
ditional information, refer to “Tire
and Loading Information label” in
the “Technical and consumer infor-
mation” section of this manual.
– For additional information, refer to “Wheels and tires” in the “Do-it-
yourself ” section of this manual.

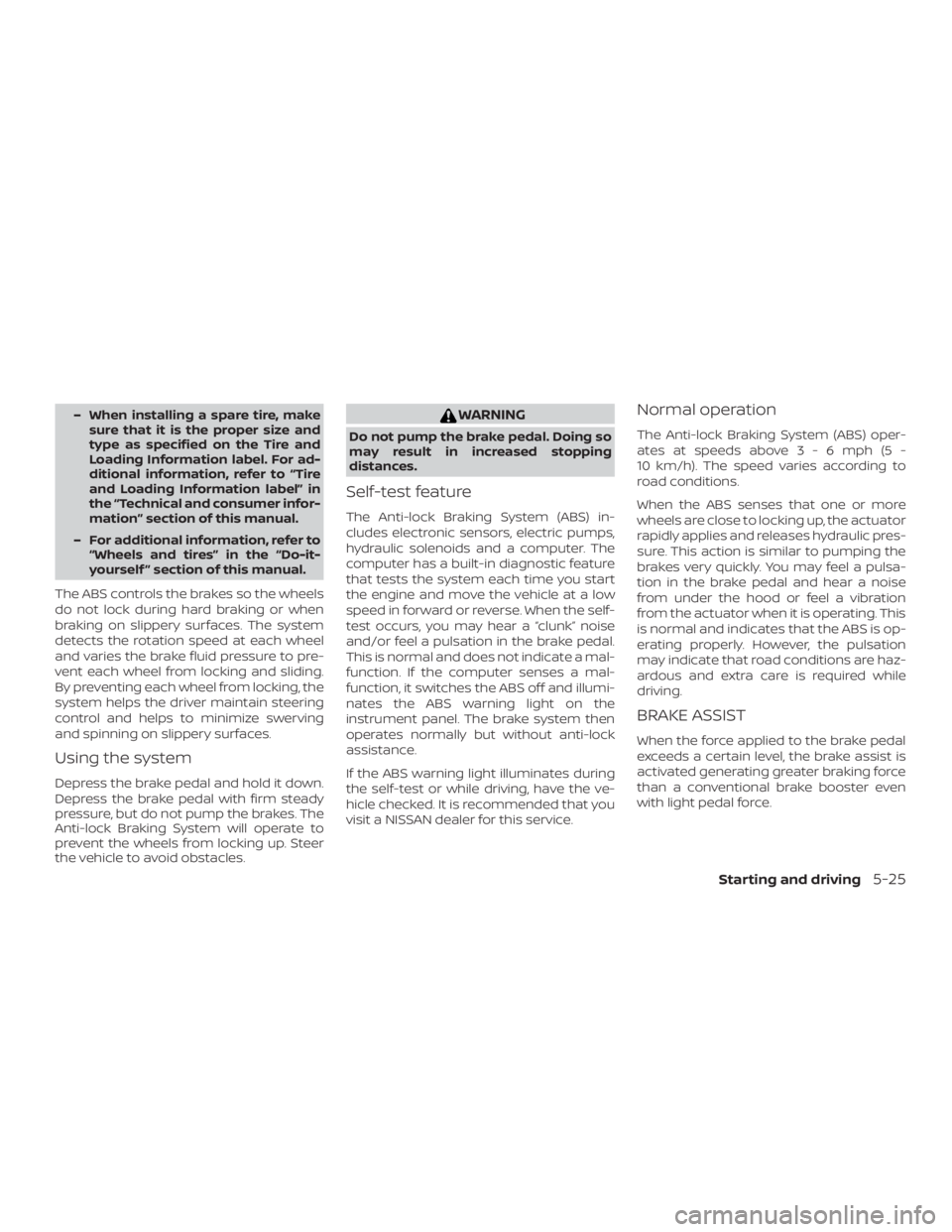

The ABS controls the brakes so the wheels
do not lock during hard braking or when
braking on slippery surfaces. The system
detects the rotation speed at each wheel
and varies the brake fluid pressure to pre-
vent each wheel from locking and sliding.
By preventing each wheel from locking, the
system helps the driver maintain steering
control and helps to minimize swerving
and spinning on slippery surfaces.
Using the system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The
Anti-lock Braking System will operate to
prevent the wheels from locking up. Steer
the vehicle to avoid obstacles.
Wheel nut tightening torque:83 f t-lb (113 N·m)
The wheel nuts must be kept tight-
ened to specifications at all times.
It is recommended that wheel nuts
be tightened to specification at
each tire rotation interval.
Af ter rotating the tires, adjust the tire
pressure to the cold tire pressure
specification shown on the tire and
loading information label. For addi-
tional information, refer to “Checking
tire pressure” in this section and “Tire
and Loading Information label” in the
“Technical and consumer informa-
tion” section of this manual.
Supplemental front impact air bag
system..................... .1-39
Supplemental restraint system Information and warning labels . . . .1-49
Precautions on supplemental restraint
system ....................1-32
Supplemental restraint system
(Supplemental air bag system) .......1-32
Switch Automatic power window switch . . .2-31
Hazard warning flasher switch ......6-2
Headlight and turn signal switch ....2-21
Headlightcontrolswitch.........2-21
Ignition switch ................5-8
Instrument brightness control .....2-23
Power door lock switch ..........3-6
Rear sonar system off switch ......2-25
Rear window and outside mirror
defrosterswitch..............2-21
Turn signal switch .............2-23
Vehicle dynamic control (VDC) off
switch....................2-24
T
Tachometer ...................2-6
Thef t (NISSAN Vehicle Immobilizer System),
engine start ................2-19,5-9
Three-waycatalyst...............5-2
Tire Flattire..................6-2,6-3
Spare tire ...................6-4
Tire and Loading Information label . .10-11
Tire chains .................8-40
Tire pressure .............8-32,8-32 Tirerotation ................8-40
Types of tires
................8-39
Uniform tire quality grading ......10-18
Wheels and tires ...........8-32,10-9
Wheel/tire size ...............10-9
Tire pressure Low tire pressure warning light .....2-12
Tire Pressure Monitoring System (TPMS) . .5-3
Tire warning label ...............10-12
Toptetherstrapchildrestraint.......1-23
Towing 4-wheel drive models ...........6-14
Flattowing.................10-17
Towtrucktowing .............6-13
Trailertowing ...............10-17
Towingatrailer................10-17
Transmission Continuously Variable Transmission (CVT)
fluid......................8-10
Driving with Continuously Variable
Transmission (CVT) ..........5-8,5-12
Travel (See registering a vehicle in another
country) .....................10-10
Trip computer ..................2-7
Trip odometer ..................2-4
Troubleshooting guide
(NISSAN voice recognition system) ....4-90
Turn signal switch ...............2-23
U
Uniform tire quality grading ........10-18
USBinterface ..............4-49,4-51 Audio file operation ........4-50,4-52 V
Variable voltage control system ......8-14
Vehicle dimensions and weights ......10-9
Vehicle dynamic control (VDC) off
switch......................2-24
Vehicle dynamic control (VDC) system . .5-26
Vehicle Dynamic Control (VDC) system . .5-26
Vehicle identification .............10-10
Vehicle identification number (VIN) . . . .10-10
Vehicle identification number (VIN)
plate.......................10-10
Vehicle immobilizer system ....2-19,3-2,5-9
Vehicle loading information ........10-13
Vehiclerecovery................6-15
Vehicle security system ............2-17
Vehicle security system (NISSAN Vehicle
Immobilizer System), engine start. . .2-19, 5-9
Ventilators ....................4-18
Visors.......................3-18
Voice Prompt Interrupt ........4-68, 4-79
Voice recognition system ..........
4-86
W
Warning Airbagwarninglight........1-50, 2-14
Anti-lock brake warning light ......2-10
Battery charge warning light ......2-11
Brakewarninglight............2-10
Door open warning light .........2-11
Engine oil pressure warning light ....2-11
Hazard warning flasher switch ......6-2
Loosefuelcapwarning..........2-5
Lowfuelwarninglight...........2-11
11-6
