2015 NISSAN MURANO PLATINUM Owners Manual

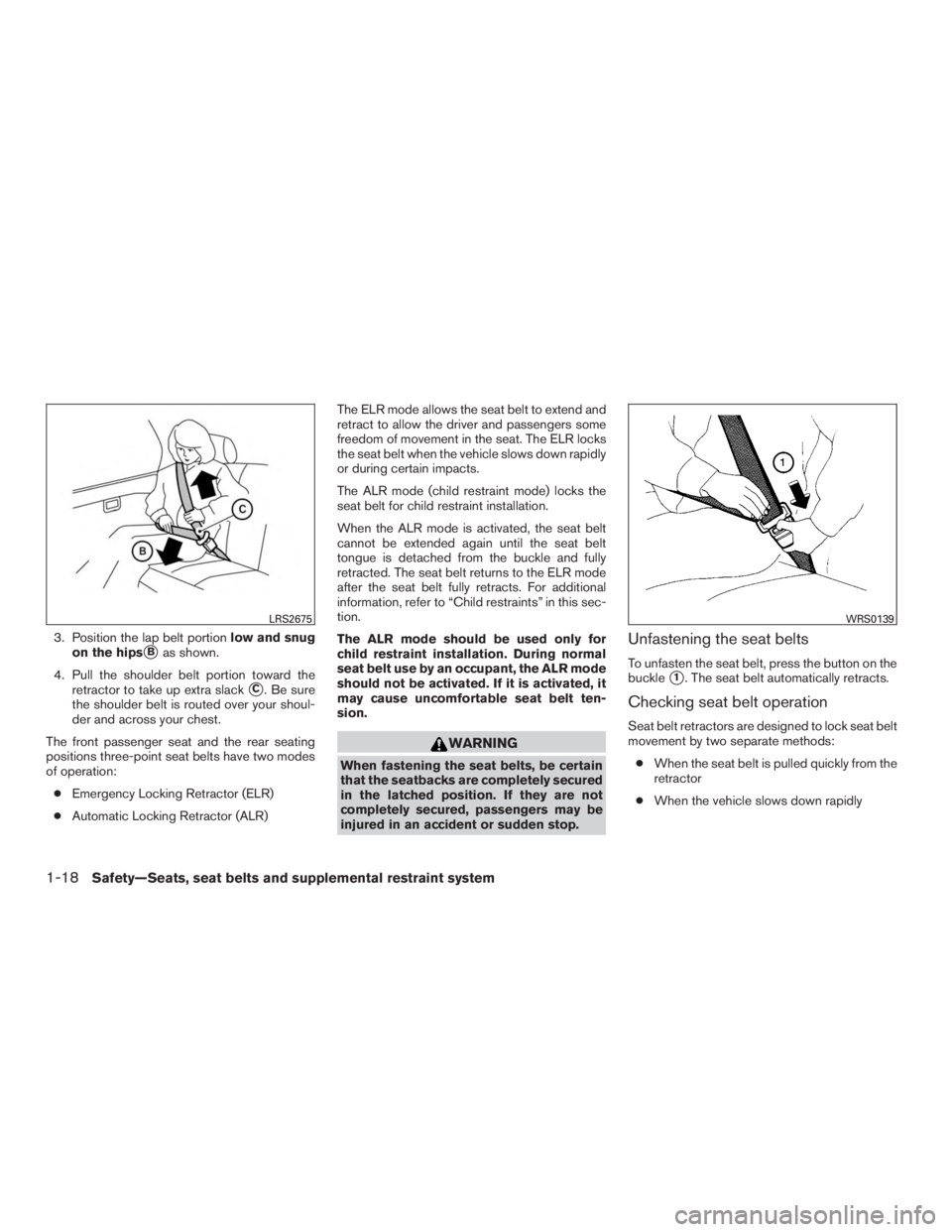

3. Position the lap belt portionlow and snug
on the hips
Bas shown.
4. Pull the shoulder belt portion toward the retractor to take up extra slack
C. Be sure
the shoulder belt is routed over your shoul-
der and across your chest.
The front passenger seat and the rear seating
positions three-point seat belts have two modes
of operation: ● Emergency Locking Retractor (ELR)
● Automatic Locking Retractor (ALR) The ELR mode allows the seat belt to extend and
retract to allow the driver and passengers some
freedom of movement in the seat. The ELR locks
the seat belt when the vehicle slows down rapidly
or during certain impacts.
The ALR mode (child restraint mode) locks the
seat belt for child restraint installation.
When the ALR mode is activated, the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt fully retracts. For additional
information, refer to “Child restraints” in this sec-
tion.
The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR mode
should not be activated. If it is activated, it
may cause uncomfortable seat belt ten-
sion.

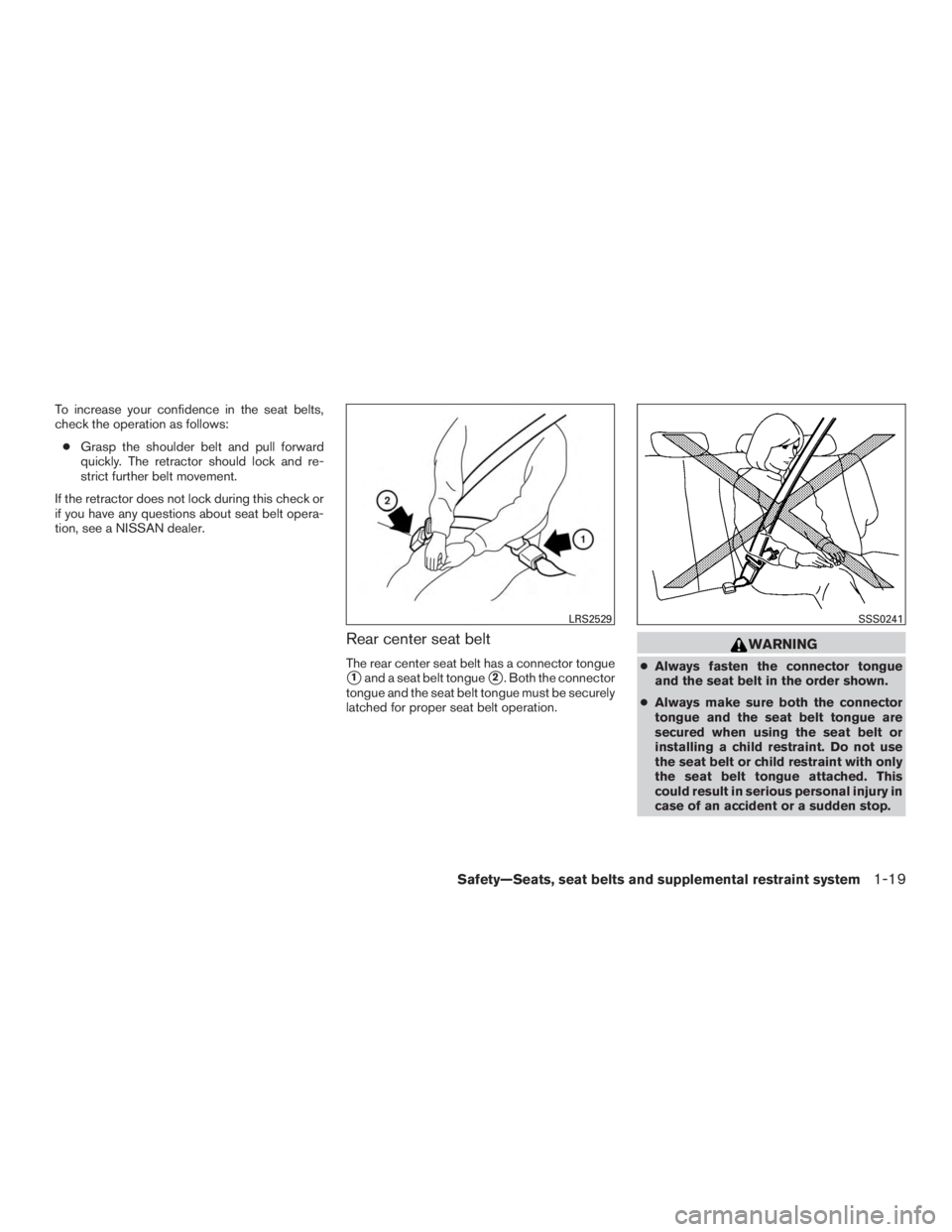

To increase your confidence in the seat belts,
check the operation as follows:● Grasp the shoulder belt and pull forward
quickly. The retractor should lock and re-
strict further belt movement.
If the retractor does not lock during this check or
if you have any questions about seat belt opera-
tion, see a NISSAN dealer.
Rear center seat belt
The rear center seat belt has a connector tongue
1and a seat belt tongue2. Both the connector
tongue and the seat belt tongue must be securely
latched for proper seat belt operation.

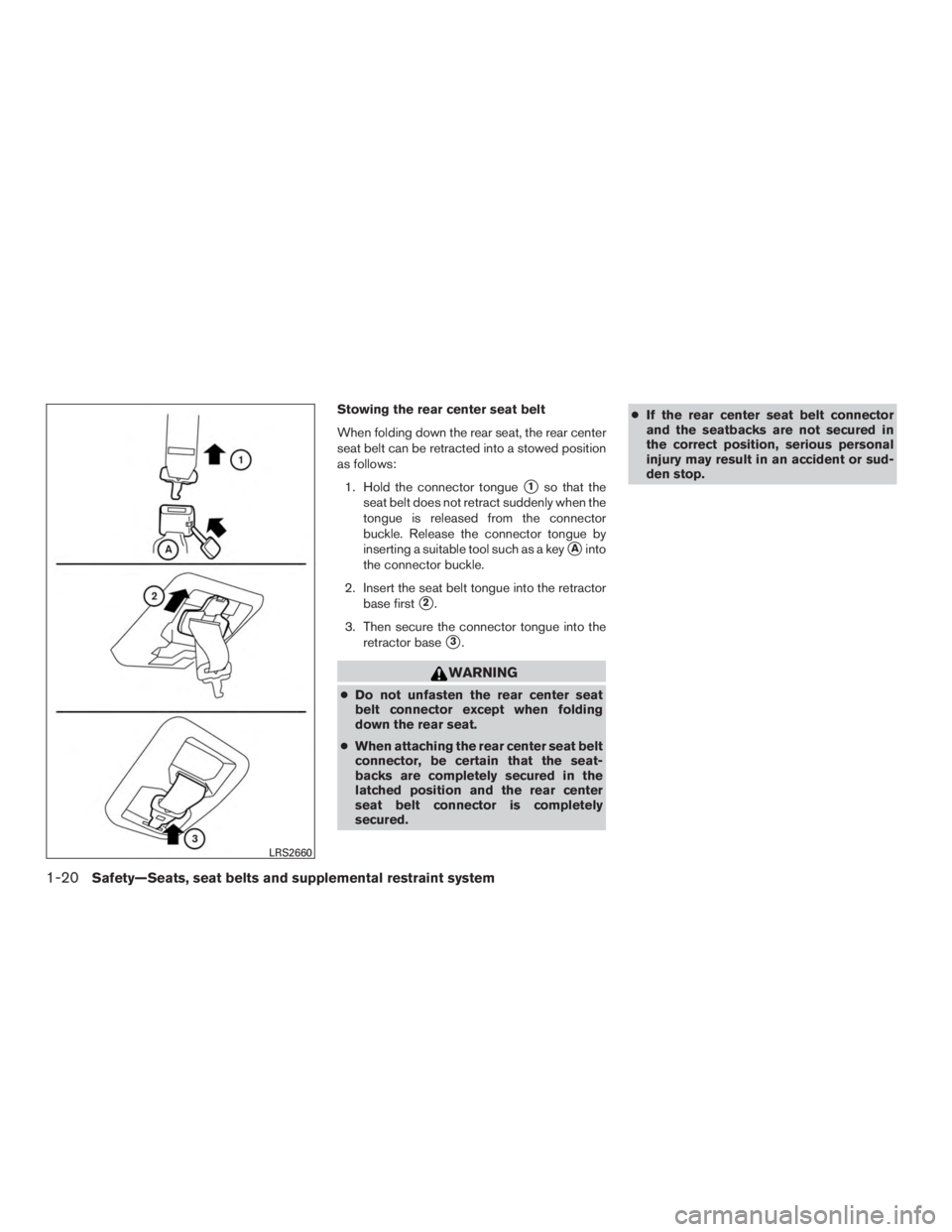

Stowing the rear center seat belt
When folding down the rear seat, the rear center
seat belt can be retracted into a stowed position
as follows:1. Hold the connector tongue
1so that the
seat belt does not retract suddenly when the
tongue is released from the connector
buckle. Release the connector tongue by
inserting a suitable tool such as a key
Ainto
the connector buckle.
2. Insert the seat belt tongue into the retractor base first
2.
3. Then secure the connector tongue into the retractor base
3.

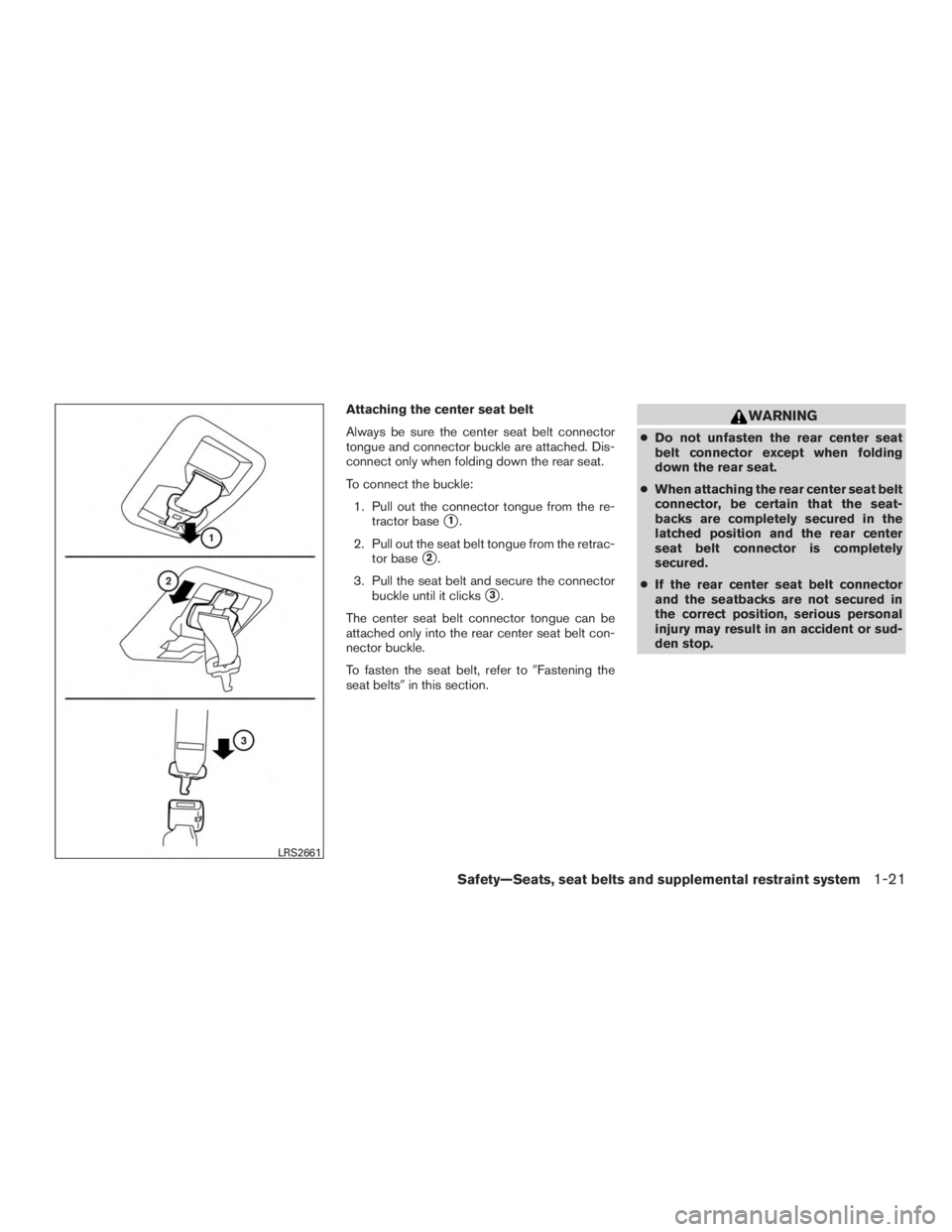

Attaching the center seat belt
Always be sure the center seat belt connector
tongue and connector buckle are attached. Dis-
connect only when folding down the rear seat.
To connect the buckle:1. Pull out the connector tongue from the re- tractor base
1.
2. Pull out the seat belt tongue from the retrac- tor base
2.
3. Pull the seat belt and secure the connector buckle until it clicks
3.
The center seat belt connector tongue can be
attached only into the rear center seat belt con-
nector buckle.
To fasten the seat belt, refer to Fastening the
seat belts in this section.

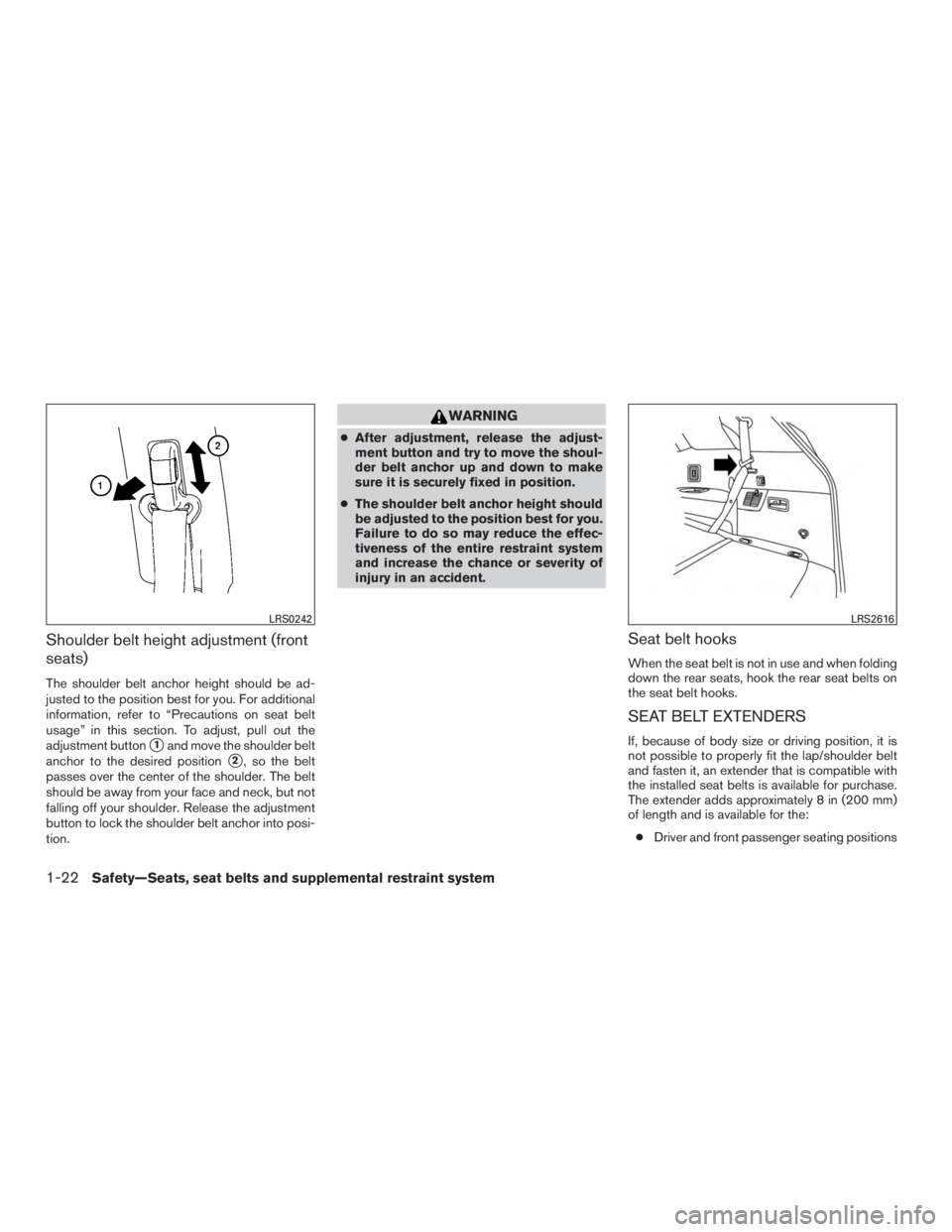

Shoulder belt height adjustment (front
seats)
The shoulder belt anchor height should be ad-
justed to the position best for you. For additional
information, refer to “Precautions on seat belt
usage” in this section. To adjust, pull out the
adjustment button
1and move the shoulder belt
anchor to the desired position
2, so the belt
passes over the center of the shoulder. The belt
should be away from your face and neck, but not
falling off your shoulder. Release the adjustment
button to lock the shoulder belt anchor into posi-
tion.

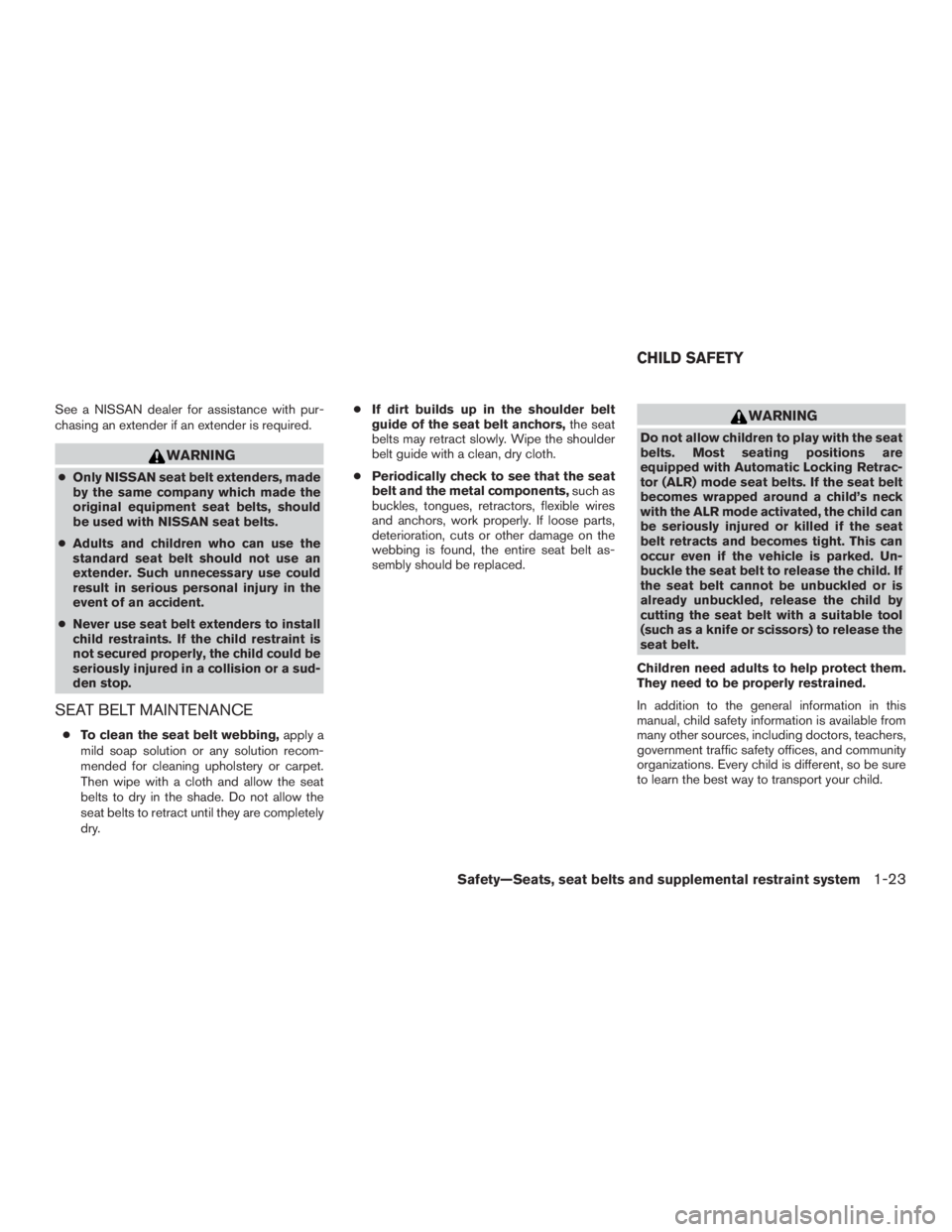

See a NISSAN dealer for assistance with pur-
chasing an extender if an extender is required.

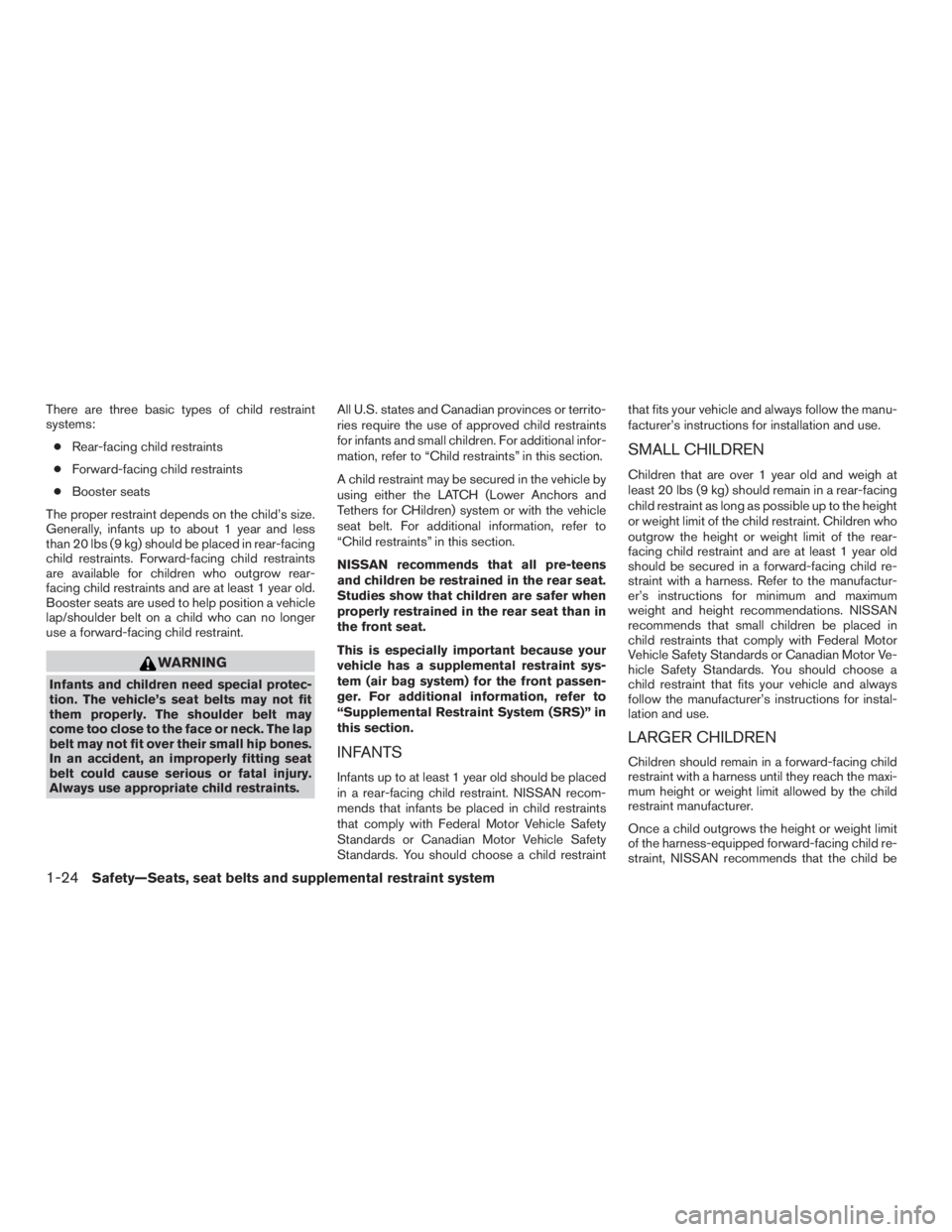

There are three basic types of child restraint
systems:● Rear-facing child restraints
● Forward-facing child restraints
● Booster seats
The proper restraint depends on the child’s size.
Generally, infants up to about 1 year and less
than 20 lbs (9 kg) should be placed in rear-facing
child restraints. Forward-facing child restraints
are available for children who outgrow rear-
facing child restraints and are at least 1 year old.
Booster seats are used to help position a vehicle
lap/shoulder belt on a child who can no longer
use a forward-facing child restraint.

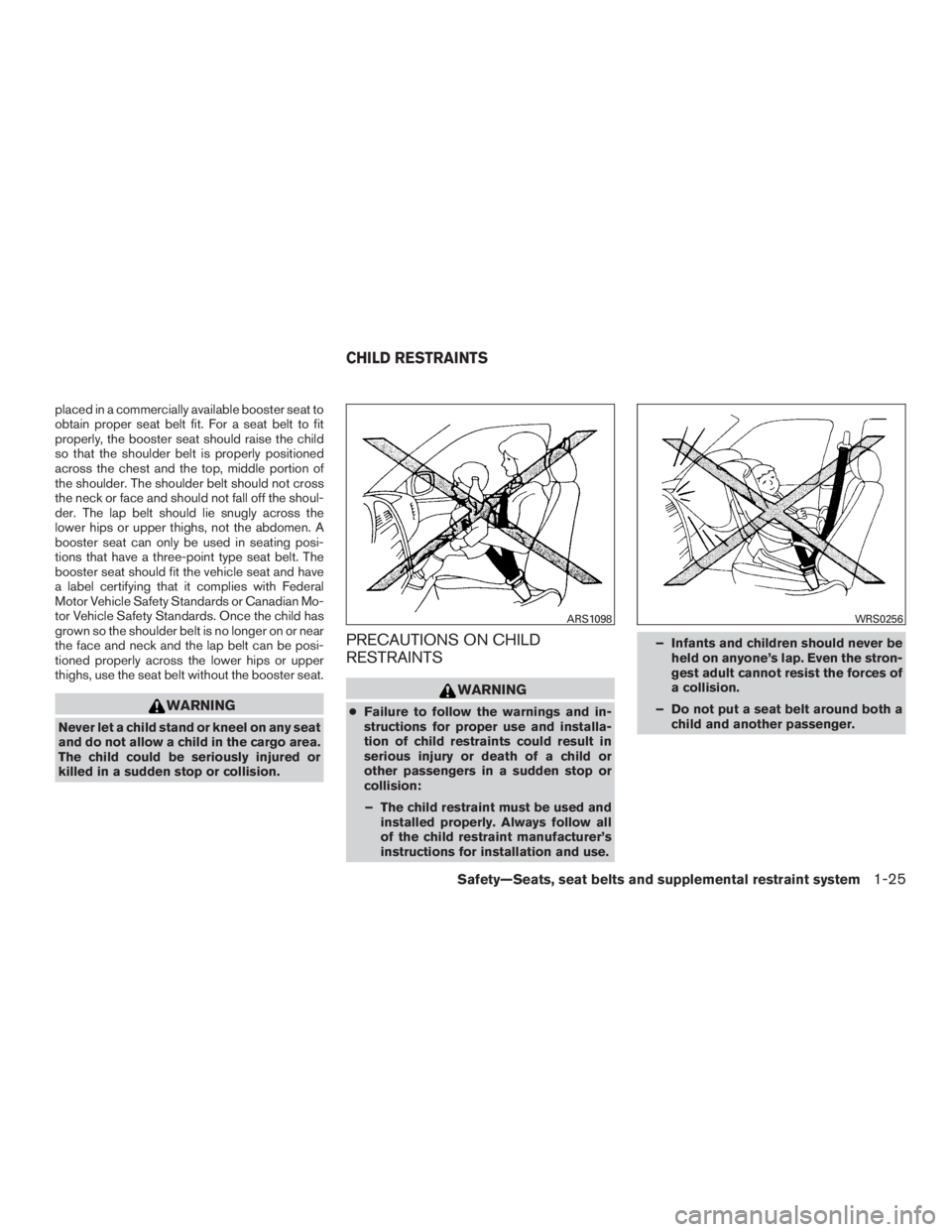

placed in a commercially available booster seat to
obtain proper seat belt fit. For a seat belt to fit
properly, the booster seat should raise the child
so that the shoulder belt is properly positioned
across the chest and the top, middle portion of
the shoulder. The shoulder belt should not cross
the neck or face and should not fall off the shoul-
der. The lap belt should lie snugly across the
lower hips or upper thighs, not the abdomen. A
booster seat can only be used in seating posi-
tions that have a three-point type seat belt. The
booster seat should fit the vehicle seat and have
a label certifying that it complies with Federal
Motor Vehicle Safety Standards or Canadian Mo-
tor Vehicle Safety Standards. Once the child has
grown so the shoulder belt is no longer on or near
the face and neck and the lap belt can be posi-
tioned properly across the lower hips or upper
thighs, use the seat belt without the booster seat.
