2015 NISSAN LEAF Owners Manual

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure that
is described in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (approximate)Recommended specifications
US measure Imp measure Liter
Cooling system With reservoir 5-5/8 qt 4-5/8 qt5.3
Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent
Reservoir 1/2 qt 1/2 qt0.5
Reduction gear fluid 1-1/2 qt 1-1/4 qt1.4Genuine NISSAN Matic S ATF
Using reduction gear fluid other than Genuine NISSAN Matic S
ATF will cause deterioration in driveability and reduction gear
durability, and may damage the reduction gear, which is not cov-
ered by the NISSAN new vehicle limited warranty.
Brake fluid Refill to the proper oil level according to the in-
structions in the “Maintenance and do-it-yourself”
section.Genuine NISSAN Super Heavy Duty Brake Fluid (Available in mainland
US through a NISSAN certified LEAF dealer) or equivalent DOT 3
Multi-purpose grease —— — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant —— —HFC-134a (R-134a)
For additional information, see “Vehicle identification” for air conditioner
specification label.
Air conditioning system lubricants —— —With heater pump use NISSAN A/C System Oil ND-OIL11 or equivalent.
Without heater pump use NISSAN A/C System Oil AE10 or equivalent.
Windshield washer fluid (US) ——2.5 LGenuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze
fluid or equivalent
Windshield washer fluid (Canada) 1–1/4 gal —4.5 LGenuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze
fluid or equivalent
RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES
9-2Technical and consumer information

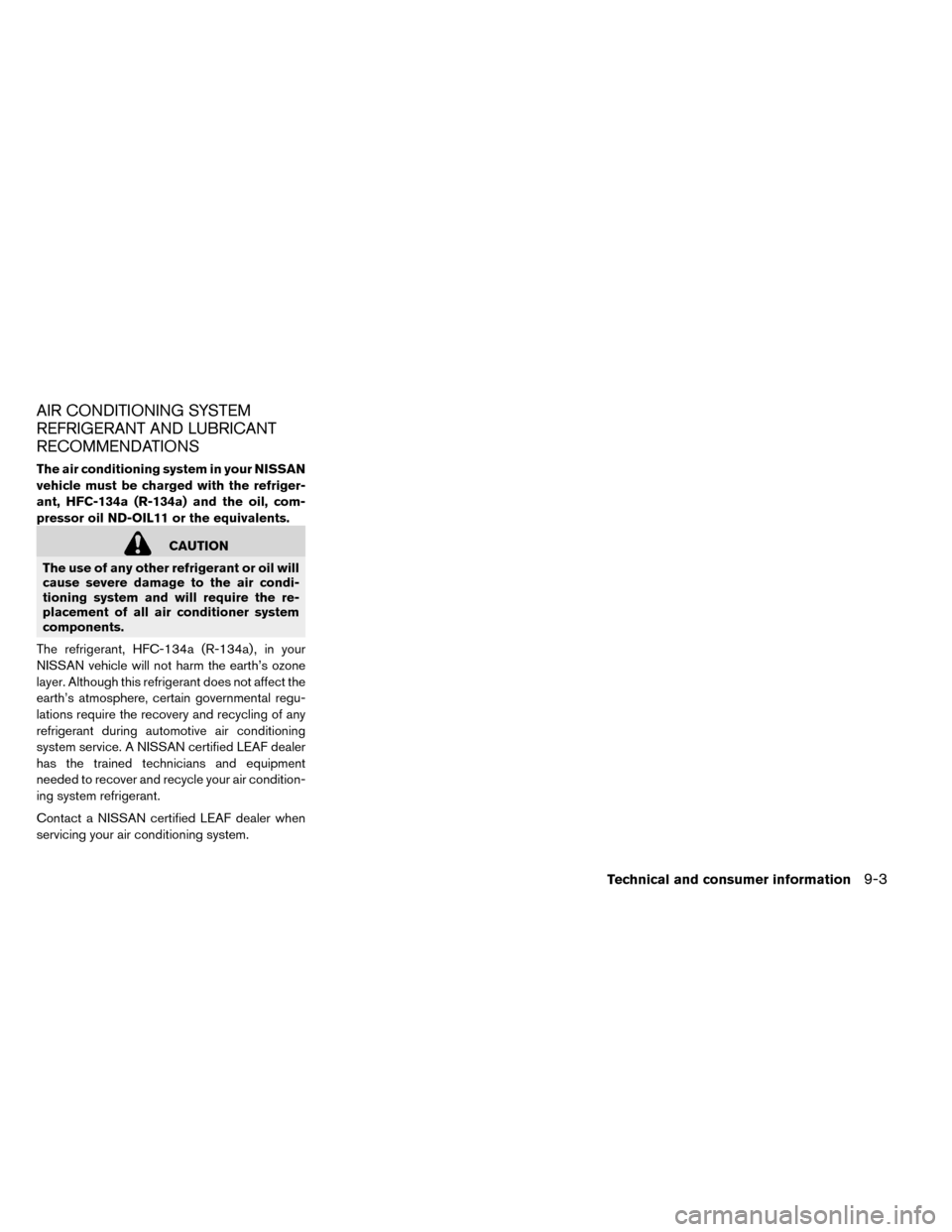

AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONS
The air conditioning system in your NISSAN
vehicle must be charged with the refriger-
ant, HFC-134a (R-134a) and the oil, com-
pressor oil ND-OIL11 or the equivalents.
CAUTION
The use of any other refrigerant or oil will
cause severe damage to the air condi-
tioning system and will require the re-
placement of all air conditioner system
components.
The refrigerant, HFC-134a (R-134a) , in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect the
earth’s atmosphere, certain governmental regu-
lations require the recovery and recycling of any
refrigerant during automotive air conditioning
system service. A NISSAN certified LEAF dealer
has the trained technicians and equipment
needed to recover and recycle your air condition-
ing system refrigerant.
Contact a NISSAN certified LEAF dealer when
servicing your air conditioning system.
Technical and consumer information9-3

CHARGING SYSTEM
Rated input voltageAC120V (single phase) , AC240V (single phase)
Rated input frequency 60Hz
Maximum rated current 12A (AC120V) , 18A (AC240V) , 32A (AC240V; if so equipped)
Maximum power consumption 1.4 kVA (AC120V) , 4.8 kVA (AC240V) , 7.7kVA (AC240V; if so equipped)
Supply system TN-S system
Sensitive current of GFI (Ground
Fault Interrupter) circuit breaker in
NISSAN Genuine portable type
EVSE (Electric Vehicle Supply Equip-
ment) 15 mA
Protection class Class I EV
Charging modes/Types of connection AC Level 1 (Trickle charge with NISSAN Genuine portable type EVSE (Electric Vehicle Supply Equipment))
AC Level 2 (Normal charge with home installation type EVSE (Electric Vehicle Supply Equipment))
DC Charging (Quick charge, if so equipped)
Required installation (over current
protection) The methods of protection against over current and over voltage shall be in accordance with national codes.
Suitable over current protection devices for the wiring of houses or buildings shall be installed.
Cooling system The vehicle cooling system is used.
IP Degree IP55: EV (Electric Vehicle) charging port in road position
IP44: Connection of NISSAN Genuine portable type EVSE (Electric Vehicle Supply Equipment) and charge
port during charging
Operating temperature −31 - 113°F (−35 - 45°C)
Storage temperature −40 - 176°F (−40 - 80°C)
SPECIFICATIONS
9-4Technical and consumer information

Rated input voltageAC120V (single phase) , AC240V (single phase)
Rated input frequency 60Hz
Applicable standards SAE J1772: 2010
EN61851-1: 2010
EN61851-21: 2002
IEC61851-1: 2010
IEC61851-21: 2001EN61000-6-1: 2007
EN61000-6-3: 2007
Adapters
Adaptors shall not be used to connect a vehicle connector to a vehicle inlet.
MOTOR
Model EM61
WHEELS AND TIRES
Road wheel
Type SizeOffset in (mm)
Steel 16 × 6 1/2J 1.57 (40)
Aluminum 16 × 6 1/2J 1.57 (40)
Aluminum 17 × 6 1/2J 1.77 (45)
Tire
Type Size Pressure PSI
(kPa) [Cold]
Conventional P205/
55R16 89H 36 (250)
Conventional P215/
50R17 90V 36 (250)
Technical and consumer information9-5

DIMENSIONS AND WEIGHTS
Overall lengthin (mm) 175.0 (4,445)*1
174.8 (4,440)*2
Overall width in (mm) 69.7 (1,770)
Overall height in (mm) 61.0 (1,550)
Front tread in (mm) 60.6 (1,540)
Rear tread in (mm) 60.4 (1,535)
Wheelbase in (mm) 106.3 (2,700)
Gross Vehicle Weight Rating
(GVWR) lb (kg)
See the F.M.V.S.S. or C.M.V.S.S. certifica-
tion label on the driver’s side center pillar.
Gross Axle Weight Rating (GAWR)
Front lb (kg)
Rear lb (kg)
*1: With front license plate bracket
*2: Without front license plate bracket When planning to travel in another country,
you should first find out if the charging equipment
is compatible with that country’s electrical sys-
tem.
When transferring the registration of your
vehicle to another country, state, province
or district,
it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle safety
standards vary according to the country, state,
province or district; therefore, vehicle specifica-
tions may differ.
When any vehicle is to be taken into an-
other country, state, province or district and
registered, its modifications, transporta-
tion, and registration are the responsibility
of the user. NISSAN is not responsible for
any inconvenience that may result.
WHEN TRAVELING OR REGISTERING
YOUR VEHICLE IN ANOTHER
COUNTRY
9-6Technical and consumer information

VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(CHASSIS NUMBER)
The vehicle identification number is located as
shown.
Remove the cover to access the number.
TRACTION MOTOR SERIAL
NUMBER
The serial number of the traction motor is
stamped on the traction motor as shown.
VEHICLE IDENTIFICATION
Technical and consumer information9-7

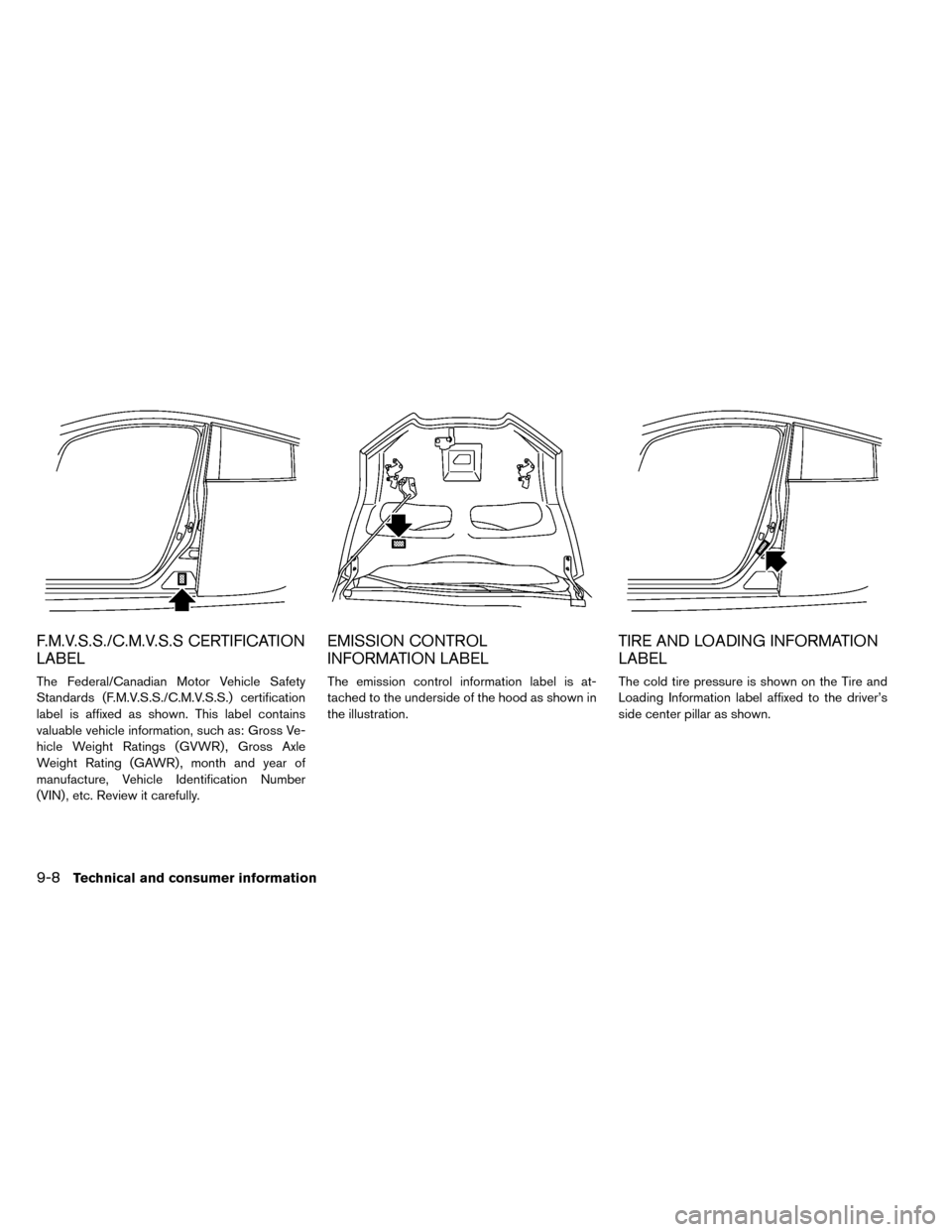

F.M.V.S.S./C.M.V.S.S CERTIFICATION
LABEL
The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross Ve-
hicle Weight Ratings (GVWR) , Gross Axle
Weight Rating (GAWR) , month and year of
manufacture, Vehicle Identification Number
(VIN) , etc. Review it carefully.
EMISSION CONTROL
INFORMATION LABEL
The emission control information label is at-
tached to the underside of the hood as shown in
the illustration.
TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire and
Loading Information label affixed to the driver’s
side center pillar as shown.
9-8Technical and consumer information

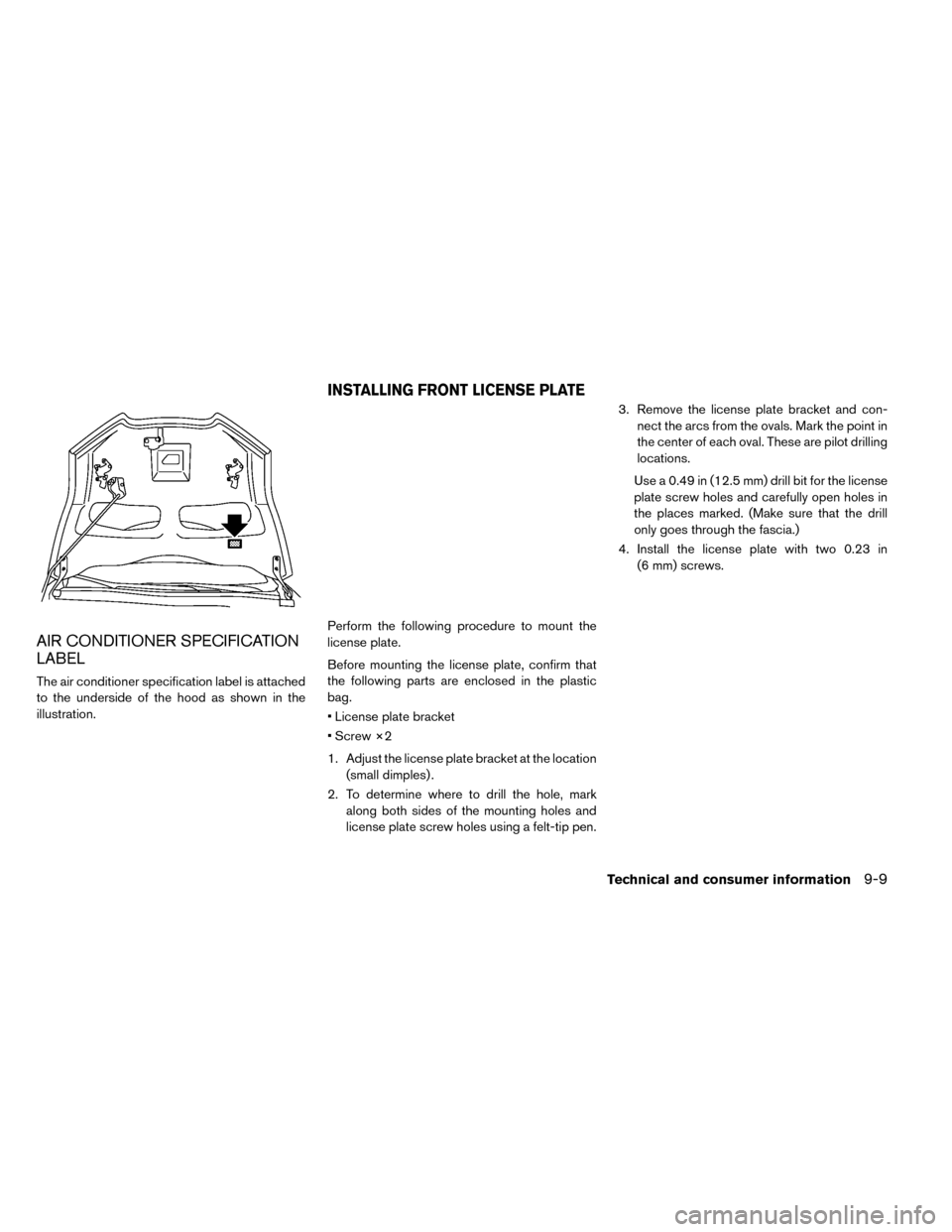

AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner specification label is attached
to the underside of the hood as shown in the
illustration.Perform the following procedure to mount the
license plate.
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
• License plate bracket
• Screw ×2
1. Adjust the license plate bracket at the location
(small dimples) .
2. To determine where to drill the hole, mark along both sides of the mounting holes and
license plate screw holes using a felt-tip pen. 3. Remove the license plate bracket and con-
nect the arcs from the ovals. Mark the point in
the center of each oval. These are pilot drilling
locations.
Use a 0.49 in (12.5 mm) drill bit for the license
plate screw holes and carefully open holes in
the places marked. (Make sure that the drill
only goes through the fascia.)
4. Install the license plate with two 0.23 in (6 mm) screws.
INSTALLING FRONT LICENSE PLATE
Technical and consumer information9-9
