2015 NISSAN LEAF navigation


> (GLW    0RGHO 1DYL(9 @

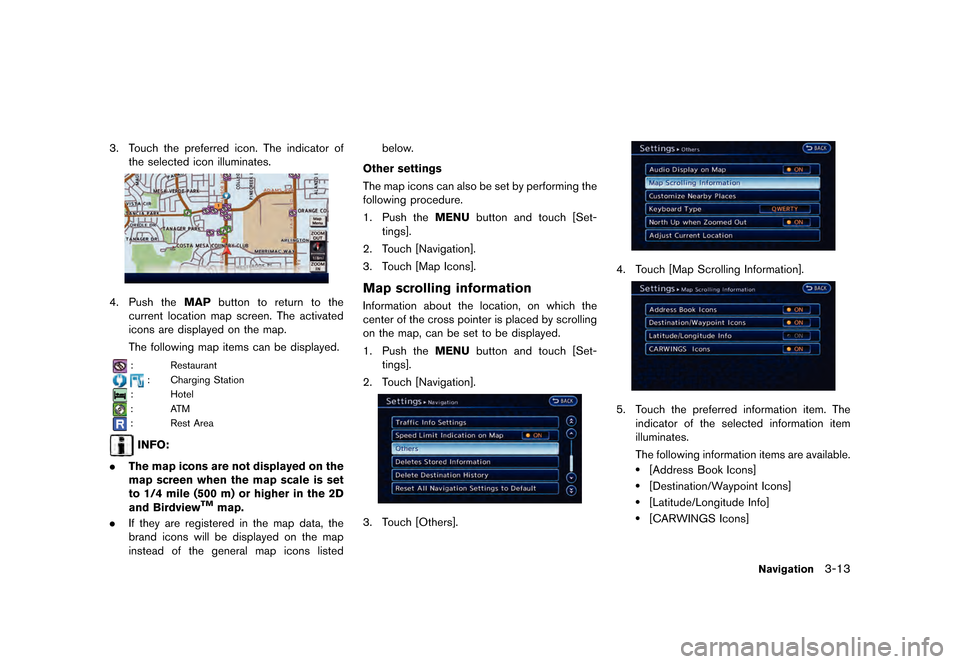

3. Touch the preferred icon. The indicator ofthe selected icon illuminates.
LNE0902X
4.Push the MAPbutton to return to the
current location map screen. The activated
icons are displayed on the map.
The following map items can be displayed.
: Restaurant
: Charging Station
: Hotel
: ATM
: Rest Area
INFO:
. The map icons are not displayed on the
map screen when the map scale is set
to 1/4 mile (500 m) or higher in the 2D
and Birdview
TMmap.
. If they are registered in the map data, the
brand icons will be displayed on the map
instead of the general map icons listed below.
Other settings
The map icons can also be set by performing the
following procedure.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
3. Touch [Map Icons].
Map scrolling informationGUID-7E953B13-E5EF-41C1-88FC-C5E9ABF8FE53Information about the location, on which the
center of the cross pointer is placed by scrolling
on the map, can be set to be displayed.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
LNE0040X
3. Touch [Others].
LNE0041X
4. Touch [Map Scrolling Information].
LNE0042X
5. Touch the preferred information item. The indicator of the selected information item
illuminates.
The following information items are available.
.[Address Book Icons]
.[Destination/Waypoint Icons]
.[Latitude/Longitude Info]
.[CARWINGS Icons]
Navigation3-13
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

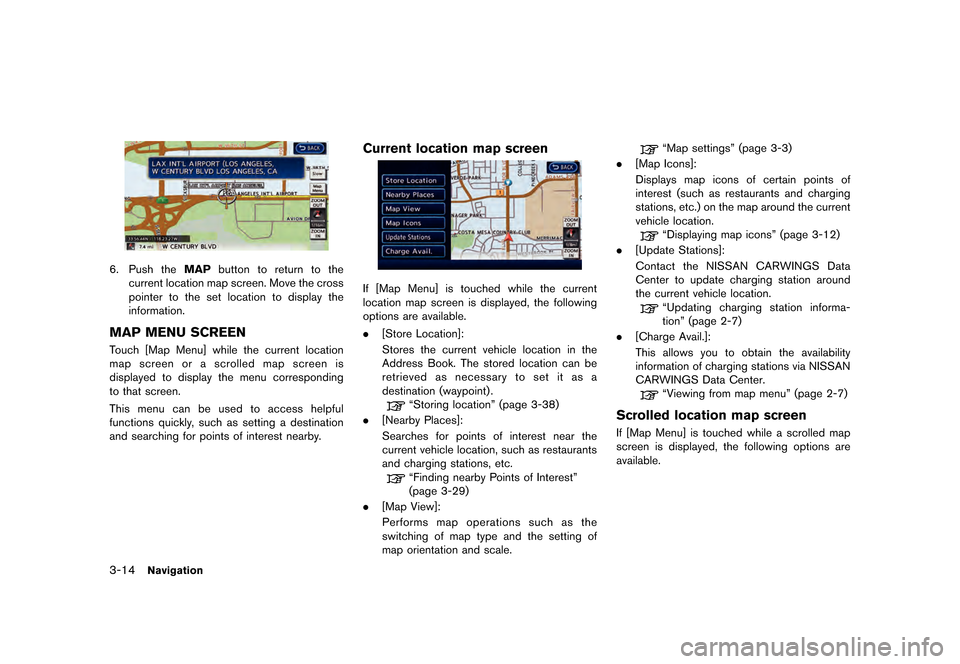

3-14Navigation
LNE0043X
6.Push the MAPbutton to return to the
current location map screen. Move the cross
pointer to the set location to display the
information.
MAP MENU SCREENGUID-080293EE-4E11-442A-B0DE-6B8CBAA10CACTouch [Map Menu] while the current location
map screen or a scrolled map screen is
displayed to display the menu corresponding
to that screen.
This menu can be used to access helpful
functions quickly, such as setting a destination
and searching for points of interest nearby.
Current location map screenGUID-A99E8F50-38EF-445A-A5CA-704D8EFCA7C8
LNE0901X
If [Map Menu] is touched while the current
location map screen is displayed, the following
options are available.
. [Store Location]:
Stores the current vehicle location in the
Address Book. The stored location can be
retrieved as necessary to set it as a
destination (waypoint) .
ªStoring locationº (page 3-38)
. [Nearby Places]:
Searches for points of interest near the
current vehicle location, such as restaurants
and charging stations, etc.
ªFinding nearby Points of Interestº
(page 3-29)
. [Map View]:
Performs map operations such as the
switching of map type and the setting of
map orientation and scale.
ªMap settingsº (page 3-3)
. [Map Icons]:
Displays map icons of certain points of
interest (such as restaurants and charging
stations, etc.) on the map around the current
vehicle location.
ªDisplaying map iconsº (page 3-12)
. [Update Stations]:
Contact the NISSAN CARWINGS Data
Center to update charging station around
the current vehicle location.
ªUpdating charging station informa-
tionº (page 2-7)
. [Charge Avail.]:
This allows you to obtain the availability
information of charging stations via NISSAN
CARWINGS Data Center.
ªViewing from map menuº (page 2-7)
Scrolled location map screenGUID-1BAE5D18-5176-4DB5-9841-978304A6643DIf [Map Menu] is touched while a scrolled map
screen is displayed, the following options are
available.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

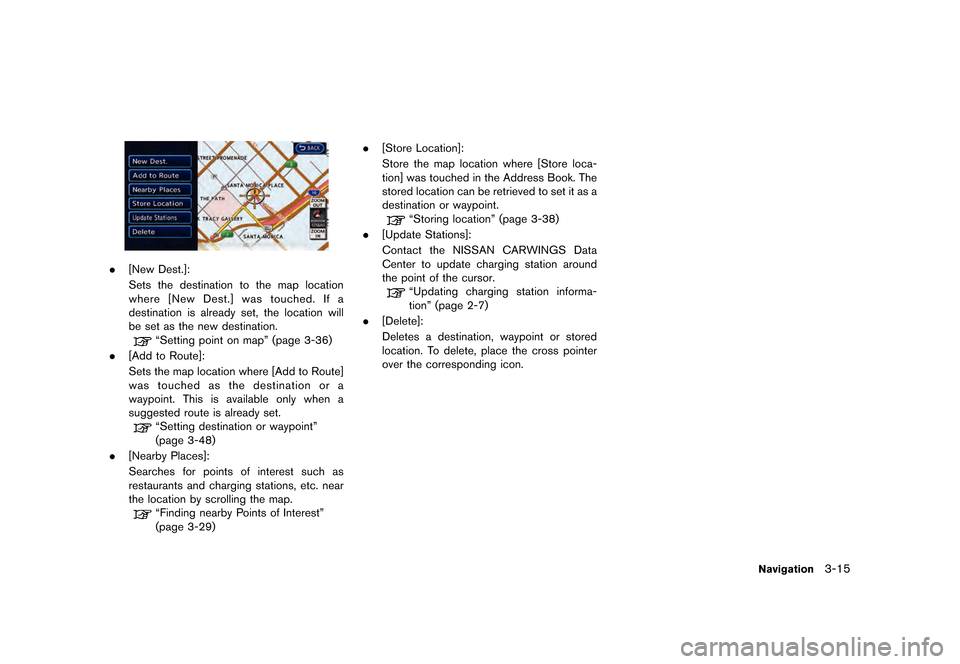

LNE0045X
.[New Dest.]:
Sets the destination to the map location
where [New Dest.] was touched. If a
destination is already set, the location will
be set as the new destination.
ªSetting point on mapº (page 3-36)
. [Add to Route]:
Sets the map location where [Add to Route]
was touched as the destination or a
waypoint. This is available only when a
suggested route is already set.
ªSetting destination or waypointº
(page 3-48)
. [Nearby Places]:
Searches for points of interest such as
restaurants and charging stations, etc. near
the location by scrolling the map.
ªFinding nearby Points of Interestº
(page 3-29) .
[Store Location]:
Store the map location where [Store loca-
tion] was touched in the Address Book. The
stored location can be retrieved to set it as a
destination or waypoint.
ªStoring locationº (page 3-38)
. [Update Stations]:
Contact the NISSAN CARWINGS Data
Center to update charging station around
the point of the cursor.
ªUpdating charging station informa-
tionº (page 2-7)
. [Delete]:
Deletes a destination, waypoint or stored
location. To delete, place the cross pointer
over the corresponding icon.
Navigation3-15
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-16Navigation
MAP SYMBOLSGUID-EBC19CB7-4FEE-471C-A328-FBDF3BA8C997This navigation system uses symbols to display facilities.
2-dimensional icons (Plan View)GUID-B222DA06-BDDC-476B-A65B-8ACA237E1427
LNE0628X
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
Road colorGUID-16035A1E-B7A3-449E-857D-82CE718C0B3BThe road types are differentiated by colors.
Freeway:
(Red or light red (zoomed in))
Main road:
(Brown or dark yellow)
Narrow street:
(Gray)
Road with incomplete map data:
(Dark green)
Traffic information on mapGUID-76DF2039-9D48-4277-86E8-FF7C624B9B6DWith a subscription to the NavTraffic service,
traffic information is displayed.
ªViewing available traffic informationº
(page 6-6)
Free Flow:
(Green)
Moderate traffic:
(Yellow)
Heavy traffic:
(Red)
Section affected by serious traffic event:
(Purple)
The following traffic information icons may be displayed
Accident
Closed road
Information
Road work
Slippery road
Weather
Incident
GUID-501A39C4-2FAD-451F-B110-26D6B2F785A4
DESTINATION SCREENGUID-B2EBC8BC-3B61-48B8-A7CB-A84B9994A079There are several methods that can be used to
set a destination. Understand the advantages of
each method and select the best method for
finding and setting a preferred destination.
LNC0199X
1. Push the
MENUbutton and touch [Destina-
tion].
2. Touch the preferred method for setting the destination.
Available settings
. [Street Address]:
Searches for a destination by address.
ªFinding addressº (page 3-20)
. [Points of Interest]:
Searches for a destination from various
categories of businesses or locations.
ªFinding points of interestº
(page 3-21)
Navigation3-17
SETTING DESTINATION
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-18Navigation
.[Home]:
Searches for a route from the current
location to the previously stored home
destination.
ªSetting home as destinationº
(page 3-24)
. [Charging Stations]:
Searches for charging stations located near
the current vehicle location.
ªFinding charging stationº (page 3-25)
. [POIs powered by GoogleTM]:
Key words can be searched for using
Google.
ªGoogle searchº (page 5-10)
. [Address Book]:
Searches for a destination from the list of the
stored locations.
ªSearching from address bookº
(page 3-28)
. [Previous Destinations]:
Sets the previous starting point as the
destination. Searches for the destination
from the previous destinations.
ªSearching from historyº (page 3-28)
. [Nearby Points of Interest]:
Searches for points of interest near the
current vehicle location, such as restaurants
and charging stations, etc.
ªFinding nearby Points of Interestº
(page 3-29)
Available settings (next page screen)
. [ Google(TM) Send-To-Car]:
Searches for a destination using Google
Maps.
ªUsing Google Mapº (page 3-30)
. [Route Planner]:
Sets a route plan downloaded from the
NISSAN Owner's Portal Website.
ªUsing route plannerº (page 3-31)
. [Stored Routes]:
Selects a stored route.
ªSetting from stored routesº
(page 3-31)
. [Phone Number]:
Searches for a point of interest by a
telephone number.
ªSetting by phone numberº
(page 3-32)
. [Intersection]:
Searches for a destination from an intersec-
tion.
ªSetting intersectionº (page 3-32)
. [City Center]:
Sets the center of a city as the destination.
ªSetting city centerº (page 3-34) .
[Freeway Entrance/Exit]:
Searches for a destination from a freeway
entrance/exit.
ªSetting freeway entrance/exitº
(page 3-35)
INFO:
. If the required battery power level may be
insufficient when the destination is set, the
system provides guidance to any available
charging stations.
. If setting a destination when the Li-ion
battery power level may be insufficient to
reach the set destination, the information for
charging stations is displayed, allowing you
to set a charging station as the destination.
CHANGING REGIONGUID-3E25FCC3-C8B2-44CB-BCC5-732F43DB2522When setting a destination, the location can be
narrowed down by specifying the region or city.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

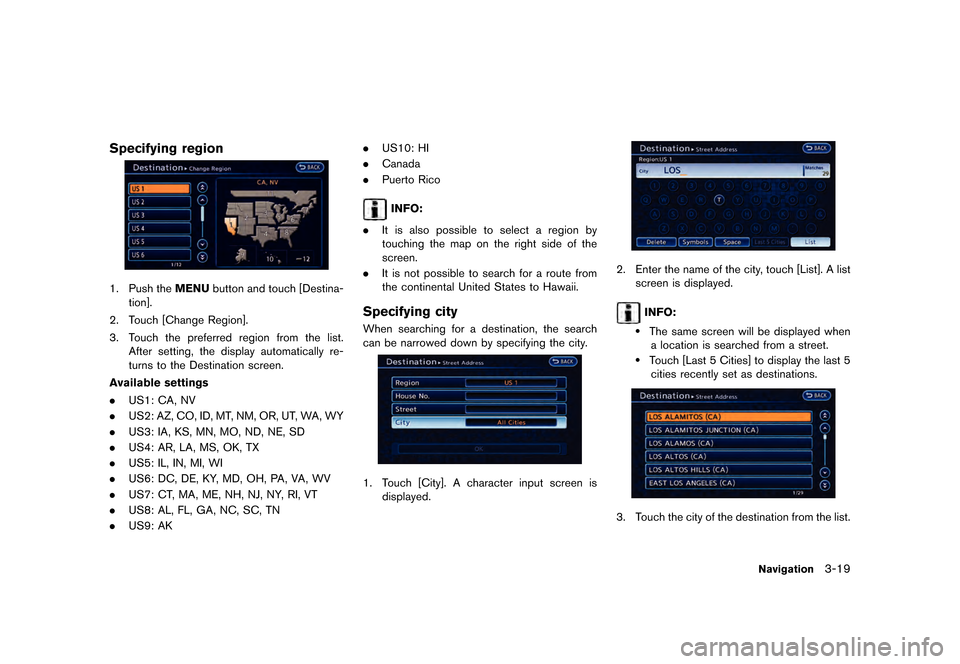

Specifying regionGUID-47A13C7F-143A-4A58-9FA9-3EF03611FAA4
LNE0904X
1. Push theMENUbutton and touch [Destina-
tion].
2. Touch [Change Region].
3. Touch the preferred region from the list. After setting, the display automatically re-
turns to the Destination screen.
Available settings
. US1: CA, NV
. US2: AZ, CO, ID, MT, NM, OR, UT, WA, WY
. US3: IA, KS, MN, MO, ND, NE, SD
. US4: AR, LA, MS, OK, TX
. US5: IL, IN, MI, WI
. US6: DC, DE, KY, MD, OH, PA, VA, WV
. US7: CT, MA, ME, NH, NJ, NY, RI, VT
. US8: AL, FL, GA, NC, SC, TN
. US9: AK .
US10: HI
. Canada
. Puerto Rico
INFO:
. It is also possible to select a region by
touching the map on the right side of the
screen.
. It is not possible to search for a route from
the continental United States to Hawaii.
Specifying cityGUID-40AD6857-AA78-4C83-9D64-B7572E33A7AAWhen searching for a destination, the search
can be narrowed down by specifying the city.
LNE0047X
1. Touch [City]. A character input screen is
displayed.
LNE0048X
2. Enter the name of the city, touch [List]. A listscreen is displayed.
INFO:
.The same screen will be displayed whena location is searched from a street.
.Touch [Last 5 Cities] to display the last 5cities recently set as destinations.
LNE0049X
3. Touch the city of the destination from the list.
Navigation3-19
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-20Navigation
INFO:
In some cases, when a city name has been
entered, the number of matching destinations in
the ªMatchesº column may be different from the
number displayed on the list screen. If this
occurs, enter more characters to further reduce
the number of matches.
FINDING ADDRESSGUID-E974693C-B055-4844-9B8F-849E0623EC34When the address of the destination is known,
use the following method to enter the address
and then have the system calculate a route. A
location near the preferred destination can also
be searched by entering the house number if the
map data contains the relevant data.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Street Address].
LNE0050X
3. Touch [House No.]. A character input screen is displayed.
INFO:
Touch [Region] or [City] to narrow down the
specified region and city.
ªChanging regionº (page 3-18)
LNE0051X
4. Enter the house number, then touch [OK]. If the house number is not available, touch [No
House #].
5. Touch [Street]. A street name input screen is displayed.
LNE0052X
6. Enter the name of the street. After finishingthe entry, touch [List]. A list of streets is
displayed.
LNE0053X
7. Touch the correct street of the destination
from the list.
