2015 NISSAN LEAF navigation


> (GLW    0RGHO 1DYL(9 @
INFO:
In some cases, when a street name has
been entered, the number of matching
destinations in the "Matches" column may
be different from the number displayed on
the list screen. If this occurs, enter more
characters to further reduce the number of
matches.
LNE0054X
8. Touch [OK].
LNE0055X
9. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location
can be stored in the Address Book, etc.
ªOperations after setting destinationº
(page 3-36)
Setting by voice command
1. Push the
button located on the steering
wheel.
2. After the tone sounds, speak a command.
To set the destination from the Address:
"Navigation" "Address"
INFO:
When you touch [Manual Controls] displayed on
the screen, voice recognition is canceled. You
can then input the destination manually by
operating the touch screen.
FINDING POINTS OF INTERESTGUID-E537C75F-F389-4D0C-BDC4-80E087FFBD4FThis allows you to find a facility by type, and then
have the system calculate a route to that
destination. Specify the region and city of the
destination to find it more quickly.
NOTE:
Locations and business hours of facilities
are subject to change, which may not be
reflected in the map data. Double-check
this information before you go to an
emergency facility to ensure that you can
receive the proper support. Otherwise, you
may not receive emergency help even
when you arrive at the destination.
A confirmation message also appears on
the navigation screen. Follow the dis-
played instructions and check the items
required.
Navigation3-21
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-22Navigation
Searching by a landmark nameGUID-42622348-4B68-4A78-9240-986407C6723B1. Push theMENUbutton and touch [Destina-
tion].
2. Touch [Points of Interest].
LNE0056X
3. Touch [By Name]. A character input screen is displayed.
LNE0057X
4. Enter the name of the destination facility.After finishing the entry, touch [List]. A list
screen is displayed.
INFO:
When [City] is touched, a city can be
specified by typing the city name.
ªSpecifying cityº (page 3-19)
LNE0058X
5. Touch the preferred destination facility from the list.
INFO:
.In some cases, when a POI name hasbeen entered, the number of matching
destinations in the "Matches" column
may be different from the number dis-
played on the list screen. If this occurs,
enter more characters to further reduce
the number of matches.
.By selecting [By Distance], you can sortthe list by the nearest distance. The
position of the selected location is
displayed in the preview on the right side
of the screen.
.By selecting [By Category], you candisplay the list that summarizes the
entered names into categories. Select
the category to narrow down the search.
LNE0059X
6. The selected destination is displayed at the
center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
ªOperations after setting destinationº
(page 3-36)
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

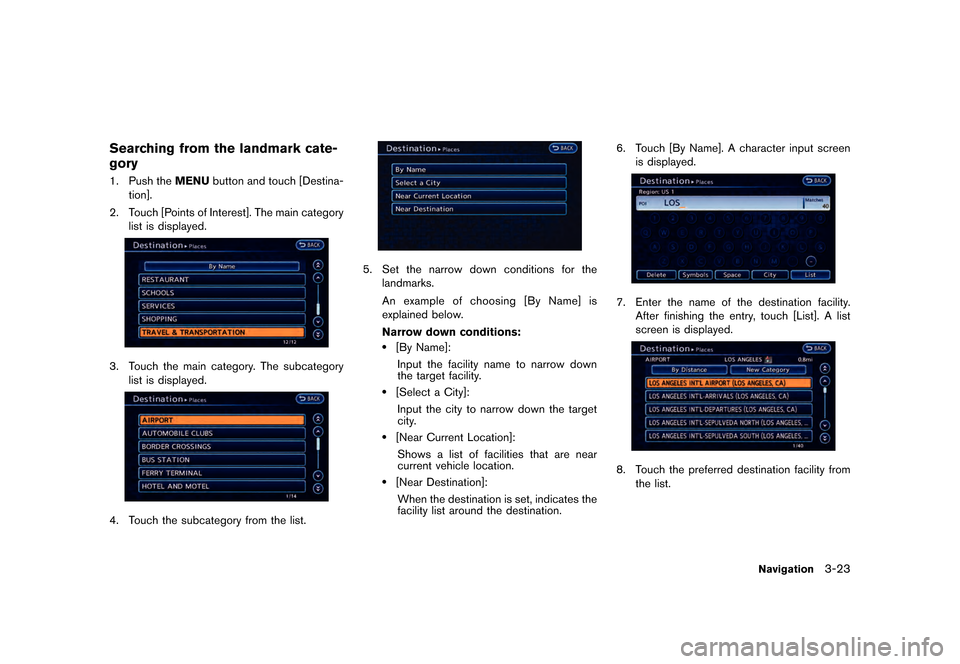

Searching from the landmark cate-
gory
GUID-351BE659-0AB9-473A-AC1A-38ABCADA93D61. Push theMENUbutton and touch [Destina-
tion].
2. Touch [Points of Interest]. The main category list is displayed.
LNE0060X
3. Touch the main category. The subcategorylist is displayed.
LNE0061X
4. Touch the subcategory from the list.
LNE0062X
5. Set the narrow down conditions for thelandmarks.
An example of choosing [By Name] is
explained below.
Narrow down conditions:
.[By Name]:
Input the facility name to narrow down
the target facility.
.[Select a City]:Input the city to narrow down the target
city.
.[Near Current Location]:Shows a list of facilities that are near
current vehicle location.
.[Near Destination]:When the destination is set, indicates the
facility list around the destination. 6. Touch [By Name]. A character input screen
is displayed.
LNE0063X
7. Enter the name of the destination facility.After finishing the entry, touch [List]. A list
screen is displayed.
LNE0064X
8. Touch the preferred destination facility from
the list.
Navigation3-23
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-24Navigation
INFO:
.In some cases, when a POI name hasbeen entered, the number of matching
destinations in the "Matches" column
may be different from the number dis-
played on the list screen. If this occurs,
enter more characters to further reduce
the number of matches.
.By selecting [By Distance], you can sortthe list by the nearest distance. The
position of the selected location is
displayed in the preview on the right side
of the screen.
.By selecting [New Category], you can
perform a search from another category.
LNE0065X
9. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat- ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
ªOperations after setting destinationº
(page 3-36)
SETTING HOME AS DESTINATIONGUID-EFD628DF-FD10-4DDD-BDF4-340E595F2B4EThe home location can be set as the destination
to which the system calculates a route. This
function is especially useful when searching for
a route to return to the home location.
1. Puch the MENUbutton and touch [Destina-
tion].
LNE0935X
2. Touch [Home].
3. The home location is displayed, and the system sets the home location as the
destination.
INFO:
If the home location is not stored yet, the
system will automatically display a screen for
storing it.
ªStoring home locationº (page 1-12)
LNE0936X
4. The entire route to the home location is shown on the map. Touch [Start] after
confirming the displayed route. The system
starts route guidance to the home location.
INFO:
Before starting route guidance, the route con-
dition can be changed and the route can be
stored in the Address Book, etc.
ªProcedures after setting routeº
(page 3-39)
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
Setting by voice command
1. Push the
button located on the steering
wheel.
2. After the tone sounds, speak a command.
To set the home location as the destination:
"Navigation" "Home"
FINDING CHARGING STATIONGUID-143B9E58-D695-45C6-A6E7-B950D899BE75It is possible to set the destination to a charging
station and then have the system calculate a
route.
There are many ways to search for a charging
station.
. Find from MENUbutton.
ªNearby current locationº (page 3-25)
. Find from
(Zero Emission menu) button.
ªSpecifying search condition º
(page 3-26)
. Find from [CARWINGS]*.
ªViewing from Zero Emission buttonº
(page 2-6)
. Find from [Map Menu]* on current location
map.
ªViewing from map menuº (page 2-7)
*: Full/vacant information of charging station can
be checked.
CAUTION
Detailed charging station information
may not be available in all areas and
current charging station locations may
not be up to date. For up to date
information about charging stations,
such as business hours or charging
equipment, NISSAN recommends that
you directly access the information on
your own. Additionally, always check
the Li-ion battery available charge and
set a reasonable driving schedule.
Nearby current locationGUID-A064482C-64AD-487F-8179-47CEB55DF6861. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Nearby Points of Interest] and then touch [Charging Station].
LNE0240X
3.A list screen is displayed. Touch the
preferred charging station from the list.
INFO:
.If the suggested route is already set,
when [Show Along Route] is touched,
the system only displays the facilities
located along the route.
.The charging station information screenis displayed when an icon is touched.
ªHow to view charging station
informationº (page 3-27)
LNE0241X
4. The entire route is shown on the map. Touch [Start] to confirm after checking the dis-
played route. The system starts route
guidance to the selected destination.
Navigation3-25
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-26Navigation

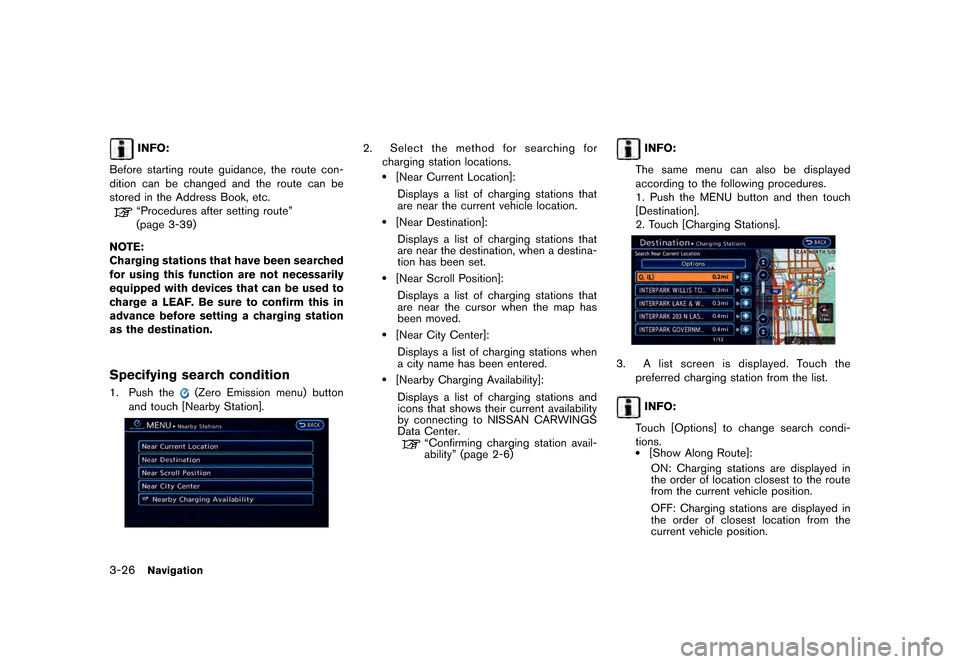

INFO:
Before starting route guidance, the route con-
dition can be changed and the route can be
stored in the Address Book, etc.
ªProcedures after setting routeº
(page 3-39)
NOTE:
Charging stations that have been searched
for using this function are not necessarily
equipped with devices that can be used to
charge a LEAF. Be sure to confirm this in
advance before setting a charging station
as the destination.
Specifying search conditionGUID-5875708B-7D65-42C9-95A9-F31DF7A38DAD1. Push the(Zero Emission menu) button
and touch [Nearby Station].
LNE0905X
2. Select the method for searching for
charging station locations.
.[Near Current Location]:
Displays a list of charging stations that
are near the current vehicle location.
.[Near Destination]:Displays a list of charging stations that
are near the destination, when a destina-
tion has been set.
.[Near Scroll Position]:Displays a list of charging stations that
are near the cursor when the map has
been moved.
.[Near City Center]:
Displays a list of charging stations when
a city name has been entered.
.[Nearby Charging Availability]:Displays a list of charging stations and
icons that shows their current availability
by connecting to NISSAN CARWINGS
Data Center.
ªConfirming charging station avail-
abilityº (page 2-6)
INFO:
The same menu can also be displayed
according to the following procedures.
1. Push the MENU button and then touch
[Destination].
2. Touch [Charging Stations].
LNE0937M
3. A list screen is displayed. Touch the
preferred charging station from the list.
INFO:
Touch [Options] to change search condi-
tions.
.[Show Along Route]: ON: Charging stations are displayed in
the order of location closest to the route
from the current vehicle position.
OFF: Charging stations are displayed in
the order of closest location from the
current vehicle position.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
.[Show Quick Charging Stations Only]:ON: Only the Quick Charge Stations are
displayed in the order of closest location
from the current vehicle position.
OFF: All charging stations are displayed
in the order of the closest location from
the current vehicle position.
LNE0241X
4. The entire route is shown on the map. Touch [Start] to confirm after checking the
displayed route. The system starts route
guidance to the selected destination.
How to view charging station infor-
mation
GUID-19D164CD-2CB4-4613-A2C2-954DD9CA89CFTouch any icon displayed on the list screen to
show the charging station information screen.
Detailed information about a charging station
can be checked.
LNE0242X
Contents of charging station information
.Facility name
. Type of charging devices
: Normal charge icon
: Quick charge icon (for vehicle equipped for
quick charging)
.Type and number of charge connectors
. Whether this facility is open 24 hours a day,
whether the business hours are fixed
Available settings
The following settings are available from the
information screen. Displayed items vary de-
pending on the received information.
. [Show Map]:
Displays a map screen for the selected
charging station. The charging station on
this screen can be set as the destination.
ªOperations after setting destinationº
(page 3-36) .
[Call]:
Makes a call to the selected charging
station. A cellular phone needs to be
connected beforehand.
ªConnecting cellular phoneº
(page 1-13)
. [Details]:
Displays the following information about the
selected charging station.
Ð Address
Ð Phone number
Ð Whether there is a charge for using
charging equipment at this facility or not
NOTE:
Equipment that is displayed on the char-
ging station information screen is not
necessarily compatible with a LEAF. Be
sure to check whether equipment can be
used with a LEAF beforehand.
Navigation3-27
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
3-28Navigation
INFO:
As maintenance of data for charging station
information is carried out periodically, detailed
information for a charging station selected may
not always be displayed.
SEARCHING FROM ADDRESS
BOOK
GUID-4C7DF925-9404-4CBE-A2DD-E3DD6D9BAF0BStoring frequently used destinations in the
Address Book makes it easy for the system to
set and calculate a route. To utilize this function
more effectively, destinations that are often
traveled to should be stored in advance.
1. Push the MENUbutton and touch [Destina-
tion].
2. Touch [Address Book].
LNE0068X
3. Touch the preferred location from the list.
INFO:
Selecting [Sort] displays a list of various sort
functions. To use the sort functions, stored
locations must be set in advance.
ªStoring locationº (page 3-38).[Sorted By Number]: The Address Book entries are displayed
in ascending numerical order.
.[Sorted By Name]:The Address Book entries are displayed
in alphabetic order.
.[Sorted By Icon]:
By selecting a particular icon, a list that
contains only the Address Book entries
associated with that icon is displayed.
.[Sorted By Group]:By selecting a particular group (family,
friends, leisure, etc.) , the selected group
is displayed at the top of the list.
LNE0070X
4. The selected destination is displayed at the center of the map. Touch [Start] after
confirming the location of the displayed
destination. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
After setting a destination, the location of the
destination can be adjusted and the location can
be stored in the Address Book, etc.
ªOperations after setting destinationº
(page 3-36)
Setting by voice command
1. Push the
button located on the steering
wheel.
2. After the tone sounds, speak a command.
To set the destination from the Address Book:
"Navigation" "Address Book"
SEARCHING FROM HISTORYGUID-CCA4B30F-6D42-498B-97B8-C74AE29C5414It is possible to set destinations using the former
route guide starting location, as well as destina-
tion lists that were set in the past. Up to 100
previous destinations will be automatically
stored. If the number of previous destinations
exceeds 100, the oldest one will be replaced by
&RQGLWLRQ 1$0
