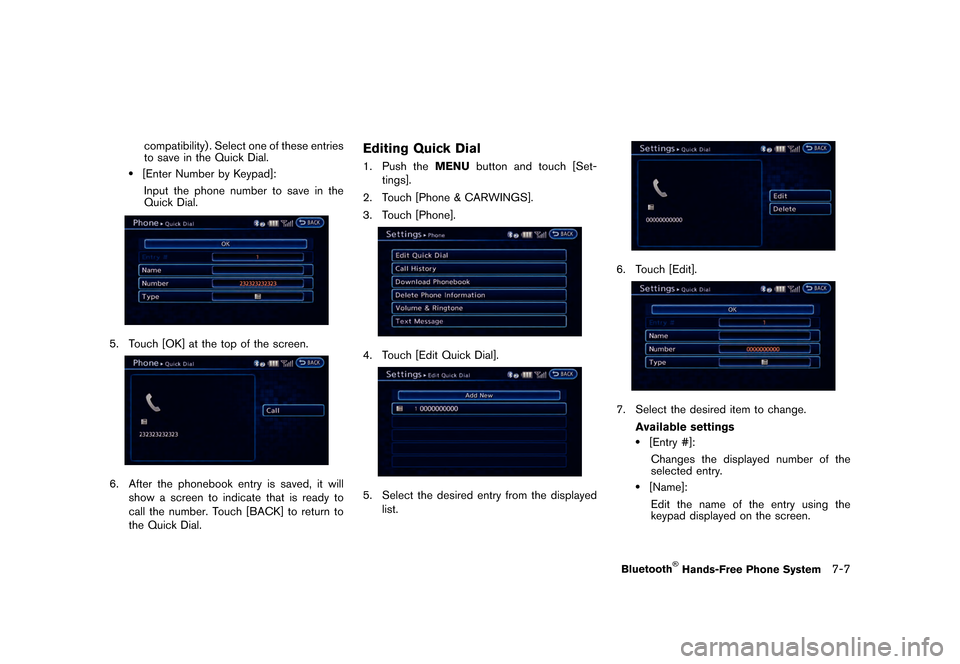

2015 NISSAN LEAF bluetooth


> (GLW    0RGHO 1DYL(9 @
compatibility) . Select one of these entries
to save in the Quick Dial.
.[Enter Number by Keypad]:Input the phone number to save in the
Quick Dial.
LNI0147X
5. Touch [OK] at the top of the screen.
LNI0148X
6. After the phonebook entry is saved, it will show a screen to indicate that is ready to
call the number. Touch [BACK] to return to
the Quick Dial.
Editing Quick DialGUID-50D9B6E9-FE77-4AAA-8905-FB0A241C7DCE1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Phone & CARWINGS].
3. Touch [Phone].
LNI0136X
4. Touch [Edit Quick Dial].
LNI0149X
5. Select the desired entry from the displayed list.
LNI0150X
6. Touch [Edit].
LNI0151X
7. Select the desired item to change.
Available settings
.[Entry #]:Changes the displayed number of the
selected entry.
.[Name]:Edit the name of the entry using the
keypad displayed on the screen.
Bluetooth


> (GLW    0RGHO 1DYL(9 @
7-8Bluetooth


> (GLW    0RGHO 1DYL(9 @

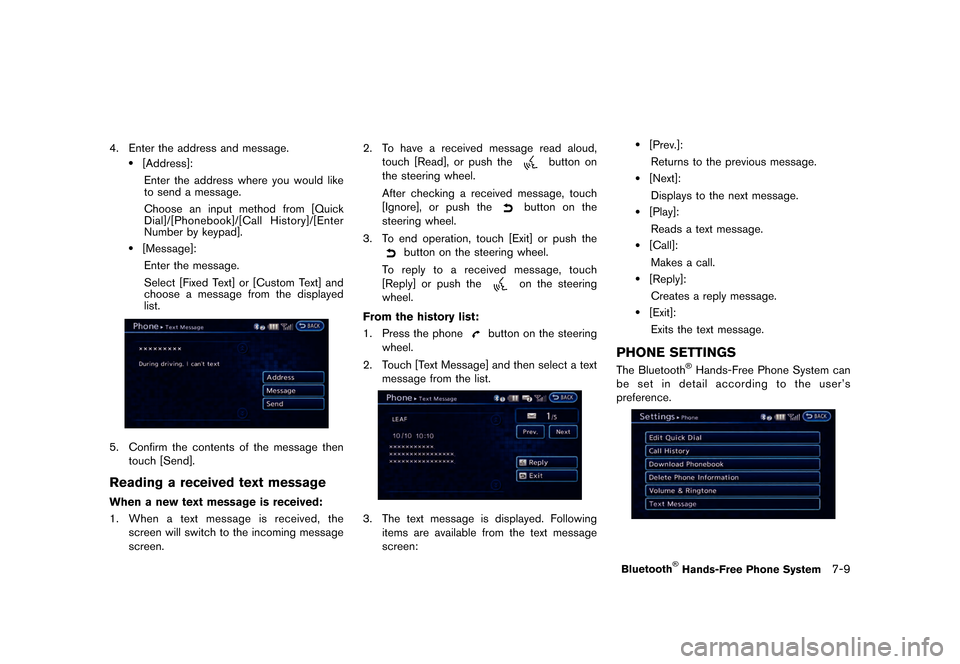

4. Enter the address and message..[Address]:Enter the address where you would like
to send a message.
Choose an input method from [Quick
Dial]/[Phonebook]/[Call History]/[Enter
Number by keypad].
.[Message]:Enter the message.
Select [Fixed Text] or [Custom Text] and
choose a message from the displayed
list.
LNI0137X
5. Confirm the contents of the message then touch [Send].
Reading a received text messageGUID-6E8733FE-E012-43E9-9801-EF19066E89CC
When a new text message is received:
1.When a text message is received, the
screen will switch to the incoming message
screen. 2. To have a received message read aloud,
touch [Read], or push the
button on
the steering wheel.
After checking a received message, touch
[Ignore], or push the
button on the
steering wheel.
3. To end operation, touch [Exit] or push the
button on the steering wheel.
To reply to a received message, touch
[Reply] or push the
on the steering
wheel.
From the history list:
1. Press the phone
button on the steering
wheel.
2. Touch [Text Message] and then select a text message from the list.
LNI0140X
3. The text message is displayed. Followingitems are available from the text message
screen:
.[Prev.]:
Returns to the previous message.
.[Next]:Displays to the next message.
.[Play]:Reads a text message.
.[Call]:
Makes a call.
.[Reply]:Creates a reply message.
.[Exit]:
Exits the text message.
PHONE SETTINGSGUID-113ACEB2-74B1-46EA-92C5-7C0462E956E7The Bluetooth


> (GLW    0RGHO 1DYL(9 @
7-10Bluetooth


> (GLW    0RGHO 1DYL(9 @
LNI0153X

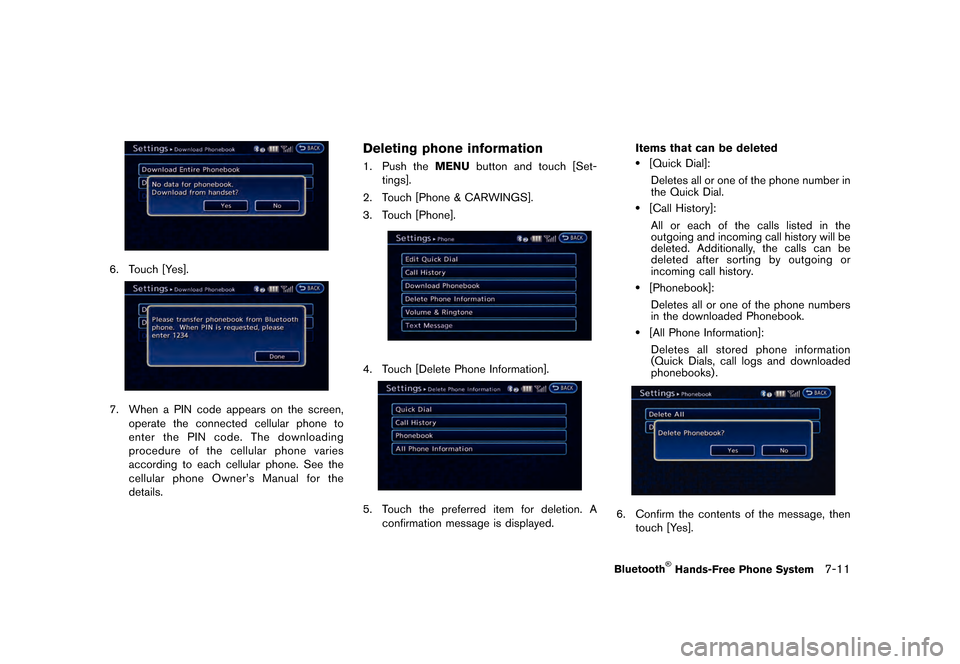

6. Touch [Yes].
LNI0154X
7. When a PIN code appears on the screen,operate the connected cellular phone to
enter the PIN code. The downloading
procedure of the cellular phone varies
according to each cellular phone. See the
cellular phone Owner's Manual for the
details.
Deleting phone informationGUID-57D24F70-D43C-45C8-97D0-A5CAA19DCE2D1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Phone & CARWINGS].
3. Touch [Phone].
LNI0136X
4. Touch [Delete Phone Information].
LNI0155X
5. Touch the preferred item for deletion. A confirmation message is displayed. Items that can be deleted
.[Quick Dial]:
Deletes all or one of the phone number in
the Quick Dial.
.[Call History]:All or each of the calls listed in the
outgoing and incoming call history will be
deleted. Additionally, the calls can be
deleted after sorting by outgoing or
incoming call history.
.[Phonebook]:Deletes all or one of the phone numbers
in the downloaded Phonebook.
.[All Phone Information]:
Deletes all stored phone information
(Quick Dials, call logs and downloaded
phonebooks) .
LNI0026X
6. Confirm the contents of the message, then touch [Yes].
Bluetooth


> (GLW    0RGHO 1DYL(9 @
7-12Bluetooth


> (GLW    0RGHO 1DYL(9 @

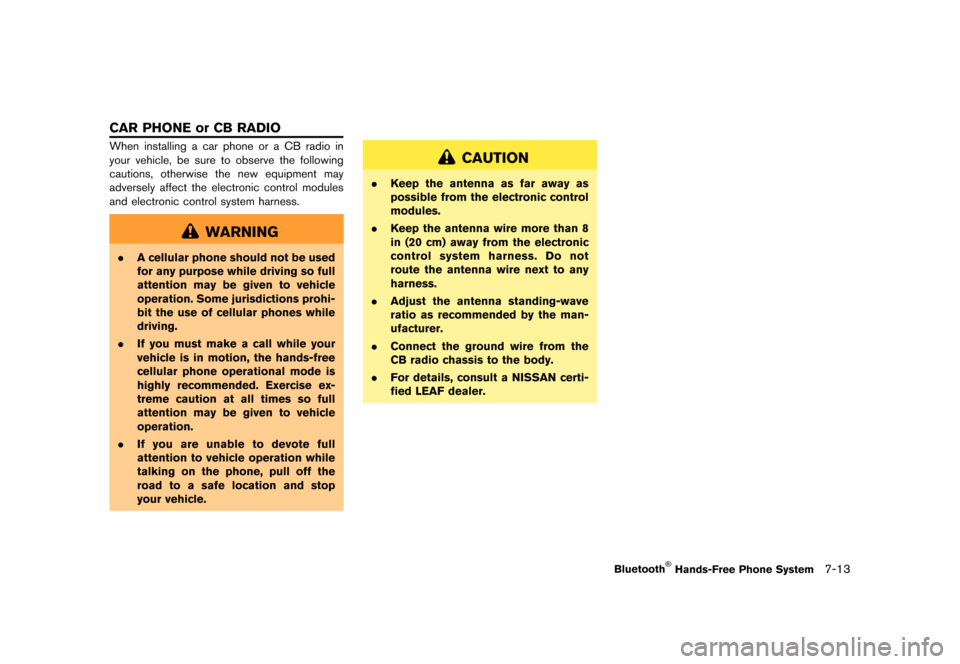

GUID-8818FE89-929B-445D-A49C-7EC1615585A6When installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode is
highly recommended. Exercise ex-
treme caution at all times so full
attention may be given to vehicle
operation.
. If you are unable to devote full
attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, consult a NISSAN certi-
fied LEAF dealer.
Bluetooth


> (GLW    0RGHO 1DYL(9 @
7-14Bluetooth
