used, but "five hundred" cannot.)
Examples:
1-800-662-6200
"One eight zero zero six six two six two zero
zero"
Improving Recognition of Phone numbers:
Recognition of phone numbers can be improved
by speaking the phone number in 3 groups of
numbers. For example, to call 800-662-6200,
speak "Eight Zero Zero" first, and the system will
then ask to speak the next three digits. Then,
speak "Six Six Two". After recognition, the
system will then ask to speak the last 4 digits.
Speak, "Six Two Zero Zero". Using this method
of phone number digit entry can improve
recognition performance.
INFO:
For best recognition, speak "zero" for the
number "0" and "oh" for the letter "o".
VOICE COMMAND EXAMPLESGUID-FEA9D0CB-EA44-4D59-9DB9-7F46FBC7218BTo use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands.
As examples, some additional basic operations
that can be performed by voice commands are
described here.
Example 1: Setting destination by
address book
GUID-996570AA-7F37-41B2-BDB3-5D2457F8F76B1. Push thebutton located on the steering
wheel.
LNK0042X
2. The system announces, "Would you like to access Phone, Navigation, Zero Emission or
CARWINGS?".
3. Speak "Navigation".
LNK0048X
4. Speak "Address Book".
LNK0004X
5. Voice feedback will be provided when the command is accepted, and the list of
address book is displayed.
6. After the tone sounds and the icon on the screen changes again, speak "Two".
Voice recognition8-3
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
8-4Voice recognition
LNK0005X
7. Voice feedback will be provided when thecommand is accepted, and the system
starts calculating a route to the selected
location.
Example 2: Placing call to phone
number 800-662-6200
GUID-6CFAE30B-5975-4B25-A176-E9513A94590F1. Push thebutton located on the steering
wheel.
LNK0042X
2. The system announces, "Would you like to access Phone, Navigation, Zero Emission or
CARWINGS?". 3. Speak "Phone".
LNK0049X
4. Speak "Dial Number".
LNK0008X
5. Speak "800".
LNK0009X
6. The system announces, "Please say either
the next three digits, dial, or say change
number". Speak "662".
LNK0010X
7. The system announces, "Please say the last
four digits or say change number". Speak
"6200".
LNK0011X
8. The system announces, "Dial or ChangeNumber?". Speak "Dial".
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
LNK0012X
9. The system makes a call to 800-662-6200.
INFO:
. If the area code is not required, speaking
"800-662-6200" (10 continuous digits) or
"662-6200" (7 continuous digits) is accep-
table. However the 3-3-4 digit grouping is
recommended for improved recognition.
ªHow to speak numbersº (page 8-2)
. The NISSAN voice recognition system is not
limited to recognizing phone numbers of
only 7 or 10 digits. To dial a number in a
format other than the 3-3-4 digit grouping,
use the "International Call" command.
. If "Change Number" is spoken during phone
number entry, the system will automatically
request that the number be repeated using
the 3-3-4 format. In this case please speak
the area code first and then follow the
prompts. Do not add a "1" in front of the area code when speaking phone numbers.
. If the system does not recognize a voice
command, please try repeating the com-
mand using a natural voice. Speaking too
slowly or too loudly may further decrease
recognition performance.
Example 3: Placing international call
to phone number 011-81-111-222-
333
GUID-68459D75-0A33-40C2-8482-782A3FFFA8BF1. Push thebutton located on the steering
wheel.
LNK0042X
2. The system announces, "Would you like to access Phone, Navigation, Zero Emission or
CARWINGS?".
3. Speak "Phone".
LNK0049X
4. Speak "International Call".
LNK0015X
5. Speak "01181111222333".
LNK0016X
Voice recognition8-5
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

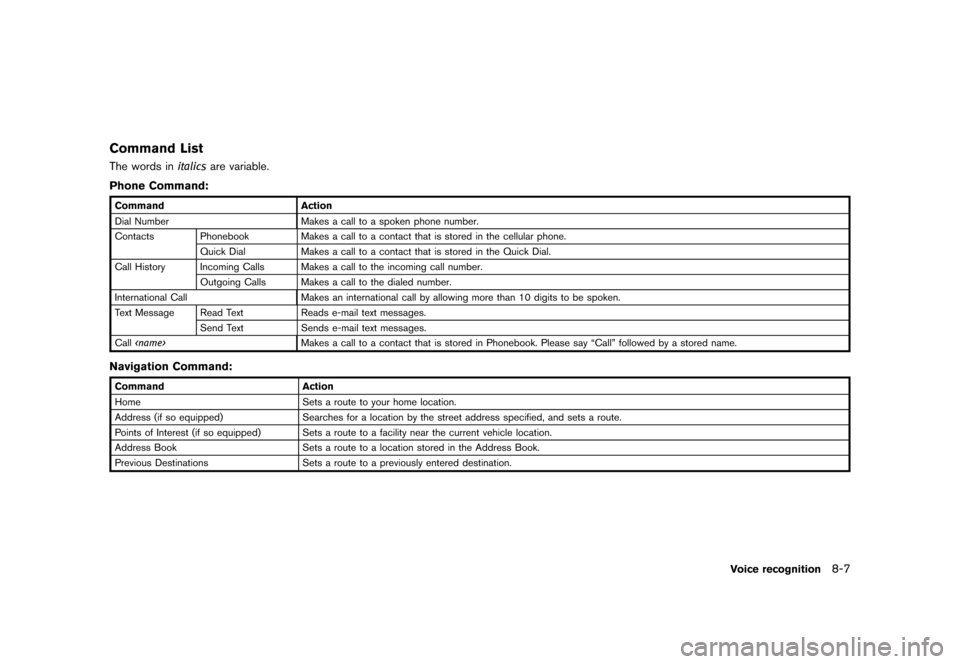

Command ListGUID-2DE5C214-7FBF-426E-BF07-1526B4DDCA38The words inJUBMJDTare variable.
Phone Command:
Command Action
Dial Number Makes a call to a spoken phone number.
Contacts Phonebook Makes a call to a contact that is stored in the cellular phone.
Quick Dial Makes a call to a contact that is stored in the Quick Dial.
Call History Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Text Message Read Text Reads e-mail text messages.
Send Text Sends e-mail text messages.
Call OBNF Makes a call to a contact that is stored in Phonebook. Please say ªCallº followed by a stored name.
Navigation Command:
Command Action
Home Sets a route to your home location.
Address (if so equipped) Searches for a location by the street address specified, and sets a route.
Points of Interest (if so equipped) Sets a route to a facility near the current vehicle location.
Address Book Sets a route to a location stored in the Address Book.
Previous Destinations Sets a route to a previously entered destination.
Voice recognition8-7
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
10 Troubleshooting guide/General systeminformation
Troubleshooting guide ...
........................................................... 10-2
Customer assistance ...
....................................................... 10-2
System unit ...
........................................................................\
. 10-2
Unique EV functions ...
........................................................ 10-4
Navigation ...
........................................................................\
... 10-9
CARWINGS
TM...
............................................................... 10-16
Audio system ...
.................................................................. 10-17
Bluetooth


> (GLW    0RGHO 1DYL(9 @
10-2Troubleshooting guide/General system information
GUID-AFB09620-BB58-4670-B66F-BCBE6FC473E4
CUSTOMER ASSISTANCEGUID-EA84A59D-8111-427E-AF1B-134B59A3E4B8For assistance or inquiries about the NISSAN Navigation System, or to order updated map data, contact the NISSAN NAVIGATION SYSTEM
HELPDESK. See the contact information on the inside front cover of this manual.
SYSTEM UNITGUID-31400E7C-F4D3-4689-A9F6-88A5A28E5475
Liquid crystal displayGUID-EAA5698F-0334-4DAC-A1E3-D24F8C3455F2
SymptomPossible cause Possible solution
The screen is too dark. The cabin temperature is too low.Wait until the cabin temperature becomes moderate.
Screen brightness is set to the maximum darkness. Adjust the brightness setting of the screen.
ªBrightnessº (page 1-15)
The screen is too bright. Screen brightness is set to the maximum brightness. Adjust the brightness setting of the screen.
ªBrightnessº (page 1-15)
A small black spot or a small bright spot appears on the
screen. This is a typical phenomenon for liquid crystal displays. This is not a malfunction.
A dot or stripe pattern appears on the screen. Electromagnetic waves that are generated from neon billboards, high voltage electric power cables, ham
radios or other radio devices equipped to other vehicles
may adversely affect the screen.This is not a malfunction.
Image lag appears on the screen. This is a typical phenomenon for liquid crystal displays. This is not a malfunction.
Image motion displayed on the screen is slow. The cabin temperature is less than 508F (08C) . Wait until the cabin temperature rises to within 508F (08C) and 1228F (508C) .
When looking at the screen from an angle, the screen
lightens or darkens. This is a typical phenomenon for liquid crystal displays. Adjust the brightness setting of the screen.
ªBrightnessº (page 1-15)
TROUBLESHOOTING GUIDE
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
NAVIGATIONGUID-9CDB1CD7-F25C-4AF6-97FF-6E29E3C9EB64
Basic operationsGUID-63D868E1-81BC-4C67-BECA-983902BED4C1
SymptomPossible cause Possible solution
No image is displayed. The brightness is at the lowest setting.Adjust the brightness of the display.
The display is turned off. Push the
button to turn on the display.
No voice guidance is available.
or
The volume is too high or too low. The volume is not set correctly, or it is turned off. Adjust the volume of voice guidance.
Voice guidance is not provided for certain streets (roads
displayed in gray) .
This is not a malfunction.
No map is displayed on the screen. A screen other than map screen is displayed. Push the MAPbutton.
The screen is too dim. The movement is slow. The temperature in the interior of the vehicle is low. Wait until the interior of the vehicle has warmed up.
Some pixels in the display are darker or brighter than
others. This condition is an inherent characteristic of liquid
crystal displays.This is not a malfunction.
Some menu items cannot be selected. Some menu items become unavailable while the vehicle
is driven.Park the vehicle in a safe location, and then operate the
navigation system.
Troubleshooting guide/General system information10-9
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
10-10Troubleshooting guide/General system information
Vehicle iconGUID-C0C1C898-A889-456C-A1BE-60ABF2162EC7
SymptomPossible cause Possible solution
Names of roads and locations differ between
Plan View and Birdview
TM. This is because the quantity of the displayed information is reduced
so that the screen does not become too cluttered. There is also a
chance that names of the roads or locations may be displayed
multiple times, and the names appearing on the screen may be
different because of a processing procedure. This is not a malfunction.
The vehicle icon is not displayed in the correct
position. The vehicle was transported after the power switch was pushed off,
for example, by a ferry or car transporter. Drive the vehicle for a period of time on a road where
GPS signals can be received.
The position and direction of the vehicle icon may be incorrect
depending on the driving environments and the levels of positioning
accuracy of the navigation system. This is not a malfunction. Drive the vehicle for a
period of time to automatically correct the position
and direction of the vehicle icon.
ªCurrent vehicle locationº (page 10-29)
When the vehicle is traveling on a new road,
the vehicle icon is located on another road
nearby. Because the new road is not stored in the map data, the system
automatically places the vehicle icon on the nearest road available.
Updated road information will be included in the next
version of the map data.
The screen does not switch to the night screen
even after turning on the headlights. The daytime screen was set the last time the headlights were turned
on. Set the screen to the night screen mode using the
button when turning on the headlights.ªDisplay adjustmentº (page 1-14)
The map does not scroll even when the vehicle
is moving. The current location map screen is not displayed.
Push theMAPbutton.
The vehicle icon is not displayed. The current location map screen is not displayed. Push theMAPbutton.
The GPS indicator on the screen remains gray. GPS signals cannot be received under certain conditions, such as in a parking garage, on a road with many tall buildings, etc. Drive on an open, straight road for a period of time.
GPS signals cannot be received because objects are placed on the
instrument panel. Remove the objects from the instrument panel.
A sufficient number of GPS satellites is not available. Wait for the satellites to move to locations available
for the navigation system.
