2015 NISSAN LEAF navigation


> (GLW    0RGHO 1DYL(9 @
data by NISSAN can be provided in various
ways. The vehicle is equipped with a ªpop upº
screen on the vehicle navigation system that will
ask for your consent to this data transfer. A
version of the following message will appear:
ªPursuant to subscription agreement, your ve-
hicle wirelessly transmits recorded vehicle data
to NISSAN for various purposes, including
CARWINGS
TMservices, product evaluation,
research and development. By touching [OK],
you consent to the transmission and use of your
vehicle data. See Owner's Manual or NISSAN
Owner's portal webpage for terms and details.º
If you touch [OK], your vehicle will transmit data
as designed in connection with the vehicle
telematics system. If you touch [Decline] your
vehicle will not transmit data. However, the
telematics features referenced above, and per-
haps others, will not be available to you. The
vehicle's static navigation system will remain
operational, and you will be able to access your
radio and climate controls.
Telematics features are dependent on cellular
data transmission. Some areas may have limited
or no cellular connectivity, resulting in a loss or
interruption of data transmission and, as a result,
certain features may be temporarily unavailable.
Even if areas with good signal reception, cellular
connectivity can be adversely affected by things
such as tall buildings, apartments, tunnels, underground parking, mountainous areas, etc.
Even if the signal strength bar of the in-vehicle
data communication module indicates good
reception, connectivity may be disrupted. This
does not indicate a malfunction. Operate the
system again after a few minutes to restore
connectivity. CARWINGS
TMtelematics features
are offered as a convenience to the vehicle
owner. NISSAN is not responsible for, and
owner assumes all risk of, interruptions in
service or errors based on incomplete or
inaccurate data. CARWINGS
TMcommunica-
tions may be received at a verified e-mail
address or by SMS/text messaging-enabled
mobile phone. Standard text rates and/or data
usage may apply depending on your carrier.
If your vehicle's telematics account is active, and
you are not the original owner, please contact
NISSAN at the website or phone number above
as soon as possible to update the telematics
enrollment information. Upon sale of the vehicle,
please contact NISSAN at the website or phone
number above so that NISSAN's records may be
updated. CARWINGS
TMsubscription services
will automatically terminate at the end of the
initial free term if you do not wish to renew your
subscription agreement at the prices then in
effect.
CARWINGSTM5-3
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
Remote functions
.Battery status check:
The status of the battery can be checked
using your personal computer or cellular
phone even if you are not in the vehicle.
. Unplugged status, Charge status:
By registering frequently used charging
stations, notifications can be sent to your
personal computer or cellular phone email
address to inform you when the charging
connector is disconnected at those loca-
tions or charging is completed.
. Remote charge, Remote climate con-
trol:
Remote activation of battery charging or
climate control can be set using your
personal computer or cellular phone.
. Li-ion battery warmer status:
When the ambient temperature is low, the
Li-ion battery warmer operates automati-
cally.
Notifications will be sent to your personal
computer or cellular phone email address
under the following conditions in order to
remind you to connect the charging con-
nector. Ð Approximately 5 minutes after the Li-ion
battery warmer starts operating while the
power switch is in the OFF state and the
charging cable is not connected to the
vehicle.
Ð Approximately 5 minutes after the Li-ion battery warmer stops operating due to
low remaining Li-ion battery power while
the power switch is in the OFF state and
the charging cable is not connected to
the vehicle.
NOTE:
. The remaining Li-ion battery power
lowers gradually while the battery
warmer is operating without connect-
ing the charging connector.
. When the remaining Li-ion battery
power lowers, the battery warmer stops
operating. When this occurs, the Li-ion
battery temperature lowers gradually,
and as a result the EV system may be
disabled.
Navigation Telematics (CARWINGS
TMser-
vice)
. Automatic update of charging stations:
The information for the charging stations that is recorded in the map data is
automatically updated.
. All Information Feeds:
Convenient information for driving such as
weather and traffic information, ECO infor-
mation shared with the LEAF users, etc. is
provided.
. Favorites:
When the information of an Internet site is
selected and it is stored in the page that is
specially established in the NISSAN Own-
er's Portal Website, the information is
converted into an appropriate format via
the NISSAN CARWINGS Data Center and
provided for use in the vehicle. The content
of the information is automatically read out.
For the registration method of information
data, visit the NISSAN Owner's Portal
Website.
NOTE:
. Establishing the CARWINGS
TMservice
is necessary before using this service.
. To check the Li-ion battery charging
status or to use the remote heater and
air conditioner using an internet en-
abled smart phone or personal compu-
ter, the following conditions must be
met:
CARWINGSTM5-5
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
a destination or a waypoint.
. [Call]:
If a feed received includes a telephone
number, it will be displayed on the screen.
Touch to make a phone call. A cellular phone
must be connected to the vehicle before
making a phone call.
. [Show Image]:
If a feed received includes image data, it will
be displayed on the screen. Touch to display
the image on the screen.
. [Details]:
Displays detailed information for a selected
feed.
. [Store Loc.]:
If a feed received includes map data, the
location can be registered as a registered
location in the address book .
. [My Location]:
Displays the map for the current position.
. [Lock Feed]:
Protects one of the feeds that are stored in
the history from being deleted.
. [Unlock Feed]:
This will be displayed only when a selected
feed is already protected. Touch to cancel
protection. .
[Delete Feed]
Deletes the feeds that are stored in the
history.
INFO:
. Some images are not displayed depending
on the contents.
. Some words such as personal names, place
names, special terms, symbols, etc. may not
be pronounced correctly. This does not
indicate a malfunction.
. The system will pause announcements when
voice guidance given by the navigation
system occurs. When the voice guidance
finishes, the system will restart the an-
nouncement.
. The volume can be adjusted when the
system announces the information.
ªVolume settingsº (page 1-16)
GUID-8AF4ACAC-7596-4B20-A3CF-4558D306A3FEA maximum of 16 favorite feeds selected from
the information feeds can be stored in a folder.
1. Push the MENUbutton and touch [CARW-
INGS].
LNG0127X
2. Touch [Favorite Feeds].
LNG0007X
3. Touch [Add New]. A folder list is displayed.
CARWINGSTM5-9
STORING FAVORITES
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
6 Viewing technical information
Information screen...
..................................................................... 6-2
Viewing vehicle information ...
..................................................... 6-3
Viewing maintenance information ...
.................................... 6-3
Comfort & Convenience settings ...
..................................... 6-4
Viewing information about current vehicle location ...
.......... 6-4
Viewing Charging Station information ...
.................................. 6-5
Viewing available traffic information ...
...................................... 6-6
Info on route ...
........................................................................\
.. 6-7 Nearby traffic info.
...
............................................................. 6-7
Display urgent traffic information ...
................................... 6-8
Traffic information on map ...
............................................... 6-8

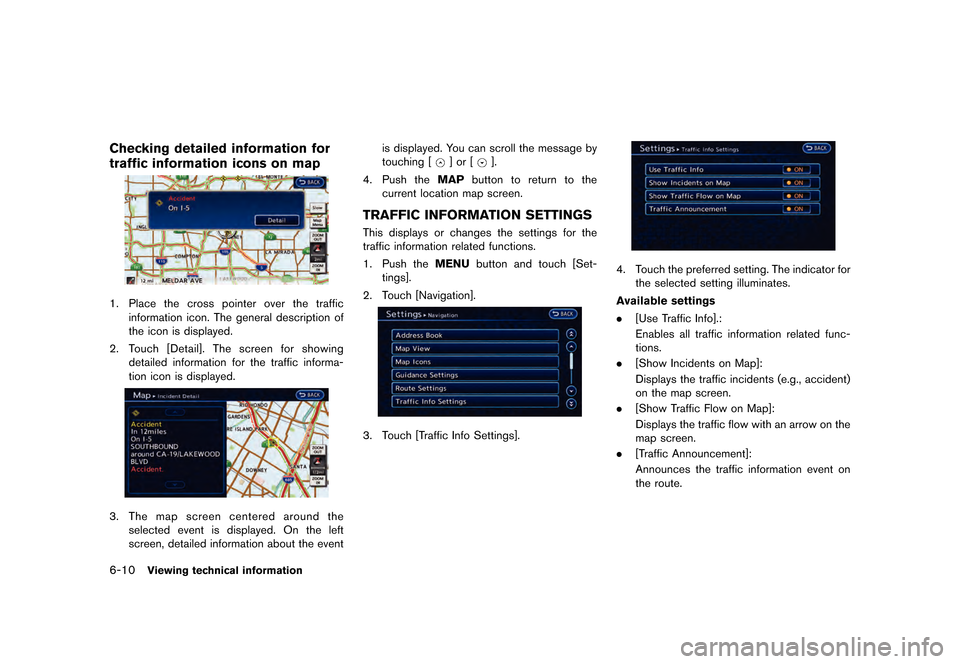

Traffic information settings ...
........................................... 6-10
Viewing GPS current location information ...
...................... 6-11
Viewing navigation system version information ...
.............. 6-12
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
6-2Viewing technical information
GUID-5E9B2C85-D229-414A-96FE-2A3389057A2BThis screen sets or displays various information
that is helpful for using the vehicle. Available
items include the vehicle information, Traffic Info.
setup, current location information, GPS infor-
mation, Voice Recognition list and navigation
software version.
LNH0121X
1. Push theMENUbutton and touch [Info].
2. Touch the item you would like to set.
Available settings
. [Energy Info]:
Energy information is displayed on the
screen.
ªEnergy information displayº
(page 2-8)
. [Maintenance]:
Displays the vehicle maintenance informa-
tion.
ªViewing maintenance informationº
(page 6-3) .
[Where am I?]:
Displays information regarding the current
vehicle location.
ªViewing information about current
vehicle locationº (page 6-4)
. [Charging Station Info]:
Displays charging station information for the
current location.
ªViewing Charging Station informa-
tionº (page 6-5)
. [Traffic Info]:
Allows Traffic Info. setup.
ªViewing available traffic informationº
(page 6-6)
. [Voice Recognition]:
Displays the voice command list.
ªDisplaying command listº (page 8-6)
. [GPS Position]:
Displays GPS information regarding the
current vehicle location.
ªViewing GPS current location infor-
mationº (page 6-11)
. [Navigation Version]:
Displays the current navigation system ver-
sion.
ªViewing navigation system version
informationº (page 6-12)
INFO:
A NavTraffic subscription is necessary to view
Traffic Info.
INFORMATION SCREEN
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
6-6Viewing technical information
.[Call]:
Makes a call for the selected charging
station. A cellular phone should be con-
nected beforehand.
ªConnecting cellular phoneº
(page 1-13)
. [Details]:
Displays detailed information including the
type and number of charging devices exist-
ing at the selected charging station.
GUID-C3CED98E-C094-4510-B148-64D1ABD9EAF1NavTraffic information is a subscription service
offered by SiriusXM Satellite Radio.
This service provides real-time information
regarding traffic flow, accidents, road construc-
tion and other incidents, where available.
NavTraffic combines information from commer-
cial and public traffic data providers including
government departments of transportation, po-
lice, emergency services, road sensors, cameras
and aircraft reports. The traffic information is
broadcast to the vehicle by the SiriusXM
Satellite Radio. Available traffic information on
the route the driver selected is shown on the
navigation screen so traffic conditions between
you and the destination are known. Three types
of real-time traffic information for major road-
ways are shown on the navigation system:
* Unscheduled traffic data for example, acci-
dents and disabled vehicles.
* Scheduled traffic data, for example road
construction and road closures.
* Traffic flow information (rate of speed data) .WARNING
NavTraffic information is not a substi-
tute for attentive driving. Traffic condi-
tions change constantly and emergency
situations can arise without warning.
Relying only on NavTraffic information
may lead to a collision and could result
in serious personal injury.
INFO:
. Flow information is provided only for roads
equipped with traffic sensors and is not
available in all markets covered by the
service. Flow data may not be available on
portions of a road that is under construction.
. If a contract is not completed for NavTraffic
traffic information service, a message ap-
pears, and it will not be possible to check
the information on the traffic information
menu.
NavTraffic information is available in limited
markets. To subscribe or to check if this service
is available in the area:
call 1-866-635-2349 or see www.siriusxm.
com/navtraffic
VIEWING AVAILABLE TRAFFIC
INFORMATION
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
6-10Viewing technical information
Checking detailed information for
traffic information icons on map
GUID-28EFD838-29AC-45EF-BC9E-086ABE9A3F5B
LNH0020X
1.Place the cross pointer over the traffic
information icon. The general description of
the icon is displayed.
2. Touch [Detail]. The screen for showing
detailed information for the traffic informa-
tion icon is displayed.
LNH0021X
3.The map screen centered around the
selected event is displayed. On the left
screen, detailed information about the event is displayed. You can scroll the message by
touching [
] or [].
4. Push the MAPbutton to return to the
current location map screen.
TRAFFIC INFORMATION SETTINGSGUID-6EFBBA9B-B2DE-4BB5-BA6A-8F97BE784DF6This displays or changes the settings for the
traffic information related functions.
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Navigation].
LNH0022X
3. Touch [Traffic Info Settings].
LNH0023X
4. Touch the preferred setting. The indicator for the selected setting illuminates.
Available settings
. [Use Traffic Info].:
Enables all traffic information related func-
tions.
. [Show Incidents on Map]:
Displays the traffic incidents (e.g., accident)
on the map screen.
. [Show Traffic Flow on Map]:
Displays the traffic flow with an arrow on the
map screen.
. [Traffic Announcement]:
Announces the traffic information event on
the route.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
6-12Viewing technical information
GUID-2286BD91-8259-4719-BA17-5CC144BF2D35This displays the map version information.
LNH0024X
1. Push theMENUbutton and touch [Info.].
2. Touch [Navigation Version].
3. Push the MAPbutton to return to the
current location map screen.
VIEWING NAVIGATION SYSTEM
VERSION INFORMATION
&RQGLWLRQ 1$0
