2015 NISSAN JUKE ESP


> (GLW   0RGHO )'@

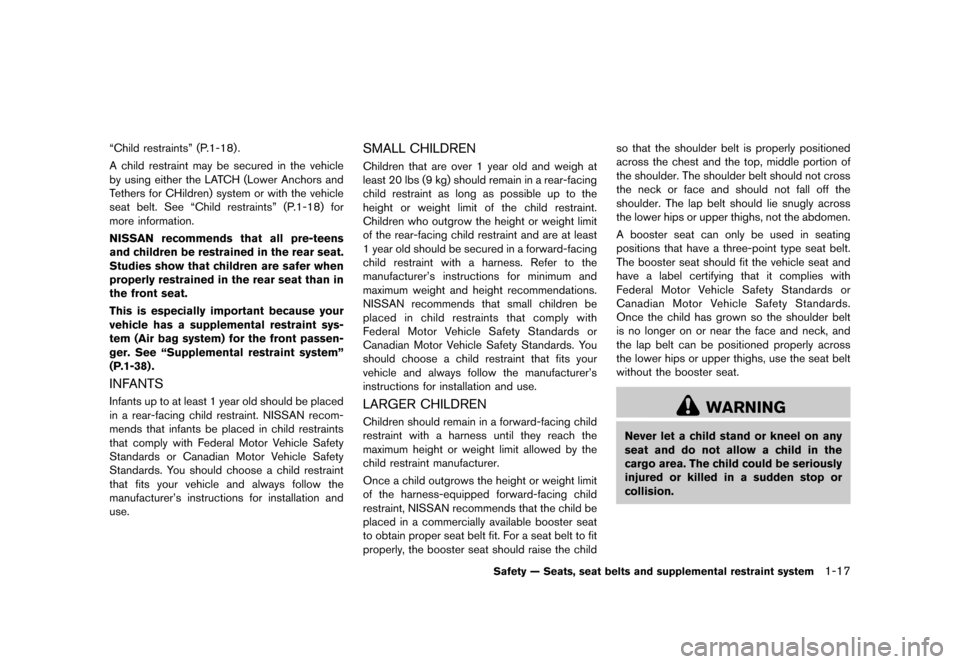

ªChild restraintsº (P.1-18) .
A child restraint maybesecured inthe vehicle
by using either theLATCH (Lower Anchors and
T ethers forCHildren) systemorwith thevehicle
seat belt. SeeªChild restraintsº (P.1-18) for
more information.
NISSAN recommends thatallpre-teens
and children berestrained inthe rear seat.
Studies showthatchildren aresafer when
properly restrained inthe rear seat than in
the front seat.
This isespecially importantbecauseyour
vehicle hasasupplemental restraintsys-
tem (Airbag system) forthe front passen-
ger. See ªSupplemental restraintsystemº
(P .1-38) .
INF ANTS
GUID-8A5 C1EF8-1BA0 -4BB0-A11B-F37E77F6BF17
Infants uptoatleast 1year oldshould beplaced
in arear-facing childrestraint. NISSANrecom-
mends thatinfants beplaced inchild restraints
that comply withFederal MotorVehicle Safety
Standards orCanadian MotorVehicle Safety
Standards. You should choose achild restraint
that fitsyour vehicle andalways followthe
manufacturer's instructionsforinstallation and
use.
SMALL CHILDREN
GUID-D785B 1AD-5D38-4B 06-AE49-C96B27E8D CD7
Children thatareover 1year oldand weigh at
least 20lbs (9kg) should remaininarear-facing
child restraint aslong aspossible uptothe
height orweight limitofthe child restraint.
Children whooutgrow theheight orweight limit
of the rear-facing childrestraint andareatleast
1 year oldshould besecured inaforward-facing
child restraint withaharness. Refertothe
manufacturer's instructionsforminimum and
maximum weightandheight recommendations.
NISSAN recommends thatsmall children be
placed inchild restraints thatcomply with
Federal MotorVehicle Safety Standards or
Canadian MotorVehicle Safety Standards. You
should choose achild restraint thatfitsyour
vehicle andalways followthemanufacturer's
instructions forinstallation anduse.
LARGER CHILDREN
GUID-03 0EE564-4B BD-41E6-94 17-5A670B31A472
Children shouldremaininaforward-facing child
restraint withaharness untilthey reach the
maximum heightorweight limitallowed bythe
child restraint manufacturer.
Once achild outgrows theheight orweight limit
of the harness-equipped forward-facingchild
restraint, NISSANrecommends thatthechild be
placed inacommercially availableboosterseat
to obtain proper seatbeltfit.For aseat belttofit
properly ,the booster seatshould raisethechild so
that theshoulder beltisproperly positioned
across thechest andthetop, middle portion of
the shoulder. Theshoulder beltshould notcross
the neck orface andshould notfalloffthe
shoulder. Thelapbelt should liesnugly across
the lower hipsorupper thighs, nottheabdomen.
A booster seatcanonly beused inseating
positions thathave athree-point typeseatbelt.
The booster seatshould fitthe vehicle seatand
have alabel certifying thatitcomplies with
Federal MotorVehicle Safety Standards or
Canadian MotorVehicle Safety Standards.
Once thechild hasgrown sothe shoulder belt
is no longer onornear theface andneck, and
the lapbelt canbepositioned properlyacross
the lower hipsorupper thighs, usetheseat belt
without thebooster seat.
WARNING
Never letachild stand orkneel onany
seat anddonot allow achild inthe
cargo area.Thechild could beseriously
injured orkilled inasudden stopor
collision.
Safety ÐSeats, seatbelts andsupplemental restraintsystem
1-17
&RQGLWLRQ


> (GLW   0RGHO )'@

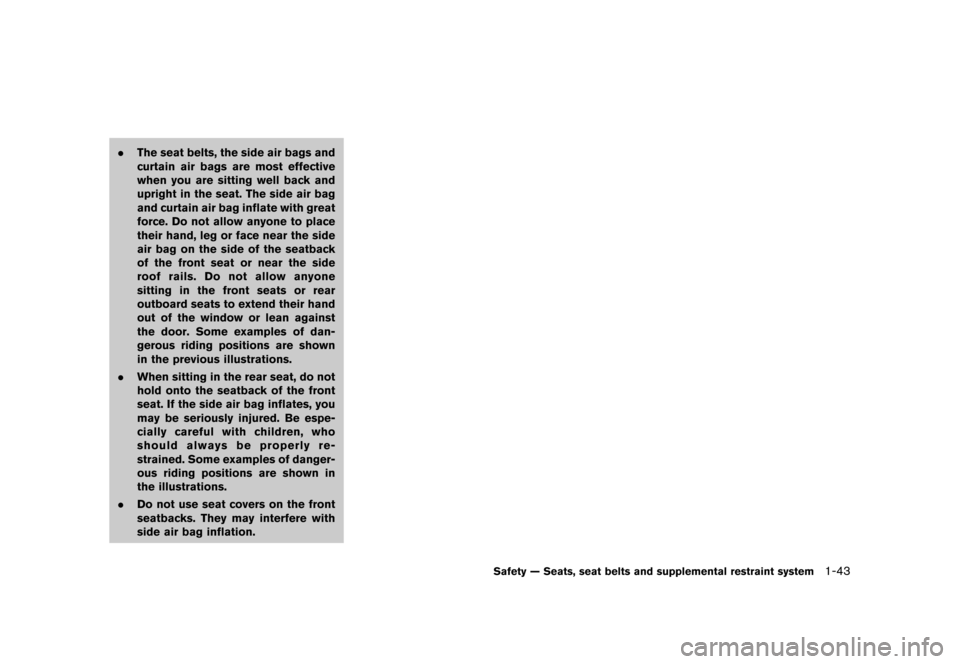

. The seat belts, theside airbags and
curtain airbags aremost effective
when youaresitting wellback and
upright inthe seat. Theside airbag
and curtain airbag inflate withgreat
force. Donot allow anyone toplace
their hand, legorface near theside
air bag onthe side ofthe seatback
of the front seatornear theside
roof rails. Donot allow anyone
sitting inthe front seats orrear
outboard seatstoextend theirhand
out ofthe window orlean against
the door. Some examples ofdan-
gerous ridingpositions areshown
in the previous illustrations.
. When sitting inthe rear seat, donot
hold onto theseatback ofthe front
seat. Ifthe side airbag inflates, you
may beseriously injured.Beespe-
cially careful withchildren, who
should always beproperly re-
strained. Someexamples ofdanger-
ous riding positions areshown in
the illustrations.
. Do not use seat covers onthe front
seatbacks. Theymayinterfere with
side airbag inflation.
Safety ÐSeats, seatbelts andsupplemental restraintsystem
1-43
&RQGLWLRQ


> (GLW   0RGHO )'@

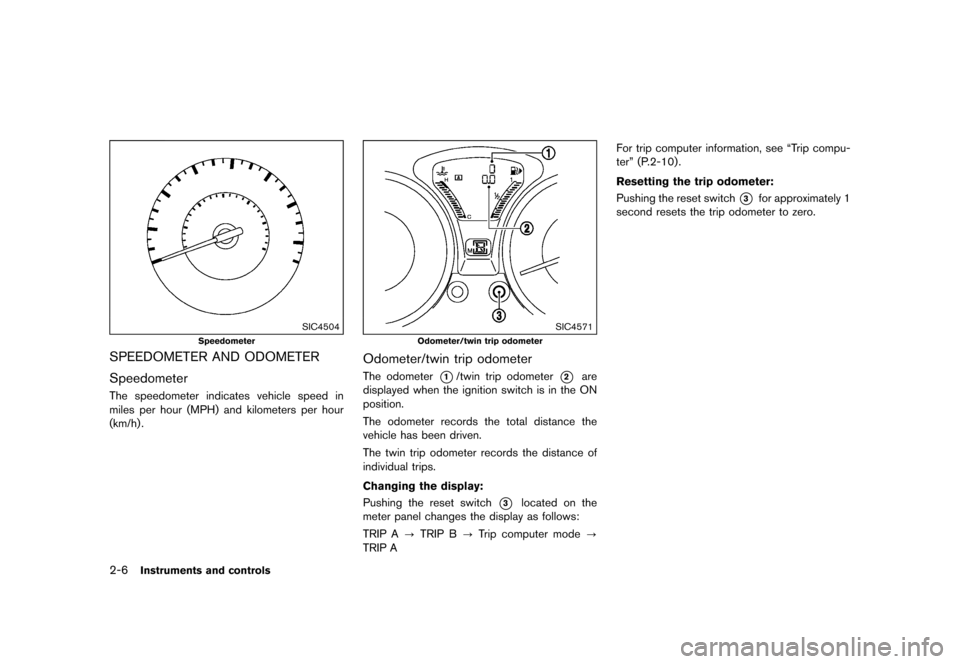

2-6
Instrumen tsand controls
SIC4504
Speedometer
SPEEDOMET ERAND ODOMETER
GUID-51A2 41D7-04C6-4 D12-AE1B-0180C370F35 E
Speedomete r
GUID-C27FC7 F5-4696-4462-8629-B031E D3004EE
The speedometer indicatesvehiclespeedin
miles perhour (MPH) andkilometers perhour
(km/h)
.
SIC4571
Odometer/tw intrip odometer
Odometer/twin tripodometer
GUID-A 41D0989-D B08-4D3A-B E30-03AEC3FEFFE0
The odometer
*
1
/twin tripodometer
*
2
are
displayed whentheignition switchisin the ON
position.
The odometer recordsthetotal distance the
vehicle hasbeen driven.
The twin tripodometer recordsthedistance of
individual trips.
Changing thedisplay:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Pushing thereset switch
*
3
located onthe
meter panelchanges thedisplay asfollows:
TRIP A? TRIP B? Trip computer mode?
TRIP A For
tripcomputer information, seeªTrip compu-
terº (P.2-10) .
Resetting thetrip odometer:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Pushing thereset switch
*
3
for approximately 1
second resetsthetrip odometer tozero.
&RQGLWLRQ


> (GLW   0RGHO )'@

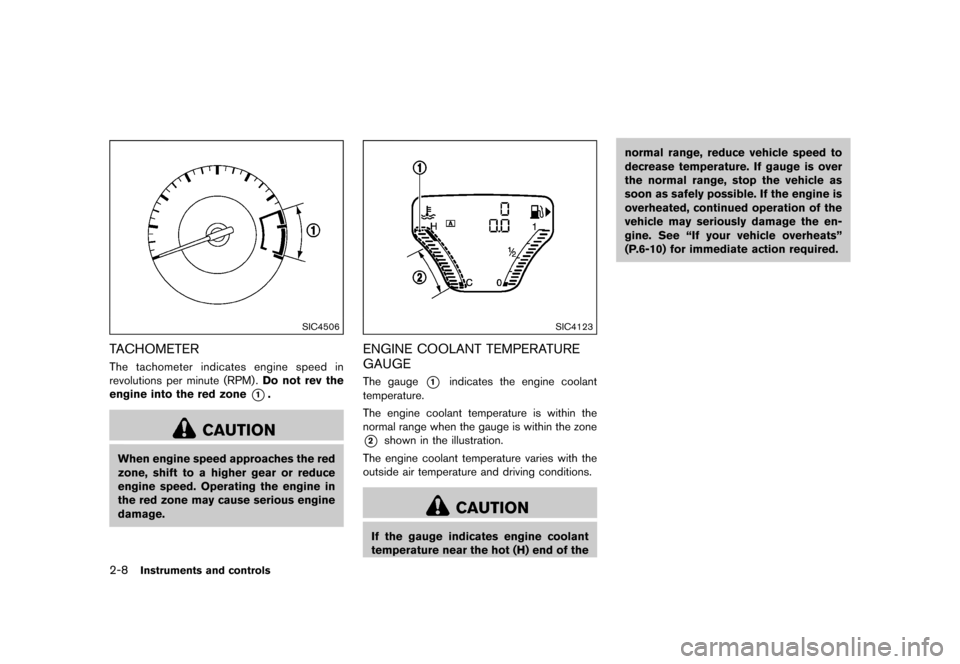

2-8
Instrumen tsand controls
SIC4506
T ACHOMETER
GUID-215 DFAC7-AA2 5-4799-B7 6A-5C7F245 14E30
The tachometer indicatesenginespeedin
revolutions perminute (RPM).Do not revthe
engine intothered zone
*
1
.
CAUTION
When engine speedapproaches thered
zone, shifttoahigher gearorreduce
engine speed.Operating theengine in
the red zone maycause serious engine
damage.
SIC4123
ENGINE COOLANT TEMPERATURE
GAUGE
GUID-34 DD45D3-B 4F2-44CD-AAC 9-21491CEBB243
The gauge
*
1
indicates theengine coolant
temperature.
The engine coolant temperature iswithin the
normal rangewhenthegauge iswithin thezone
*
2
shown inthe illustration.
The engine coolant temperature varieswiththe
outside airtemperature anddriving conditions.
CAUTION
If the gauge indicates enginecoolant
temperature nearthehot (H)end ofthe normal
range,reduce vehicle speedto
decrease temperature. Ifgauge isover
the normal range,stopthevehicle as
soon assafely possible. Ifthe engine is
overheated, continuedoperationofthe
vehicle mayseriously damagetheen-
gine. SeeªIfyour vehicle overheatsº
(P .6-10) forimmediate actionrequired.
&RQGLWLRQ


> (GLW   0RGHO )'@
2-14
Instrument sand controls
vehicle towedbecause drivingit
could bedangerous.
. Pressing thebrake pedalwiththe
engine stopped and/orlowbrake
fluid level mayincrease yourstop-
ping distance andbraking willre-
quire greater pedaleffortaswell as
pedal travel.
. Ifthe brake fluidlevel isbelow the
minimum orMIN mark onthe brake
fluid reservoir, donot drive untilthe
brake system hasbeen checked ata
NISSAN dealer.
Charge warning light
GUID-DAF 8C1DB-0D6 5-48DD-A5B2-B2111E 95A603
If the light illuminates whiletheengine isrunning,
it may indicate thecharging systemisnot
functioning properly.Turn theengine offand
check thealternator belt.Ifthe belt isloose,
broken, missing orifthe light remains on,see a
NISSAN dealerimmediately .
CAUTION
Do not continue drivingifthe alternator
belt isloose, broken ormissing.
Door open warning light
GUID-F110CD 39-C8B9-4AB9-A2C5-D 73957A7EAD 7
This light illuminates whenanyofthe doors and/
or lift gate arenot closed securely whilethe
ignition switchisin the ON position.
Electric powersteering warning
light
GUID-EC2 6B3D5-0AAE-4 63D-BE20-5E9CDE7BC 487
When theignition switchisin the ON position,
the electric powersteering warninglightillumi-
nates. Afterstarting theengine, theelectric
power steering warninglightturns off.This
indicates theelectric powersteering systemis
operational.
If the electric powersteering warninglight
illuminates whiletheengine isrunning, itmay
indicate theelectric powersteering systemis
not functioning properlyandmay need servicing.
Have theelectric powersteering system
checked byaNISSAN dealer.
When theelectric powersteering warninglight
illuminates withtheengine running, thepower
assist tothe steering willcease operation but
you willstill have control ofthe vehicle. Atthis
time, greater steering effortsarerequired to
operate thesteering wheel,especially insharp
turns andatlow speeds.
See ªElectric powersteering systemº(P.5-34) .
Engine oilpressure warninglight
GUID-F5619 3A3-64A7-4AB4-A970-38C6EC7 51913
This light warns oflow engine oilpressure. Ifthe
light flickers orilluminates duringnormal driving,
pull offthe road inasafe area, stoptheengine
immediately andcallaNISSAN dealerorother
authorized repairshop.
The engine oilpressure warninglightis
not designed toindicate alow oillevel.
Use thedipstick tocheck theoillevel. (See
ªEngine oilº(P.8-8) .)
CAUTION
Running theengine withtheengine oil
pressure warninglightoncould cause
serious damage tothe engine almost
immediately. Suchdamage isnot cov-
ered bywarranty. Turn offthe engine as
soon asitis safe todo so.
Intelligent Key system warning light
GUID-852 70370-A7A 5-4880-859A-F992DB FE71BD
After theignition switchisplaced inthe ON
position, thislight comes onfor about 2seconds
and then turns off.
This light illuminates orblinks asfollows:
&RQGLWLRQ


> (GLW   0RGHO )'@
. The light blinks inyellow whenthedoor is
closed withtheIntelligent Key left outside
the vehicle andtheignition switchinthe
ACC orON position. Makesurethatthe
Intelligent Key isinside thevehicle.
. The light blinks ingreen whentheIntelligent
K ey battery isrunning outofpower. Replace
the battery withanew one. (See ªIntelligent
K ey battery replacementº (P.8-23) .)
. The light illuminates inyellow whenitwarns
of amalfunction withIntelligent Key system.
If the warning lightilluminates inyellow whilethe
engine isstopped, itmay beimpossible tostart
the engine. Ifthe light comes onwhile theengine
is running, youcan drive thevehicle. However in
these cases, contact aNISSAN dealerforrepair
as soon aspossible.
Low fuelwarning light
GUID-07 84D1EC-08F8- 48E5-8112-AC14204A8 2C8
This light illuminates whenthefuel inthe tank is
getting low.Refuel assoon asitis convenient,
preferably beforethefuel gauge reaches the0
(empty) position.
There willbeasmall reserve offuel
remaining inthe tank when thefuel gauge
reaches the0position.
Low tirepressure warninglight
GUID-CE4F 38F6-4622-4 692-88BA-0B 338FB86AAF
Y our vehicle isequipped withaTire Pressure
Monitoring System(TPMS) thatmonitors thetire
pressure ofall tires except thespare.
The lowtirepressure warninglightwarns oflow
tire pressure orindicates thattheTPMS isnot
functioning properly.
After theignition switchisplaced inthe ON
position, thislight illuminates forabout 1second
and turns off.
Low tirepressure warning:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
If the vehicle isbeing driven withlowtire
pressure, thewarning lightwillilluminate. A
CHECK TIREPRES (pressure) warningmes-
sage isalso displayed inthe vehicle information
display .
When thelow tirepressure warninglight
illuminates, youshould stopandadjust thetire
pressure tothe recommended COLDtire
pressure shownonthe Tire andLoading
Information label.Thelowtirepressure warning
light does notautomatically turnoffwhen thetire
pressure isadjusted. Afterthetireisinflated to
the recommended pressure,thevehicle mustbe
driven atspeeds above16MPH (25km/h) to
activate theTPMS andturn offthe low tire
pressure warninglight.Useatire pressure
gauge tocheck thetirepressure. The
lowtirepressure warninglightremains
illuminated untilthetires areinflated tothe
recommended COLDtirepressure. TheCHECK
TIRE PRES warning message isdisplayed each
time theignition switchisplaced inthe ON
position aslong asthe low tirepressure warning
light remains illuminated.
For additional information, seeªCheck tire
pressure warningmessageº (P.2-7) ,ªTire Pres-
sure Monitoring System(TPMS)º (P.5-3) and
ªTire Pressure Monitoring System(TPMS)º (P.6-
3) .
TPMS malfunction:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
If the TPMS isnot functioning properly,the low
tire pressure warninglightwillflash forapproxi-
mately 1minute whentheignition switchis
placed inthe ON position. Thelight willremain
on after 1minute. TheCHECK TIREPRES
warning message isnot displayed ifthe low tire
pressure warninglightilluminates toindicate a
TPMS malfunction. Havethesystem checked by
a NISSAN dealer.
For additional information, seeªTire Pressure
Monitoring System(TPMS)º (P.5-3) .
Instrume ntsand controls
2-15
&RQGLWLRQ


> (GLW   0RGHO )'@
2-16
Instrument sand controls
WARNING
. Ifthe light does notilluminate with
the ignition switchplaced inthe ON
position, havethevehicle checked
by aNISSAN dealerassoon as
possible.
. Ifthe light illuminates whiledriving,
avoid sudden steering maneuvers or
abrupt braking, reducevehicle
speed, pulloffthe road toasafe
location andstop thevehicle as
soon aspossible. Drivingwithun-
der-inflated tiresmaypermanently
damage thetires andincrease the
likelihood oftire failure. Serious
vehicle damage couldoccurand
may lead toan accident andcould
result inserious personal injury.
Check thetire pressure forallfour
tires. Adjust thetire pressure tothe
recommended COLDtirepressure
shown onthe Tire andLoading
Information labeltoturn thelow
tire pressure warninglightOFF.If
the light stillilluminates whiledriv-
ing after adjusting thetire pressure,
a tire may beflat. Ifyou have aflat
tire, replace itwith aspare tireas soon
aspossible.
. When aspare tireismounted ora
wheel isreplaced, theTPMS willnot
function andthelow tirepressure
warning lightwillflash forapproxi-
mately 1minute. Thelight will
remain onafter 1minute. Contact
your NISSAN dealerassoon as
possible fortire replacement and/
or system resetting.
. Replacing tireswiththose notori-
ginally specified byNISSAN could
affect theproper operation ofthe
TPMS.
CAUTION
. The TPMS isnot asubstitute forthe
regular tirepressure check.Besure
to check thetire pressure regularly.
. Ifthe vehicle isbeing driven at
speeds ofless than 16MPH (25
km/h) ,the TPMS maynotoperate
correctly.
. Besure toinstall thespecified size
of tires tothe four wheels correctly.
Low washer fluidwarning light
(Canada only)
GUID-ADABB 354-FD0A-4635-ABE1-7 FD833E3E73 4
This light illuminates whenthewasher fluidisat
a low level. Addwasher fluidasnecessary .(See
ªWindow washerfluidº(P.8-12) .)
P position selecting warninglight
GUID-2CE9 58E5-DAA1-48FB-A4F0-B 392F12FCD77
The warning lightblinks inred when theignition
switch ispushed tostop theengine withthe
shift lever inany position excepttheP(Park)
position.
If this warning appears, movetheshift lever to
the P(Park) position orpush theignition switch
to the ON position.
An inside warning chimewillalso sound.
See ªIntelligent Key systemº (P.3-6) .
Seat beltwarning light
GUID-91E 8D2F7-3908 -4392-874C- F4665FD344E7
The light andchime remind youtofasten seat
belts. Thelight illuminates whenevertheignition
switch isplaced inthe ON position, andwill
remain illuminated untilthedriver's seatbeltis
fastened. Atthe same time,thechime willsound
for about 6seconds unlessthedriver's seatbelt
is securely fastened.
The seat beltwarning lightforthe front
passenger willilluminate ifthe seat beltisnot
&RQGLWLRQ


> (GLW   0RGHO )'@

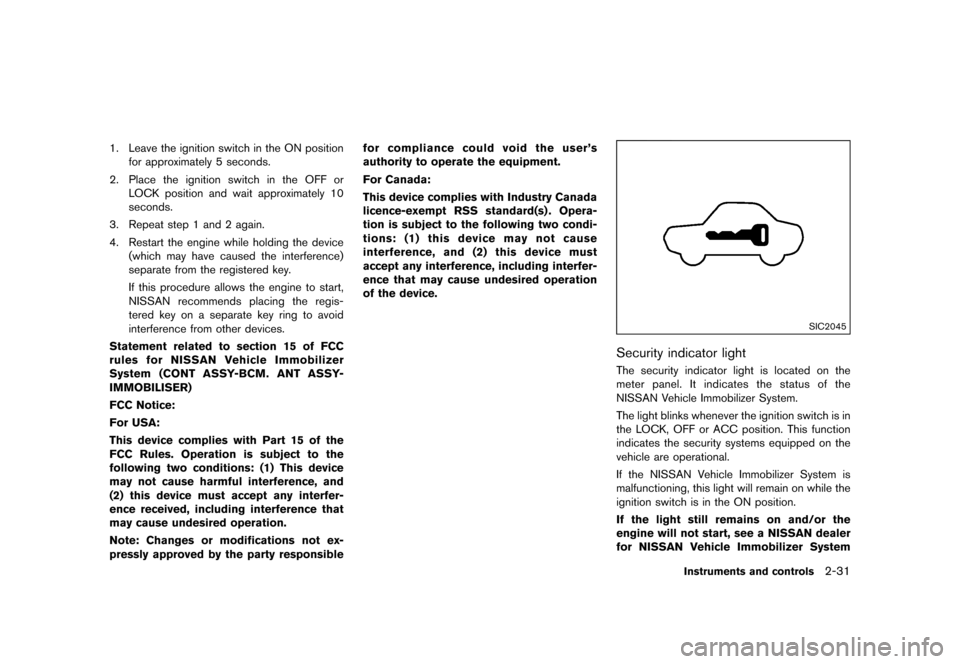

1. Leave theignition switchinthe ON position
for approximately 5seconds.
2. Place theignition switchinthe OFF or
L OCK position andwait approximately 10
seconds.
3. Repeat step1and 2again.
4. Restart theengine whileholding thedevice
(which mayhave caused theinterference)
separate fromtheregistered key.
If this procedure allowstheengine tostart,
NISSAN recommends placingtheregis-
tered keyonaseparate keyring toavoid
interference fromother devices.
Statement relatedtosection 15ofFCC
rules forNISSAN Vehicle Immobilizer
System (CONTASSY-BCM .ANT ASSY-
IMMOBILISER)
FCC Notice:
For USA:
This device complies withPart15ofthe
FCC Rules. Operation issubject tothe
following twoconditions: (1)This device
may notcause harmful interference, and
(2) this device mustaccept anyinterfer-
ence received, including interference that
may cause undesired operation.
Note: Changes ormodifications notex-
pressly approved bythe party responsible for
compliance couldvoidtheuser's
authority tooperate theequipment.
For Canada:
This device complies withIndustry Canada
licence-exempt RSSstandard(s) .Opera-
tion issubject tothe following twocondi-
tions: (1)this device maynotcause
interference, and(2)this device must
accept anyinterference, includinginterfer-
ence thatmay cause undesired operation
of the device.
SIC2045
Security indicator light
GUID-919 36668-A20A-4 8BD-8CB2-340577FB611D
The security indicator lightislocated onthe
meter panel. Itindicates thestatus ofthe
NISSAN Vehicle Immobilizer System.
The light blinks whenever theignition switchisin
the LOCK, OFForACC position. Thisfunction
indicates thesecurity systems equipped onthe
vehicle areoperational.
If the NISSAN Vehicle Immobilizer Systemis
malfunctioning, thislight willremain onwhile the
ignition switchisin the ON position.
If the light stillremains onand/or the
engine willnotstart, seeaNISSAN dealer
for NISSAN Vehicle Immobilizer System
Instrume ntsand controls
2-31
&RQGLWLRQ
