3-12
Pre-driving checksandadjustment s
HOW TO USE REMO TEKEYLESS
ENTR YFUNCTION
GUID-CF76A 4ED-43D7-44C7-A605-B A799B1A10EE
WARNING
. Radio waves couldadversely affect
electric medical equipment. Those
who useapacemaker shouldcon-
tact theelectric medical equipment
manufacturer forthe possible influ-
ences before use.
. The Intelligent Keytransmits radio
waves whenthebuttons are
pushed. TheFAAadvises thatthe
radio waves mayaffect aircraft na-
vigation andcommunication sys-
tems. Donot operate the
Intelligent Keywhile onanairplane.
Make surethebuttons arenot
operated unintentionally whenthe
unit isstored during aflight.
CAUTION
. Do not allow theIntelligent Key,
which contains electrical compo-
nents, tocome intocontact with
water orsalt water. Thiscould affect the
system function.
. Do not drop theIntelligent Key.
. Do not strike theIntelligent Key
sharply against another object.
. Do not change ormodify theIntel-
ligent Key.
. Wetting maydamage theIntelligent
Key. Ifthe Intelligent Keygets wet,
immediately wipeuntilitis comple-
tely dry.
. Ifthe outside temperature isbelow
148F (-108C) degrees, thebattery of
the intelligent keymay notfunction
properly.
. Do not place theIntelligent Keyfor
an extended periodinan area where
temperatures exceed1408F(608C).
. Do not attach theIntelligent Key
with akey holder thatcontains a
magnet.
. Donot place theIntelligent Keynear
equipment thatproduces amag-
netic field, suchasaTV,audio
equipment, personalcomputers or
cellular phone.
The remote keyless entryfunction canoperate
all door locks using theremote keyless entry function
ofthe Intelligent Key .The remote
keyless entryfunction canoperate atadistance
of approximately 33ft(10 m)from thevehicle.
(The operating distancedepends uponthe
conditions aroundthevehicle.)
The remote keyless entryfunction willnot
operate:
. When theIntelligent Key isnot within the
operational range.
. When thedoors areopen ornot closed
securely .
. When theIntelligent Key battery isdis-
charged.
The remote keyless entryfunction canalso
operate thevehicle alarm.
&RQGLWLRQ


> (GLW   0RGHO )'@
4-4
Heater, aircondition er,audio andphone systems

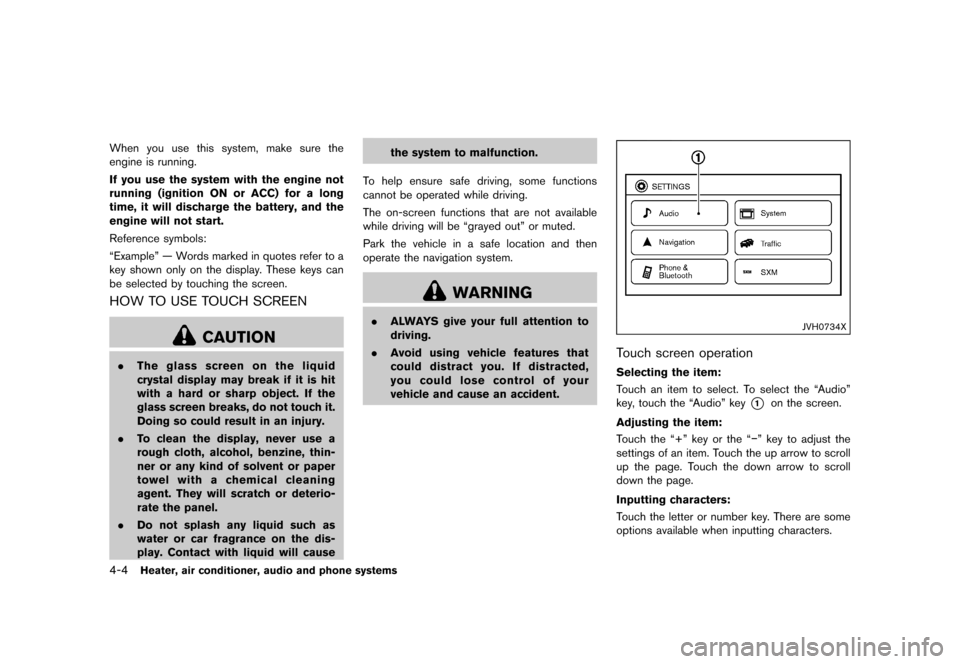

When youuse thissystem, makesurethe
engine isrunning.
If you usethesystem withtheengine not
running (ignition ONorACC) foralong
time, itwill discharge thebattery, andthe
engine willnotstart.
Reference symbols:
ªExampleº ÐWords marked inquotes refertoa
key shown onlyonthe display .These keyscan
be selected bytouching thescreen.
HOW TO USE TOUCH SCREEN
GUID-7CCF D255-7CCA -4FE0-A64E-C 9A30213AA2F
CAUTION
. The glass screen onthe liquid
crystal display maybreak ifitis hit
with ahard orsharp object. Ifthe
glass screen breaks, donot touch it.
Doing socould result inan injury.
. To clean thedisplay, neverusea
rough cloth,alcohol, benzine, thin-
ner orany kind ofsolvent orpaper
towel withachemical cleaning
agent. Theywillscratch ordeterio-
rate thepanel.
. Do not splash anyliquid suchas
water orcar fragrance onthe dis-
play. Contact withliquid willcause the
system tomalfunction.
T o help ensure safedriving, somefunctions
cannot beoperated whiledriving.
The on-screen functionsthatarenot available
while driving willbeªgrayed outºormuted.
Park thevehicle inasafe location andthen
operate thenavigation system.
WARNING
. ALWA YS give your fullattention to
driving.
. Avoid usingvehicle features that
could distract you.Ifdistracted,
you could losecontrol ofyour
vehicle andcause an
accident.
JVH0734X
T ouch screen operation
GUID-F4 5BCBA5- 784B-4464-94 07-86458F60C9EB
Selecting theitem:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
T ouch anitem toselect. To select theªAudioº
key ,touch theªAudioº key
*
1
on the screen.
Adjusting theitem:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
T ouch theª+º keyorthe ª


> (GLW   0RGHO )'@
4-62
Heater, airconditione r,audio andphone systems

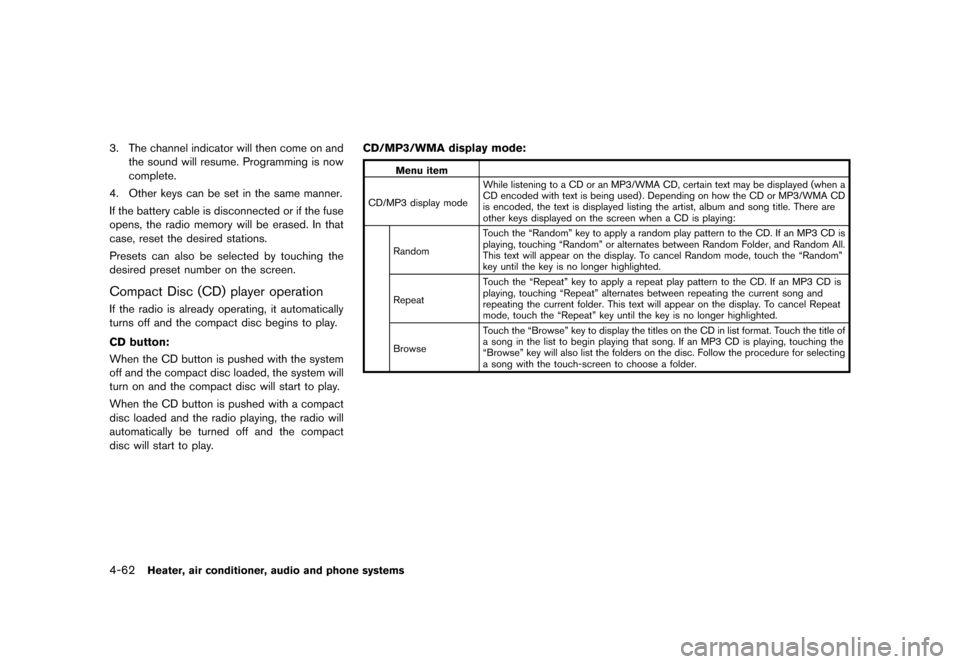

3. The channel indicator willthen come onand
the sound willresume. Programming isnow
complete.
4. Other keyscanbeset inthe same manner.
If the battery cableisdisconnected orifthe fuse
opens, theradio memory willbeerased. Inthat
case, resetthedesired stations.
Presets canalso beselected bytouching the
desired presetnumber onthe screen.
Compact Disc(CD) player operation
GUID-22B6B 76F-6FCF-458E-A1BC-11D 6DA23716D
If the radio isalready operating, itautomatically
turns offand thecompact discbegins toplay .
CD button:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
When theCD button ispushed withthesystem
off and thecompact discloaded, thesystem will
turn onand thecompact discwillstart toplay .
When theCD button ispushed withacompact
disc loaded andtheradio playing, theradio will
automatically beturned offand thecompact
disc willstart toplay . CD/MP3/WMA
displaymode:
Menu item
CD/MP3 displaymode While
listening toaCD oran MP3/WMA CD,certain textmay bedisplayed (whena
CD encoded withtextisbeing used).Depending onhow theCD orMP3/WMA CD
is encoded, thetext isdisplayed listingtheartist, album andsong title.There are
other keysdisplayed onthe screen whenaCD isplaying:
Random T
ouch theªRandomº keytoapply arandom playpattern tothe CD. Ifan MP3 CDis
playing, touching ªRandomº oralternates betweenRandomFolder,andRandom All.
This textwillappear onthe display .To cancel Random mode,touchtheªRandomº
key until thekey isno longer highlighted.
Repeat T
ouch theªRepeatº keytoapply arepeat playpattern tothe CD. Ifan MP3 CDis
playing, touching ªRepeatº alternates betweenrepeating thecurrent songand
repeating thecurrent folder.Thistextwillappear onthe display .To cancel Repeat
mode, touchtheªRepeatº keyuntil thekey isno longer highlighted.
Browse T
ouch theªBrowseº keytodisplay thetitles onthe CD inlist format. Touch thetitle of
a song inthe listtobegin playing thatsong. Ifan MP3 CDisplaying, touching the
ªBrowseº keywillalso listthe folders onthe disc. Follow theprocedure forselecting
a song withthetouch-screen tochoose afolder.
&RQGLWLRQ


> (GLW   0RGHO )'@

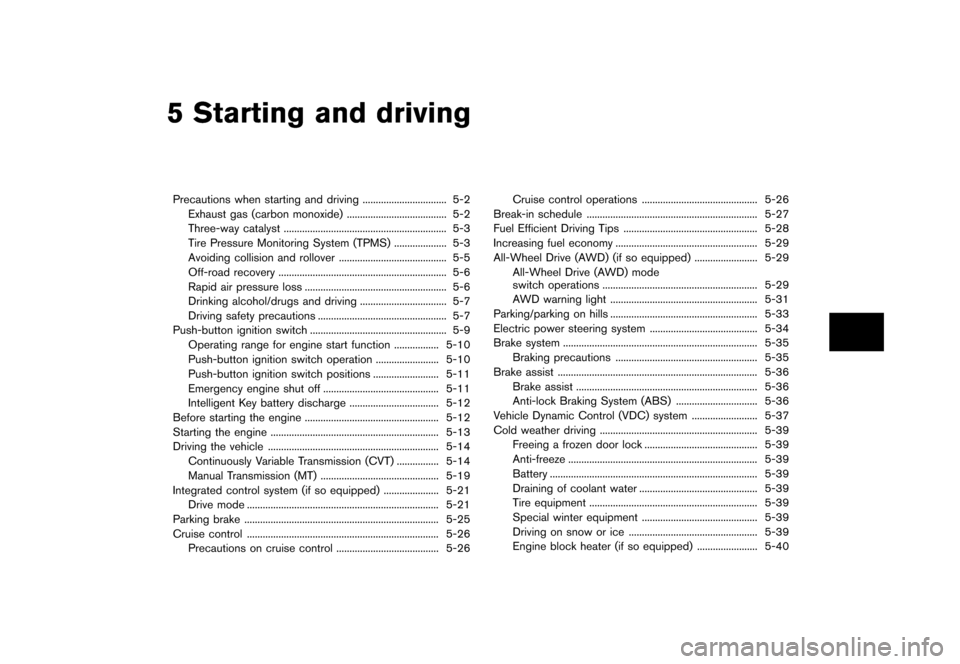

5 Starting anddriving
Precautions whenstarting anddriving ...
................................ 5-2
Exhaust gas(carbon monoxide) ...
...................................... 5-2
Three-way catalyst...
.............................................................. 5-3
Tire Pressure Monitoring System(TPMS) ...
.................... 5-3
Avoiding collisionandrollover ...
......................................... 5-5
Off-road recovery ...
................................................................ 5-6
Rapid airpressure loss...
...................................................... 5-6
Drinking alcohol/drugs anddriving ...
................................. 5-7
Driving safetyprecautions ...
................................................. 5-7
Push-button ignitionswitch ...
.................................................... 5-9
Operating rangeforengine startfunction ...
................. 5-10
Push-button ignitionswitchoperation ...
........................ 5-10

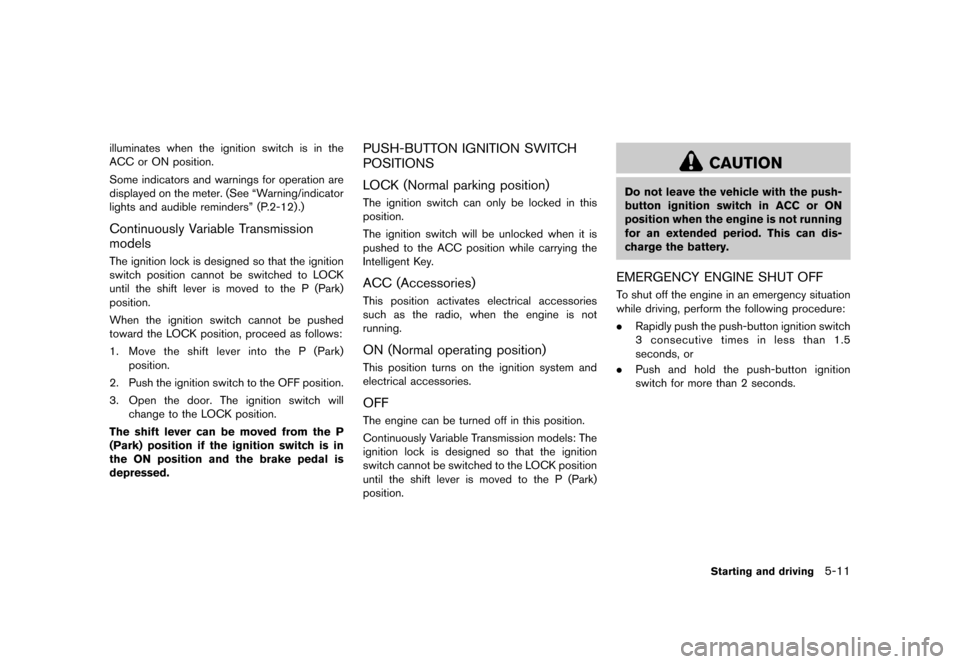

Push-button ignitionswitchpositions ...
......................... 5-11
Emergency engineshutoff...
............................................ 5-11

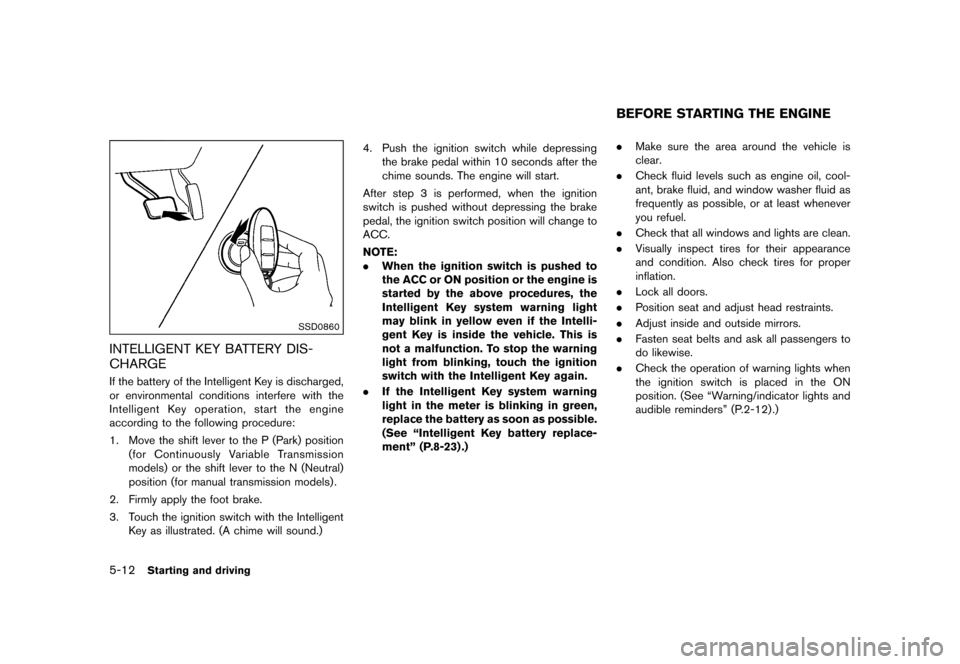

Intelligent Key battery discharge ...
.................................. 5-12
Before starting theengine ...
................................................... 5-12
Starting theengine ...
................................................................ 5-13
Driving thevehicle ...
................................................................. 5-14
Continuously Variable Transmission (CVT)...
................ 5-14
Manual Transmission (MT)...
............................................. 5-19
Integrated controlsystem (ifso equipped) ...
..................... 5-21
Drive mode ...
......................................................................... 5-21
Parking brake...
.......................................................................... 5-25
Cruise control ...
......................................................................... 5-26
Precautions oncruise control ...
....................................... 5-26Cruise
control operations ...
............................................ 5-26
Break -inschedule ...
................................................................. 5-27
Fuel Efficient DrivingTips...
................................................... 5-28
Increasing fueleconomy ...
...................................................... 5-29
All-Wheel Drive(AWD) (ifso equipped) ...
........................ 5-29
All-Wheel Drive(AWD) mode
switch operations ...
........................................................... 5-29
A WD warning light...
........................................................ 5-31
Parking/parking onhills ...
........................................................ 5-33
Electric powersteering system ...
......................................... 5-34
Brake system ...
.......................................................................... 5-35
Braking precautions ...
...................................................... 5-35
Brake assist ...
............................................................................ 5-36
Brake assist ...
..................................................................... 5-36
Anti-lock BrakingSystem(ABS) ...
............................... 5-36
V ehicle Dynamic Control(VDC)system ...
......................... 5-37
Cold weather driving...
............................................................ 5-39
Freeing afrozen doorlock ...
........................................... 5-39
Anti-freeze ...
........................................................................ 5-39
Battery ...
............................................................................... 5-39
Draining ofcoolant water...
............................................. 5-39
Tire equipment ...
................................................................ 5-39
Special winterequipment ...
............................................ 5-39
Driving onsnow orice ...
................................................. 5-39
Engine blockheater (ifso equipped) ...
....................... 5-40
&RQGLWLRQ


> (GLW   0RGHO )'@
5-10
Starting anddriving

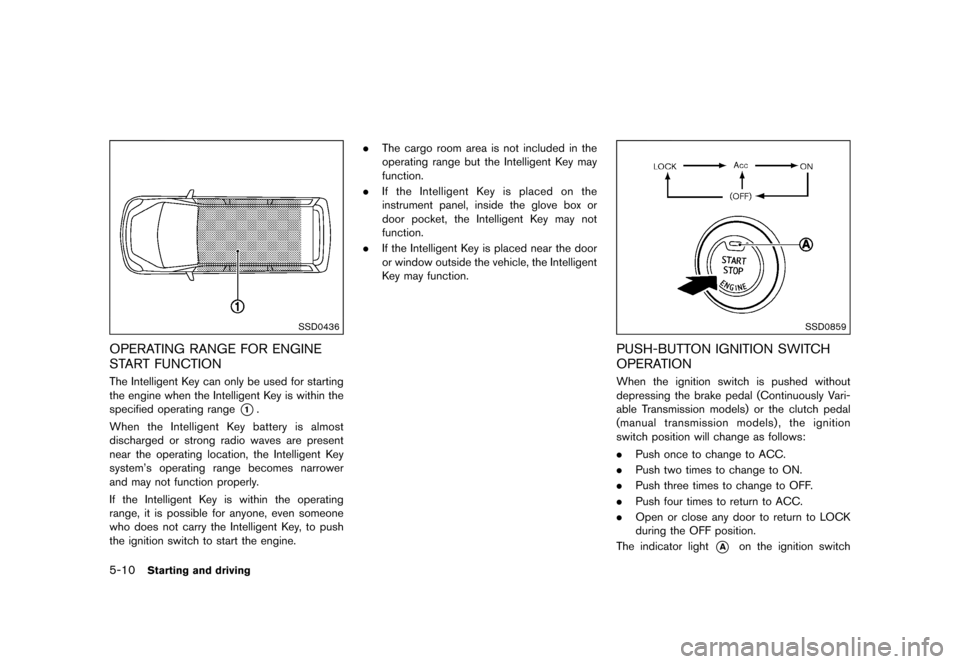

SSD0436
OPERA TINGRANGE FORENGINE
ST ART FUNCTION
GUID-92477E FA-07C9-45 98-8D1A-D0B5C62E9 16C
The Intelligent Key can only beused forstarting
the engine whentheIntelligent Key iswithin the
specified operating range
*
1
.
When theIntelligent Key battery isalmost
discharged orstrong radiowaves arepresent
near theoperating location,theIntelligent Key
system's operating rangebecomes narrower
and may notfunction properly.
If the Intelligent Key iswithin theoperating
range, itis possible foranyone, evensomeone
who does notcarry theIntelligent Key ,to push
the ignition switchtostart theengine. .
The cargo roomareaisnot included inthe
operating rangebuttheIntelligent Key may
function.
. Ifthe Intelligent Key isplaced onthe
instrument panel,insidetheglove boxor
door pocket, theIntelligent Key may not
function.
. Ifthe Intelligent Key isplaced nearthedoor
or window outsidethevehicle, theIntelligent
K ey may function.
SSD0859
PUSH-BUTT ONIGNITION SWITCH
OPERA TION
GUID-BF4C8 6CC-570F-4B04-92EF-AF63D44EB0BB
When theignition switchispushed without
depressing thebrake pedal(Continuously Vari-
able Transmission models)orthe clutch pedal
(manual transmission models),the ignition
switch position willchange asfollows:
. Push oncetochange toACC.
. Push twotimes tochange toON.
. Push three times tochange toOFF .
. Push fourtimes toreturn toACC.
. Open orclose anydoor toreturn toLOCK
during theOFF position.
The indicator light
*
A
on the ignition switch
&RQGLWLRQ


> (GLW   0RGHO )'@
illuminates whentheignition switchisin the
ACC orON position.
Some indicators andwarnings foroperation are
displayed onthe meter. (SeeªWarning/indicator
lights andaudible remindersº (P.2-12) .)
Continuousl yVariable Transmiss ion
models
GUID-6E32 8D8C-24AA-4AAE-B272 -4174A32518BF
The ignition lockisdesigned sothat theignition
switch position cannotbeswitched toLOCK
until theshift lever ismoved tothe P(Park)
position.
When theignition switchcannot bepushed
toward theLOCK position, proceedasfollows:
1. Move theshift lever intotheP(Park)
position.
2. Push theignition switchtothe OFF position.
3. Open thedoor. Theignition switchwill
change tothe LOCK position.
The shift lever canbemoved fromtheP
(Park) position ifthe ignition switchisin
the ONposition andthebrake pedalis
depressed.
PUSH-BUTT ONIGNITION SWITCH
POSITIONS
GUID-974 D7B79-BE D6-4F09-AB 6E-A579BED C09E3
L OCK (Normal parkingposition)
GUID-5A2EA0 6F-E703-4A2F-9560-6 6F1270752A 7
The ignition switchcanonly belocked inthis
position.
The ignition switchwillbeunlocked whenitis
pushed tothe ACC position whilecarrying the
Intelligent Key .
ACC (Accessorie s)
GUID-F5 678EC4-E8AB -4C49-8E37-0CBBB1B55191
This position activates electrical accessories
such asthe radio, whentheengine isnot
running.
ON (Normal operating position)
GUID-D96 98FD3-051D -4467-807E-FFC14A49 3CA4
This position turnsonthe ignition systemand
electrical accessories.
OFF
GUID-A837 21F2-C4C7 -4D9A-826D-F 29009E67A40
The engine canbeturned offinthis position.
Continuously Variable Transmission models:The
ignition lockisdesigned sothat theignition
switch cannot beswitched tothe LOCK position
until theshift lever ismoved tothe P(Park)
position.
CAUTION
Do not leave thevehicle withthepush-
button ignition switchinACC orON
position whentheengine isnot running
for anextended period.Thiscandis-
charge thebattery.
EMERGENC YENGINE SHUTOFF
GUID-CB B805D6-14E9 -451C-B7A9-7F58A6D E7098
T o shut offthe engine inan emergency situation
while driving, perform thefollowing procedure:
. Rapidly pushthepush-button ignitionswitch
3 consecutive timesinless than 1.5
seconds, or
. Push andhold thepush-button ignition
switch formore than2seconds.
Starting anddriving
5-11
&RQGLWLRQ


> (GLW   0RGHO )'@
5-12
Starting anddriving
SSD0860
INTELLIGEN TKEY BATTER YDIS-
CHARGE
GUID-B0D19 56A-5575-42 6F-A28A-6ED 797C76123
If the battery ofthe Intelligent Key isdischarged,
or environmental conditionsinterferewiththe
Intelligent Key operation, starttheengine
according tothe following procedure:
1. Move theshift lever tothe P(Park) position
(for Continuously Variable Transmission
models) orthe shift lever tothe N(Neutral)
position (formanual transmission models).
2. Firmly applythefoot brake.
3. Touch theignition switchwiththeIntelligent
K ey as illustrated. (Achime willsound.) 4.
Push theignition switchwhiledepressing
the brake pedalwithin 10seconds afterthe
chime sounds. Theengine willstart.
After step3is performed, whentheignition
switch ispushed withoutdepressing thebrake
pedal, theignition switchposition willchange to
ACC.
NO TE:
. When theignition switchispushed to
the ACC orON position orthe engine is
started bythe above procedures, the
Intelligent Keysystem warning light
may blink inyellow evenifthe Intelli-
gent Keyisinside thevehicle. Thisis
not amalfunction. To stop thewarning
light from blinking, touchtheignition
switch withtheIntelligent Keyagain.
. Ifthe Intelligent Keysystem warning
light inthe meter isblinking ingreen,
replace thebattery assoon aspossible.
(See ªIntelligent Keybattery replace-
mentº (P.8-23) .)
GUID-99D A8E7B-99CA -40D0-B1AA-E 547E7042524
. Make surethearea around thevehicle is
clear.
. Check fluidlevels suchasengine oil,cool-
ant, brake fluid,andwindow washerfluidas
frequently aspossible, oratleast whenever
you refuel.
. Check thatallwindows andlights areclean.
. Visually inspecttiresfortheir appearance
and condition. Alsocheck tiresforproper
inflation.
. Lock alldoors.
. Position seatandadjust headrestraints.
. Adjust insideandoutside mirrors.
. Fasten seatbelts andaskallpassengers to
do likewise.
. Check theoperation ofwarning lightswhen
the ignition switchisplaced inthe ON
position. (SeeªWarning/indicator lightsand
audible remindersº (P.2-12) .)
BEFORE STARTING THEENGINE
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-74 08FE11-64BC -4759-BC8E-07366732C0C9
1. Apply theparking brake.
2. Move theshift lever tothe P(Park) orN
(Neutral) position.(Pisrecommended.)
The starter isdesigned nottooperate unless
the shift lever isin either ofthe above
positions.
Manual Transmission (MT)models:
Move theshift lever tothe N(Neutral)
position. Depresstheclutch pedalfullyto
the floor.
The starter isdesigned nottooperate unless
the clutch pedalisfully depressed.
The Intelligent Keymust becarried
when operating theignition switch.
3. Push theignition switchtothe ON position.
Depress thebrake pedal(CVTmodels) or
the clutch pedal(MTmodels) andpush the
ignition switchtostart theengine.
T o start theengine immediately ,push and
release theignition switchwhiledepressing
the brake pedal withtheignition switchin
any position.
.
If the engine isvery hard tostart in
extremely coldweather orwhen restart-
ing, depress theaccelerator pedalalittle
(approximately 1/3tothe floor) andwhile
holding, cranktheengine. Release the
accelerator pedalwhentheengine starts.
.
If the engine isvery hard tostart because
it is flooded, depresstheaccelerator
pedal allthe way tothe floor andhold it.
Push theignition switchtothe ON
position tostart cranking theengine.
After 5or 6seconds, stopcranking by
pushing theignition switchtoOFF .After
cranking theengine, releasetheaccel-
erator pedal. Cranktheengine withyour
foot offthe accelerator pedalby
depressing thebrake pedal andpushing
the push-button ignitionswitchtostart
the engine. Ifthe engine starts,butfails
to run, repeat theabove procedure.
CAUTION
Do not operate thestarter formore
than 15seconds atatime. Ifthe engine
does notstart, pushtheignition switch
to OFF andwait 10seconds before
cranking again,otherwise thestarter
could bedamaged.
4. Warm-up
Allow theengine toidle foratleast 30
seconds afterstarting. Donot race the
engine whilewarming itup. Drive at
moderate speedforashort distance first, especially
incold weather. Incold weather,
keep theengine running foraminimum of2-
3 minutes beforeshutting itoff. Starting and
stopping theengine overashort period of
time maymake thevehicle moredifficult to
start.
When racing theengine upto4,000 rpmor
more under noload condition, theengine
will enter thefuel cutmode.
5. To stop theengine, movetheshift lever to
the P(Park) position (CVTmodels) ormove
the shift lever tothe N(Neutral) position(MT
models) ,and push theignition switchtothe
OFF position.
NO TE:
Care should betaken toavoid situations
that canlead topotential batterydischarge
and potential no-startconditions suchas:
1. Installation orextended useofelectro-
nic accessories thatconsume battery
power whentheengine isnot running
(Phone chargers, GPS,DVDplayers,
etc .)
2. Vehicle isnot driven regularly and/or
only driven shortdistances.
In these cases, thebattery mayneed tobe
charged tomaintain batteryhealth.
Starting anddriving
5-13
ST ARTING THEENGINE
&RQGLWLRQ
