2015 NISSAN FRONTIER Owners Manual

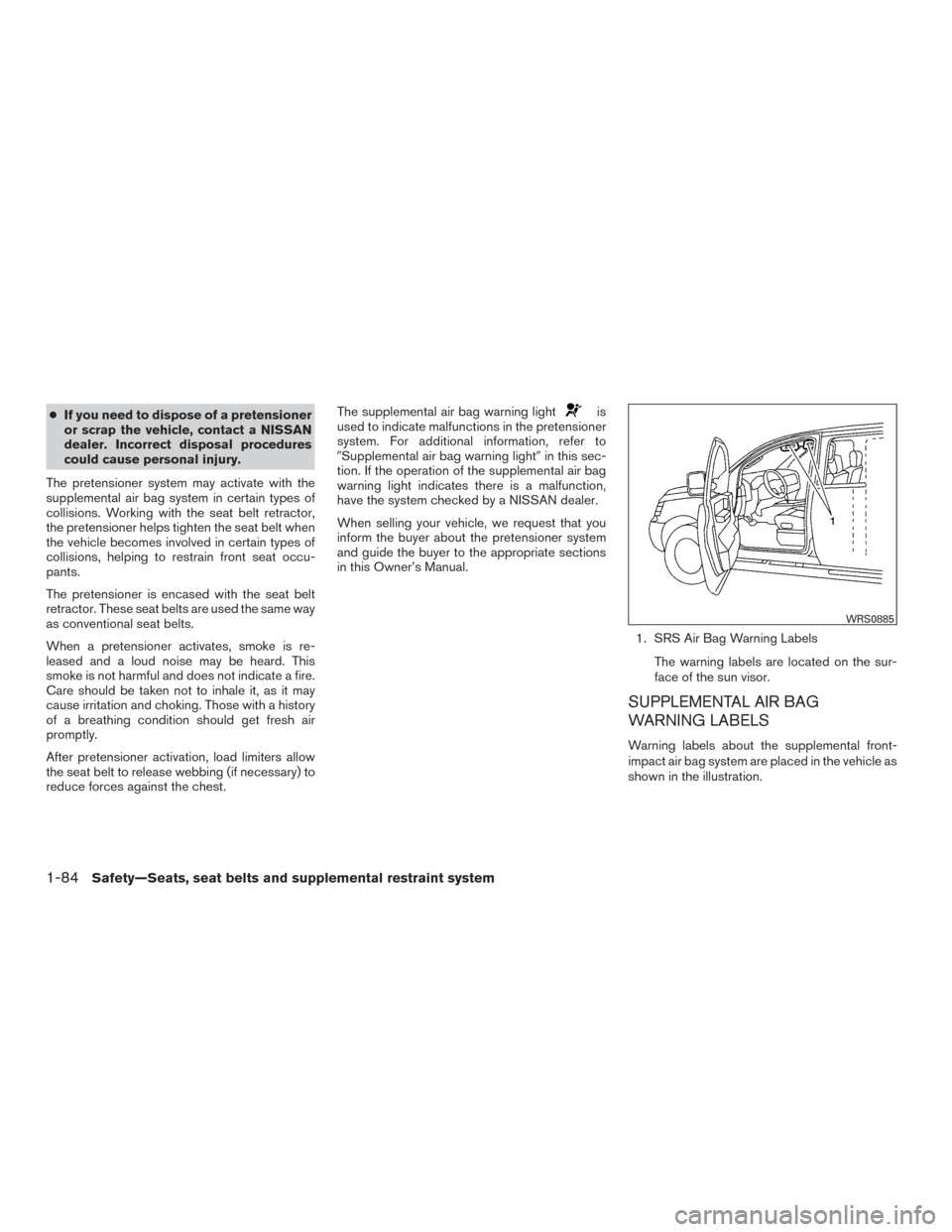

●If you need to dispose of a pretensioner
or scrap the vehicle, contact a NISSAN
dealer. Incorrect disposal procedures
could cause personal injury.
The pretensioner system may activate with the
supplemental air bag system in certain types of
collisions. Working with the seat belt retractor,
the pretensioner helps tighten the seat belt when
the vehicle becomes involved in certain types of
collisions, helping to restrain front seat occu-
pants.
The pretensioner is encased with the seat belt
retractor. These seat belts are used the same way
as conventional seat belts.
When a pretensioner activates, smoke is re-
leased and a loud noise may be heard. This
smoke is not harmful and does not indicate a fire.
Care should be taken not to inhale it, as it may
cause irritation and choking. Those with a history
of a breathing condition should get fresh air
promptly.
After pretensioner activation, load limiters allow
the seat belt to release webbing (if necessary) to
reduce forces against the chest. The supplemental air bag warning lightis
used to indicate malfunctions in the pretensioner
system. For additional information, refer to
Supplemental air bag warning light in this sec-
tion. If the operation of the supplemental air bag
warning light indicates there is a malfunction,
have the system checked by a NISSAN dealer.
When selling your vehicle, we request that you
inform the buyer about the pretensioner system
and guide the buyer to the appropriate sections
in this Owner’s Manual.
1. SRS Air Bag Warning LabelsThe warning labels are located on the sur-
face of the sun visor.
SUPPLEMENTAL AIR BAG
WARNING LABELS
Warning labels about the supplemental front-
impact air bag system are placed in the vehicle as
shown in the illustration.
WRS0885
1-84Safety—Seats, seat belts and supplemental restraint system

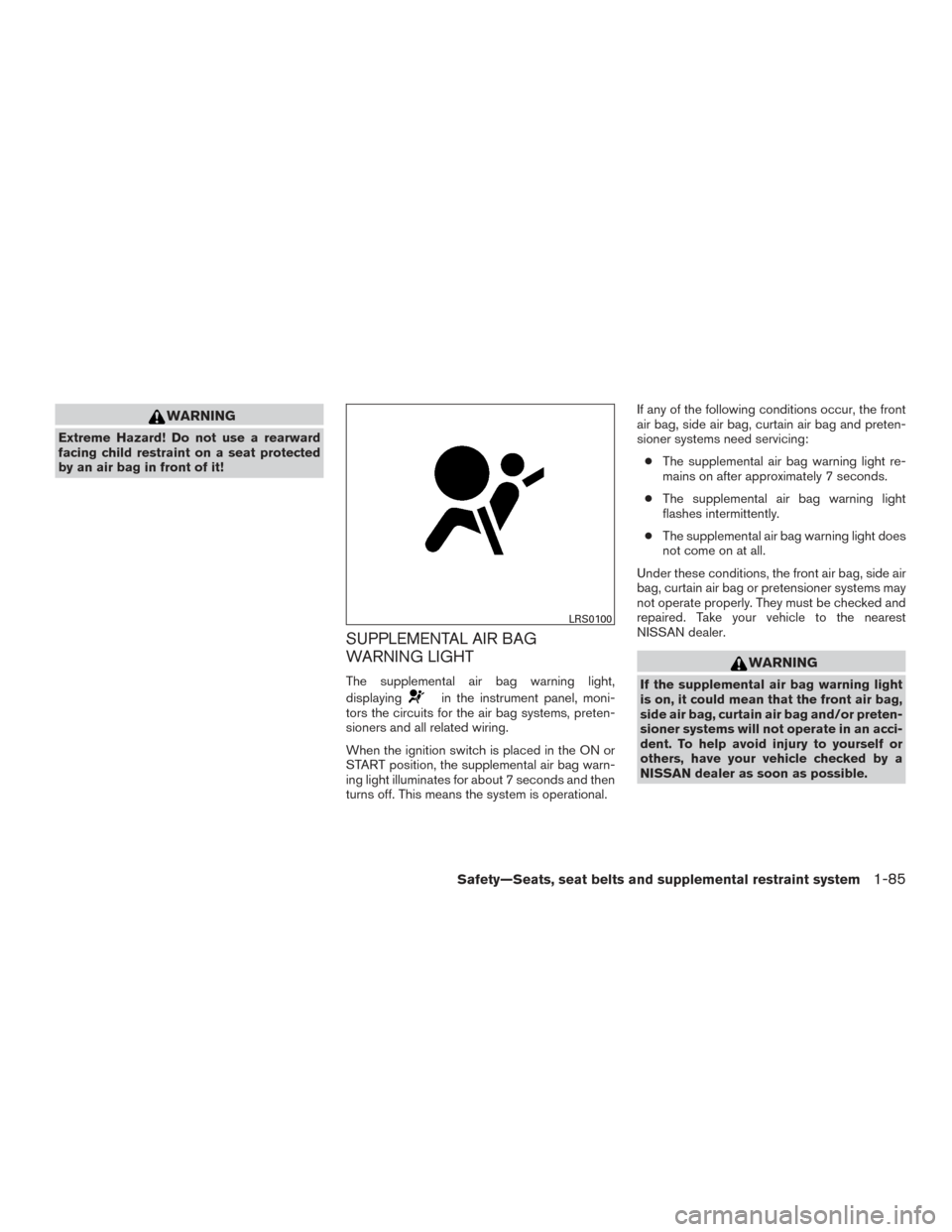

WARNING
Extreme Hazard! Do not use a rearward
facing child restraint on a seat protected
by an air bag in front of it!
SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel, moni-
tors the circuits for the air bag systems, preten-
sioners and all related wiring.
When the ignition switch is placed in the ON or
START position, the supplemental air bag warn-
ing light illuminates for about 7 seconds and then
turns off. This means the system is operational. If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten-
sioner systems need servicing:
● The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side air
bag, curtain air bag or pretensioner systems may
not operate properly. They must be checked and
repaired. Take your vehicle to the nearest
NISSAN dealer.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or preten-
sioner systems will not operate in an acci-
dent. To help avoid injury to yourself or
others, have your vehicle checked by a
NISSAN dealer as soon as possible.
LRS0100
Safety—Seats, seat belts and supplemental restraint system1-85

Repair and replacement procedure
The front air bags, side air bags, curtain air bags
and pretensioners are designed to inflate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
remains illuminated after inflation has occurred.
Repair and replacement of these supplemental
air bag systems should be done only by a
NISSAN dealer.
When maintenance work is required on the ve-
hicle, the front air bags, side air bags, curtain air
bags, pretensioners and related parts should be
pointed out to the person performing the mainte-
nance. The ignition switch should always be in
the LOCK position when working under the hood
or inside the vehicle.
WARNING
●Once a supplemental front air bag, side-
impact supplemental air bag, roof-
mounted curtain side-impact supple-
mental air bag has inflated, the air bag
module will not function again and
must be replaced. Additionally, if any of
the supplemental front air bags inflate,
the activated pretensioners must also
be replaced. The air bag module and
seat belts with pretensioners should be
replaced by a NISSAN dealer. The air
bag module and with pretensioners
cannot be repaired.
● If you need to dispose of a supplemen-
tal air bag or pretensioner or scrap the
vehicle, contact a NISSAN dealer. Incor-
rect disposal procedures could cause
personal injury.
● The front air bag, side air bag, curtain
air bag systems and the pretensioner
system should be inspected by a
NISSAN dealer if there is any damage to
the front end or side portion of the
vehicle.
1-86Safety—Seats, seat belts and supplemental restraint system

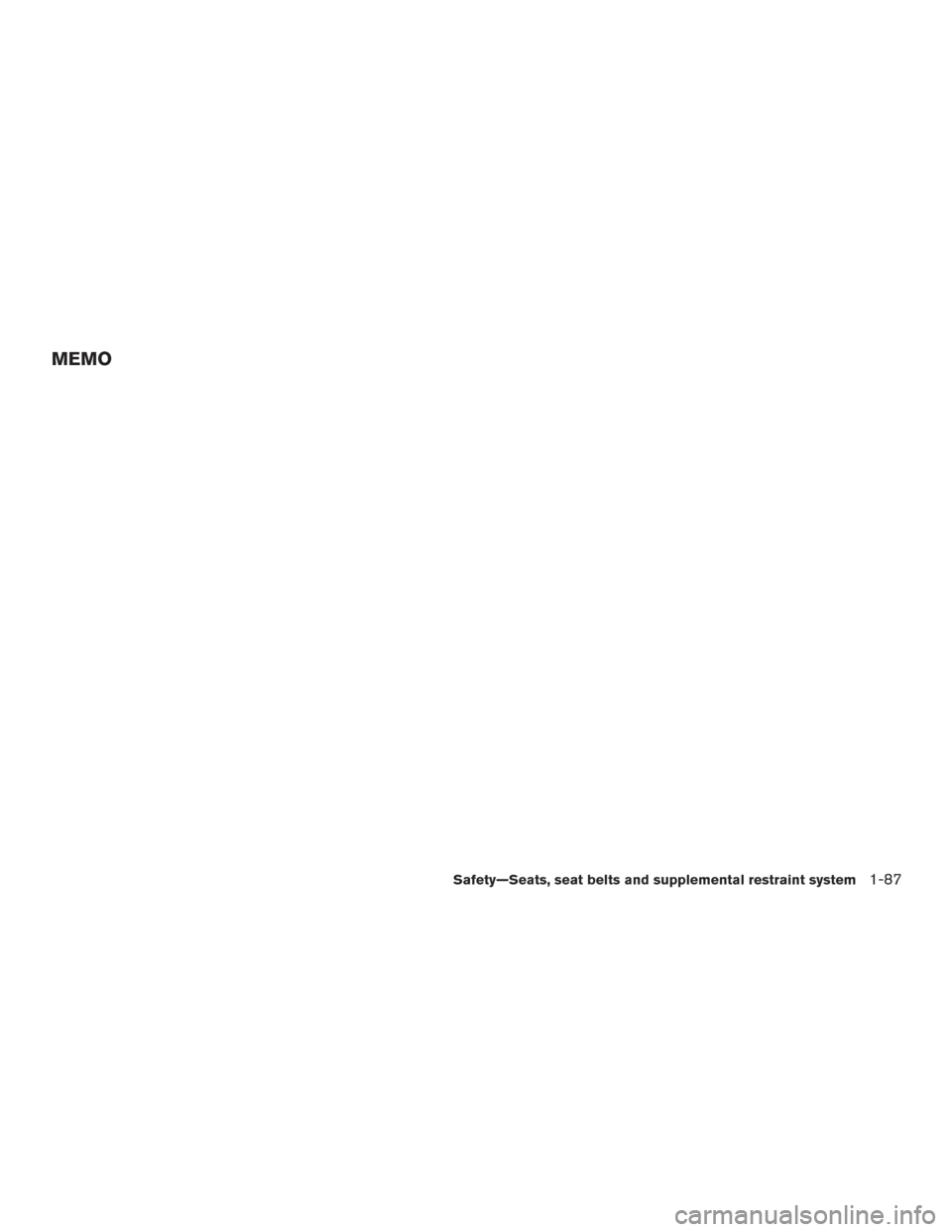

MEMO
Safety—Seats, seat belts and supplemental restraint system1-87

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-4
Tachometer ....................................2-6
Engine coolant temperature gauge ...............2-6
Fuel gauge ....................................2-7
Engine oil pressure gauge (if so equipped) ........2-8
Voltmeter (if so equipped) .......................2-8
Trip computer (if so equipped) ...................2-9
Compass and outside temperature display
(if so equipped) .................................. 2-10
Outside temperature display ....................2-10
Compass display .............................. 2-11
Warning/indicator lights and audible reminders ......2-14
Checking bulbs ............................... 2-15
Warning lights ................................ 2-15
Indicator lights ................................ 2-20
Audible reminders ............................. 2-24
Security systems (if so equipped) ..................2-24
Vehicle security system (if so equipped) ..........2-24
NISSAN vehicle immobilizer system
(if so equipped) ............................... 2-25
Windshield wiper and washer switch ...............2-27Switch operation
.............................. 2-27
Rear window or outside mirror defroster switch
(if so equipped) .................................. 2-28
Headlight and turn signal switch ....................2-28
Headlight control switch ........................ 2-28
Daytime running light system (Canada only) ......2-31
Instrument brightness control ...................2-31
Turn signal switch ............................. 2-32
Fog light switch (if so equipped) ................2-32
Horn ............................................ 2-33
Cargo lamp switch ................................ 2-33
Heated seats (if so equipped) ......................2-33
Vehicle Dynamic Control (VDC) off switch ...........2-34
Hill descent control switch (if so equipped) ..........2-35
Electronic locking rear differential (E-Lock) system
switch (if so equipped) ............................ 2-36
Clutch interlock (clutch start) switch
(if so equipped) .................................. 2-37
Rear
sonar system off switch (if so equipped) ........2-37
Power outlet ..................................... 2-38
Storage ......................................... 2-39
Storage trays ................................. 2-39
Console box .................................. 2-40
Under-seat storage bins ........................ 2-41

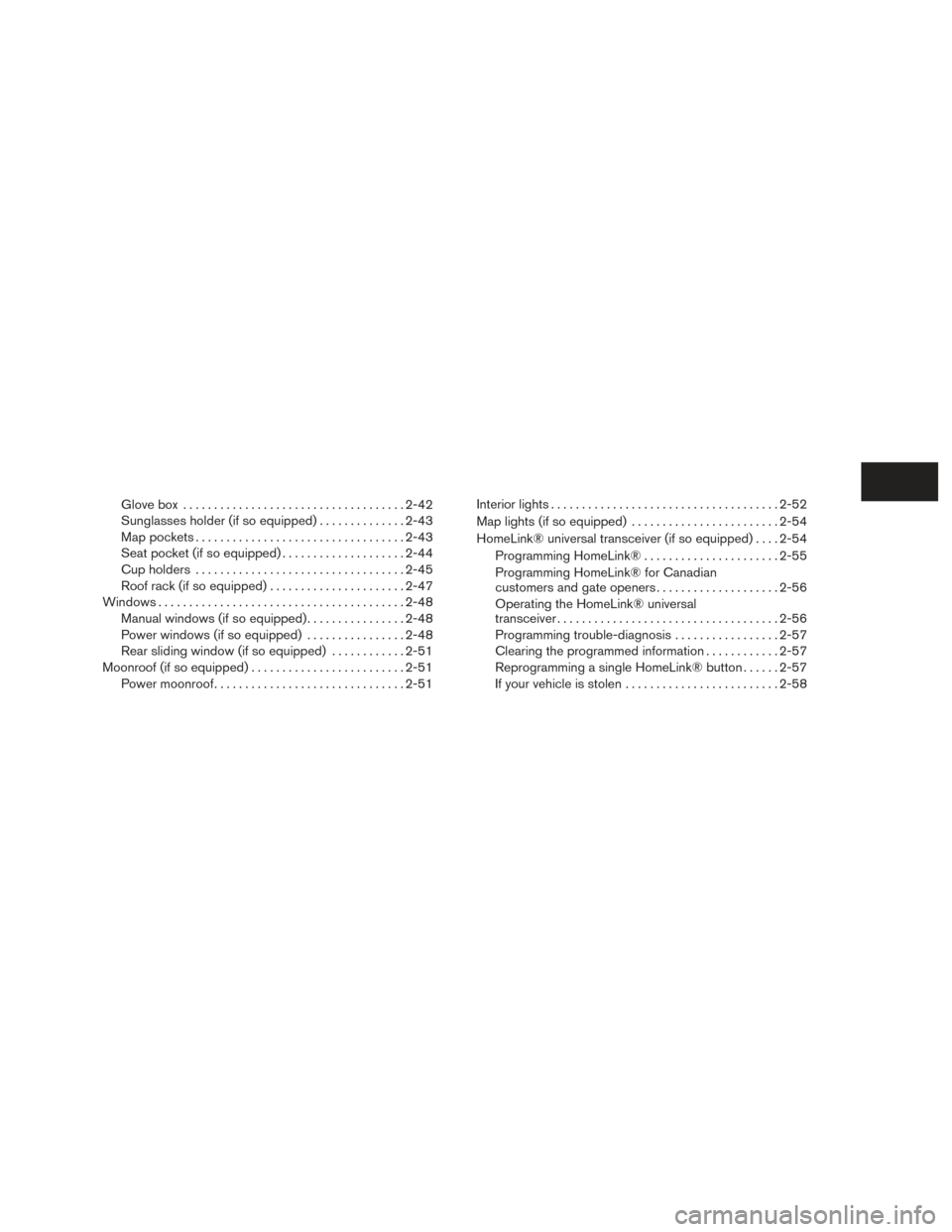

Glove box.................................... 2-42
Sunglasses holder (if so equipped) ..............2-43
Map pockets .................................. 2-43
Seat pocket (if so equipped) ....................2-44
Cup holders .................................. 2-45
Roof rack (if so equipped) ......................2-47
Windows ........................................ 2-48
Manual windows (if so equipped) ................2-48
Power windows (if so equipped) ................2-48
Rear sliding window (if so equipped) ............2-51
Moonroof (if so equipped) ......................... 2-51
Power moonroof ............................... 2-51Interior lights
..................................... 2-52
Map lights (if so equipped) ........................2-54
HomeLink® universal transceiver (if so equipped) ....2-54
Programming HomeLink® ......................2-55
Programming HomeLink® for Canadian
customers and gate openers ....................2-56
Operating the HomeLink® universal
transceiver .................................... 2-56
Programming trouble-diagnosis .................2-57
Clearing the programmed information ............2-57
Reprogramming a single HomeLink® button ......2-57
If your vehicle is stolen ......................... 2-58

1. Vents (P. 4-15)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-28)
3. Steering wheel switch for audio control
(if so equipped)/Bluetooth® Hands-
Free Phone System (if so equipped)
(P. 4-69, P. 4-67, P. 4-67)
4. Driver supplemental air bag/horn
(P. 1-70, P. 2-33)
5. Meters, gauges and warning/indicator
lights (P. 2-3, 2-14)
6. Cruise control main/set switches
(if so equipped) (P. 5-21)
7. Windshield wiper/washer switch
(P. 2-27)
8. Storage (P. 2-39)
9. Audio system (P. 4-34)
10. Front passenger supplemental air bag
(P. 1-70)
11. Upper and lower glove box (P. 2-42)
12. Passenger air bag status light (P. 1-79)
13. Power outlet (P. 2-38)
14. Power outlet (P. 2-38)
LIC2471
INSTRUMENT PANEL
2-2Instruments and controls

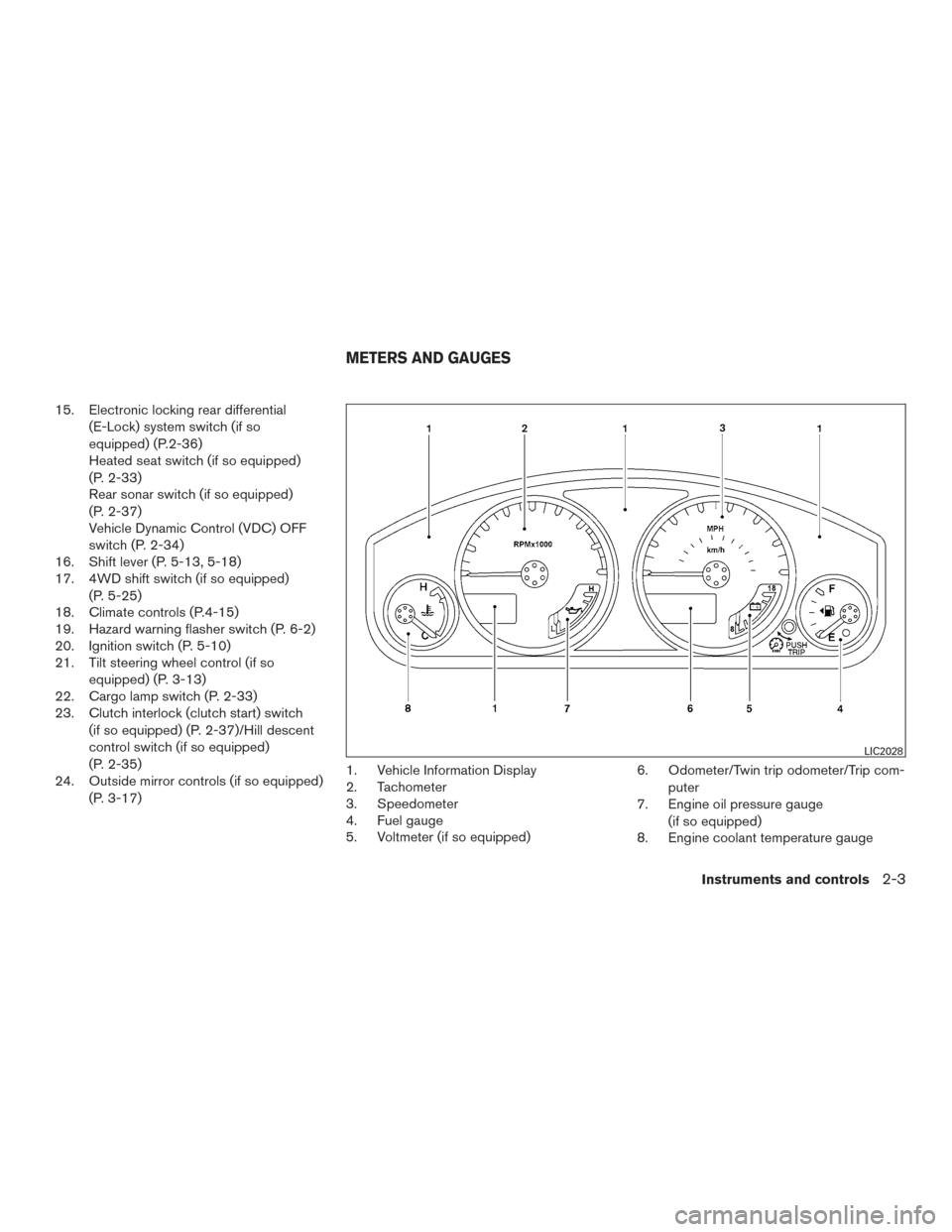

15. Electronic locking rear differential(E-Lock) system switch (if so
equipped) (P.2-36)
Heated seat switch (if so equipped)
(P. 2-33)
Rear sonar switch (if so equipped)
(P. 2-37)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-34)
16. Shift lever (P. 5-13, 5-18)
17. 4WD shift switch (if so equipped)
(P. 5-25)
18. Climate controls (P.4-15)
19. Hazard warning flasher switch (P. 6-2)
20. Ignition switch (P. 5-10)
21. Tilt steering wheel control (if so
equipped) (P. 3-13)
22. Cargo lamp switch (P. 2-33)
23. Clutch interlock (clutch start) switch
(if so equipped) (P. 2-37)/Hill descent
control switch (if so equipped)
(P. 2-35)
24. Outside mirror controls (if so equipped)
(P. 3-17) 1. Vehicle Information Display
2. Tachometer
3. Speedometer
4. Fuel gauge
5. Voltmeter (if so equipped) 6. Odometer/Twin trip odometer/Trip com-
puter
7. Engine oil pressure gauge
(if so equipped)
8. Engine coolant temperature gauge
LIC2028
METERS AND GAUGES
Instruments and controls2-3
