Indicators 5-166 Features and controls
5
N00519900127 N00520000216
The arrows will flash in time with the corre- sponding exterior turn signals when the turnsignal lever is used. Both arrows will flash
when the hazard warn-
ing flasher swit
ch is pressed.
N00520100086
A blue light comes on when the headlights are on high beam.
N00520200175
This indicator comes on while the front foglights are on.
N00551300026
This indicator light illuminates while the position lights are on.
N00575601020
This indicator comes on in blue while thecoolant temperature is low.
N00579200027
This function displays
how fuel-efficiently
you are driving under different driving condi- tions. The ECO drive assist di
splay will change as
follows if you do fuel-efficient driving using the accelerator in a way well matched with the vehicle speed.
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on wi
thout flashing, check
for a malfunctioning turn signal light bulb orturn signal connection.
High beam indicator
Front fog light indicator
(if so
equipped)Position indicator Low coolant temperature indi- cator - blue (Vehicle equipped with the multi information dis- play - Type 2)
NOTE
 When the indicator goes out, this should be used as a rough indication of when the heat-ing starts working.

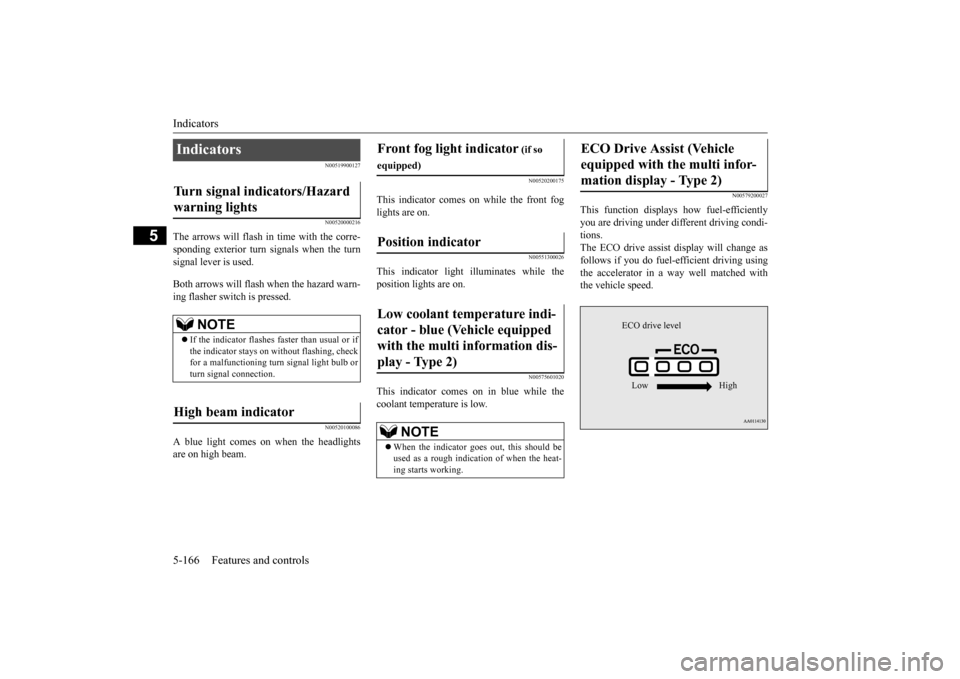

ECO Drive Assist (Vehicle equipped with the multi infor-mation display - Type 2)
ECO drive level Low High
BK0211800US.book 166 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Replacement of light bulbs 9-30 Vehicle care and maintenance
9
N00943000132
The bulb should only be replaced with a new bulb with the same rating and type. The type and rating are listed on the base of the bulb.
N00950301961
 When it rains, or wh
en the vehicle has been
washed, the inside of the lens sometimesbecomes temporarily foggy. This is the samephenomenon as when window glass mists up on a humid day, and does not indicate a func- tional problem.When the light is switched on, the heat will remove the fog. However, if water gathers inside the light, please
have it checked by an
authorized Mitsubishi Motors dealer or a repair facility of your choice.

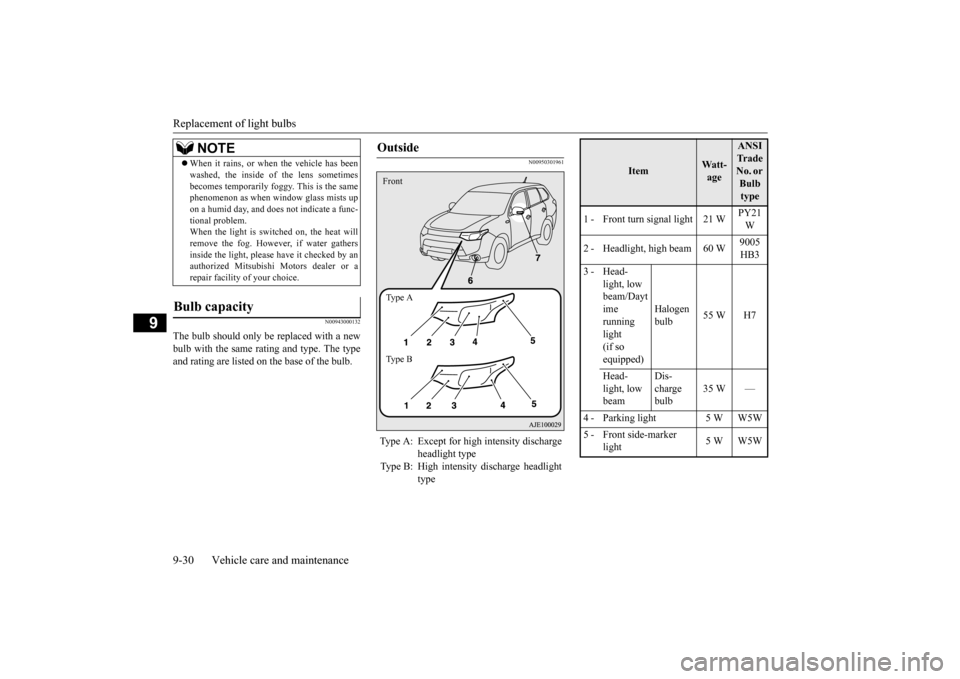

Bulb capacity
NOTE
Outside Type A: Except for hi
gh intensity discharge
headlight type
Type B: High intensity discharge headlight
type
Front Ty p e A Ty p e B
Item
Watt-age
ANSI Tr a d e No. or Bulb type
1 - Front turn signal light 21 W
PY21 W
2 - Headlight, high beam 60 W
9005 HB3
3 - Head-
light, low beam/Dayt ime running light (if so equipped)
Halogen bulb
55 W H7
Head- light, low beam
Dis- charge bulb
35 W —
4 - Parking light 5 W W5W 5 - Front side-marker
light
5 W W5W
BK0211800US.book 30 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Replacement of light bulbs
Vehicle care and maintenance 9-31
9
6- Front fog light
(Type 1)
55 W H11
Daytime running light (Type 2)
13 W P13W
Front fog light/Day- time run- ning light (Type 3)
Front fog light
35 W H8
Daytime running light
13 W P13W
7 - Side turn signal light
(if so equipped)
——

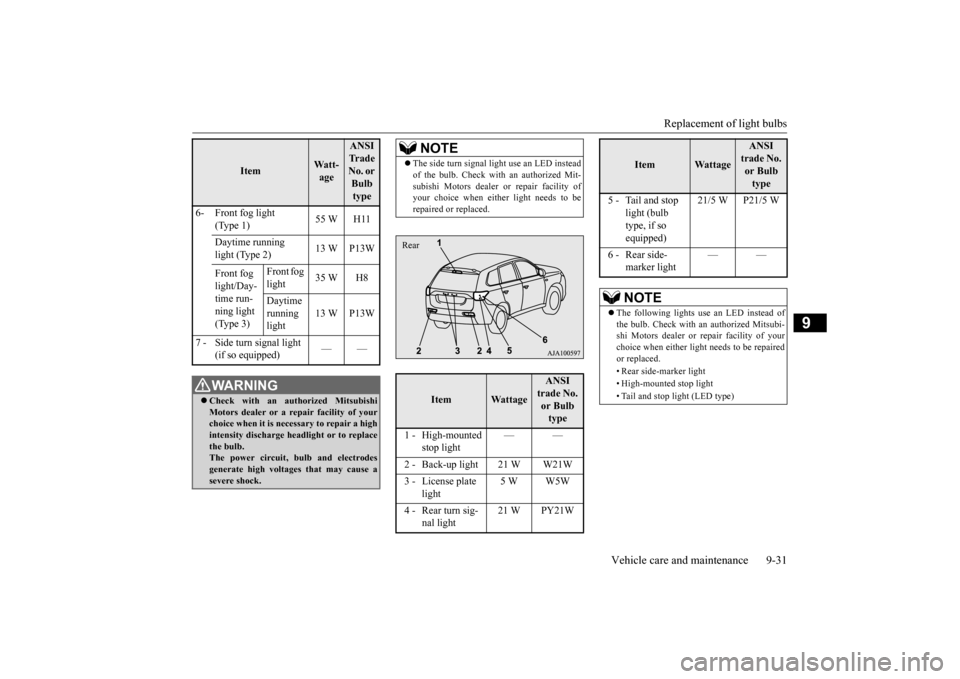

WA R N I N G Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when it is nece
ssary to repair a high
intensity discharge head
light or to replace
the bulb. The power circuit, bulb and electrodesgenerate high voltage
s that may cause a
severe shock.
Item
Watt- age
ANSI Tr a d e No. or Bulb type
NOTE
 The side turn signal li
ght use an LED instead
of the bulb. Check with
an authorized Mit-
subishi Motors dealer
or repair facility of
your choice when either light needs to be repaired or replaced.
Item
Wattage
ANSI trade No. or Bulb type
1 - High-mounted
stop light
——
2 - Back-up light 21 W W21W 3 - License plate
light
5 W W5W
4 - Rear turn sig-
nal light
21 W PY21W
Rear
5 - Tail and stop
light (bulb type, if so equipped)
21/5 W P21/5 W
6 - Rear side-
marker light
——
NOTE
 The following lights us
e an LED instead of
the bulb. Check with an authorized Mitsubi- shi Motors dealer or repair facility of your choice when either light needs to be repairedor replaced. • Rear side-marker light• High-mounted stop light • Tail and stop light (LED type)
Item
Wattage
ANSI trade No. or Bulb type
BK0211800US.book 31 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Replacement of light bulbs
Vehicle care and maintenance 9-35
9
2. To install the bulb, perform the removal steps in reverse.
N00943401380

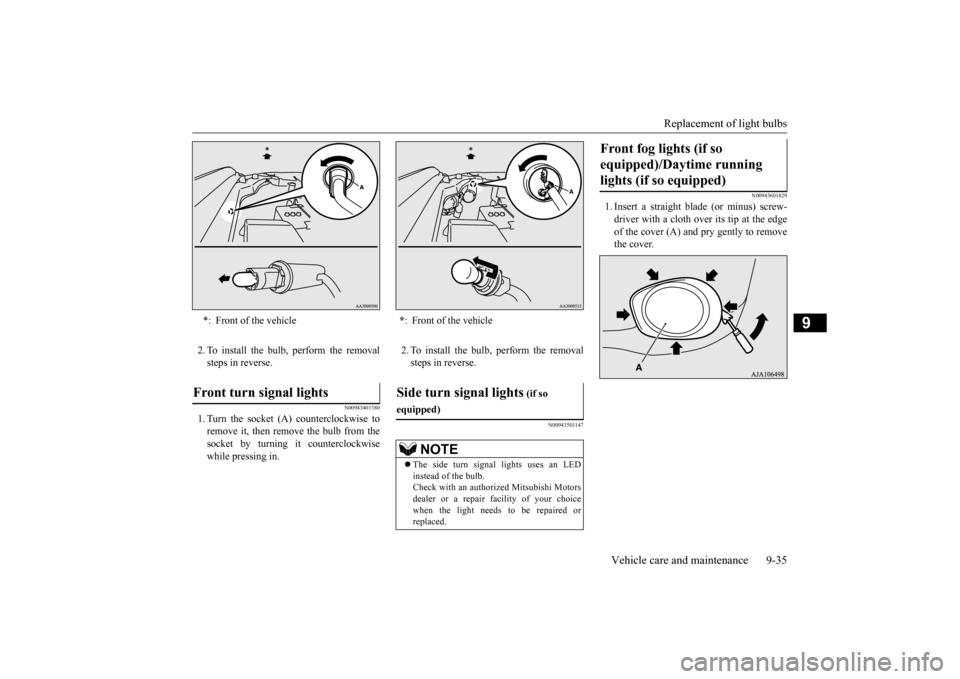

1. Turn the socket (A
) counterclockwise to
remove it, then remove the bulb from thesocket by turning it counterclockwise while pressing in.
2. To install the bulb, perform the removal steps in reverse.
N00943501147
N00943601829
1. Insert a straight blade (or minus) screw- driver with a cloth over its tip at the edge of the cover (A) and pry gently to remove the cover.
*: Front of the vehicleFront turn signal lights
* : Front of the vehicleSide turn signal lights
(if so
equipped)
NOTE
 The side turn signal lights uses an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
Front fog lights (if so equipped)/Daytime running lights (if so equipped)
BK0211800US.book 35 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Replacement of light bulbs 9-36 Vehicle care and maintenance
9
2. Remove the 3 screws (B) and remove the light unit.
3. Turn the socket counterclockwise to remove it.
4. While holding down th
e tab (F), pull out
the bulb (G). 5. To install the bulb, perform the removal steps in reverse.
N00943701543
1. Open the liftgate.2. Remove the screws
(A), and then move
the light unit toward the rear of the vehi-cle to unfix the notch (B) and pins (C).
NOTE
 When unfastening the screws or the fog light, be careful not to move the beam posi- tion adjustment screw (C).

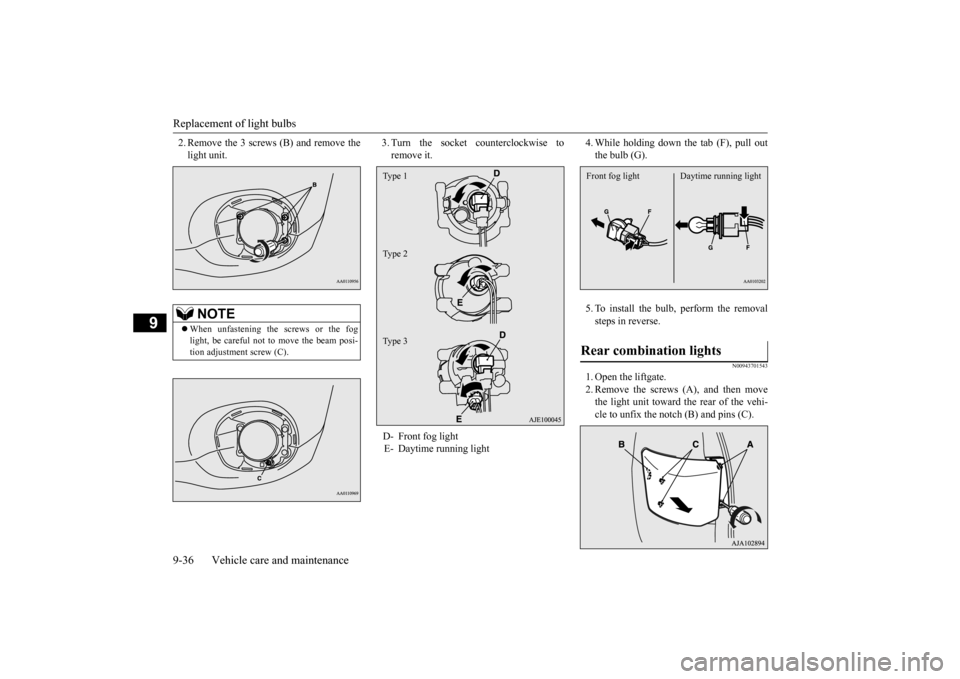

D- Front fog light E- Daytime running lightType 1 Type 2 Type 3
Rear combination lights Front fog light Daytime running light
BK0211800US.book 36 ページ ２０１４年３月１２日　水曜日　午後２時４２分
