Outside (Front) 1-7 Overview
1
N00100602506
Outside (Front)
Locking and unlocking P.5-33 Keyless entry system (if so equipped) P.5-7F.A.S.T.-key (Free-hand Advanced Security Transmitter) (if so equipped) P.5-11
Sunroof (if so equipped) P.5-44
Windshield wiper and washer P.5-131
Fuel tank filler P.3-4
Engine hood P.9-3 Engine compartment P.9-5
Outside rearview mirrors P.5-49 Side turn signal lights P.5-129, 9-28
Headlights, high beam
P.5-124, 9-28, 9-31
Front turn signal light
s P.5-129, 9-28, 9-34
Headlights, low beam P.5-124, 9-28, 9-30Daytime running lights (if so
equipped) P.5-124, 9-28, 9-32
Front side-marker and parking lig
hts P.5-124, 9-28, 9-33, 9-34
Front fog lights P.5-130, 9-28, 9-35
BK0210800US.bo
ok 7 ページ ２０１４年４月８日　火曜日　午前１１時２８分

If this problem occurs...
Quick index 2-3
2
N00200901893
If this problem occurs...
Problem
Do this
Ref. page
Cannot turn the key. (When using a key to start the engine)
When using a key to start the engine Will not turn from “LOCK” to “ACC”. Turn the key while turning the steering wheel in either direction.
P.5-51, 5-52
Will not turn from “ACC” to “LOCK”. Vehicles with Twin Clutch SST: Check the position of the gearshift lever.The key cannot be removed unless the gearshif
t lever is set to the “P” (PARK) position.
Vehicles with manual transaxle: Place the key at the “ACC” position. Push the key in and turn it.
(When using the F.A.S.T.-key to start the engine)
When using the F.A.S.T.-key to start the engine Will not turn from “LOCK (PUSH OFF)” to “ACC”.Push the ignition switch again, turn the steering
wheel in both directions and then turn the
ignition switch. Will not turn from “ACC” to “LOCK”. Vehicles with Twin Clutch SST:Check whether the gearshift lever is set to the “P” (PARK) position. Vehicles with manual transaxle: Place the ignition switch at the “ACC” position.
Push the ignition switch in and turn it.
P. 5 - 1 1
The F.A.S.T.-key does not oper- ate. (for vehicles equipped with the F. A . S . T. - k e y )
Use the emergency key to lock and unlock the doors and start the engine. P.5-21
BK0210800US.bo
ok 3 ページ ２０１４年４月８日　火曜日　午前１１時２８分

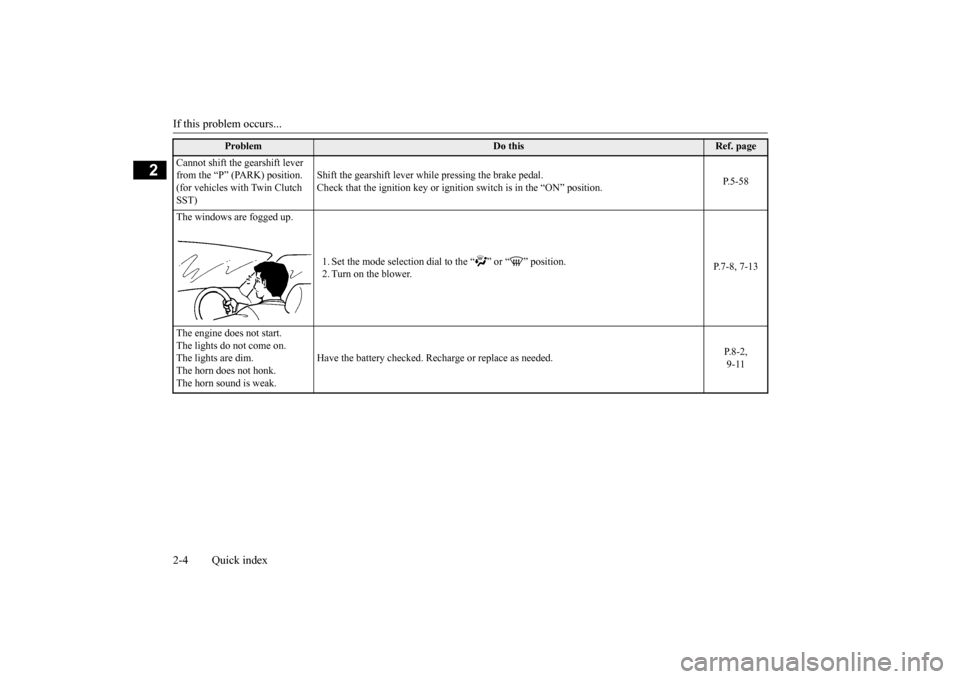

If this problem occurs... 2-4 Quick index
2
Cannot shift the gearshift lever from the “P” (PARK) position. (for vehicles with Twin Clutch SST)
Shift the gearshift lever while pressing the brake pedal. Check that the ignition key or ignition switch is in the “ON” position.
P.5-58
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position. 2. Turn on the blower.
P.7-8, 7-13
The engine does not start. The lights do not come on.The lights are dim. The horn does not honk. The horn sound is weak.
Have the battery checked. Recharge or replace as needed.
P.8-2, 9-11
Problem
Do this
Ref. page
BK0210800US.bo
ok 4 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Maintenance and inspection of seat belts 4-20 Seat and restraint systems
4
Systems and Booster Seats Safety Regula- tions.
N00407000221
The seat belt webbing may be cleaned withmild soap or detergent solution. Do not use an organic solvent. Allow the belts to dry in the shade. Do not allow them to retract until com-pletely dry. Do not attempt to bleach or re-
dye the belts. The color may rub off and the webbing strength may be affected. Regularly check your seat belt buckles and their release mechanisms for positive engage- ment and release of the latch plate. Check theretractors for automatic locking when in the Automatic Locking Retractor function. The entire seat belt assembly should be replaced if the webbing shows any obviouscuts, tears, increase in thickness in any sec-tion of the webbing from broken fibers, or severe fading from sunlight. All of these con- ditions indicate a weakening of the belt,which may adversely affect seat belt perfor- mance in an accident.
N00407701818
This vehicle is equipped with a Supplemental Restraint System (SRS), which includes air-bags for the driver and passengers. The SRS front airbags are designed to supple- ment the primary protection of the driver and front passenger seat belt systems by provid-ing those occupants with protection againsthead and chest injuries in certain moderate to severe frontal collisions. The SRS front airbags, together with sensorsat the front of the vehicle and sensors attached to the front seats, form an advanced airbag system. The SRS driver’s knee airbag is designed to supplement the primary protection of the driver’s seat belt system. It can reduce the forward movement of the driver’s lower legsand provide increased overall body protection in certain moderate to severe frontal colli- sions. The SRS side airbags and the curtain airbags are also designed to supplement the seat belts. The SRS side airbags provide the driver and front passenger with protection against chestinjuries by deploying the bag on the side impacted in moderate to severe side impact
WA R N I N G Any child who is too small to properly wear a seat belt must be properly restrained in an appropriate childrestraint system, to reduce their risk of serious injury or death in an accident. A child should never be left unattended in, or unsupervised, around your vehicle. When you leave the vehicle, always takethe child out as well. Children can die from heat stroke if left or trapped inside the vehicle, especially on hot days. Keep your vehicle locked and the trunk lid closed when not in use. Keep your vehicle keys away from children. Never allow children to play in the trunk of your vehicle.
Maintenance and inspection of seat belts
WA R N I N G Do not attempt to repair or replace any part of the seat belt assemblies. This workshould be done by an authorized Mitsubishi Motors dealer. Failure to have an authorized Mitsubishi Motors dealerperform the work could reduce the effec- tiveness of the belts and could result in a serious injury or death in an accident.
Supplemental Restraint Sys- tem (SRS) - airbag
BK0210800US.bo
ok 20 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Supplemental Restraint System (SRS) - airbag
4-30 Seat and restraint systems
4
Collision with an elevated median/island or curb
Vehicle travels over a deep hole/pothole
Vehicle drives down a steep slope and hits the
ground
WA R N I N G Do not attach anything to the steering
wheel’s padded cover, such as trim mate-
rial, badges, etc. These could strike and
injure an occupant if the airbag inflates. Do not set anything on, or attach anything
to, the instrument panel above the glove
compartment. Such items could strike and
injure an occupant if the airbag inflates. WA R N I N GDo not attach accessories to, or put them
in front of, the windshield. They could
restrict the airbag inflation, or strike and
injure an occupant, when the airbag
inflates.
Do not attach additional keys or accesso-
ries (hard, pointed or heavy objects) to the
ignition key. Such objects could prevent
the driver’s knee airbag from inflating
normally or could be propelled to cause
serious injury if the airbag inflates. Do not attach accessories to the lower por-
tion of the driver’s side instrument panel.
Such objects could prevent the driver’s
knee airbag from inflating normally or
could be propelled to cause serious injury
if the airbag inflates.WA R N I N GDo not attempt to remove, install, disas-
semble or repair the SRS airbags.WA R N I N G
