WARNINGlNever run the engine in a closed or poorly
ventilated area any longer than is needed
to move your vehicle in or out of the area. Carbon monoxide gases are odourless and can be fatal.CAUTIONl Never attempt to start the engine by pushing
or pulling the vehicle. Especially the auto-matic transmission, since the structure is dif-
ferent from a manual transmission, it is not possible to start the engine by using this
technique. Never attempt this or it could damage the automatic transmission.
l Do not run the engine at high rpm or drive
the vehicle at high speed until the engine has had a chance to warm up.
l Release the ignition key as soon as the en-
gine starts to avoid damaging the starter mo-
tor.
l Do not stop the engine immediately after
high-speed or uphill driving. First allow the
engine to idle to give the turbocharger a
chance to cool down.Starting the engine
E00601702223
1. Insert the ignition key and fasten the seat
belt.
2. Make sure the parking brake is applied.
3. Depress and hold the brake pedal.
4. On vehicles with manual transmission,
place the gearshift lever in the “N” (Neutral) position and depress the clutch
pedal all the way.
On vehicles with automatic transmis- sion, make sure the selector lever in the “P” (PARK) position.NOTEl On vehicles with automatic transmission, the
engine will not start if the selector lever is inany position other than “P” (PARK) or “N”
(NEUTRAL) position.
For safety, start the engine with the selector lever in the “P” (PARK) position because in
this position the rear wheels are locked in place.
5. Turn the ignition key to the “ON” posi-
tion.
The diesel preheat indication lamp will first illuminate, and then after a short
time go out, indicating that preheating is
completed.NOTEl If the engine is cold, the diesel preheat indi-
cation lamp is on for a longer time.
l When the engine has not been started within
about 5 seconds after the diesel preheat indi- cation lamp went out, return the ignition key
to the “LOCK” position. Then, turn the key
to the “ON” position to preheat the engine
again.
l When the engine is warm, the diesel preheat
indication lamp does not come on even if the
ignition key is placed in the “ON” position.
Start the engine by turning the ignition key
right to the “START” position.

6. Operate the accelerator pedal as descri-
bed below in accordance with the atmos- pheric temperature and/or engine condi-
tion and then start the engine.
l When the atmospheric temperature is
moderate or the engine is warm, start
the engine without depressing the ac-
celerator pedal.
l When the atmospheric temperature is
low and the engine is cold, start the
engine while depressing the accelera- tor pedal.
Starting
6-14OKTE15E3Starting and driving6 Vehicles with manual transmissionVehicles with automatictransmission

The lock button need not be pushed to
move the selector lever.WARNINGl If the lock button is always pushed to op-
erate the selector lever, the lever may beaccidentally shifted into the “P” (PARK)
or “R” (REVERSE) position. Be sure not to push the lock button when performing
the operations indicated by
in the illus-
tration.
l Always depress the brake pedal when
shifting the selector lever into a gear from the “P” (PARK) or “N” (NEUTRAL) po-sition.
When beginning to drive, do not shift the
selector lever from the “P” (PARK) or
“N” (NEUTRAL) position while depress-
ing the accelerator pedal, doing so is dan- gerous because the vehicle will “jump”
forward or backward.
When the selector lever cannot
be shifted from the “P” (PARK)
position
When the selector lever cannot be shifted from the “P” (PARK) position to another po-
sition while the brake pedal is pressed and
held down with the ignition switch at the
“ON” position, the battery may be flat or the shift-lock mechanism may be malfunction- ing.
Immediately have your vehicle checked by
an authorized MITSUBISHI MOTORS deal-
er.
If you need to move the vehicle, shift the se- lector lever as follows. 1. Make sure the parking brake is applied.
2. Stop the engine if it is running.
3. Depress the brake pedal with the right
foot.
4. Turn the ignition switch to the “ACC”
position.
5. Insert a straight blade (or minus) screw-
driver in the shiftlock release hole (A).
Shift the selector lever to the “N” (NEU-
TRAL) position while pressing the straight blade (or minus) screwdriver down.Selector lever position indica-
tor
E00603500885
When the ignition switch is turned to the
“ON” position, the current position of the se- lector lever is indicated by the indicator (A)
shown on the instrument cluster {i.e. “P” (PARK), “R” (REVERSE), “N” (NEU-
TRAL), “D” (DRIVE)}.
Selector lever positions (Main
gate)
E00603800729
“P” PARK
This position locks the transmission to pre- vent the vehicle from moving. The engine
can be started in this position.
“R” REVERSE
This position is to back up.
Automatic transmission Sports Mode 4A/T, 5A/T
6-20OKTE15E3Starting and driving6

CAUTIONlBy rapidly moving the selector lever back-
ward (SHIFT DOWN) twice, it is possible to
skip one gear, i.e., 3 rd
to 1 st
, 4 th
to 2 nd
or 5 th
to 3 rd
. Since sudden engine braking and/or
rapid acceleration can cause a loss of trac-
tion, downshifts must be made carefully in
accordance with the vehicle’s speed.NOTEl In sports mode, only the 4 or 5 forward gears
can be selected. To reverse or park the vehi- cle, move the selector lever to the “R” (RE-VERSE) or “P” (PARK) position as re-quired.
l To maintain good running performance, the
transmission may refuse to perform an up- shift when the selector lever is moved to the
“+ (SHIFT UP)” position at certain vehicle speeds. Also, to prevent over-revving of the
engine, the transmission may refuse to per- form a downshift when the lever is moved to
the “- (SHIFT DOWN)” position at certain vehicle speeds.
l In sports mode, downward shifts are made
automatically when the vehicle slows down.
When the vehicle stops, 1st
gear is automati-
cally selected.NOTEl When driving away on a slippery road, push
the selector lever forward into the “+(SHIFT UP)” position. This causes the trans-
mission to shift into the 2 nd
gear which is
better for smooth driving away on a slippery
road. Push the selector lever to the “-
(SHIFT DOWN)” side to shift back to the 1 st
gear.Sports mode indicator
E00612300498
In sports mode, the currently selected posi- tion is indicated by the indicator (A) shown
on the instrument panel.
When a malfunction occurs in
the automatic transmission
E00615100152
When the selector lever position
indicator blinks
E00615200238
When the selector lever position indicator blinks while you are driving, there could be a
malfunction in the automatic transmission
system.
orthroughor
Automatic transmission Sports Mode 4A/T, 5A/T
6-22OKTE15E3Starting and driving6

CAUTIONlIf the selector lever position indicator blinks
while you are driving, it is likely that a safe-
ty device is operating because of a malfunc-
tion in the automatic transmission. We rec-
ommend you to have your vehicle inspected as soon as possible.
l The selector lever position indicator warning
function does not operate with the selector
lever in the “P” (PARK), “R” (REVERSE) or “N” (NEUTRAL) position.When the A/T (automatic trans-
mission) fluid temperature warning lamp comes on
E00615300141
The automatic transmission fluid temperature
warning lamp comes on when the automatic
transmission fluid temperature becomes ab- normally high. Normally the warning lamp
comes on when the ignition switch is turned to the “ON” position, and then will go out af-
ter a few seconds.
CAUTIONl If the lamp comes on, reduce the engine
speed and stop the vehicle in a safe area.Then set the selector lever to the “P”
(PARK) position and idle the engine until
the warning lamp goes off. When the warn- ing lamp goes off, resume normal driving. If
the warning lamp does not go off, we recom- mend you to have your vehicle inspected.Operation of the automatic
transmission
E00604200528
CAUTIONl Before selecting a gear with the engine run-
ning and the vehicle stationary, fully depress
the brake pedal to prevent the vehicle from
creeping.
The vehicle will begin to move as soon as the gear is engaged, especially when the en- gine speed is high, at fast idle or with the airconditioning operating, the brakes should
only be released when you are ready to drive
away.
l Depress the brake pedal with the right foot at
all times.
Using the left foot could cause driver move- ment delay in case of an emergency.
l To prevent sudden acceleration, never race
the engine when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.
Automatic transmission Sports Mode 4A/T, 5A/T
6-23OKTE15E3Starting and driving6

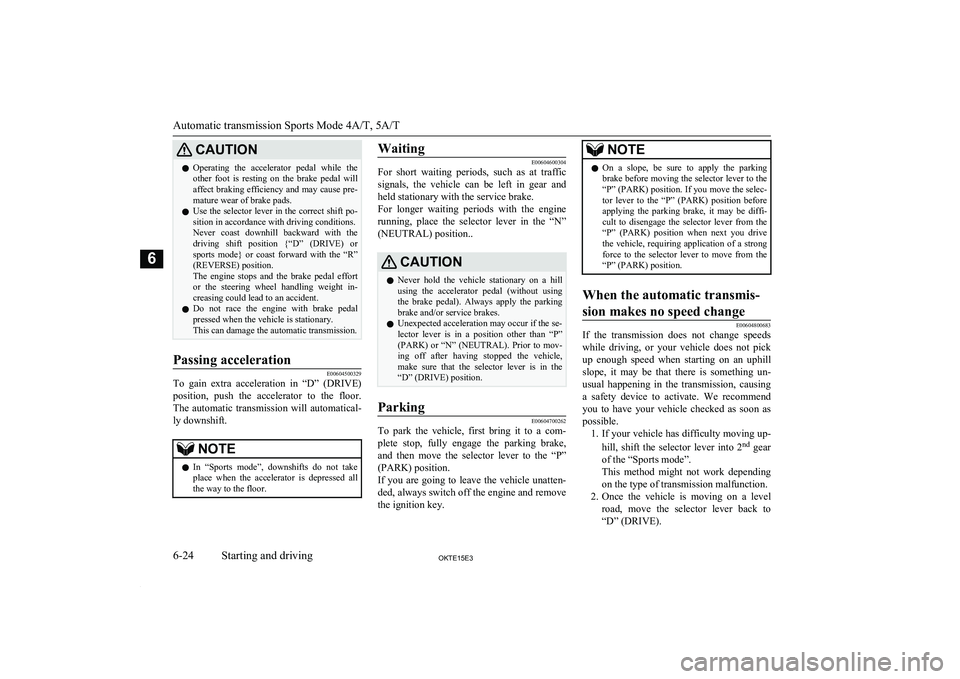

CAUTIONlOperating the accelerator pedal while the
other foot is resting on the brake pedal will affect braking efficiency and may cause pre-
mature wear of brake pads.
l Use the selector lever in the correct shift po-
sition in accordance with driving conditions.Never coast downhill backward with the
driving shift position {“D” (DRIVE) or
sports mode} or coast forward with the “R” (REVERSE) position.
The engine stops and the brake pedal effort or the steering wheel handling weight in-creasing could lead to an accident.
l Do not race the engine with brake pedal
pressed when the vehicle is stationary.
This can damage the automatic transmission.Passing acceleration
E00604500329
To gain extra acceleration in “D” (DRIVE)
position, push the accelerator to the floor.The automatic transmission will automatical- ly downshift.
NOTEl In “Sports mode”, downshifts do not take
place when the accelerator is depressed all
the way to the floor.Waiting
E00604600304
For short waiting periods, such as at traffic
signals, the vehicle can be left in gear and held stationary with the service brake.
For longer waiting periods with the engine
running, place the selector lever in the “N” (NEUTRAL) position..CAUTIONl Never hold the vehicle stationary on a hill
using the accelerator pedal (without using the brake pedal). Always apply the parking
brake and/or service brakes.
l Unexpected acceleration may occur if the se-
lector lever is in a position other than “P”
(PARK) or “N” (NEUTRAL). Prior to mov-
ing off after having stopped the vehicle, make sure that the selector lever is in the
“D” (DRIVE) position.Parking
E00604700262
To park the vehicle, first bring it to a com-
plete stop, fully engage the parking brake,and then move the selector lever to the “P”
(PARK) position.
If you are going to leave the vehicle unatten-
ded, always switch off the engine and remove the ignition key.
NOTEl On a slope, be sure to apply the parking
brake before moving the selector lever to the
“P” (PARK) position. If you move the selec- tor lever to the “P” (PARK) position before applying the parking brake, it may be diffi-
cult to disengage the selector lever from the
“P” (PARK) position when next you drive the vehicle, requiring application of a strong
force to the selector lever to move from the
“P” (PARK) position.When the automatic transmis-
sion makes no speed change
E00604800683
If the transmission does not change speeds
while driving, or your vehicle does not pick up enough speed when starting on an uphillslope, it may be that there is something un-
usual happening in the transmission, causing a safety device to activate. We recommendyou to have your vehicle checked as soon as
possible. 1. If your vehicle has difficulty moving up-
hill, shift the selector lever into 2 nd
gear
of the “Sports mode”.
This method might not work depending
on the type of transmission malfunction.
2. Once the vehicle is moving on a level
road, move the selector lever back to“D” (DRIVE).
Automatic transmission Sports Mode 4A/T, 5A/T
6-24OKTE15E3Starting and driving6

To shift fromToProcedureVehicles with manual transmissionVehicles with automatic transmission
4H2H
When the vehicle is not in motion, shift the gearshift
lever to the “N” (Neutral) position before operating
the transfer shift lever.
When the vehicle is moving, and only while it can be steered straight ahead, release the accelerator pedal
before operating the transfer shift lever.When the vehicle is not in motion, shift the selector
lever to the “N” (NEUTRAL) position before oper-
ating the transfer shift lever.
When the vehicle is moving, and only while it can
be steered straight ahead, shift the selector lever to
the “D” (DRIVE) position, and release the accelera- tor pedal before operating the transfer shift lever.4H4L
Stop the vehicle, depress the clutch pedal to the floor
and operate the transfer shift lever.
Stop the vehicle, shift the selector lever to the “N”
(NEUTRAL) position, and operate the transfer shift
lever.
If operation is made with the selector lever placed
in any other position than “N” (NEUTRAL) posi-
tion, a gear noise may be generated, with a possible
failure to shift into a proper gear.
4L4H
NOTEl Shifting of the transfer shift lever between
“2H” ↔ “4H” should only be done at speeds below 100 km/h (62 mph).
l During driving, never attempt to shift from
“4H” to “4L”.
l When shifting from “2H” to “4H” in cold
weather while the vehicle is in motion, the transmission gear may make some noise. In
cold weather, try to shift the gear while the
vehicle is stopped.NOTEl There may be a case that the transfer shift
lever feels heavy when it is moved from
“4H” to “2H” with the steering wheel in
turned position.
This is normal and not any indication of trouble.CAUTIONl Do not operate the transfer shift lever while
the rear wheels of the vehicle are slipping on snow or ice.2WD/4WD operation indica-
tion lamp
E00615000122Easy select 4WD*
6-27OKTE15E3Starting and driving6

When the ignition switch is in the “ON” posi-
tion, the 2WD/4WD operation indication lamp shows the shifting condition. The 2WD/4WD operation indication lamp illumi-
nates at each transfer shift lever position as follows:
“2H” ↔ “4H”Transfer
shift lever position2WD/4WD operation indi- cation lamp
2H
Drive mode
switching in progress
Transfer
shift lever position2WD/4WD operation indi- cation lamp
4H
: Illuminate
: Remain off
NOTElWhen the transfer shift lever is shifted be-
tween 2H ↔ 4H, the 2WD/4WD operation indication lamp does not switch to illuminate
or remain off while the selection is in proc- ess. Take the following precautions when the indication lamp remains on or off.
• Keep the steering wheel in the straight
ahead position while making range selec-
tions. If you attempt to drive forward with the steering wheel turned, gear rattling
may occur and the desired range may not actually be selected.
• When the transfer shift lever is shifted be-
tween “2H” ↔ “4H” while the vehicle is stopped, the 2WD/4WD operation indica-
tion lamp does not switch to illuminate or remain off while the selection is in proc-
ess. Drive slowly and normally after con- firming that the lamp is switched.NOTE• Do not move the selector lever while the
2WD/4WD operation indication lamp is
switched.
• If the 2WD/4WD operation indication
lamp does not switch after a “2H” ↔ “4H” selection has been made with thevehicle moving, hold the steering wheel
in the straight ahead position and slowly
depress the accelerator pedal several times.
“4H” ↔ “4L”
Transfer shift lever
position2WD/4WD opera-
tion indication lamp
4HDrive mode switch- ing in progressEasy select 4WD*
6-28OKTE15E3Starting and driving6

Transfer shift lever operation
E00605900173
The shift pattern is shown on the transfer
shift lever knob.
The transfer shift lever should be positioned
in accordance with the following operating conditions:
: Not push down the transfer shift
lever
: Push down the transfer shift lever
To shift fromToProcedureVehicles with manual transmissionVehicles with automatic transmission2H4HThe transfer shift lever can be operated while the ve- hicle is either moving or stationary.
When the vehicle is not in motion, shift the gearshift
lever to the “N” (Neutral) position before operating
the transfer shift lever.
When the vehicle is moving, and only while it can be
steered straight ahead, and release the accelerator ped- al before operating the transfer shift lever.The transfer shift lever can be operated while the
vehicle is either moving or stationary.
When the vehicle is not in motion, shift the selector
lever to the “N” (NEUTRAL) position before oper-
ating the transfer shift lever.
When the vehicle is moving, and only while it can
be steered straight ahead, shift the selector lever to
the “D” (DRIVE) position, and release the accelera-
tor pedal before operating the transfer shift lever.4H2H or 4HLc
4HLc4H4HLc4LLc
Stop the vehicle, depress the clutch pedal to the floor
and operate the transfer shift lever while keeping the
transfer shift lever pushed down.
Keep depressing the clutch pedal while the
2WD/4WD operation indication lamp continues to
blink.Stop the vehicle, shift the selector lever to the “N”
(NEUTRAL) position, and operate the transfer shift
lever while keeping the transfer shift lever pushed
down.
If operation is made with the selector lever placed
in any other position than “N” (NEUTRAL) posi-
Super select 4WD*
6-31OKTE15E3Starting and driving6
