2015 MERCEDES-BENZ SLK-Class Owner's Manual

Installing the wiper blades
X
Position new wiper blade 0043with recess 0084
on lug 0083.
X Fold wiper blade 0043in the direction of
arrow 0087onto the wiper arm, until retaining
clips 0044engage in bracket 0085.
X Make sure that wiper blade 0043is seated
correctly.
X Fold the wiper arm back onto the wind-
shield. Windshield wipers
119Lights and windshield wipers Z

Problems with the windshield wipers
Problem
Possible causes/consequences and
0050
0050Solutions The windshield wipers
are jammed. Leaves or snow, for example, may be obstructing the windshield
wiper movement. The wiper motor has been deactivated.
X For safety reasons, you should remove the SmartKey from the
ignition lock.
or X Switch off the engine using the Start/Stop button and open the
driver's door.
X Remove the cause of the obstruction.
X Switch the windshield wipers back on. The windshield wipers
fail completely. The windshield wiper drive is malfunctioning.
X Select another wiper speed on the combination switch.
X Have the windshield wipers checked at a qualified specialist
workshop. The windshield washer
fluid from the spray
nozzles no longer hits
the center of the wind-
shield. The spray nozzles are misaligned.
X Have the spray nozzles adjusted at a qualified specialist work-
shop. 120
Windshield wipersLights and windshield wipers

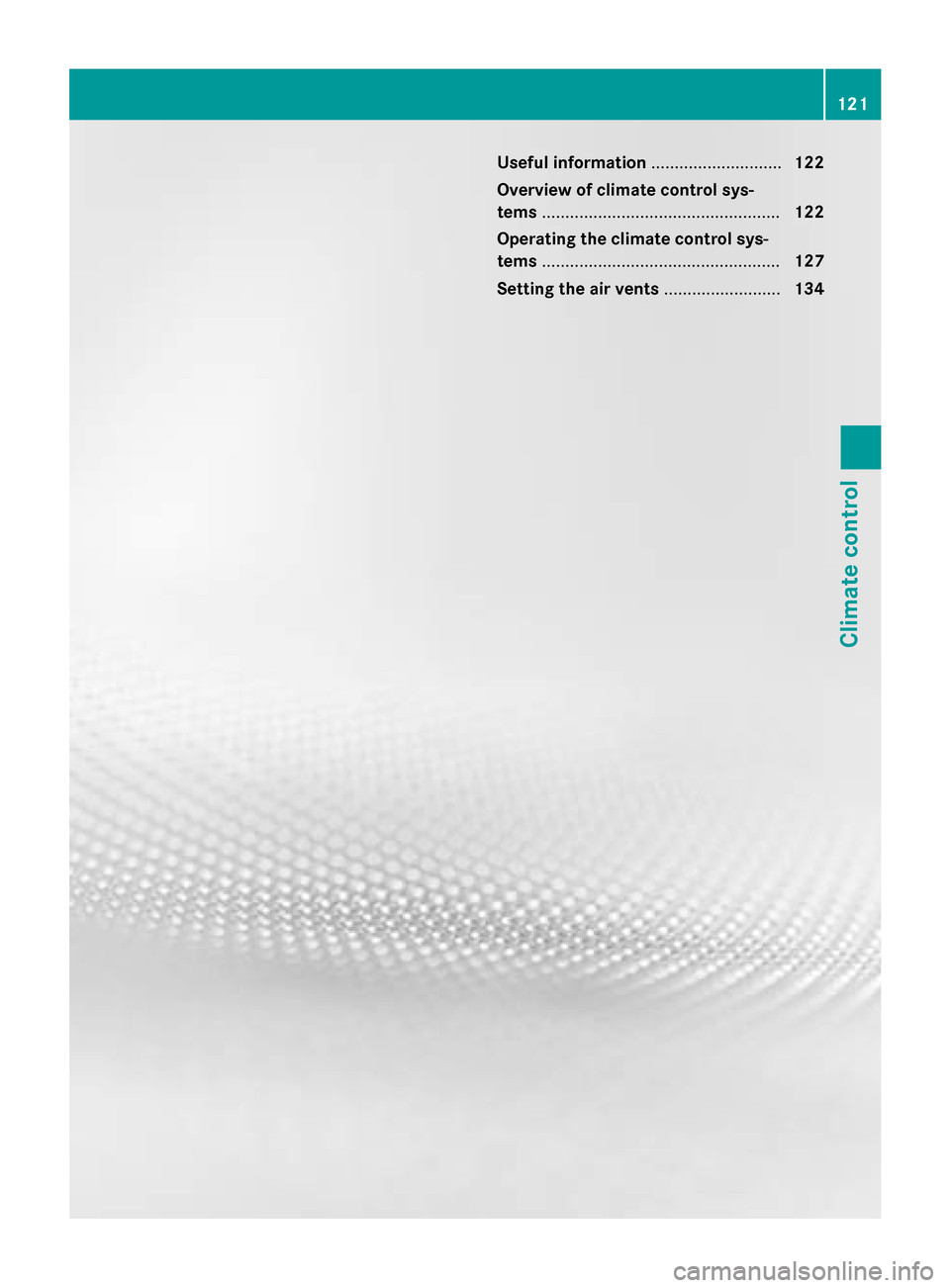

Useful information
............................122
Overview of climate control sys-
tems ................................................... 122
Operating the climate control sys-
tems ................................................... 127
Setting the air vents .........................134 121Climate control

Useful information
i This Operator's manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operator's manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops (Y page 26). Overview of climate control systems
General notes
Observe the settings recommended on the
following pages. The windows could other-
wise fog up.
To prevent the windows from fogging up:
R switch off climate control only briefly
R switch on air-recirculation mode only
briefly
R switch on the cooling with air dehumidifi-
cation function
R switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof closed.
The residual heat function can only be acti-
vated or deactivated with the ignition
switched off (Y page 133).
i When the weather is warm, ventilate the
vehicle for a brief period. This will speed up the cooling process and the desired vehicle
interior temperature will be reached more
quickly. i
The integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. It also reduces gaseous pol-
lutants and odors. A clogged filter reduces the amount of air supplied to the vehicle
interior. For this reason, you should alwaysobserve the interval for replacing the filter,which is specified in the Maintenance
Booklet. As it depends on environmental
conditions, e.g. heavy air pollution, the
interval may be shorter than stated in the
Maintenance Booklet. 122
Overview of climate control systemsClimate control

Air-conditioning system control panel
Canada only
0043
To set the temperature (Y page 129)
0044 To switch the residual heat function on/off (Y page 133)
0087 To set the air distribution (Y page 130)
0085 To defrost the windshield (Y page 131)
0083 To switch cooling with air dehumidification on/off (Y page 127)
0084 To activate/deactivate air-recirculation mode (Y page 133)
006B To set the airflow (Y page 130)
006C To switch the rear window defroster on/off (Y page 132)USA only
0043
To set the temperature (Y page 129)
0044 To switch maximum cooling on/off (Y page 131) Overview of climate control systems
123Climate control

0087
To set the air distribution (Y page 130)
0085 To defrost the windshield (Y page 131)
0083 To switch cooling with air dehumidification on/off (Y page 127)
0084 To activate/deactivate air-recirculation mode (Y page 133)
006B To set the airflow (Y page 130)
006C To switch the rear window defroster on/off (Y page 132)Notes on using the air-conditioning
system
Air-conditioning system Below, you can find a number of notes and
recommendations to help you use the air-
conditioning system optimally.
R Switch on cooling with air dehumidification
using the 005Abutton. The indicator lamp
in the 005Abutton lights up.
R Set the temperature to 72 ‡ (22 †).
R Recommendation for air distribution in
winter: set the009Band0061 settings.
Recommendation for air distribution in
summer: set the009Csetting.
R Only use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
ECO start/stop function During automatic engine switch-off, the cli-
mate control system only operates at a
reduced capacity. If you require full climate
control capacity, the ECO start/stop function can be deactivated by pressing the ECO but-
ton (Y page 147). 124
Overview of climate control systemsClimate control

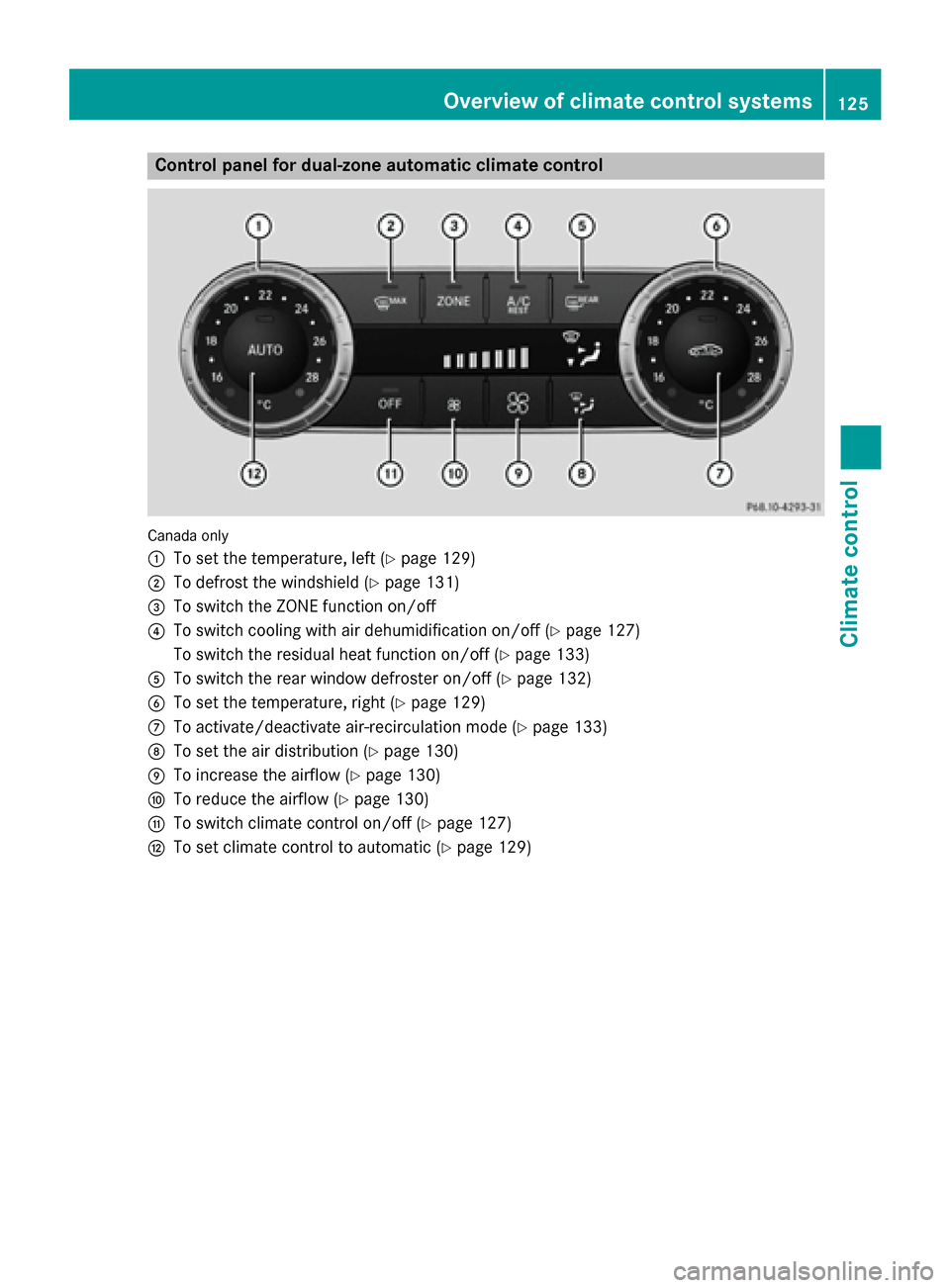

Control panel for dual-zone automatic climate control
Canada only
0043
To set the temperature, left (Y page 129)
0044 To defrost the windshield (Y page 131)
0087 To switch the ZONE function on/off
0085 To switch cooling with air dehumidification on/off (Y page 127)
To switch the residual heat function on/off (Y page 133)
0083 To switch the rear window defroster on/off (Y page 132)
0084 To set the temperature, right (Y page 129)
006B To activate/deactivate air-recirculation mode (Y page 133)
006C To set the air distribution (Y page 130)
006D To increase the airflow (Y page 130)
006E To reduce the airflow (Y page 130)
006F To switch climate control on/off (Y page 127)
0070 To set climate control to automatic (Y page 129) Overview of climate control systems
125Climate control

USA only
0043
To set the temperature, left (Y page 129)
0044 To defrost the windshield (Y page 131)
0087 To switch maximum cooling on/off (Y page 131)
0085 To switch cooling with air dehumidification on/off (Y page 127)
0083 To switch the rear window defroster on/off (Y page 132)
0084 To set the temperature, right (Y page 129)
006B To activate/deactivate air-recirculation mode (Y page 133)
006C To set the air distribution (Y page 130)
006D To increase the airflow (Y page 130)
006E To reduce the airflow (Y page 130)
006F To switch climate control on/off (Y page 127)
0070 To set climate control to automatic (Y page 129)Optimum use of dual-zone automatic
climate control
Automatic climate control The following contains instructions and rec-
ommendations to enable you to get the most
out of your automatic climate control.
R Activate climate control using the 0058and
005A buttons or the 0056button on the
control panel of the climate control. The
indicator lamps in the 0058and005A but-
tons or the 0056button light up.
R Set the temperature to 72 ‡ (22 †). R
Only use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the tem-
perature settings on the driver's side for
the front-passenger side as well. The indi-
cator lamp in the 00D6button goes out.
R Use the residual heat function if you want to
heat or ventilate the vehicle interior when
the ignition is switched off. The residual 126
Overview of climate control systemsClimate control
