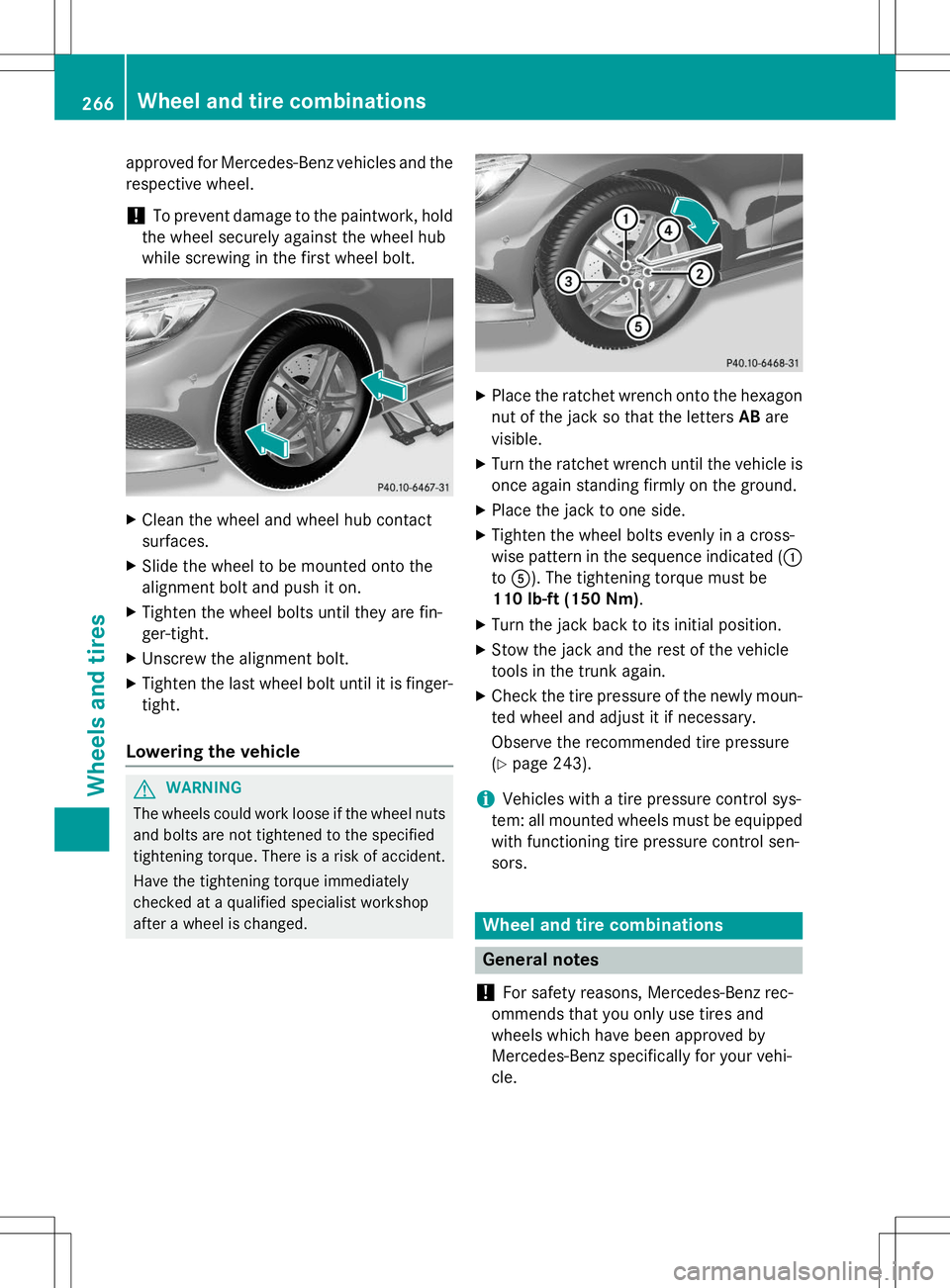

2015 MERCEDES-BENZ S-COUPE wheel

approved for Mercedes-Benz vehicles and the
respective wheel.
!To prevent damage to the paintwork, hold
the wheel securely against the wheel hub
while screwing in the first wheel bolt.
X Clean the wheel and wheel hub contact
surfaces.
X Slide the wheel to be mounted onto the
alignment bolt and push it on.
X Tighten the wheel bolts until they are fin-
ger-tight.
X Unscrew the alignment bolt.
X Tighten the last wheel bolt until it is finger-
tight.
Lowering the vehicle
GWARNING
The wheels could work loose if the wheel nuts and bolts are not tightened to the specified
tightening torque. There is a risk of accident.
Have the tightening torque immediately
checked at a qualified specialist workshop
after a wheel is changed.
X Place the ratchet wrench onto the hexagon
nut of the jack so that the letters ABare
visible.
X Turn the ratchet wrench until the vehicle is
once again standing firmly on the ground.
X Place the jack to one side.
X Tighten the wheel bolts evenly in a cross-
wise pattern in the sequence indicated ( :
to A ). The tightening torque must be
110 lb-f t(150 Nm) .
X Turn the jack back to its initial position.
X Stow the jack and the rest of the vehicle
tools in the trunk again.
X Check the tire pressure of the newly moun-
ted wheel and adjust it if necessary.
Observe the recommended tire pressure (Y page 243).
iVehicles with a tire pressure control sys-
tem: all mounted wheels must be equipped
with functioning tire pressure control sen-sors.
Wheel and tire combinations
General notes
!
For safety reasons, Mercedes-Benz rec-
ommends that you only use tires and
wheels which have been approved by
Mercedes-Benz specifically for your vehi-cle.
266Wheel and tire combinations
Wheels and tires

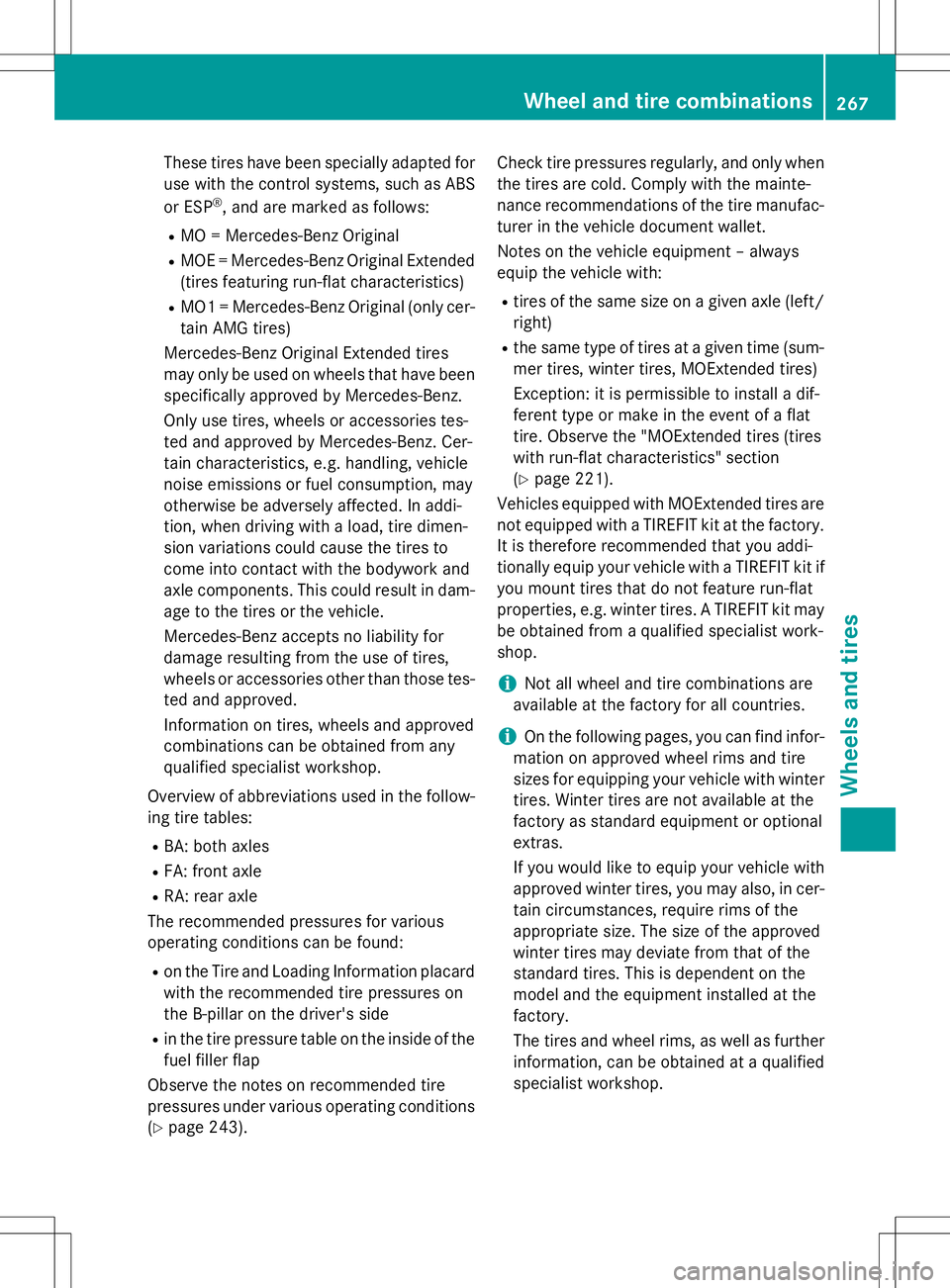

These tires have been specially adapted foruse with the control systems, such as ABS
or ESP ®
, and are marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Extended
(tires featuring run-flat characteristics)
R MO1 = Mercedes-Benz Original (only cer-
tain AMG tires)
Mercedes-Benz Original Extended tires
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tires, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with a load, tire dimen-
sion variations could cause the tires to
come into contact with the bodywork and
axle components. This could result in dam- age to the tires or the vehicle.
Mercedes-Benz accepts no liability for
damage resulting from the use of tires,
wheels or accessories other than those tes-
ted and approved.
Information on tires, wheels and approved
combinations can be obtained from any
qualified specialist workshop.
Overview of abbreviations used in the follow- ing tire tables: R BA: both axles
R FA: front axle
R RA: rear axle
The recommended pressures for various
operating conditions can be found:
R on the Tire and Loading Information placard
with the recommended tire pressures on
the B-pillar on the driver's side
R in the tire pressure table on the inside of the
fuel filler flap
Observe the notes on recommended tire
pressures under various operating conditions ( Y page 243). Check tire pressures regularly, and only when
the tires are cold. Comply with the mainte-
nance recommendations of the tire manufac-
turer in the vehicle document wallet.
Notes on the vehicle equipment – always
equip the vehicle with:
R tires of the same size on a given axle (left/
right)
R the same type of tires at a given time (sum-
mer tires, winter tires, MOExtended tires)
Exception: it is permissible to install a dif-
ferent type or make in the event of a flat
tire. Observe the "MOExtended tires (tires
with run-flat characteristics" section( Y page 221).
Vehicles equipped with MOExtended tires are
not equipped with a TIREFIT kit at the factory.
It is therefore recommended that you addi-
tionally equip your vehicle with a TIREFIT kit if you mount tires that do not feature run-flat
properties, e.g. winter tires. A TIREFIT kit may
be obtained from a qualified specialist work-shop.
iNot all wheel and tire combinations are
available at the factory for all countries.
iOn the following pages, you can find infor-
mation on approved wheel rims and tire
sizes for equipping your vehicle with winter tires. Winter tires are not available at the
factory as standard equipment or optional
extras.
If you would like to equip your vehicle with
approved winter tires, you may also, in cer-
tain circumstances, require rims of the
appropriate size. The size of the approved
winter tires may deviate from that of the
standard tires. This is dependent on the
model and the equipment installed at the
factory.
The tires and wheel rims, as well as further information, can be obtained at a qualified
specialist workshop.
Wheel and tire combinations267
Wheels and tires
Z

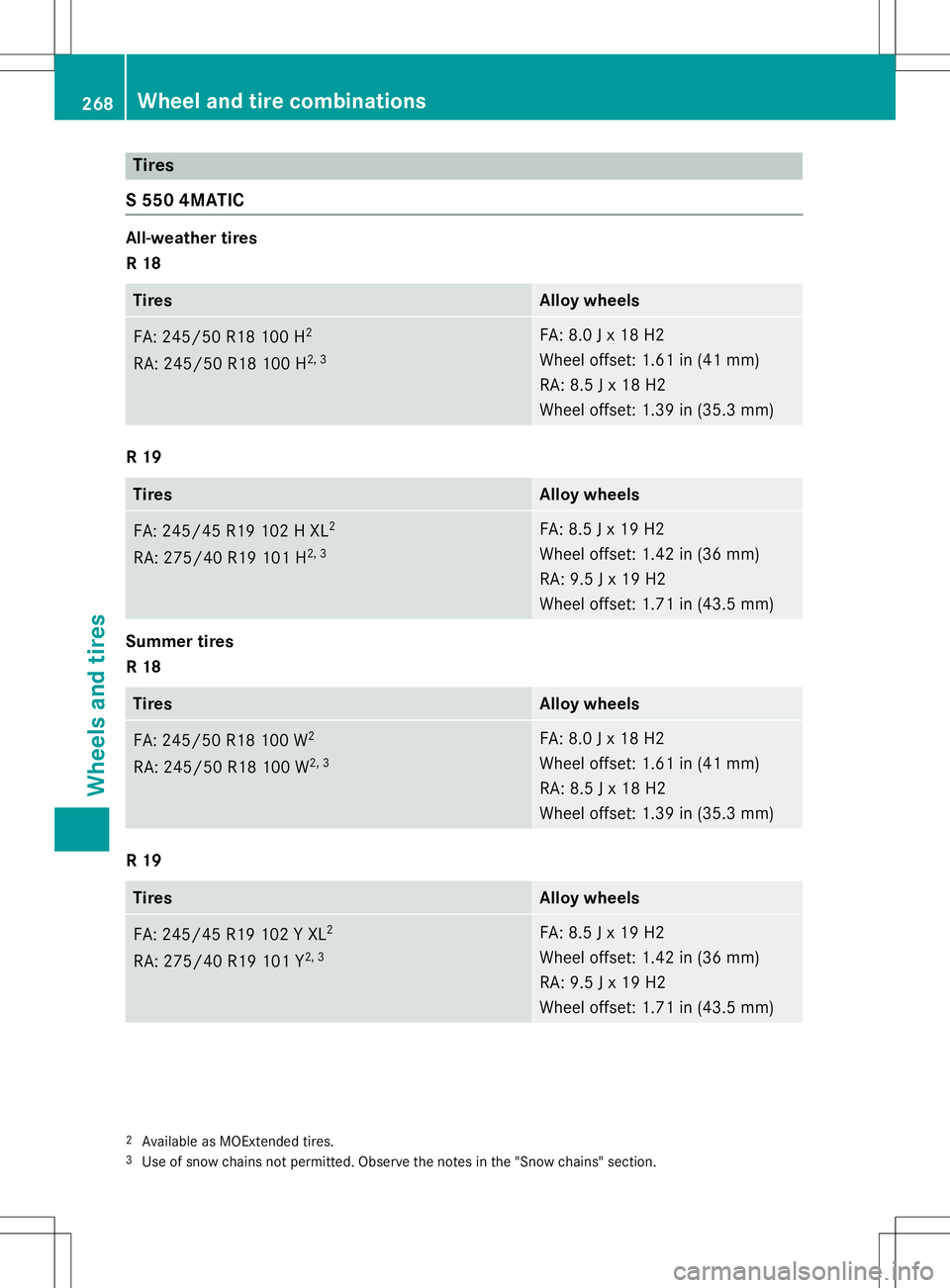

Tires
S 550 4MATIC
All-weather tires
R 18
TiresAlloy wheels
FA: 245/5 0 R18 100 H 2
RA : 245/50 R18 100 H 2, 3FA: 8.0 J x 18 H2
Wheel offset: 1.61 in (41 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.39 in (35.3 mm)
R 19
TiresAlloy wheels
FA: 245/45 R19 102 H XL
2
RA: 275/40 R19 101 H 2, 3FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
Summer tires
R 18
TiresAlloy wheels
FA: 245/50 R18 100 W
2
RA: 245/50 R18 100 W 2, 3FA: 8.0 J x 18 H2
Wheel offset: 1.61 in (41 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.39 in (35.3 mm)
R 19
TiresAlloy wheels
FA: 245/45 R19 102 Y XL 2
RA: 275/40 R19 101 Y 2, 3FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
2
Available as MOExtended tires.
3 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
268Wheel and tire combinations
Wheels and tires

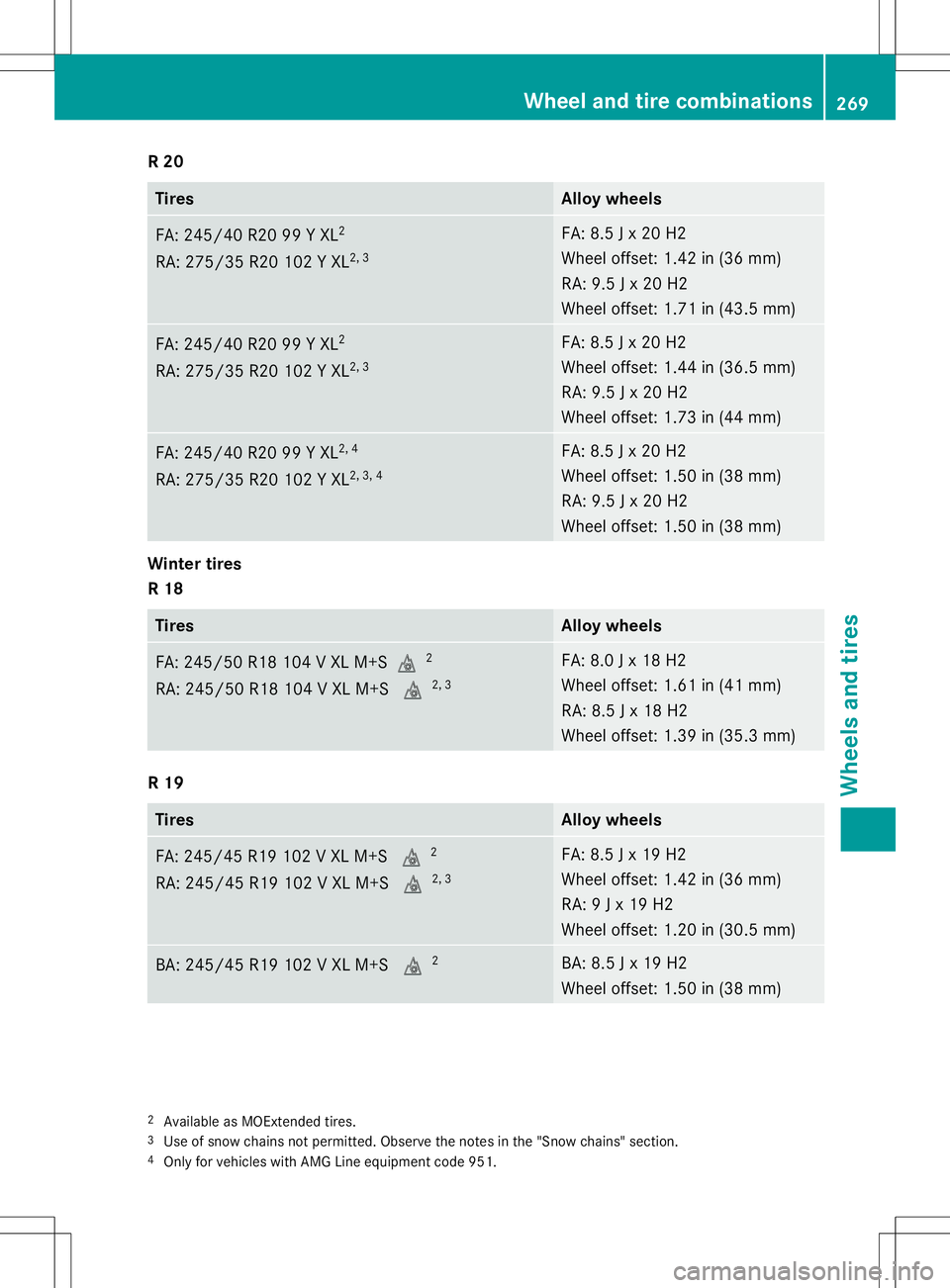

R 20
TiresAlloy wheels
FA: 245/40 R20 99 Y XL2
RA: 275/35 R20 102 Y XL 2, 3FA: 8.5 J x 20 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/40 R20 99 Y XL2
RA: 275/35 R20 102 Y XL 2, 3FA: 8.5 J x 20 H2
Wheel offset: 1.44 in (36.5 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.73 in (44 mm)
FA: 245/40 R20 99 Y XL
2, 4
RA: 275/35 R20 102 Y XL 2, 3, 4FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
Winter tires
R 18
TiresAlloy wheels
FA: 245/50 R18 104 V XL M+S
i2
RA: 245/50 R18 104 V XL M+S i2, 3FA: 8.0 J x 18 H2
Wheel offset: 1.61 in (41 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.39 in (35.3 mm)
R 19
TiresAlloy wheels
FA: 245/45 R19 102 V XL M+S
i2
RA: 245/45 R19 102 V XL M+S i2, 3FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9 J x 19 H2
Wheel offset: 1.20 in (30.5 mm)
BA: 245/45 R19 102 V XL M+S
i2BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
2
Available as MOExtended tires.
3 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
4 Only for vehicles with AMG Line equipment code 951.
Wheel and tire combinations269
Wheels and tires
Z

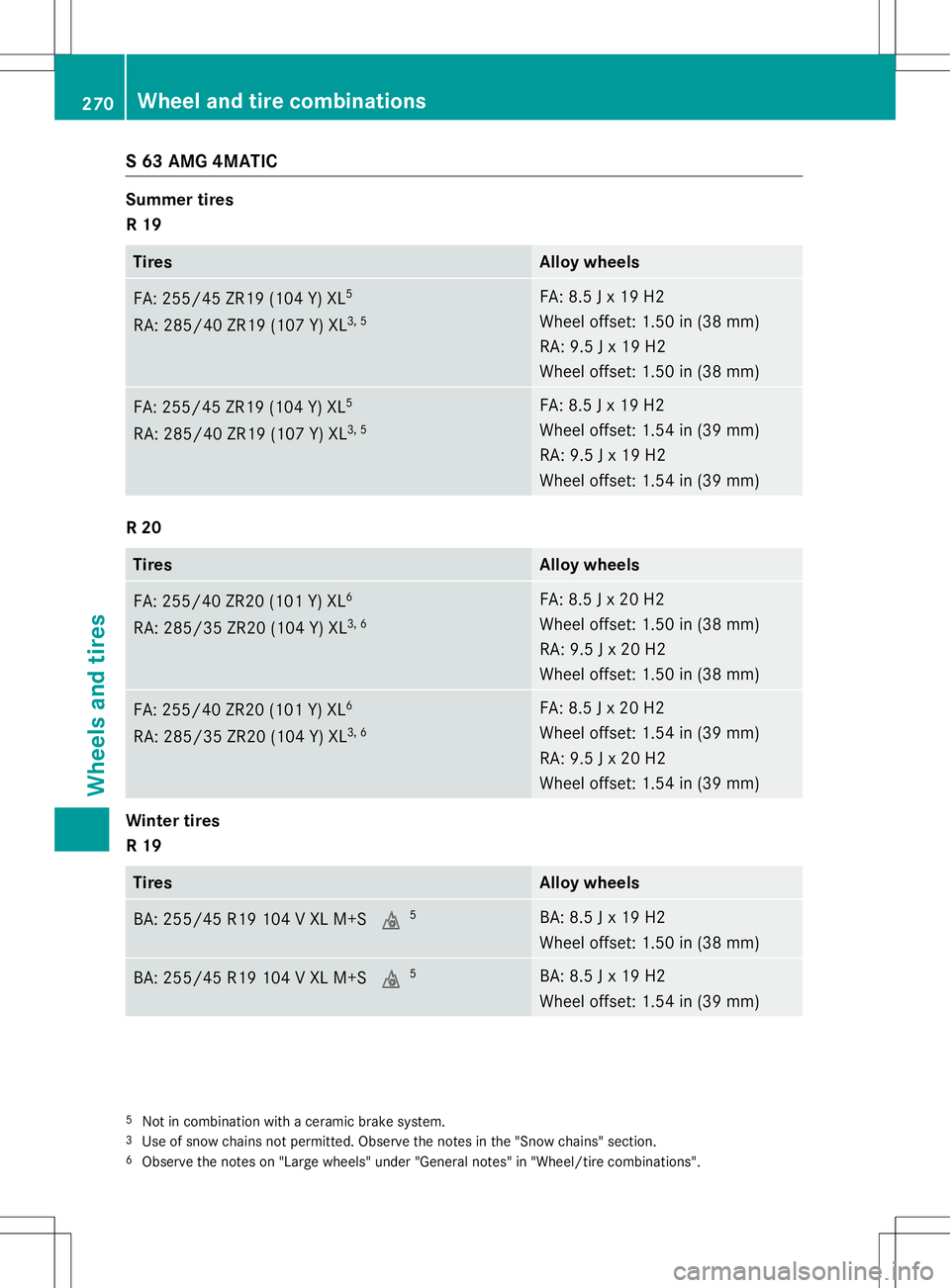

S 63 AMG 4MATIC
Summer tires
R 19
TiresAlloy wheels
FA: 255/45 ZR19 (104 Y) XL5
RA: 285/40 ZR19 (107 Y) XL 3, 5FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/45 ZR19 (104 Y) XL5
RA: 285/40 ZR19 (107 Y) XL 3, 5FA: 8.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
R 20
TiresAlloy wheels
FA: 255/40 ZR20 (101 Y) XL6
RA: 285/35 ZR20 (104 Y) XL 3, 6FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 ZR20 (101 Y) XL
6
RA: 285/35 ZR20 (104 Y) XL 3, 6FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
Winter tires
R 19
TiresAlloy wheels
BA: 255/45 R19 104 V XL M+S
i5BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/45 R19 104 V XL M+S
i5BA: 8.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
5
Not in combination with a ceramic brake system.
3 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
6 Observe the notes on "Large wheels" under "General notes" in "Wheel/tire combinations".
270Wheel and tire combinations
Wheels and tires

R 20
TiresAlloy wheels
BA: 255/40 R20 101 V XL M+Si6BA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/40 R20 101 V XL M+S
i6BA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
FA: 255/40 R20 101 V XL M+S
i6
RA: 285/35 R20 104 V XL M+S i3, 6FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 R20 101 V XL M+S
i6
RA: 285/35 R20 104 V XL M+S i3, 6FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
S 65 AMG
Summer tires
R 20
TiresAlloy wheels
FA: 255/40 ZR20 (101 Y) XL 6
RA: 285/35 ZR20 (104 Y) XL 3, 6FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 ZR20 (101 Y) XL6
RA: 285/35 ZR20 (104 Y) XL 3, 6FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
6
Observe the notes on "Large wheels" under "General notes" in "Wheel/tire combinations".
3 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
Wheel and tire combinations271
Wheels and tires
Z

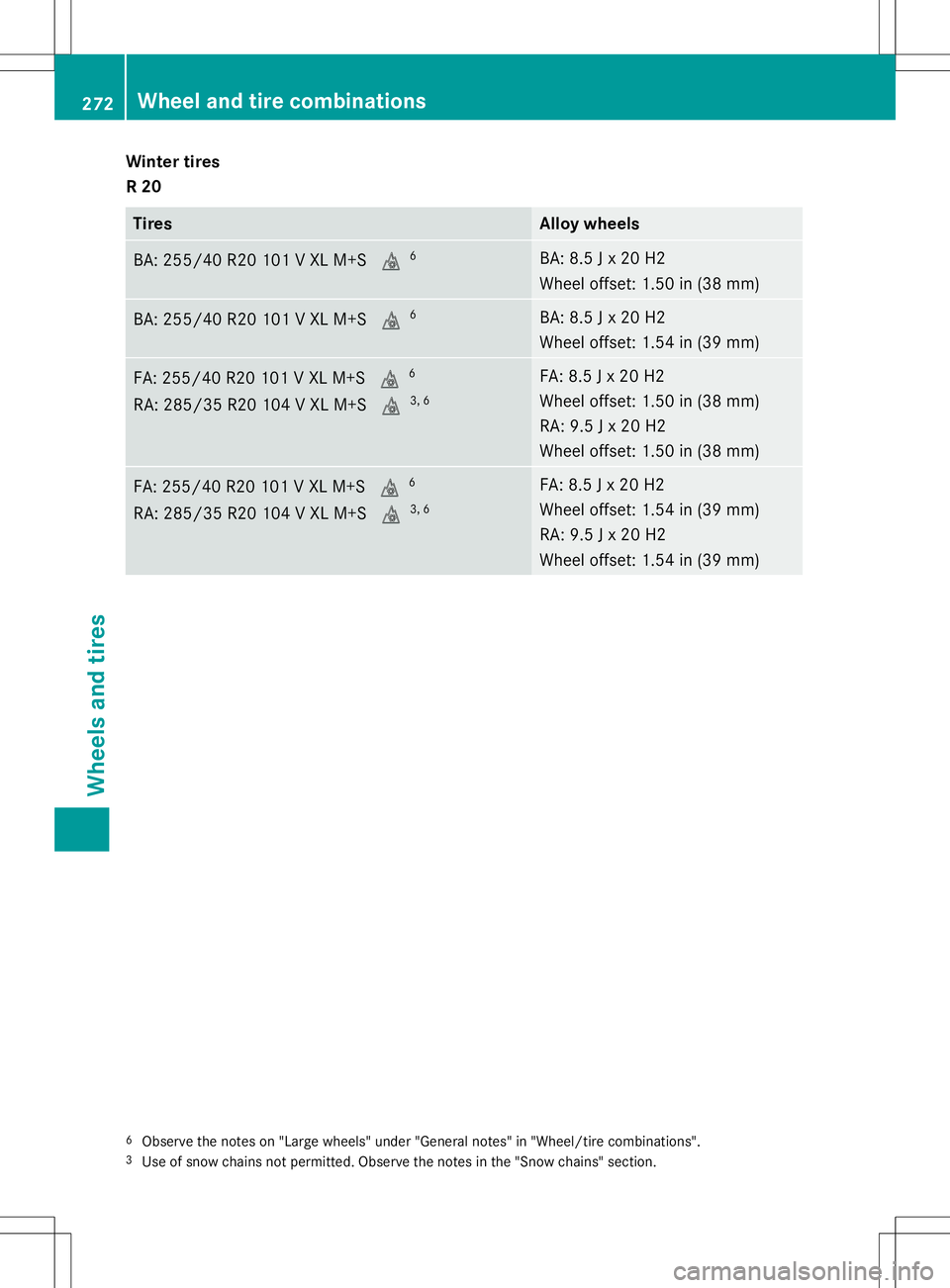

Winter tires
R 20
TiresAlloy wheels
BA: 255/40 R20 101 V XL M+Si6BA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/40 R20 101 V XL M+S
i6BA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
FA: 255/40 R20 101 V XL M+S
i6
RA: 285/35 R20 104 V XL M+S i3, 6FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 R20 101 V XL M+S
i6
RA: 285/35 R20 104 V XL M+S i3, 6FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
6
Observe the notes on "Large wheels" under "General notes" in "Wheel/tire combinations".
3 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
272Wheel and tire combinations
Wheels and tires

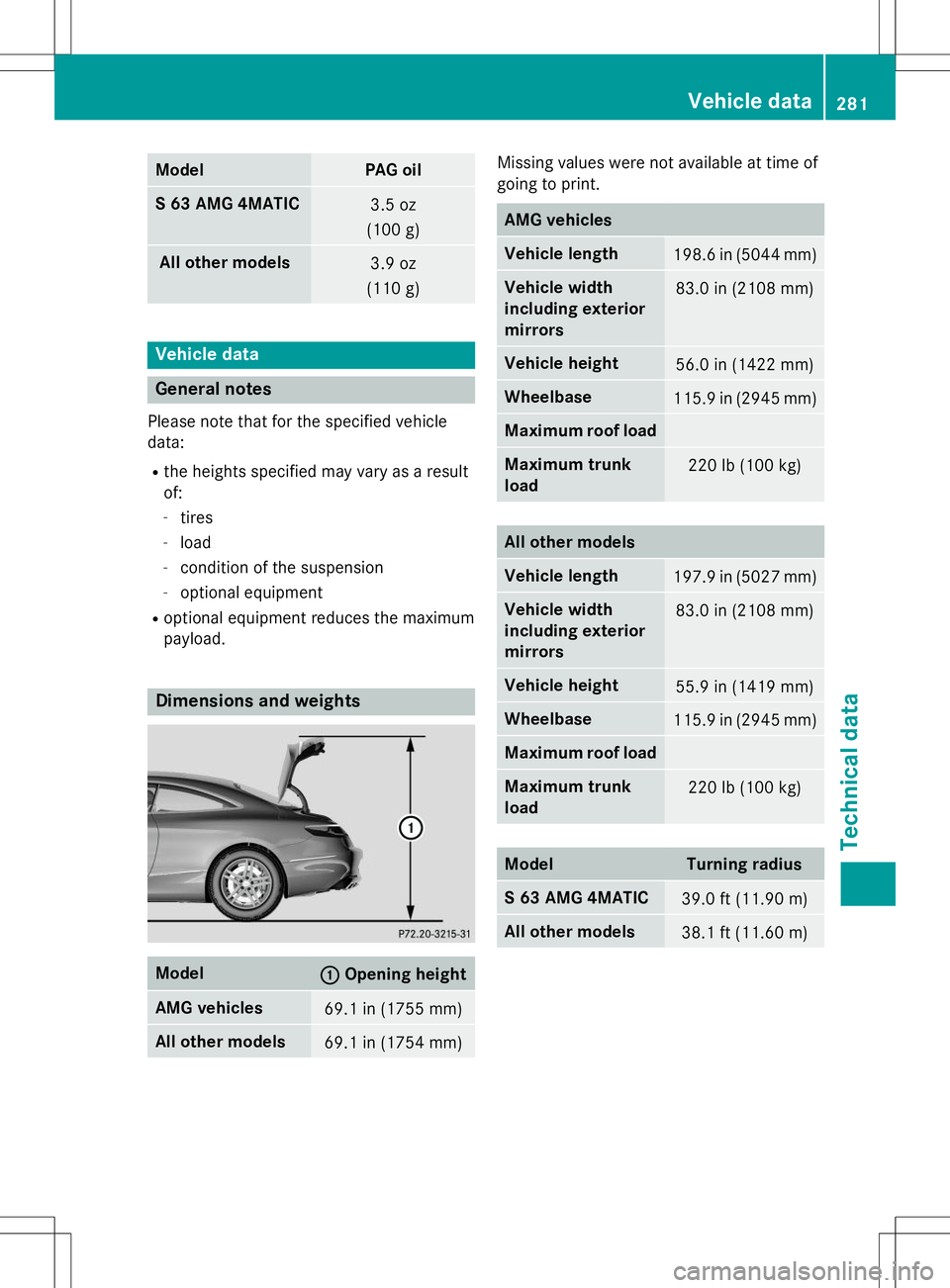

ModelPAG oil
S 63 AMG 4MATIC3.5 oz
(100 g)
All ot her models3.9 oz
(110 g)
Vehicle data
General notes
Please note that for the specified vehicle
data:
R the heights specified may vary as a resultof:
- tires
- load
- condition of the suspension
- optional equipment
R optional equipment reduces the maximum
payload.
Dimensions and weights
Model:Opening height
AMG vehicles69.1 in (1755 mm)
All other models69.1 in (1754 mm)
Missing values were not available at time of
going to print.
AMG vehicles
Vehicle length198.6 in (5044 mm)
Vehicle width
including exterior
mirrors83.0 in (2108 mm)
Vehicle height56.0 in (1422 mm)
Wheelbase115.9 in (2945 mm)
Maximum roof load
Maximum trunk
load220 lb (100 kg)
All other models
Vehicle length197.9 in (5027 mm)
Vehicle width
including exterior
mirrors83.0 in (2108 mm)
Vehicle height55.9 in (1419 mm)
Wheelbase115.9 in (2945 mm)
Maximum roof load
Maximum trunk
load220 lb (100 kg)
ModelTurning radius
S 63 AMG 4MATIC39.0 ft (11.90 m)
All other models38.1 ft (11.60m)
Vehicle data281
Technical data
Z
