2015 MERCEDES-BENZ S-Class wheelbase

i

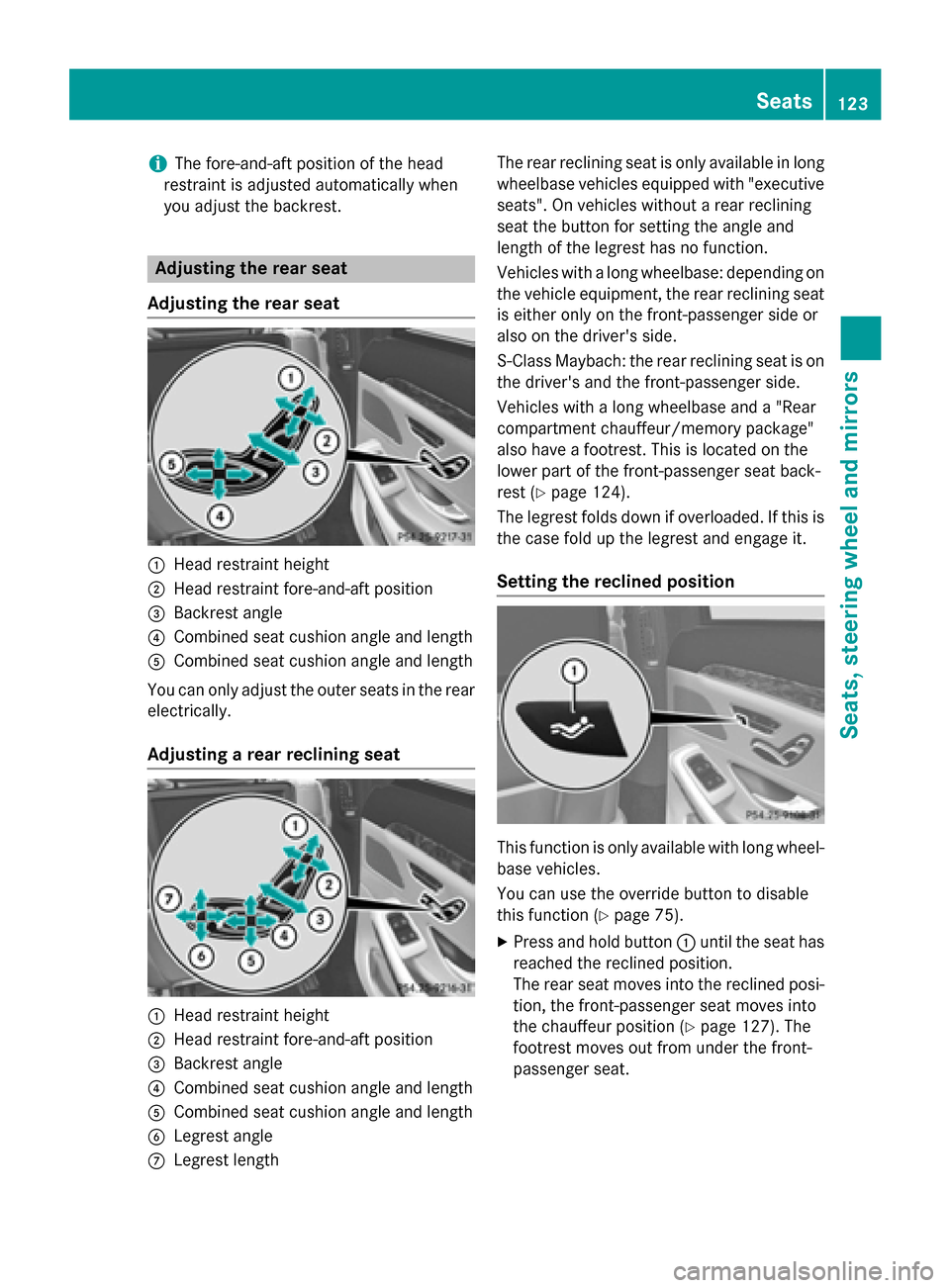

The fore-and-aft position of the head
restraint is adjusted automatically when
you adjust the backrest. Adjusting the rear seat
Adjusting the rear seat :
Head restraint height
; Head restraint fore-and-aft position
= Backrest angle
? Combined seat cushion angle and length
A Combined seat cushion angle and length
You can only adjust the outer seats in the rear
electrically.
Adjusting a rear reclining seat :
Head restraint height
; Head restraint fore-and-aft position
= Backrest angle
? Combined seat cushion angle and length
A Combined seat cushion angle and length
B Legrest angle
C Legrest length The rear reclining seat is only available in long
wheelbase vehicles equipped with "executive seats". On vehicles without a rear reclining
seat the button for setting the angle and
length of the legrest has no function.
Vehicles with a long wheelbase: depending on
the vehicle equipment, the rear reclining seat
is either only on the front-passenger side or
also on the driver's side.
S-Class Maybach: the rear reclining seat is on the driver's and the front-passenger side.
Vehicles with a long wheelbase and a "Rear
compartment chauffeur/memory package"
also have a footrest. This is located on the
lower part of the front-passenger seat back-
rest (Y page 124).
The legrest folds down if overloaded. If this is
the case fold up the legrest and engage it.
Setting the reclined position This function is only available with long wheel-
base vehicles.
You can use the override button to disable
this function (Y page 75).
X Press and hold button :until the seat has
reached the reclined position.
The rear seat moves into the reclined posi- tion, the front-passenger seat moves into
the chauffeur position (Y page 127). The
footrest moves out from under the front-
passenger seat. Seats
123Seats, steering wheel and mirrors Z

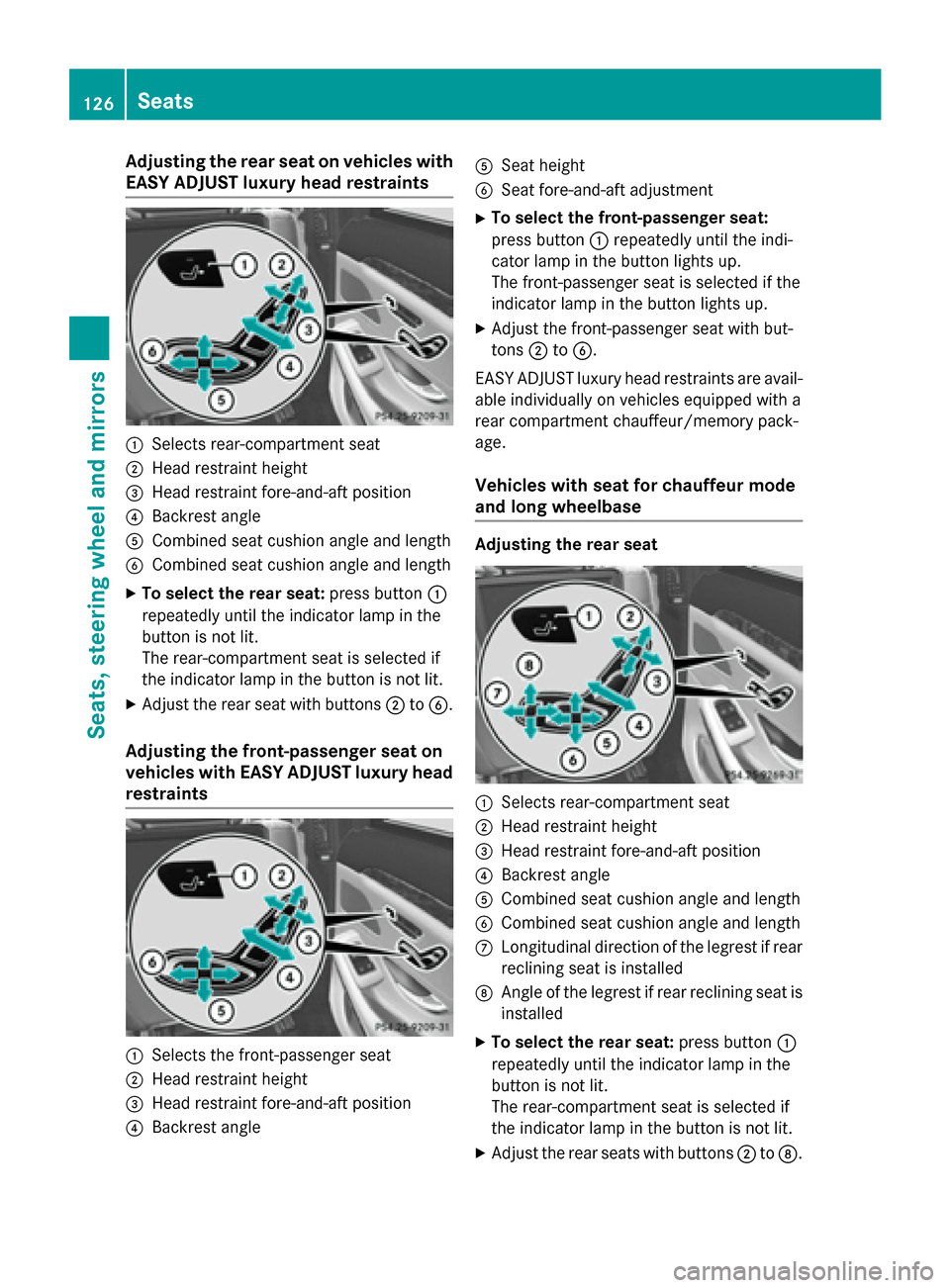

Adjusting the rear seat on vehicles with
EASY ADJUST luxury head restraints :
Selects rear-compartment seat
; Head restraint height
= Head restraint fore-and-aft position
? Backrest angle
A Combined seat cushion angle and length
B Combined seat cushion angle and length
X To select the rear seat: press button:
repeatedly until the indicator lamp in the
button is not lit.
The rear-compartment seat is selected if
the indicator lamp in the button is not lit.
X Adjust the rear seat with buttons ;toB.
Adjusting the front-passenger seat on
vehicles with EASY ADJUST luxury head
restraints :
Selects the front-passenger seat
; Head restraint height
= Head restraint fore-and-aft position
? Backrest angle A
Seat height
B Seat fore-and-aft adjustment
X To select the front-passenger seat:
press button :repeatedly until the indi-
cator lamp in the button lights up.
The front-passenger seat is selected if the
indicator lamp in the button lights up.
X Adjust the front-passenger seat with but-
tons ;toB.
EASY ADJUST luxury head restraints are avail-
able individually on vehicles equipped with a
rear compartment chauffeur/memory pack-
age.
Vehicles with seat for chauffeur mode
and long wheelbase Adjusting the rear seat
:
Selects rear-compartment seat
; Head restraint height
= Head restraint fore-and-aft position
? Backrest angle
A Combined seat cushion angle and length
B Combined seat cushion angle and length
C Longitudinal direction of the legrest if rear
reclining seat is installed
D Angle of the legrest if rear reclining seat is
installed
X To select the rear seat: press button:
repeatedly until the indicator lamp in the
button is not lit.
The rear-compartment seat is selected if
the indicator lamp in the button is not lit.
X Adjust the rear seats with buttons ;toD. 126
SeatsSeats
, steering wheel and mirrors

Vehicles without rear-compartment climate
control (only Sedans and vehicles with an
extended wheelbase):
X To open/close: press control=.
The control pops out.
X Turn control =counter-clockwise or
clockwise.
X To adjust the air direction: hold rear air
vent :or; by the middle fin and move up
or down or to the left or right.
Setting the B-pillar air vent X
To open/close: turn thumbwheel ;to the
left or right.
X To adjust the air direction: hold B-pillar
air vent :by the middle fin handle and
move up or down or to the left or right. 186
Setting the air ventsClimate control

S-Class with a short wheelbase
All models
Vehicle length
201.4 in (5116 mm)
Vehicle width
including exterior
mirrors
83.9 in (2130 mm)
Vehicle height
58.9 in (1496 mm)
Wheelbase
119.5 in (3035 mm)
Turning radius
39.0 ft (11.90
m) Maximum roof load
220 lb (100 kg)
Maximum trunk
load
220 lb (100 kg)
S-Class with a long wheelbase
Missing values were not available at time of
going to print. AMG vehicles
Vehicle length
208.1 in (5287 mm)
Vehicle height
59.0 in (1499 mm)
Vehicle width
including exterior
mirrors 83.9 in (2130 mm)
Wheelbase
124.6 in (3165 mm)
Maximum roof load
220 lb (100 kg)
Model (AMG vehi-
cles) Maximum trunk
load S 65 AMG
All other models
100 kg Model (AMG vehi-
cles) Turning radius
S 63 AMG 4MATIC
41.0 ft (12.50
m) S 65 AMG
40.4 ft (12.30
m) All other models
Vehicle length
206.5 in (5246 mm)
Vehicle width
including exterior
mirrors
83.9 in (2130 mm)
Wheelbase
124.6 in (3165 mm)
Turning radius
40.4 ft (12.30
m) Maximum roof load
220 lb (100 kg)
Maximum trunk
load
220 lb (100 kg)
Model Vehicle height
S 550 PLUG-IN
HYBRID
S 550
S 550 4MATIC
58.8 in (1494 mm)
S 600
58.9 in (1497 mm)
High-voltage battery
(S 550 L PLUG-IN HYBRID)
Model
Lithium-ion
Energy content
8.7 kWh
Nominal capacity
22 Ah
Range in electric-only
mode (according to
NEDC)496
Vehicle dataTechnical data

High-voltage battery
(S 550 L PLUG-IN HYBRID)
Charging time at 16 A
(using a charging station
or wallbox)
Approx. 2 h
Charging time at 8 A
(using a mains socket)
S‑Class MAYBACH
All models
Vehicle length
214.7 in (5453 mm)
Vehicle height
59.0 in (1498 mm)
Vehicle width
including exterior
mirrors
83.9 in (2130 mm)
Wheelbase
132.5 in (3365 mm)
Turning radius
42.3 ft (12.90
m) Maximum roof load
220 lb (100 kg)
Maximum trunk
load
220 lb (100 kg) Vehicle data
497Technical data Z
