2015 MERCEDES-BENZ S-Class COUPE Owner's Manual

These tires have been specially adapted for
use with the control systems, such as ABS
or ESP ®
, and are marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Extended
(tires featuring run-flat characteristics)
R MO1 = Mercedes-Benz Original (only cer-
tain AMG tires)
Mercedes-Benz Original Extended tires
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tires, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with a load, tire dimen-
sion variations could cause the tires to
come into contact with the bodywork and
axle components. This could result in dam- age to the tires or the vehicle.
Mercedes-Benz accepts no liability for
damage resulting from the use of tires,
wheels or accessories other than those tes-
ted and approved.
Information on tires, wheels and approved
combinations can be obtained from any
qualified specialist workshop.
Overview of abbreviations used in the follow- ing tire tables:
R BA: both axles
R FA: front axle
R RA: rear axle
The recommended pressures for various
operating conditions can be found:
R on the Tire and Loading Information placard
with the recommended tire pressures on
the B-pillar on the driver's side
R in the tire pressure table on the inside of the
fuel filler flap
Observe the notes on recommended tire
pressures under various operating conditions (Y page 359). Check tire pressures regularly, and only when
the tires are cold. Comply with the mainte-
nance recommendations of the tire manufac-
turer in the vehicle document wallet.
Notes on the vehicle equipment – always
equip the vehicle with:
R tires of the same size on a given axle (left/
right)
R the same type of tires at a given time (sum-
mer tires, winter tires, MOExtended tires)
Exception: it is permissible to install a dif-
ferent type or make in the event of a flat
tire. Observe the "MOExtended tires (tires
with run-flat characteristics" section
(Y page 337).
Vehicles equipped with MOExtended tires are
not equipped with a TIREFIT kit at the factory.
It is therefore recommended that you addi-
tionally equip your vehicle with a TIREFIT kit if you mount tires that do not feature run-flat
properties, e.g. winter tires. A TIREFIT kit may
be obtained from a qualified specialist work-
shop.
i Not all wheel and tire combinations are
available at the factory for all countries.
i On the following pages, you can find infor-
mation on approved wheel rims and tire
sizes for equipping your vehicle with winter tires. Winter tires are not available at the
factory as standard equipment or optional
extras.
If you would like to equip your vehicle with
approved winter tires, you may also, in cer-
tain circumstances, require rims of the
appropriate size. The size of the approved
winter tires may deviate from that of the
standard tires. This is dependent on the
model and the equipment installed at the
factory.
The tires and wheel rims, as well as further information, can be obtained at a qualified
specialist workshop. Wheel and tire combinations
383Wheels and tires Z

Tires
S 550 4MATIC All-weather tires
R 18
Tires Alloy wheels
FA: 245/5
0 R18 100 H 2
RA : 245/50 R18 100 H 2, 3 FA: 8.0 J x 18 H2
Wheel offset: 1.61 in (41 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.39 in (35.3 mm)
R 19
Tires Alloy wheels
FA: 245/45 R19 102 H XL
2
RA: 275/40 R19 101 H 2, 3 FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
Summer tires
R 18 Tires Alloy wheels
FA: 245/50 R18 100 W
2
RA: 245/50 R18 100 W 2, 3 FA: 8.0 J x 18 H2
Wheel offset: 1.61 in (41 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.39 in (35.3 mm)
R 19
Tires Alloy wheels
FA: 245/45 R19 102 Y XL
2
RA: 275/40 R19 101 Y 2, 3 FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
2
Available as MOExtended tires.
3 Use of snow chains not permitted. Observe the notes in the "Snow chains" section. 384
Wheel and tire combinationsWheels and tires

R 20
Tires Alloy wheels
FA: 245/40 R20 99 Y XL
2
RA: 275/35 R20 102 Y XL 2, 3 FA: 8.5 J x 20 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/40 R20 99 Y XL
2
RA: 275/35 R20 102 Y XL 2, 3 FA: 8.5 J x 20 H2
Wheel offset: 1.44 in (36.5 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.73 in (44 mm)
FA: 245/40 R20 99 Y XL
2, 4
RA: 275/35 R20 102 Y XL 2, 3, 4 FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
Winter tires
R 18
Tires Alloy wheels
FA: 245/50 R18 104 V XL M+S
004D2
RA: 245/50 R18 104 V XL M+S 004D2, 3 FA: 8.0 J x 18 H2
Wheel offset: 1.61 in (41 mm)
RA: 8.5 J x 18 H2
Wheel offset: 1.39 in (35.3 mm)
R 19
Tires Alloy wheels
FA: 245/45 R19 102 V XL M+S
004D2
RA: 245/45 R19 102 V XL M+S 004D2, 3 FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9 J x 19 H2
Wheel offset: 1.20 in (30.5 mm)
BA: 245/45 R19 102 V XL M+S
004D2 BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
2
Available as MOExtended tires.
3 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
4 Only for vehicles with AMG Line equipment code 951. Wheel and tire combinations
385Wheels and tires Z

S 63 AMG 4MATIC
Summer tires
R 19
Tires Alloy wheels
FA: 255/45 ZR19 (104 Y) XL
5
RA: 285/40 ZR19 (107 Y) XL 3, 5 FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/45 ZR19 (104 Y) XL
5
RA: 285/40 ZR19 (107 Y) XL 3, 5 FA: 8.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
R 20
Tires Alloy wheels
FA: 255/40 ZR20 (101 Y) XL
6
RA: 285/35 ZR20 (104 Y) XL 3, 6 FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 ZR20 (101 Y) XL
6
RA: 285/35 ZR20 (104 Y) XL 3, 6 FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
Winter tires
R 19
Tires Alloy wheels
BA: 255/45 R19 104 V XL M+S
004D5 BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/45 R19 104 V XL M+S
004D5 BA: 8.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
5
Not in combination with a ceramic brake system.
3 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
6 Observe the notes on "Large wheels" under "General notes" in "Wheel/tire combinations". 386
Wheel and tire combinationsWheels and tires

R 20
Tires Alloy wheels
BA: 255/40 R20 101 V XL M+S
004D6 BA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/40 R20 101 V XL M+S
004D6 BA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
FA: 255/40 R20 101 V XL M+S
004D6
RA: 285/35 R20 104 V XL M+S 004D3, 6 FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 R20 101 V XL M+S
004D6
RA: 285/35 R20 104 V XL M+S 004D3, 6 FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)

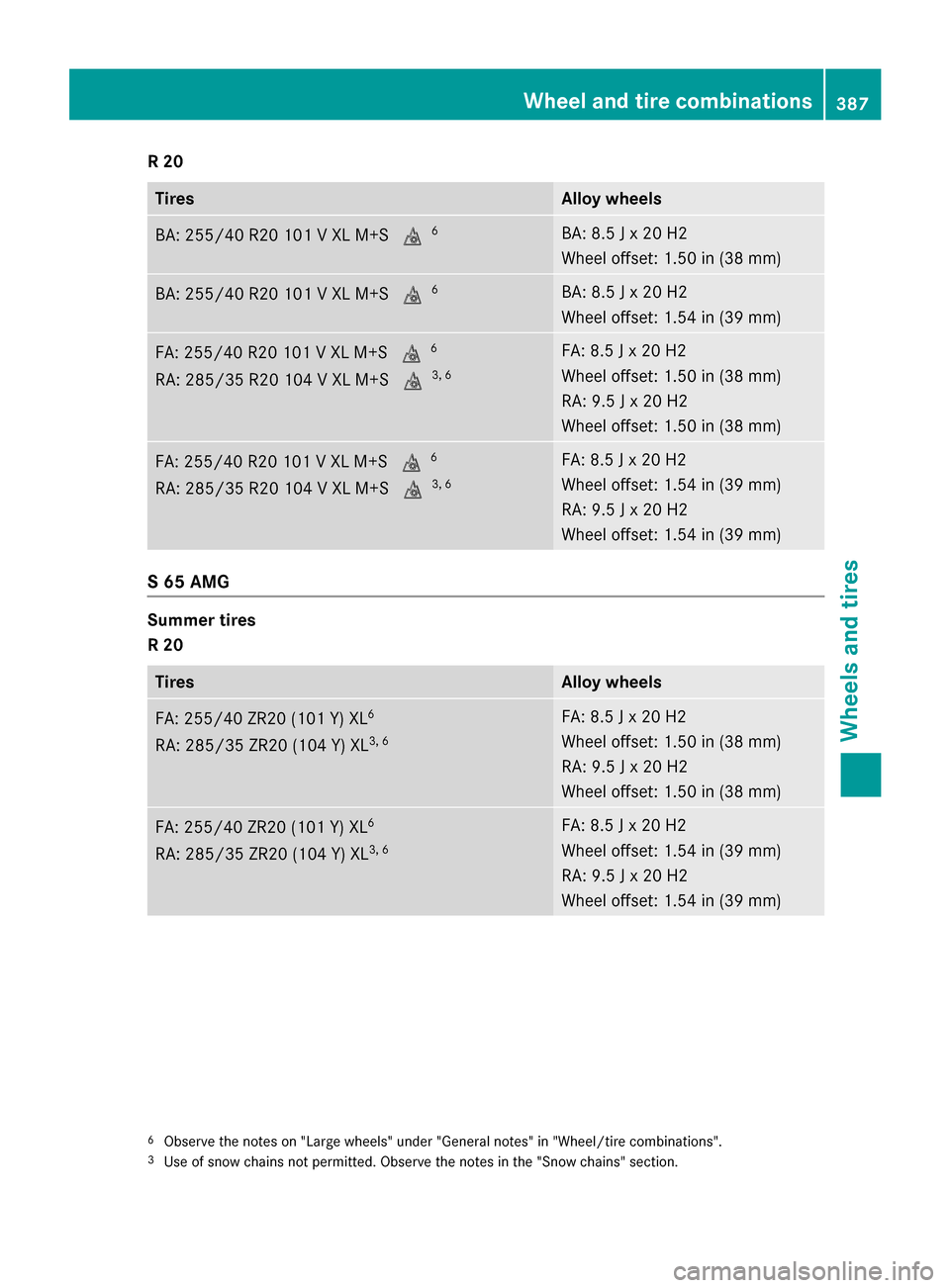

S 65 AMG
Summer tires
R 20
Tires Alloy wheels
FA: 255/40 ZR20 (101 Y) XL
6
RA: 285/35 ZR20 (104 Y) XL 3, 6 FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 ZR20 (101 Y) XL
6
RA: 285/35 ZR20 (104 Y) XL 3, 6 FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
6
Observe the notes on "Large wheels" under "General notes" in "Wheel/tire combinations".
3 Use of snow chains not permitted. Observe the notes in the "Snow chains" section. Wheel and tire combinations
387Wheels and tires Z

Winter tires
R 20
Tires Alloy wheels
BA: 255/40 R20 101 V XL M+S
004D6 BA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/40 R20 101 V XL M+S
004D6 BA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
FA: 255/40 R20 101 V XL M+S
004D6
RA: 285/35 R20 104 V XL M+S 004D3, 6 FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 R20 101 V XL M+S
004D6
RA: 285/35 R20 104 V XL M+S 004D3, 6 FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
6
Observe the notes on "Large wheels" under "General notes" in "Wheel/tire combinations".
3 Use of snow chains not permitted. Observe the notes in the "Snow chains" section. 388
Wheel and tire combinationsWheels and tires

Useful information
............................390
Information regarding technical
data .................................................... 390
Identification plates .........................390
Service products and filling capaci- ties ..................................................... 391
Vehicle data ....................................... 397 389Technical data

Useful information
i This Operator's Manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops (Y page 25). Information regarding technical data
i The data stated here specifically refers to
a vehicle with standard equipment. Consult an authorized Mercedes-Benz Center for
the data for all vehicle variants and trim
levels. Identification plates
Vehicle identification plate with vehi-
cle identification number (VIN)
X
Open the driver's door.
You will see vehicle identification plate 0043. Example: vehicle identification plate (USA only)
0044 VIN
0087 Vehicle model Example: vehicle identification plate (Canada only)
0044 VIN
0087 Paint code
i The data shown on the vehicle identifica-
tion plate is used only as an example. This
data is different for every vehicle and can
deviate from the data shown here. You can
find the data applicable to your vehicle on
the vehicle identification plate. 390
Identification platesTechnical data
