2015 MERCEDES-BENZ GLK-CLASS SUV display

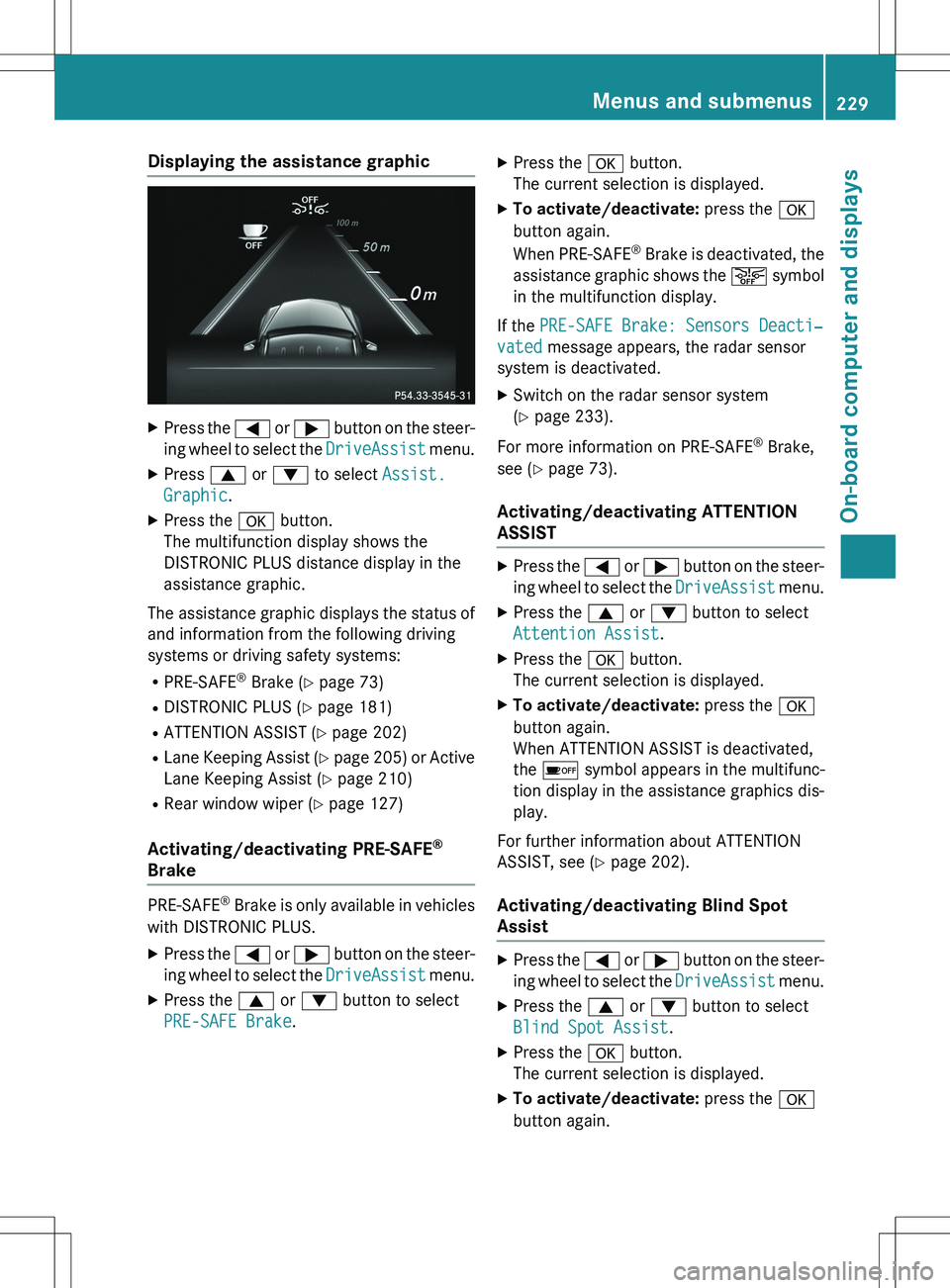

Displaying the assistance graphic
XPress the = or ; button on the steer-
ing wheel to select the
DriveAssist menu.
X Press 9 or : to select
Assist.
Graphic.
X Press the a button.
The multifunction display shows the
DISTRONIC PLUS distance display in the
assistance graphic.
The assistance graphic displays the status of
and information from the following driving
systems or driving safety systems:
R PRE-SAFE ®
Brake ( Y page 73)
R DISTRONIC PLUS ( Y page 181)
R ATTENTION ASSIST ( Y page 202)
R Lane Keeping Assist ( Y page 205) or Active
Lane Keeping Assist ( Y page 210)
R Rear window wiper ( Y page 127)
Activating/deactivating PRE-SAFE®
Brake
PRE

If the Blind Spot Assist Sensors DeacZ
tivated or Act. Blind Spot Asst. SenZ
sors Deactivated message appears, the
radar sensor system is deactivated.
X Switch on the radar sensor system
(Y page 233).
For further information about Blind Spot
Assist, see ( Y page 203).
For further information about Active Blind
Spot Assist, see ( Y page 207).
Activating/deactivating Lane Keeping
Assist
X
Press the = or ; button on the steer-
ing wheel to select the
DriveAssist menu.
X Press the 9 or : button to select
Lane Keep. Asst.
X
Press the a button.
The current selection is displayed.
X Press a to confirm.
X Press the : or 9 button to set
Off,
Standard or Adaptive.
X Press the a button to save the setting.
When Lane Keeping Assist or Active Lane
Keeping Assist is activated, the multifunc-
tion display shows the lane markings as
bright lines in the assistance graphic.
For further information about Lane Keeping
Assist, see ( Y page 205).
For further information about Active Lane
Keeping Assist, see ( Y page 210).
Service menu
Depending on the equipment installed in the
vehicle, you have the following options in the
Serv. menu: R

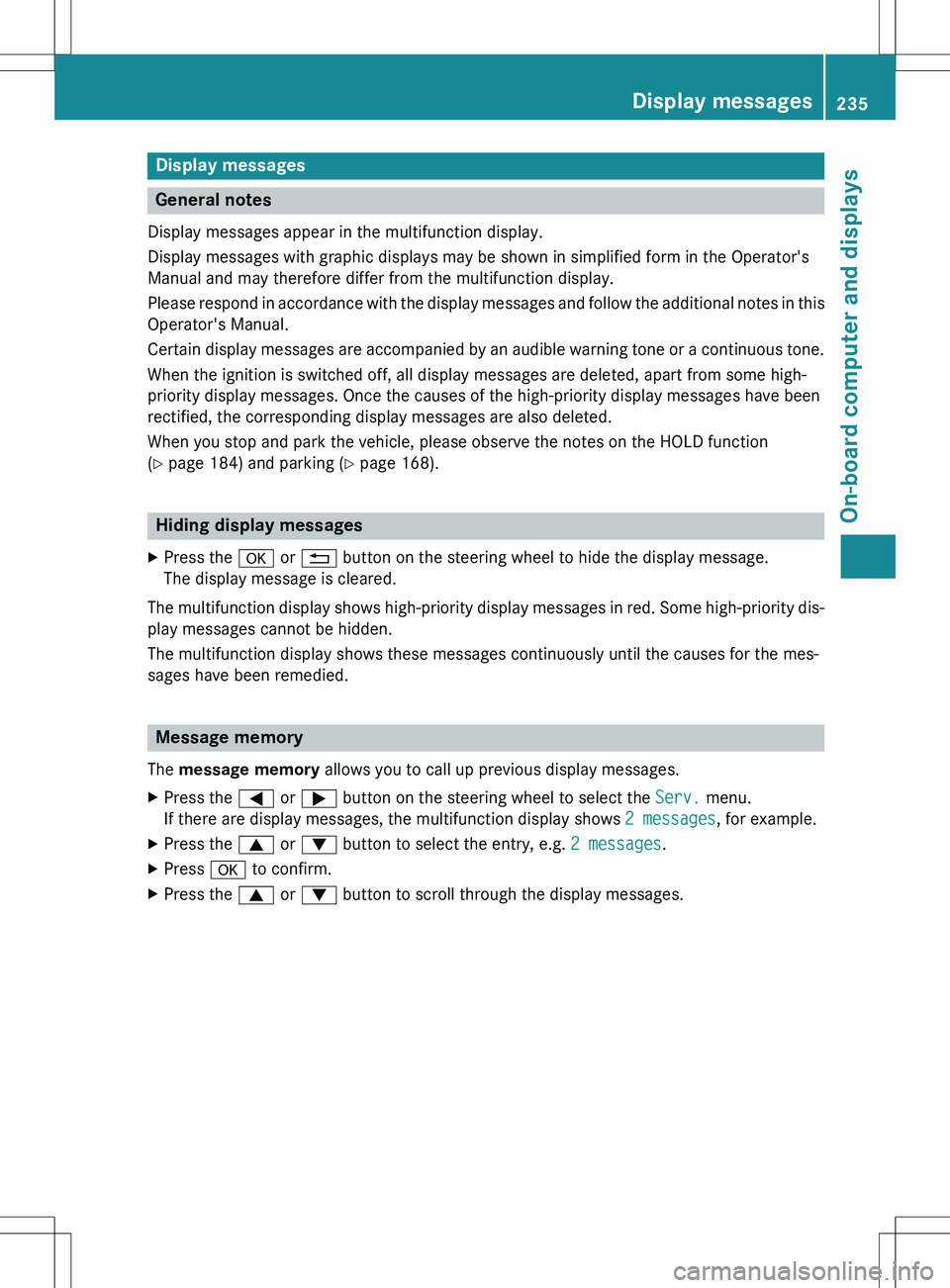

Calling up display messages
(Y page 235)
R Checking the tire pressure electronically
(Y page 339)
R Calling up the service due date
(Y page 304)
Settings menu
Introduction
Depending on the equipment installed in the
vehicle, In the
Sett. menu you have the fol-
lowing options:
R Changing the instrument cluster settings
(Y page 230)
R Changing the light settings ( Y page 231)
R Changing the vehicle settings
(Y page 232)
R Changing the convenience settings
(Y page 233)

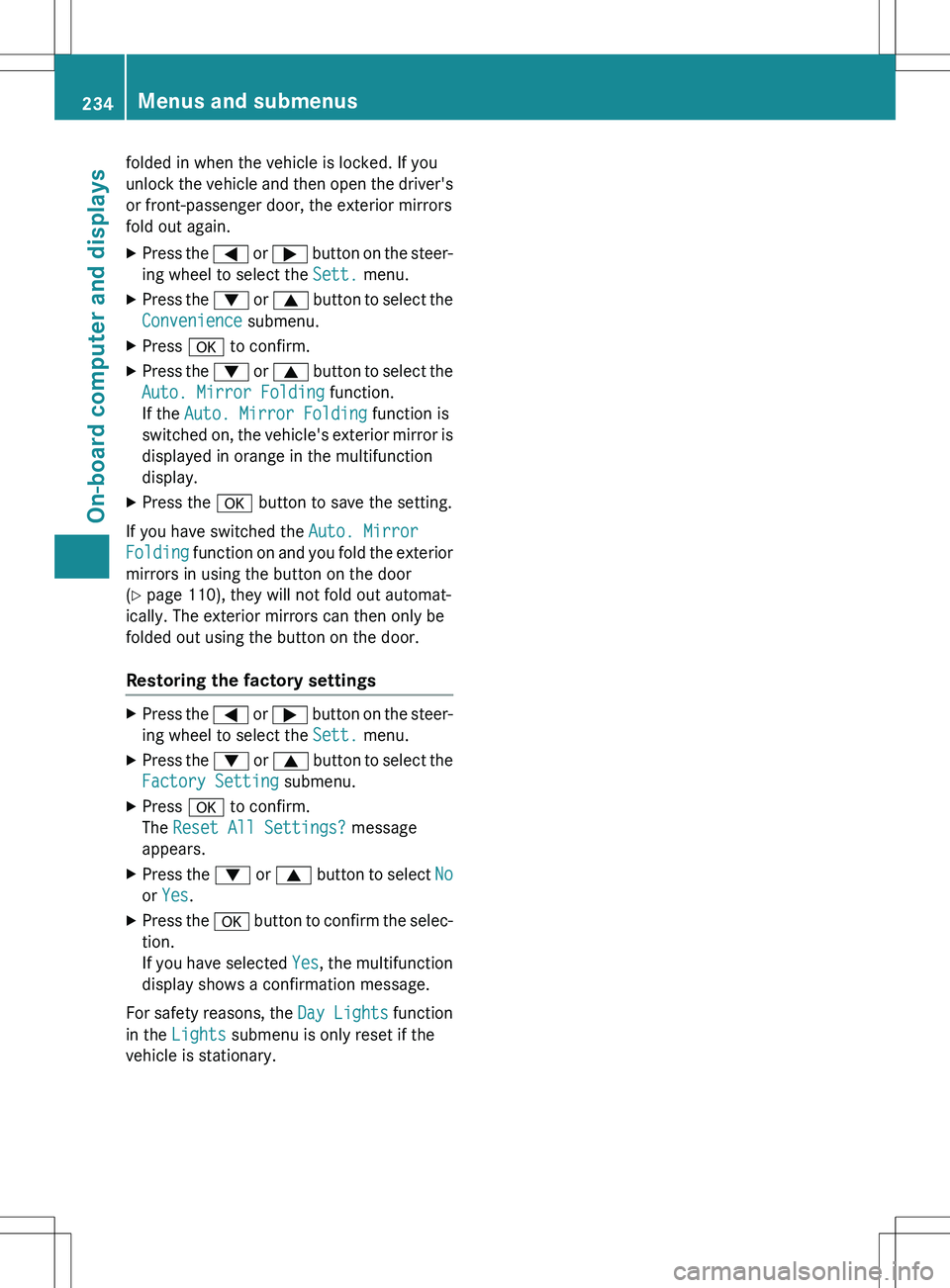

R Restoring the factory settings
(Y page 234)
Instrument cluster
Selecting the unit of measurement for dis-
tance
You can determine whether the multifunction
display shows some messages in miles or
kilometers. X Press the = or ; button on the steer-
ing wheel to select the
Sett. menu.
X Press the : or 9 button to select the
Inst. Cluster submenu.
X Press a to confirm.
230Menus and submenus
On-board computer and displays

XPress the : or 9 button to select the
Display Unit Speed-/Odometer func-
tion.
You will see the selected setting:
km or
miles.
X Press the a button to save the setting.
The selected unit of measurement for dis-
tance applies to:
R Digital speedometer in the
Trip menu
R Odometer and the trip odometer
R Trip computer
R Current consumption and the range
R Navigation instructions in the
Navi menu
R Cruise control
R DISTRONIC PLUS
R ASSYST PLUS service interval display
Selecting the permanent display function
You can determine whether the multifunction
display permanently shows your speed or the outside temperature.
X Press the = or ; button on the steer-
ing wheel to select the
Settings menu.
X Press the : or 9 button to select the
Instrument Cluster submenu.
X Press a to confirm.
X Press the : or 9 button to select the
Permanent Display: function.
You will see the selected setting
Outside
Temperature or Additional SpeedomeZ
ter [km/h]/Additional Speedometer
[mph].
X Press the a button to save the setting.
iThe speed is highlighted in km/h or in
mph conversely to your speedometer.
Lights
Switching the daytime running lamps on/
off
Daytime running lamps are required by law
(Canada only). You cannot set the "daytime
running lamps" function via the on-board
computer. X
Press the = or ; button on the steer-
ing wheel to select the
Sett. menu.
X Press the : or 9 button to select the
Lights submenu.
X Press a to confirm.
X Press the : or 9 button to select the
Day Lights function.
If the
Day Lights function has been
switched on, the cone of light and the W
symbol in the multifunction display are
shown in orange.
X Press the a button to save the setting.
Further information on daytime running
lamps ( Y page 116).
Setting the brightness of the display/
switch X Press the = or ; button on the steer-
ing wheel to select the
Sett. menu.
X Press the : or 9 button to select the
Lights submenu.
X Press a to confirm.
X Press the : or 9 button to select the
Brightness Display/Switches: func-
tion.
You will see the selected setting.
X Press a to confirm.
X Press the : or 9 button to adjust the
brightness to any level from
Level 1 to
Level 5 (bright).
X Press the a or % button to save the
setting.
Activating/deactivating surround light-
ing and exterior lighting delayed switch-
off
X Press the = or ; button on the steer-
ing wheel to select the
Sett. menu.
X Press the : or 9 button to select the
Lights submenu.
X Press a to confirm.
X Press the : or 9 button to select the
Surround Lighting function.
When the
Surround Lighting function is
activated, the light cone and the area
Menus and submenus231
On-board computer and displays
Z

around the vehicle are displayed in orange
in the multifunction display.
X Press the a button to save the setting.
Deactivating delayed switch-off of the exte-
rior lighting temporarily:
X Before leaving the vehicle, turn the Smart-
Key to position 0 in the ignition lock.
X Turn the SmartKey to position 2 in the igni-
tion lock.
The exterior lighting delayed switch-off is
deactivated.
Delayed switch-off of the exterior lighting is
reactivated the next time you start the
engine.
If you have activated the
Surround LightZ
ing function and the light switch is set to
à , the following functions are activated
when it is dark:
R surround lighting: the exterior lighting
remains lit for 40 seconds after unlocking
with the SmartKey. If you start the engine,
the surround lighting is switched off and
automatic headlamp mode is activated
( Y page 116).
R exterior lighting delayed switch-off: the
exterior lighting remains lit for 60 seconds
after the engine is switched off. If you close all the doors and the tailgate, the exterior
lighting goes off after 5 seconds.
iDepending on your vehicle's equipment,
when the surround lighting and delayed
switch-off exterior lighting are on, the fol-
lowing light up:
R Parking lamps
R Front fog lamps
R Low-beam headlamps
R Daytime running lamps
R Side marker lamps
R Surround lighting in the exterior mirrors
Activating/deactivating the interior light-
ing delayed switch-off
If you activate the
Interior Lighting
Delay function, the interior lighting remains on for 20 seconds after you remove the
SmartKey from the ignition lock.
X Press the = or ; button on the steer-
ing wheel to select the
Sett menu.
X Press the : or 9 button to select the
Lights submenu.
X Press a to confirm.
X Press the : or 9 button to select the
Interior Lighting Delay function.
If the
Interior Lighting Delay function
has been switched on, the vehicle interior is
displayed in orange in the multifunction
display.
X Press the a button to save the setting.
Vehicle
Activating/deactivating the automatic
door locking mechanism
X Press the = or ; button on the steer-
ing wheel to select the
Sett. menu.
X Press the : or 9 button to select the
Vehicle submenu.
X Press a to confirm.
X Press the : or 9 button to select the
Auto. Door Locks function.
When the
Auto. Door Locks function is
activated, the vehicle doors are displayed
in orange in the multifunction display.
X Press the a button to save the setting.
If you activate the
Auto. Door Locks func-
tion, the vehicle is centrally locked above a
speed of around 9 mph (15 km/h).
For further information on the automatic lock-
ing feature, see ( Y page 86).
Activating/deactivating the acoustic
locking verification signal
If you switch on the
Acoustic Lock function,
an acoustic signal sounds when you lock the
vehicle.
X Press the = or ; button on the steer-
ing wheel to select the
Sett. menu.
X Press the : or 9 button to select the
Vehicle submenu.
232Menus and submenus
On-board computer and displays

XPress a to confirm.
X Press the : or 9 button to select the
Acoustic Lock function.
If the
Acoustic Lock function is activated,
the & symbol in the multifunction dis-
play lights up orange.
X Press the a button to save the setting.
Activating/deactivating the radar sensor
system
X Press the = or ; button on the steer-
ing wheel to select the
Sett. menu.
X Press the : or 9 button to select the
Vehicle submenu.
X Press a to confirm.
X Press the 9 or : button to select
Radar Sensor (See Oper. Manual):.
You will see the selected setting:
Enabled
or Disabled.
X Press the a button to save the setting.
The following systems are switched off when
the radar sensor system is deactivated:
R DISTRONIC PLUS ( Y page 176)
R BAS PLUS ( Y page 69)
R PRE-SAFE ®
Brake ( Y page 73)
R Blind Spot Assist ( Y page 203)
R Active Blind Spot Assist ( Y page 207)
Convenience
Activating/deactivating the EASY-
ENTRY/EXIT feature
GWARNING
When the EASY-ENTRY/EXIT feature adjusts
the steering wheel, you and other vehicle
occupants – particularly children – could
become trapped. There is a risk of injury.
While the EASY-ENTRY/EXIT feature is mak-
ing adjustments, make sure that no one has
any body parts in the sweep of the steering
wheel.
If somebody becomes trapped:
R press one of the memory function position
buttons, or
R move the switch for steering wheel adjust-
ment in the opposite direction to that in
which the steering wheel is moving.
The adjustment process is stopped.
X Press the = or ; button on the steer-
ing wheel to select the
Sett. menu.
X Press the : or 9 button to select the
Convenience submenu.
X Press a to confirm.
X Press the : or 9 button to select the
Easy Entry/Exit function.
If the
Easy Entry/Exit function is activa-
ted, the vehicle steering wheel is displayed in orange in the multifunction display.
X Press the a button to save the setting.
Further information on the EASY-ENTRY/EXIT
feature ( Y page 108).
Switching the belt adjustment on/off X Press the = or ; button on the steer-
ing wheel to select the
Sett. menu.
X Press the : or 9 button to select the
Convenience submenu.
X Press a to confirm.
X Press the : or 9 button to select the
Belt Adjustment function.
When the
Belt Adjustment function is
activated, the vehicle seat belt is displayed in orange in the multifunction display.
X Press the a button to save the setting.
For further information on belt adjustment,
see ( Y page 59).
Switching the fold-in mirrors when lock-
ing feature on/off
This function is only available in Canada.
This function is only available when the vehi-
cle is equipped with the electrical fold-in func-
tion.
When you switch on the
Auto. Mirror
Folding function, the exterior mirrors are
Menus and submenus233
On-board computer and displays
Z

folded in when the vehicle is locked. If you
unlock the vehicle and then open the driver'sor front-passenger door, the exterior mirrors
fold out again.
X Press the = or ; button on the steer-
ing wheel to select the
Sett. menu.
X Press the : or 9 button to select the
Convenience submenu.
X Press a to confirm.
X Press the : or 9 button to select the
Auto. Mirror Folding function.
If the
Auto. Mirror Folding function is
switched on, the vehicle's exterior mirror is
displayed in orange in the multifunction
display.
X Press the a button to save the setting.
If you have switched the
Auto. Mirror
Folding function on and you fold the exterior
mirrors in using the button on the door
( Y page 110), they will not fold out automat-
ically. The exterior mirrors can then only be
folded out using the button on the door.
Restoring the factory settings
X Press the = or ; button on the steer-
ing wheel to select the
Sett. menu.
X Press the : or 9 button to select the
Factory Setting submenu.
X Press a to confirm.
The
Reset All Settings? message
appears.
X Press the : or 9 button to select
No
or Yes.
X Press the a button to confirm the selec-
tion.
If you have selected
Yes, the multifunction
display shows a confirmation message.
For safety reasons, the
Day Lights function
in the
Lights submenu is only reset if the
vehicle is stationary.
234Menus and submenus
On-board computer and displays

Display messages
General notes
Display messages appear in the multifunction display.
Display messages with graphic displays may be shown in simplified form in the Operator's
Manual and may therefore differ from the multifunction display.
Please respond in accordance with the display messages and follow the additional notes in this
Operator's Manual.
Certain display messages are accompanied by an audible warning tone or a continuous tone.
When the ignition is switched off, all display messages are deleted, ap art from some high-
priority display messages. Once the causes of the high-priority display m essages have been
rectified, the corresponding display messages are also deleted.
When you stop and park the vehicle, please observe the notes on the HOLD fu nction
( Y page 184) and parking ( Y page 168).
Hiding display messages
X
Press the a or % button on the steering wheel to hide the display message.
The display message is cleared.
The multifunction display shows high-priority display message s in red. Some high-priority dis-
play messages cannot be hidden.
The multifunction display shows these messages continuously until the ca uses for the mes-
sages have been remedied.
Message memory
The message memory allows you to call up previous display messages.
X Press the = or ; button on the steering wheel to select the
Serv. menu.
If there are display messages, the multifunction display shows
2 messages, for example.
X Press the 9 or : button to select the entry, e.g.
2 messages.
X Press a to confirm.
X Press the 9 or : button to scroll through the display messages.
Display messages235
On-board computer and displays
Z

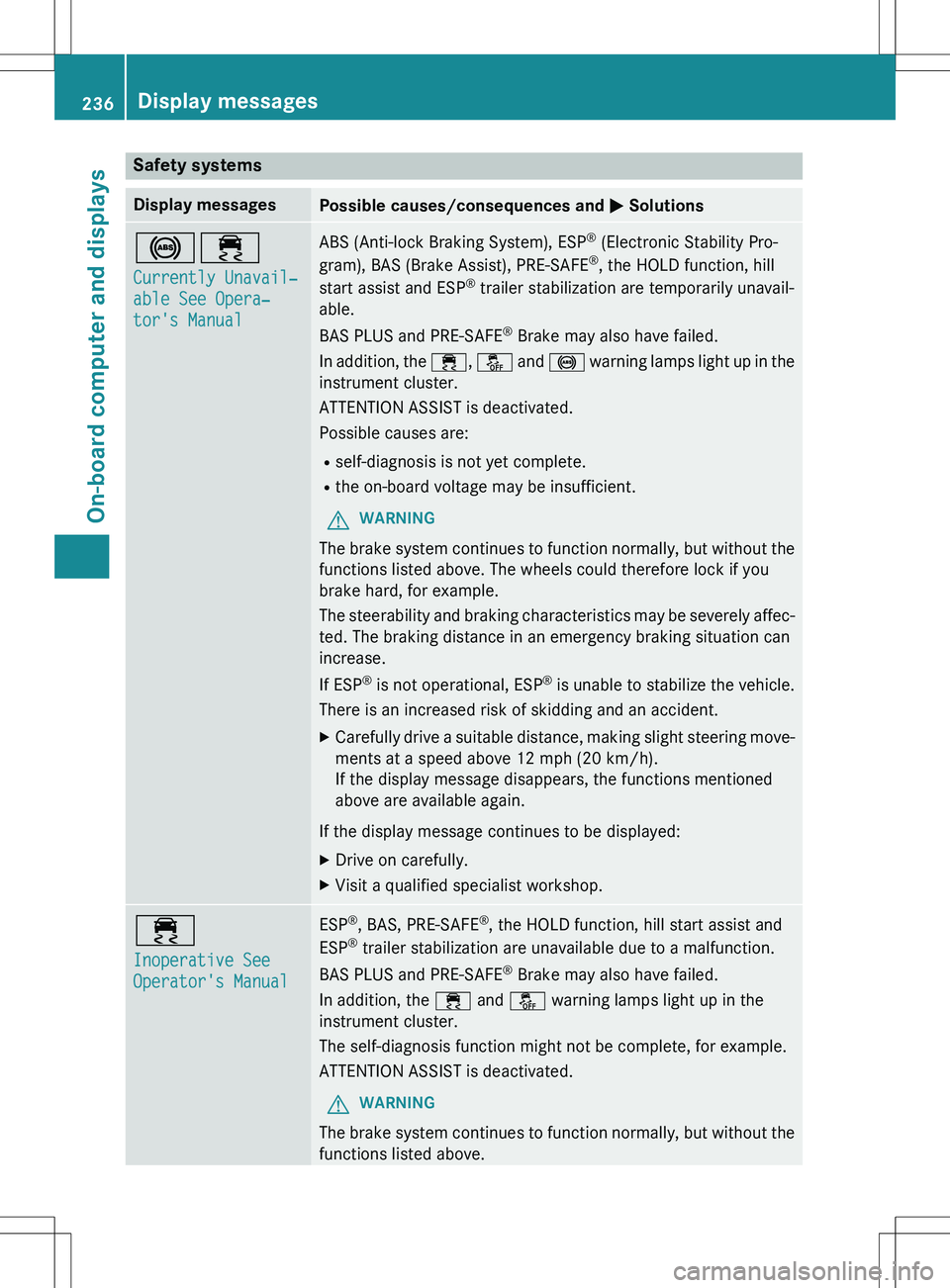

Safety systems
Display messagesPossible causes/consequences and M Solutions
!÷
Currently UnavailZ
able See OperaZ
tor's Manual
ABS (Anti-lock Braking System), ESP®
(Electronic Stability Pro-
gram), BAS (Brake Assist), PRE-SAFE ®
, the HOLD function, hill
start assist and ESP ®
trailer stabilization are temporarily unavail-
able.
BAS PLUS and PRE
