2015 MERCEDES-BENZ E-CLASS CABRIOLET Owners Manual

Opening and closing all side windows
Using the switch on the centre console G
WARNING
When a side window is closed, body parts may become trapped in the closing range. There is a risk of injury.
Ensure that there are no body parts in the
closing range of the window when closing it. If
somebody becomes trapped, release the but- ton immediately or press the lower section of
the button to open the side window again.
Using the switch on the centre console, you can
close all side windows simultaneously.
X Open the cover on the lower centre console.
The switch for all side windows is under the
cover. X
To open all side windows: press switch:
to the point of resistance.
X To open all side windows fully: press
switch :beyond the point of resistance.
X To close all side windows: pull switch:.
Using the key G
WARNING
While closing the side windows, body parts in the closing area could become trapped. There is a risk of injury.
When closing make sure that no parts of the
body are in the closing area. If somebody
becomes trapped, release the switch or press
the switch to open the side window again. You can use the key to open or close all side
windows simultaneously. The key must be near
the door handle.
X Close the soft top (Y page 89).
X Open the boot separator (Y page 94).
X To open all side windows: press the%
switch on the key until the side windows are
fully opened.
X To interrupt the opening procedure:
release the
%switch.
X To close all side windows: press the&
switch on the key until the side windows are
fully closed.
X To interrupt the closing procedure: release
the & switch.
Convenience closing with KEYLESS-GO G
WARNING
When using convenience closing, you could
become trapped within the sweep of the clos- ing window. There is a risk of injury.
Monitor the entire closing procedure when
using convenience closing. When closing,
make sure that no one has any parts of the
body within the closing area.
If someone is trapped, proceed as follows:
X Release recessed sensor surface on the door
handle.
X Immediately pull and hold the door handle
and keep the door handle pulled.
The side windows open.
With KEYLESS-GO you can close all side win-
dows simultaneously. The KEYLESS-GO key
must be outside the vehicle. All the doors must be closed. 86
Side windowsOpening and closing

X
Touch recessed sensor surface :on the
door handle until the side windows are fully
closed.
i Make sure you only touch recessed sensor
surface :.
X To interrupt convenience closing: release
recessed sensor surface :on the door han-
dle. Resetting the side windows
If a side window can no longer be closed fully,
you must reset it.
X Close all doors.
X Turn the key to position 1or 2in the ignition
lock.
X Pull the corresponding switch on the door
control panel until the side window is com-
pletely closed (Y page 85).
X Hold the switch for an additional second.
If the side window opens again slightly: X Immediately pull the corresponding switch on
the door control panel until the side window is completely closed (Y page 85).
X Hold the switch for an additional second.
X If the corresponding side window remains
closed after the button has been released, the
side window has been reset correctly. If this is
not the case, repeat the steps above again. Side windows
87Opening and closing Z

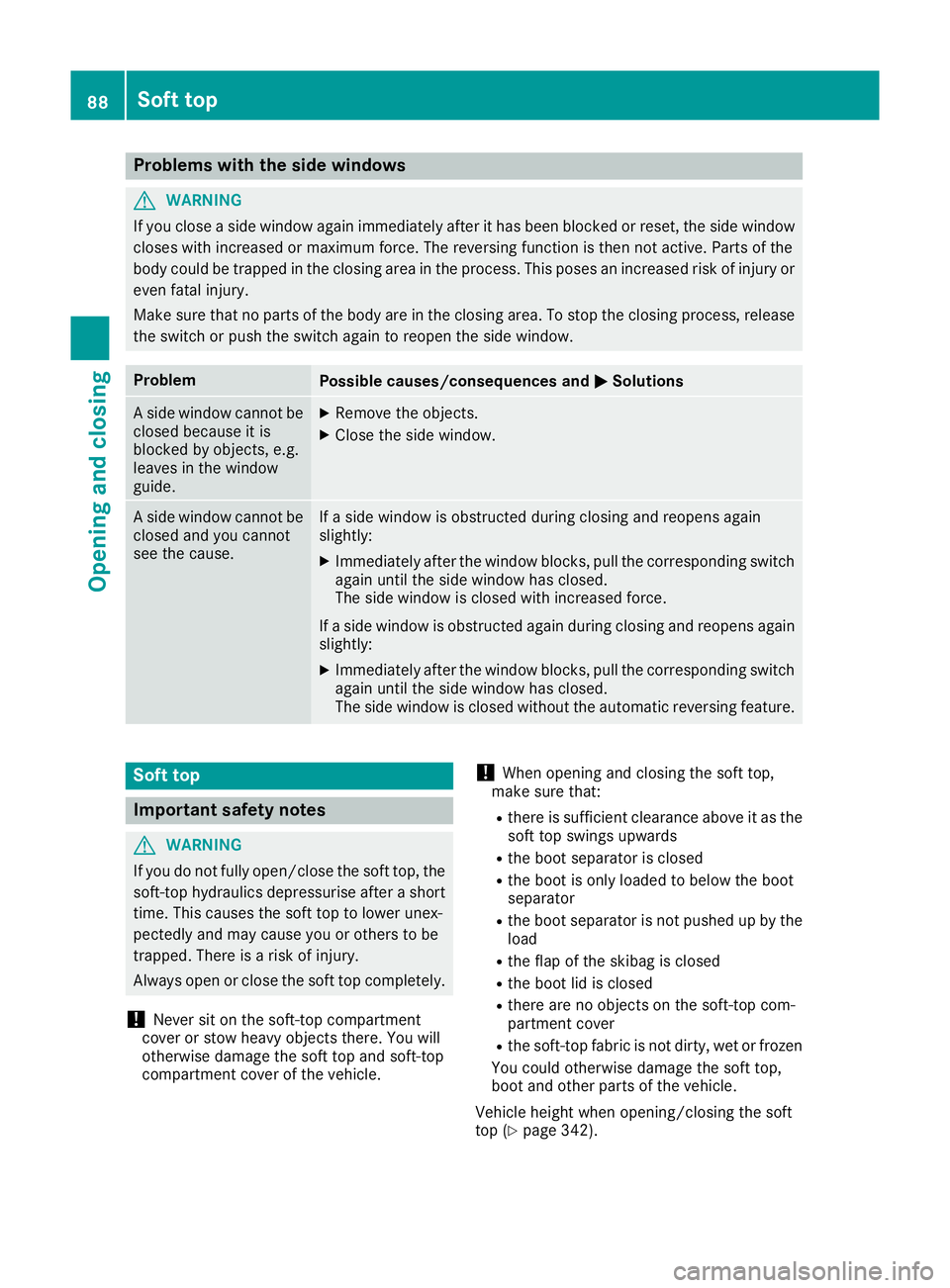

Problems with the side windows
G
WARNING
If you close a side window again immediately after it has been blocked or reset, the side window
closes with increased or maximum force. The reversing function is then not active. Parts of the
body could be trapped in the closing area in the process. This poses an increased risk of injury or even fatal injury.
Make sure that no parts of the body are in the closing area. To stop the closing process, releasethe switch or push the switch again to reopen the side window. Problem
Possible causes/consequences and
M MSolutions A side window cannot be
closed because it is
blocked by objects, e.g.
leaves in the window
guide. X
Remove the objects.
X Close the side window. A side window cannot be
closed and you cannot
see the cause. If a side window is obstructed during closing and reopens again
slightly:
X Immediately after the window blocks, pull the corresponding switch
again until the side window has closed.
The side window is closed with increased force.
If a side window is obstructed again during closing and reopens again slightly:
X Immediately after the window blocks, pull the corresponding switch
again until the side window has closed.
The side window is closed without the automatic reversing feature. Soft top
Important safety notes
G
WARNING
If you do not fully open/close the soft top, the soft-top hydraulics depressurise after a short time. This causes the soft top to lower unex-
pectedly and may cause you or others to be
trapped. There is a risk of injury.
Always open or close the soft top completely.
! Never sit on the soft-top compartment
cover or stow heavy objects there. You will
otherwise damage the soft top and soft-top
compartment cover of the vehicle. !
When opening and closing the soft top,
make sure that:
R there is sufficient clearance above it as the
soft top swings upwards
R the boot separator is closed
R the boot is only loaded to below the boot
separator
R the boot separator is not pushed up by the
load
R the flap of the skibag is closed
R the boot lid is closed
R there are no objects on the soft-top com-
partment cover
R the soft-top fabric is not dirty, wet or frozen
You could otherwise damage the soft top,
boot and other parts of the vehicle.
Vehicle height when opening/closing the soft
top (Y page 342). 88
Soft topOpening and closing

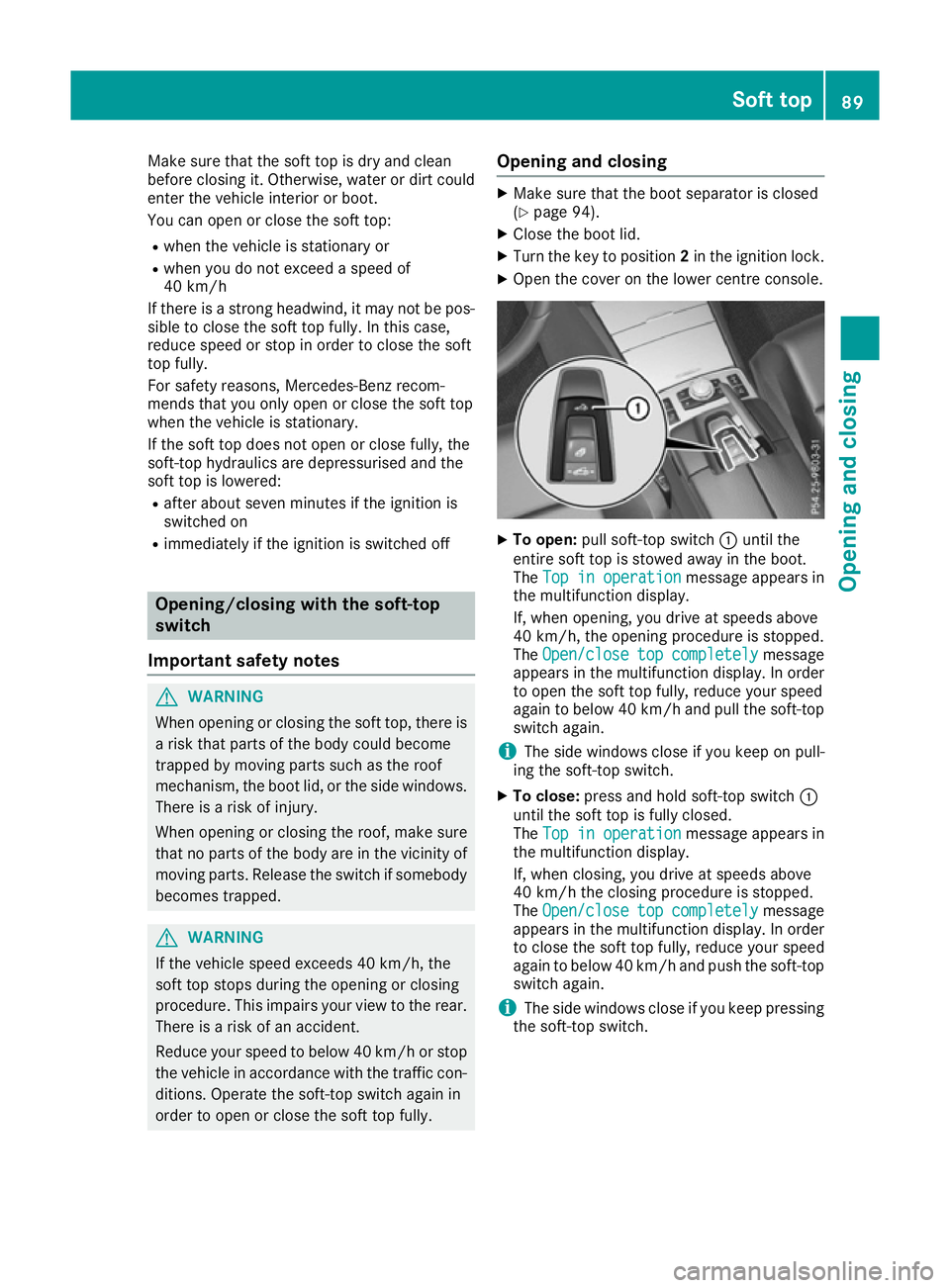

Make sure that the soft top is dry and clean
before closing it. Otherwise, water or dirt could
enter the vehicle interior or boot.
You can open or close the soft top:
R when the vehicle is stationary or
R when you do not exceed a speed of
40 km/h
If there is a strong headwind, it may not be pos-
sible to close the soft top fully. In this case,
reduce speed or stop in order to close the soft
top fully.
For safety reasons, Mercedes-Benz recom-
mends that you only open or close the soft top
when the vehicle is stationary.
If the soft top does not open or close fully, the
soft-top hydraulics are depressurised and the
soft top is lowered:
R after about seven minutes if the ignition is
switched on
R immediately if the ignition is switched off Opening/closing with the soft-top
switch
Important safety notes G
WARNING
When opening or closing the soft top, there is a risk that parts of the body could become
trapped by moving parts such as the roof
mechanism, the boot lid, or the side windows.
There is a risk of injury.
When opening or closing the roof, make sure
that no parts of the body are in the vicinity of moving parts. Release the switch if somebody
becomes trapped. G
WARNING
If the vehicle speed exceeds 40 km/h, the
soft top stops during the opening or closing
procedure. This impairs your view to the rear. There is a risk of an accident.
Reduce your speed to below 40 km/h or stop the vehicle in accordance with the traffic con-
ditions. Operate the soft-top switch again in
order to open or close the soft top fully. Opening and closing X
Make sure that the boot separator is closed
(Y page 94).
X Close the boot lid.
X Turn the key to position 2in the ignition lock.
X Open the cover on the lower centre console. X
To open: pull soft-top switch :until the
entire soft top is stowed away in the boot.
The Top in operation Top in operation message appears in
the multifunction display.
If, when opening, you drive at speeds above
40 km/h, the opening procedure is stopped.
The Open/close Open/close top
topcompletely
completely message
appears in the multifunction display. In order to open the soft top fully, reduce your speed
again to below 40 km/h and pull the soft-top switch again.
i The side windows close if you keep on pull-
ing the soft-top switch.
X To close: press and hold soft-top switch :
until the soft top is fully closed.
The Top in operation Top in operation message appears in
the multifunction display.
If, when closing, you drive at speeds above
40 km/h the closing procedure is stopped.
The Open/close Open/close top
topcompletely
completely message
appears in the multifunction display. In order
to close the soft top fully, reduce your speed
again to below 40 km/h and push the soft-top switch again.
i The side windows close if you keep pressing
the soft-top switch. Soft top
89Opening and closing Z

Opening and closing with the key
Important safety notes G
WARNING
When opening or closing the soft top, there is a risk that parts of the body could become
trapped by moving parts such as the roof
mechanism, the boot lid, or the side windows.
There is a risk of injury.
When opening or closing the roof, make sure
that no parts of the body are in the vicinity of moving parts. Release the switch if somebody
becomes trapped.
Opening and closing The key must be near the door handle.
X To open: press the %button in the key
until the soft top is completely opened.
The Top in operation
Top in operation message appears in
the multifunction display. The seat ventilation
is switched on. The rear side windows open.
X To close: press the&button in the key
until the soft top is completely closed.
The Top in operation
Top in operation message appears in
the multifunction display. The soft top and the
side windows close. Closing the soft top manually
Important safety notes G
WARNING
Closing the soft top manually is a complex,
technically challenging procedure which can
also be physically demanding. It could lead to you trapping yourself or other persons. There
is a risk of injury.
Where possible, have the soft top closed man-
ually at a qualified specialist workshop.
If the soft top cannot be closed automatically,
check the following points:
R Is the boot separator engaged (Y page 94)?
R Are the head restraints on the rear bench
seats extended? R
Is the boot lid closed?
R Is the on-board voltage sufficient?
Start the engine if necessary.
If automatic operation still does not work, the
soft top can be closed manually.
The help of a second person is required in car-
rying out this procedure.
Closing the soft top X
Apply the parking brake.
X Open the side windows.
X Lower the head restraints automatically
(Y page 102) or manually (Y page 102).
X Remove the key from the ignition lock.
X Open the boot.
X Take the two straps out of the vehicle tool kit
(Y page 305).
X Take the Allen key out of the Owner's Manual
wallet and keep it with you. X
Turn rotary catch :anti-clockwise and fold
cover ;down. X
Insert Allen key =into valve screw ?on the
hydraulic pump.
X Turn valve screw ?of the hydraulic pump
with Allen key =anti-clockwise a full turn. 90
Soft topOpening and closing

X
On both sides of the boot, tear trim Aalong
the perforation in the direction of the arrow. X
Pull out catch Bas far as possible on both
sides and turn it anti-clockwise about a quar-
ter turn.
X Make sure catch Bis not pulled in again.
Otherwise, pull out catch Bagain as far as
possible and turn it anti-clockwise about a
quarter turn. The soft-top compartment hinges are on the left-
hand and right-hand side in the gap between the soft-top compartment lid and the boot seal.
X Move both levers Cof the soft-top compart-
ment hinges forwards beyond the detent posi- tion on both sides. X
On both sides, pull the straps through behind
soft-top compartment hinges Din the direc-
tion of the arrow.
X Route the straps through the loops created. X
Pull the straps between the soft-top compart-
ment hinges and the soft-top compartment.
i Do not pull the straps as long as the boot is
open. X
Place straps Eon the cover of the soft-top
compartment.
i Take the Allen key and the key out of the
boot if necessary. You can only access the
boot again once you have fully closed the soft
top manually. Soft top
91Opening and closing Z

X

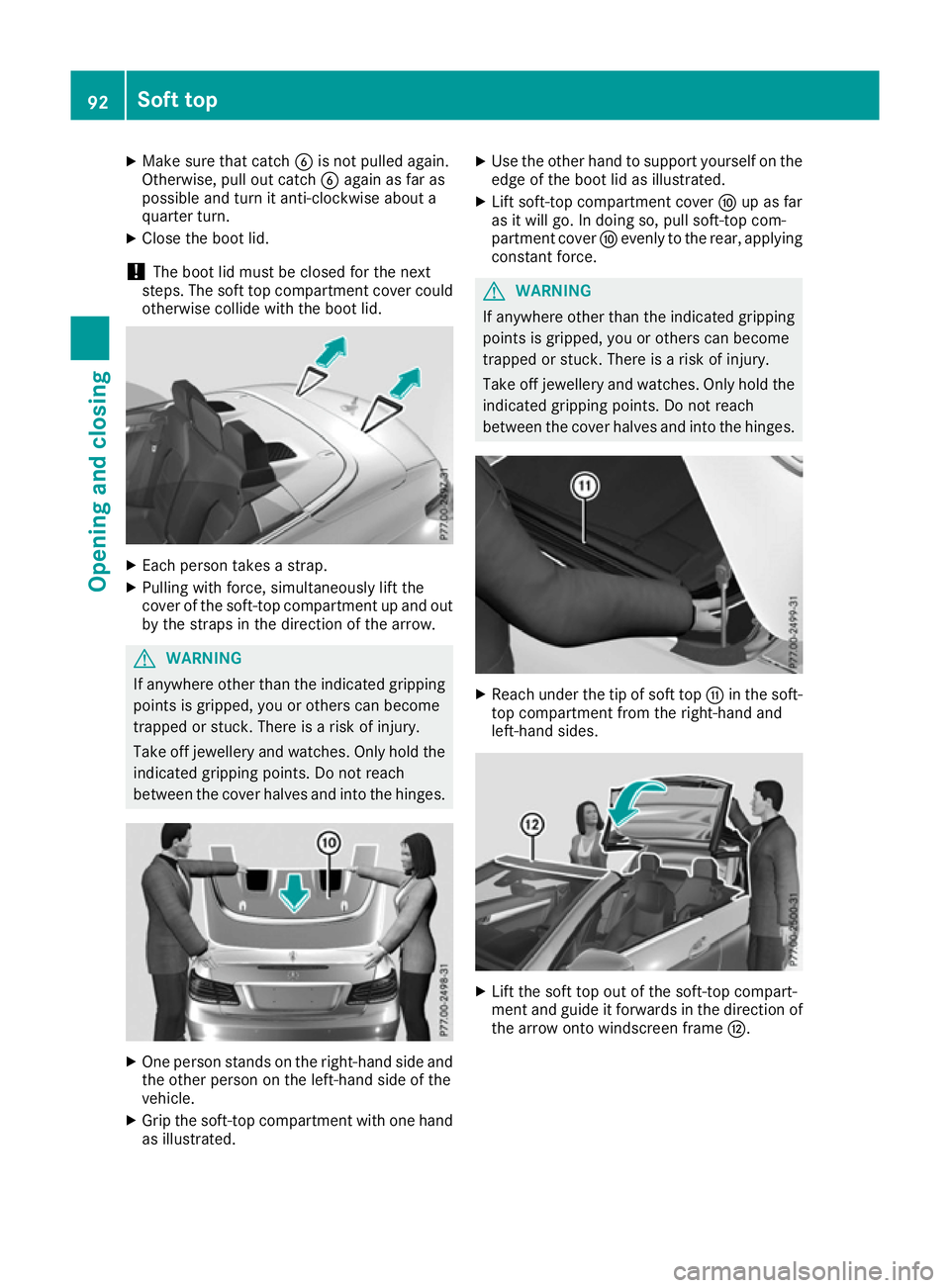

Make sure that catch Bis not pulled again.
Otherwise, pull out catch Bagain as far as
possible and turn it anti-clockwise about a
quarter turn.
X Close the boot lid.
! The boot lid must be closed for the next
steps. The soft top compartment cover could
otherwise collide with the boot lid. X
Each person takes a strap.
X Pulling with force, simultaneously lift the
cover of the soft-top compartment up and out
by the straps in the direction of the arrow. G
WARNING
If anywhere other than the indicated gripping points is gripped, you or others can become
trapped or stuck. There is a risk of injury.
Take off jewellery and watches. Only hold the
indicated gripping points. Do not reach
between the cover halves and into the hinges. X
One person stands on the right-hand side and
the other person on the left-hand side of the
vehicle.
X Grip the soft-top compartment with one hand
as illustrated. X
Use the other hand to support yourself on the
edge of the boot lid as illustrated.
X Lift soft-top compartment cover Fup as far
as it will go. In doing so, pull soft-top com-
partment cover Fevenly to the rear, applying
constant force. G
WARNING
If anywhere other than the indicated gripping points is gripped, you or others can become
trapped or stuck. There is a risk of injury.
Take off jewellery and watches. Only hold the
indicated gripping points. Do not reach
between the cover halves and into the hinges. X
Reach under the tip of soft top Gin the soft-
top compartment from the right-hand and
left-hand sides. X
Lift the soft top out of the soft-top compart-
ment and guide it forwards in the direction of
the arrow onto windscreen frame H.92
Soft topOpening and closing

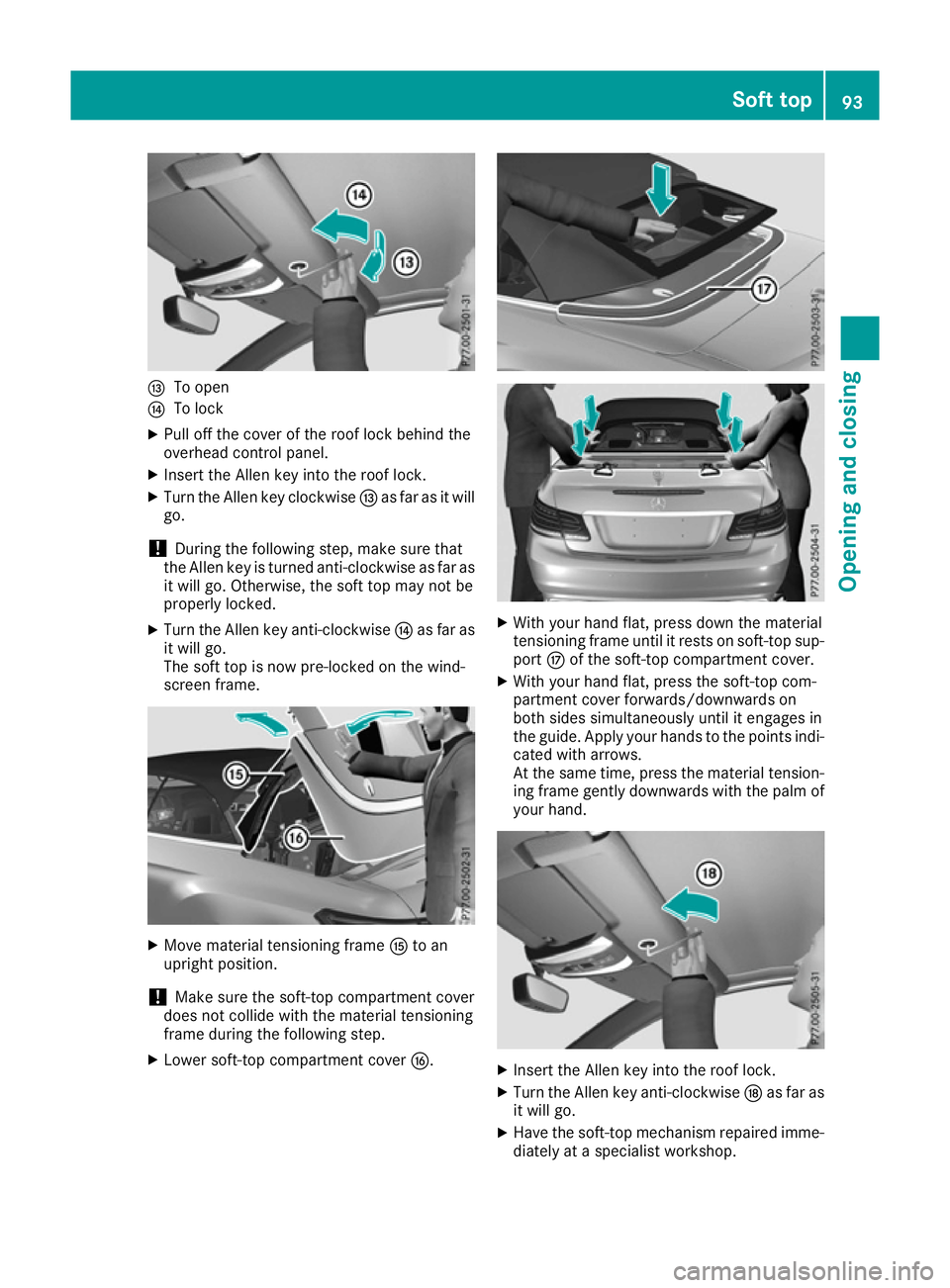

I
To open
J To lock
X Pull off the cover of the roof lock behind the
overhead control panel.
X Insert the Allen key into the roof lock.
X Turn the Allen key clockwise Ias far as it will
go.
! During the following step, make sure that
the Allen key is turned anti-clockwise as far as it will go. Otherwise, the soft top may not be
properly locked.
X Turn the Allen key anti-clockwise Jas far as
it will go.
The soft top is now pre-locked on the wind-
screen frame. X
Move material tensioning frame Kto an
upright position.
! Make sure the soft-top compartment cover
does not collide with the material tensioning
frame during the following step.
X Lower soft-top compartment cover L. X
With your hand flat, press down the material
tensioning frame until it rests on soft-top sup-
port Mof the soft-top compartment cover.
X With your hand flat, press the soft-top com-
partment cover forwards/downwards on
both sides simultaneously until it engages in
the guide. Apply your hands to the points indi-
cated with arrows.
At the same time, press the material tension-
ing frame gently downwards with the palm of
your hand. X
Insert the Allen key into the roof lock.
X Turn the Allen key anti-clockwise Nas far as
it will go.
X Have the soft-top mechanism repaired imme-
diately at a specialist workshop. Soft top
93Opening and closing Z
