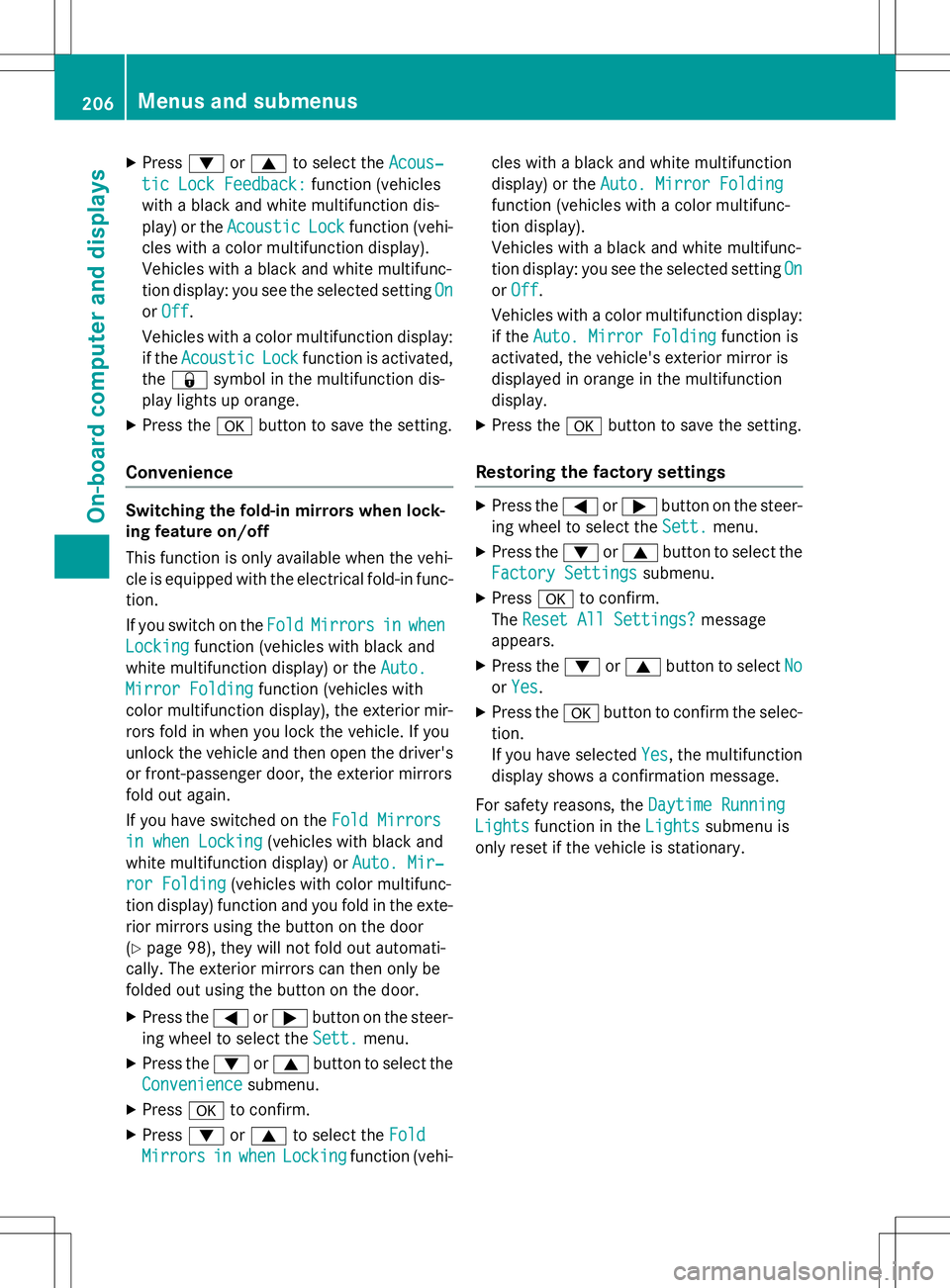

XPress :or9 to select theAcousZ
tic Lock Feedback:function (vehicles
with a black and white multifunction dis-
play) or the
AcousticLockfunction (vehi-
cles with a color multifunction display).
Vehicles with a black and white multifunc-
tion display: you see the selected setting
On
orOff.
Vehicles with a color multifunction display: if the
AcousticLockfunction is activated,
the & symbol in the multifunction dis-
play lights up orange.
X Press the abutton to save the setting.
Convenience
Switching the fold-in mirrors when lock-
ing feature on/off
This function is only available when the vehi-
cle is equipped with the electrical fold-in func-
tion.
If you switch on the
FoldMirrorsinwhen
Lockingfunction (vehicles with black and
white multifunction display) or the
Auto.
Mirror Foldingfunction (vehicles with
color multifunction display), the exterior mir-
rors fold in when you lock the vehicle. If you
unlock the vehicle and then open the driver's or front-passenger door, the exterior mirrors
fold out again.
If you have switched on the
Fold Mirrors
in when Locking(vehicles with black and
white multifunction display) or
Auto. MirZ
ror Folding(vehicles with color multifunc-
tion display) function and you fold in the exte-
rior mirrors using the button on the door( Y page 98), they will not fold out automati-
cally. The exterior mirrors can then only be
folded out using the button on the door.
X Press the =or; button on the steer-
ing wheel to select the
Sett.menu.
X Press the :or9 button to select the
Conveniencesubmenu.
X Press ato confirm.
X Press :or9 to select the
Fold
MirrorsinwhenLockingfunction (vehi- cles with a black and white multifunction
display) or the
Auto. Mirror Folding
function (vehicles with a color multifunc-
tion display).
Vehicles with a black and white multifunc-
tion display: you see the selected setting
On
orOff.
Vehicles with a color multifunction display: if the
Auto. Mirror Foldingfunction is
activated, the vehicle's exterior mirror is
displayed in orange in the multifunctiondisplay.
X Press the abutton to save the setting.
Restoring the factory settings
X
Press the =or; button on the steer-
ing wheel to select the
Sett.menu.
X Press the :or9 button to select the
Factory Settingssubmenu.
X Press ato confirm.
The
Reset All Settings?message
appears.
X Press the :or9 button to select
No
orYes.
X Press the abutton to confirm the selec-
tion.
If you have selected
Yes, the multifunction
display shows a confirmation message.
For safety reasons, the
Daytime Running
Lightsfunction in theLightssubmenu is
only reset if the vehicle is stationary.
206Menus and submenus
On-board computer and displays

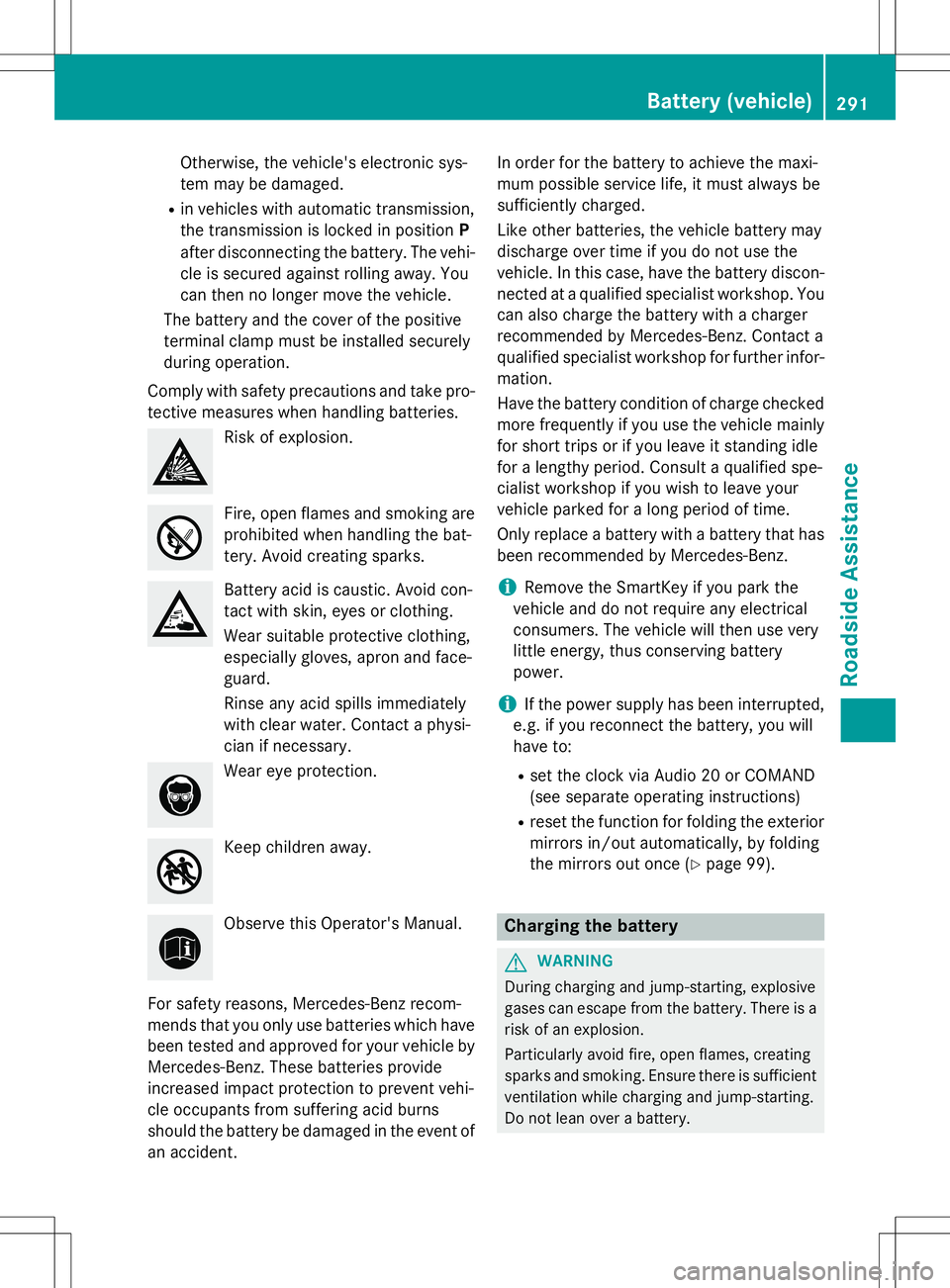

Otherwise, the vehicle's electronic sys-
tem may be damaged.
R in vehicles with automatic transmission,
the transmission is locked in position P
after disconnecting the battery. The vehi-
cle is secured against rolling away. You
can then no longer move the vehicle.
The battery and the cover of the positive
terminal clamp must be installed securely
during operation.
Comply with safety precautions and take pro-
tective measures when handling batteries.
Risk of explosion.
Fire, open flames and smoking are
prohibited when handling the bat-
tery. Avoid creating sparks.
Battery acid is caustic. Avoid con-
tact with skin, eyes or clothing.
Wear suitable protective clothing,
especially gloves, apron and face-guard.
Rinse any acid spills immediately
with clear water. Contact a physi-
cian if necessary.
Wear eye protection.
Keep children away.
Observe this Operator's Manual.
For safety reasons, Mercedes-Benz recom-
mends that you only use batteries which have been tested and approved for your vehicle by
Mercedes-Benz. These batteries provide
increased impact protection to prevent vehi-
cle occupants from suffering acid burns
should the battery be damaged in the event of
an accident. In order for the battery to achieve the maxi-
mum possible service life, it must always be
sufficiently charged.
Like other batteries, the vehicle battery may
discharge over time if you do not use the
vehicle. In this case, have the battery discon-
nected at a qualified specialist workshop. You
can also charge the battery with a charger
recommended by Mercedes-Benz. Contact a
qualified specialist workshop for further infor- mation.
Have the battery condition of charge checked
more frequently if you use the vehicle mainly
for short trips or if you leave it standing idle
for a lengthy period. Consult a qualified spe-
cialist workshop if you wish to leave your
vehicle parked for a long period of time.
Only replace a battery with a battery that has been recommended by Mercedes-Benz.
iRemove the SmartKey if you park the
vehicle and do not require any electrical
consumers. The vehicle will then use very
little energy, thus conserving batterypower.
iIf the power supply has been interrupted,
e.g. if you reconnect the battery, you will
have to: R set the clock via Audio 20 or COMAND
(see separate operating instructions)
R reset the function for folding the exterior
mirrors in/out automatically, by folding
the mirrors out once ( Ypage 99).
Charging the battery
GWARNING
During charging and jump-starting, explosive
gases can escape from the battery. There is a
risk of an explosion.
Particularly avoid fire, open flames, creating
sparks and smoking. Ensure there is sufficient
ventilation while charging and jump-starting.
Do not lean over a battery.
Battery (vehicle)291
