2015 LEXUS RX450h flat tire

6804-3. Do-it-yourself maintenance
■
Tire inflation pressure check interval
You should check tire inflation pressure every two weeks, or at least once a month.
Do not forget to check the spare.■ Inspection and adjustment procedure
Ti r e v a l v e
Tire pressure gauge
Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the gauge graduations.
If the tire inflation pressure is not at the recommended level,
adjust the pressure.
If you add too much air, press the center of the valve to deflate.
After completing the tire inflation pressure measurement and
adjustment, apply soapy water to the valve and check for leak-
age.
Put the tire valve cap back on.STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6

6814-3. Do-it-yourself maintenance
4
Maintenance and care ■
Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following: ●
Reduced fuel efficiency●
Reduced driving comfort and tire life●
Reduced safety●
Damage to the drive train
If a tire needs frequent inflating, have it checked by your Lexus dealer.■
Instructions for checking tire pressure
When checking tire inflation pressure, observe the following: ●
Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been driven for
more than 1 mile or 1.5 km, you will get an accurate cold tire inflation pressure
reading.●
Always use a tire pressure gauge.
The appearance of the tire can be mislea ding. In addition, tire inflation pressure
that is even just a few pounds off can degrade ride and handling.●
Do not reduce tire inflation pressure after driving. It is normal for tire inflation
pressure to be higher after driving.●
Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is bal-
anced.

6824-3. Do-it-yourself maintenance
CAUTION■
Proper inflation is critical to save tire performance
Keep your tires properly inflated. Otherwise, the following conditions may occur
and result in an accident causing death or serious injury: ●
Excessive wear●
Uneven wear●
Poor handling●
Possibility of blowouts resulting from overheated tires●
Poor sealing of the tire bead●
Wheel deformation and/or tire separation●
A greater possibility of tire damage from road hazards
NOTICE■
When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
Without the valve caps, dirt or moisture co uld get into the valve and cause air leak-
age, which could result in an accident. If the caps are lost, replace them as soon as
possible.

6834-3. Do-it-yourself maintenance
4
Maintenance and care Wheels
■
When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning valves and
transmitters that allow the tire pressure warning system to provide advanced warn-
ing in the event of a loss in tire inflation pressure. Whenever wheels are replaced,
tire pressure warning valves and transmitters must be installed. (  P. 6 7 1 )If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause a loss of han-
dling control.
■ Wheel selection
When replacing wheels, care should be taken to ensure that they
are equivalent to those removed in load capaci ty, diameter, rim
width, and inset*.
Replacement wheels are available at your Lexus dealer. *: Conventionally referred to as “offset”.
Lexus does not recommen d using the following:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
■ Aluminum wheel precautions
● Use only Lexus wheel nuts and wrenches designed for use with
your aluminum wheels.
● When rotating, repairing or changi ng your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
● Be careful not to damage the aluminum wheels when using tire
chains.
● Use only Lexus genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.

When trouble arises
5
7235-1. Essential information
Emergency flashers............... 724
If your vehicle needs to be
towed ...................................... 725
If you think something is
wrong ...................................... 732 5-2. Steps to take in an
emergency
If a warning light turns on
or a warning buzzer
sounds... ................................. 733
If a warning message is
displayed................................. 743
If you have a flat tire................ 764
If the hybrid system will
not start ................................... 777
If the shift lever cannot be
shifted from P ........................ 779
If you lose your keys .............. 780
If the electronic key does
not operate properly........... 781
If the vehicle 12-volt
battery is discharged ......... 784
If your vehicle overheats ..... 788
If the vehicle becomes
stuck........................................ 793
If your vehicle has to
be stopped in an
emergency ............................ 795

7325-1. Essential information
If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■ Visible symptoms
● Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temper ature gauge needle continually points
higher than normal.
■ Audible symptoms
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
■ Operational symptoms
● Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking.
● Vehicle pulls heavily to one side when driving on a level road.
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor

5
When trouble arises
7375-2. Steps to take in an emergency
* 1
: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is not
fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).
(  P. 74 8 )
* 2
: Driver's and front passenger’s seat belt buzzer:
The driver’s and front passenger’s seat belt buzzer sounds to alert the driver and
front passenger that his or her seat belt is not fastened. The buzzer sounds inter-
mittently for 10 seconds after the vehicle reaches a speed of 12 mph (20 km/h).
Then, if the seat belt is still unfastened , the buzzer will sound in a different tone

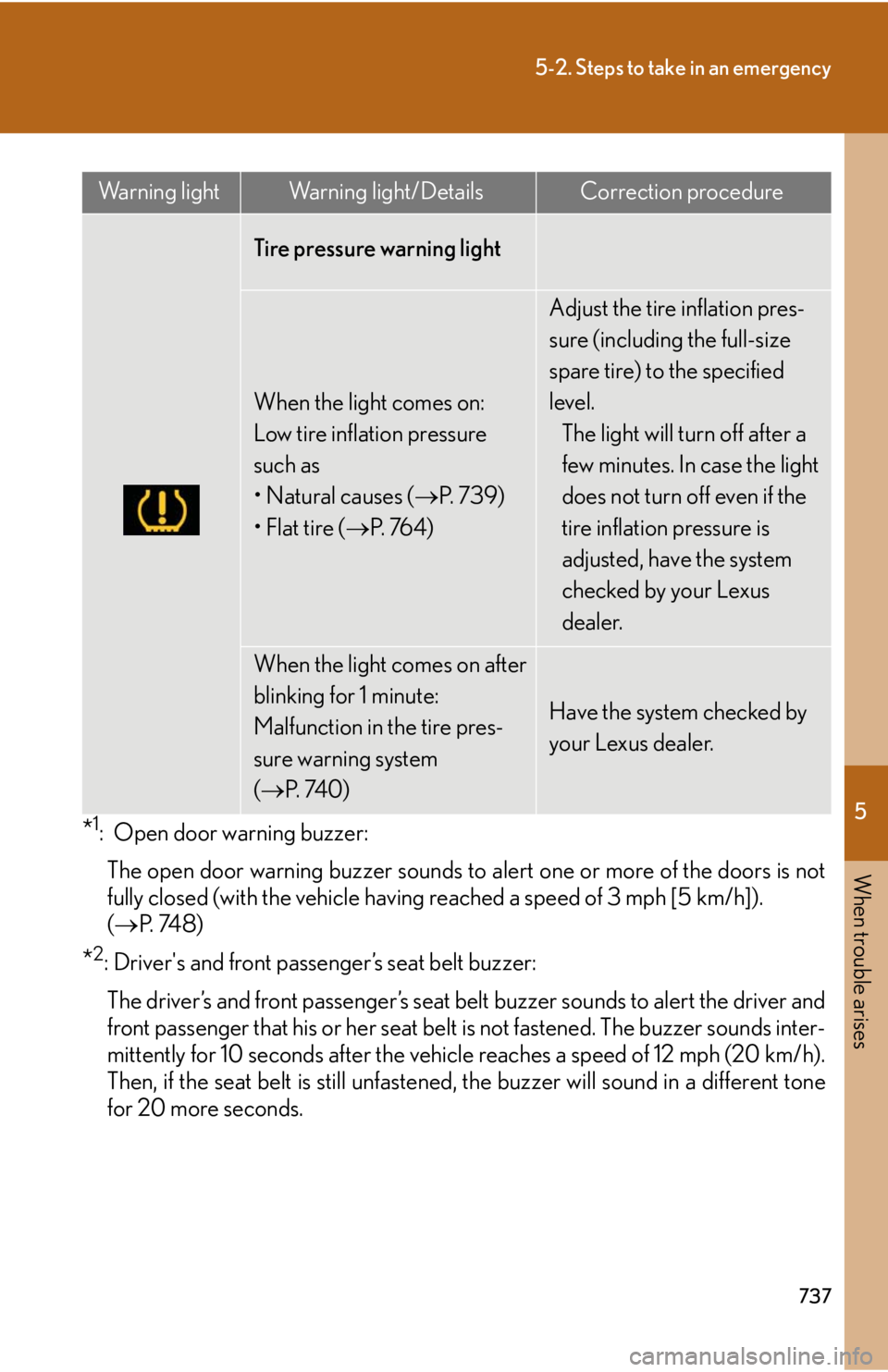

for 20 more seconds. Tire pressure warning light
When the light comes on:
Low tire inflation pressure
such as
• Natural causes (  P. 7 3 9 )
• Flat tire (  P. 76 4 ) Adjust the tire inflation pres-
sure (including the full-size
spare tire) to the specified
level.
The light will turn off after a
few minutes. In case the light
does not turn off even if the
tire inflation pressure is
adjusted, have the system
checked by your Lexus
dealer.
When the light comes on after
blinking for 1 minute:
Malfunction in the tire pres-
sure warning system
(  P. 74 0 ) Have the system checked by
your Lexus dealer.Warning light Warning light/Details Correction procedure

7385-2. Steps to take in an emergency
■
If the malfunction indicator lamp comes on while driving
First check the following: ●
Is the fuel tank empty?
If it is, fill the fuel tank immediately.●
Is the fuel tank cap loose?
If it is, tighten it securely.
The lamp will go off after several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.■
SRS warning light
This warning light system monitors the airb ag sensor assembly, front airbag sensors,
side and curtain shield airbag sensors, curtain shield and rear side airbag sensors,
door sensors, driver's seat position sensor, driver's seat belt buckle switch, front
passenger occupant classification system (ECU and sensors), “AIR BAG ON” indi-
cator light, “AIR BAG OFF” in dicator light, front pass enger's seat belt buckle
switch, seat belt pretensioner assemblies, inflators, interconnecting wiring and
power sources. (  P. 1 3 2 )■
Front passenger detection sensor, passen ger seat belt reminder and warning
buzzer ●
If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash and the warning buzzer to sound
even if a passenger is not sitting in the seat.●
If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.■
Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the warn-
ing buzzer may sound.
■
When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch will not turn off the tire pressure warning light.
