2015 LEXUS LS600H display

1142. Instrument cluster
LS600hL_U(OM50E41U)These images are examples only, and may vary slightly from actual conditions.
Remote Touch screenMulti-information display
When the vehicle is pow-
ered by the electric motor
(traction motor)
When the vehicle is pow-
ered by both the gasoline
engine and the electric
motor (traction motor)
When the vehicle is pow-
ered by the gasoline engine
When the vehicle is charg-
ing the hybrid battery (trac-
tion battery)
When there is no energy
flow
Hybrid battery (traction bat-
tery) status
LowFullLowFull

1162. Instrument cluster
LS600hL_U(OM50E41U)
■Trip information
If the “Energy Monitor” or “Past Record” screen is displayed, select
“Trip Information”.
Resetting the consumption
data
Fuel consumption in the past
15 minutes
Current fuel consumption
Regenerated energy in the
past 15 minutes
One symbol indicates 30 Wh. Up
to 5 symbols are shown.
Displays the average vehicle
speed since the hybrid system
was started.
Displays the elapsed time
since the hybrid system was
started.
Cruising range ( P. 117)
Average fuel consumption for the
past 15 minutes is divided by color
into past averages and averages
attained since the power switch
was last turned to ON mode. Use
the displayed average fuel con-
sumption as a reference.
The image is an example only, and
may vary slightly from actual condi-
tions.
1
2
3
4
5
6
7

1172. Instrument cluster
2
Instrument cluster
LS600hL_U(OM50E41U)

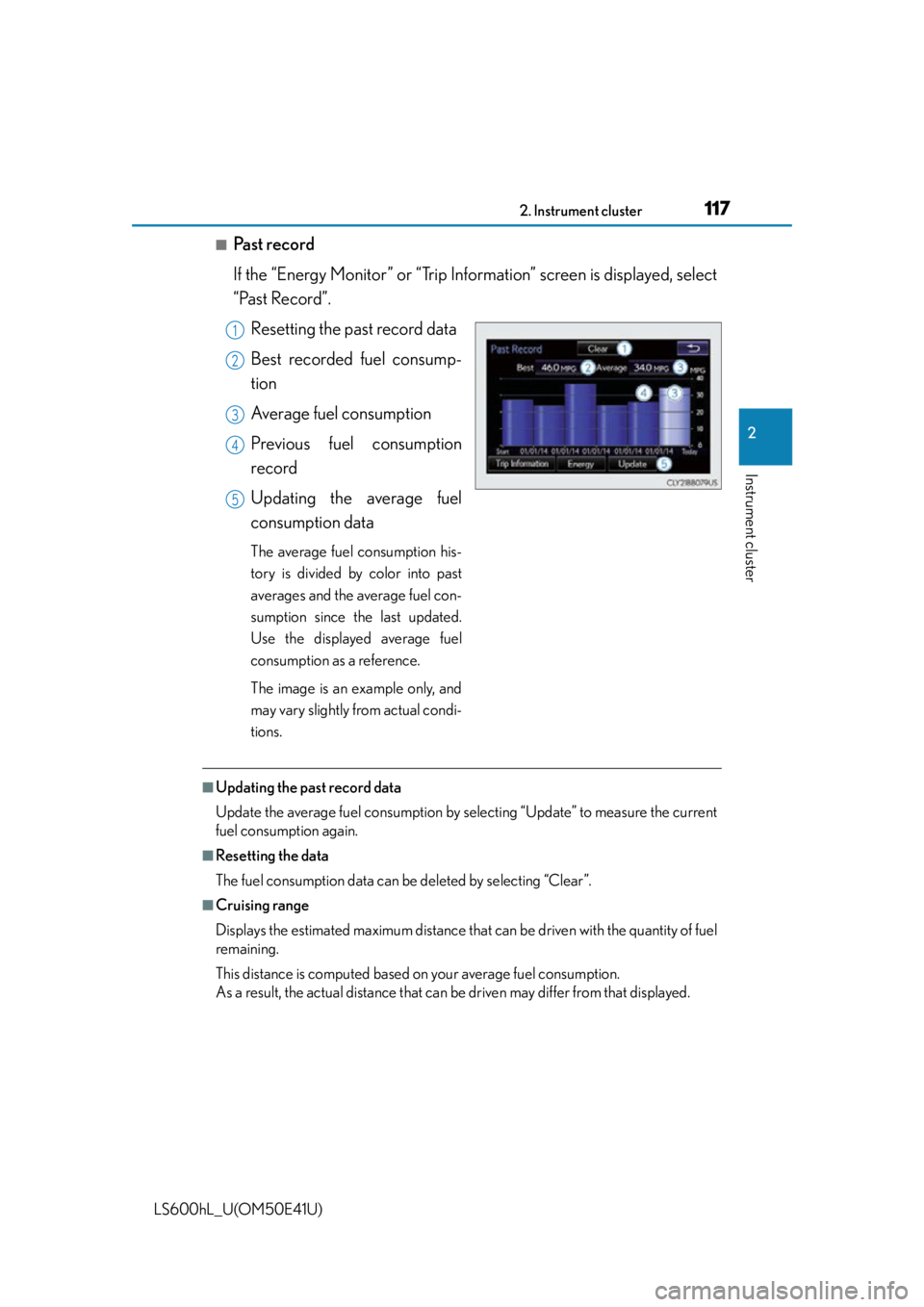

■Past record
If the “Energy Monitor” or “Trip Information” screen is displayed, select
“Past Record”.
Resetting the past record data
Best recorded fuel consump-
tion
Average fuel consumption
Previous fuel consumption
record
Updating the average fuel
consumption data
The average fuel consumption his-
tory is divided by color into past
averages and the average fuel con-
sumption since the last updated.
Use the displayed average fuel
consumption as a reference.
The image is an example only, and
may vary slightly from actual condi-
tions.
■Updating the past record data
Update the average fuel cons umption by selecting “Update” to measure the current
fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5

1182. Instrument cluster
LS600hL_U(OM50E41U)
■“Side Display”
Vehicle information can be displayed on the “Side Display”. (P. 3 3 3 )
Select or to select the desired screen.
The image is an example only, and may vary slightly from actual conditions.
●Energy monitor
Displays the hybrid system operation and
energy recovery states.
●Fuel consumption
Displays the average fuel consumption and
regenerated energy for the past 10 minutes
in 1 minute intervals, as well as the cruising
range.
●Trip information
Displays the cruising range, average fuel
consumption and the amount of time
elapsed since the hybrid system was
started.
●Past record
Displays the average fuel consumption and
highest fuel consumption.

1303-2. Opening, closing and locking the doors and trunk
LS600hL_U(OM50E41U)
■Alarms and warning indicators
A combination of exterior and interior alar ms as well as warnings displayed on the
multi-information display is used to prev ent theft of the vehicle and unforeseeable
accidents resulting from erroneous operat ion. Perform the appropriate correction
procedure described in the following table:
AlarmSituationCorrection procedure
Exterior alarm sounds
once for 2 seconds.
An attempt was made to
lock the doors using the
entry function while the
electronic key was still
inside the passenger
compartment.
Retrieve the electronic
key from the passenger
compartment and lock
the doors again.
The trunk was closed with
the electronic key inside
and all doors were
locked.Retrieve the electronic
key from the trunk and
close the trunk lid.
Exterior alarm sounds
once for 60 seconds.
An attempt was made to
exit the vehicle and lock
the doors while carrying
the electronic key without
first turning the power
switch off.
Turn the power switch off
and lock the doors again.
Exterior alarm sounds
once for 5 seconds.An attempt was made to
lock the vehicle while a
door was open.Close all of the doors and
lock the doors again.
Interior alarm pings con-
tinuously.
The power switch was
turned to ACCESSORY
mode while the driver’s
door was open (or the
driver’s door was opened
while the power switch
was in ACCESSORY
mode).
Turn the power switch off
and close the driver’s
door.
The power switch was
turned off while the
driver’s door was open.
Close the driver’s door.

1313-2. Opening, closing and locking the doors and trunk
3
Operation of each component
LS600hL_U(OM50E41U)
*1: A warning message will be shown on the multi-information display in the instru-
ment cluster.
*2: If the hybrid system does not start when the electronic key is inside the vehicle, the
electronic key battery may be depleted or there may be difficulties receiving the
signal from the key. ( P. 1 3 4 )
Interior alarm sounds
continuously.
*1
When the power switch is
in ON or ACCESSORY
mode, an attempt was
made to open the door
and exit the vehicle, and
the shift lever was not in P.
Shift the shift lever to P
and turn the power switch
off.
Interior and exterior
alarms sound continu-
ously.
*1
When the power switch is
in ON or ACCESSORY
mode, the driver's door
was closed after the key
was carried outside the
vehicle, and the shift lever
was not in P.
Shift the shift lever to P,
turn the power switch off
and close the driver's
door again.
Interior alarm pings
once.
*1
The electronic key has a
low battery.Replace the electronic
key battery.
An attempt was made to
start the hybrid system
without the electronic key
being present, or the
electronic key was not
functioning normally.
Start the hybrid system
with the electronic key
present.
*2
Interior alarm pings once
and exterior alarm
sounds 3 times.
*1
The driver's door was
closed after the key was
carried outside the vehi-
cle, and the power switch
was not turned off.
Turn the power switch off
and close the driver's
door again.
An occupant carried the
electronic key outside the
vehicle and closed the
door while the power
switch was not off.
Bring the electronic key
back into the vehicle.
AlarmSituationCorrection procedure

1323-2. Opening, closing and locking the doors and trunk
LS600hL_U(OM50E41U)

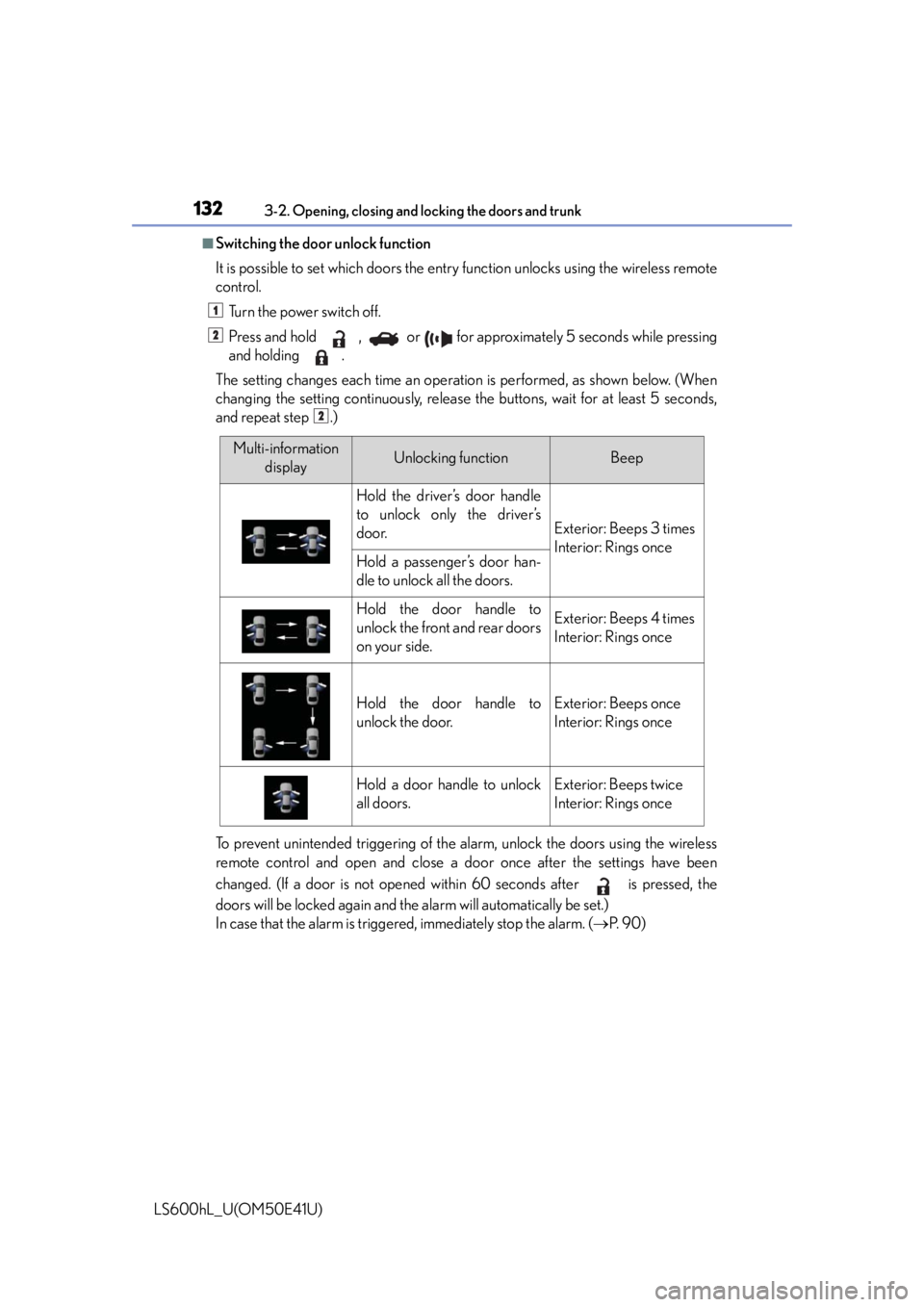

■Switching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless remote
control.
Turn the power switch off.
Press and hold , or for approximately 5 seconds while pressing
and holding .
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open and close a do or once after the settings have been
changed. (If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. ( P. 9 0 )
1
2
2
Multi-information
displayUnlocking functionBeep
Hold the driver’s door handle
to unlock only the driver’s
door.
Exterior: Beeps 3 times
Interior: Rings once
Hold a passenger’s door han-
dle to unlock all the doors.
Hold the door handle to
unlock the front and rear doors
on your side.Exterior: Beeps 4 times
Interior: Rings once
Hold the door handle to
unlock the door.Exterior: Beeps once
Interior: Rings once
Hold a door handle to unlock
all doors.Exterior: Beeps twice
Interior: Rings once

1343-2. Opening, closing and locking the doors and trunk
LS600hL_U(OM50E41U)
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the follow-
ing situations, the communication between the electronic key and the vehicle may be
affected, preventing the smar t access system with push-button start, wireless remote
control and immobilizer system from operating properly. (Ways of coping: P. 5 2 4 )
●When the electronic ke y battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display, air-
port or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wireless
communication device
●When the electronic key is in contact with, or is covered by the following metallic
objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When multiple electronic keys are in the vicinity
●When other wireless keys (that emit radio waves) are being used nearby
●When carrying the electronic key togeth er with the following devices that emit
radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or person al digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the rear
window
