2015 Lexus GS450h display

GS450h_OM_OM30F70U_(U)
2014-2. Driving procedures
4
Driving
■Switching to EV drive mode when the gasoline engine is cold
If the hybrid system is started while the gasoline engine is cold, the gasoline engine
will start automatically in order to warm up. In this case, you will become unable to
switch to EV drive mode.
■Automatic cancelation of EV drive mode
When driving in EV drive mode, the gasoline engine may automatically restart in the
following situations. When EV drive mode is canceled, a buzzer will sound and the
EV drive mode indicator will flash and go off.
●The hybrid battery (traction battery) becomes low.
The remaining battery level indicated in the “Energy Monitor” display is low.
( → P. 1 1 2 )
●Vehicle speed becomes more than about 25 mph (40 km/h).
●The accelerator pedal is depressed firmly or the vehicle is on a hill etc.
When it is possible to inform the driver of automatic cancelation in advance, a prior
notice screen will appear on the multi-information display.
■Possible driving distance when driving in EV drive mode
EV drive mode’s possible driving distance ranges from a few hundred meters to
approximately 0.6 mile (1 km). Driving is possible at speeds of less than approxi-
mately 25 mph (40 km/h). However, depending on vehicle conditions, there are sit-
uations when EV drive mode cannot be used.
(The distance that is possible depends on the hybrid battery [traction battery] level
and driving conditions.)
■Fuel economy
Your Lexus is designed to achieve the best possible fuel economy during normal
driving (using the gasoline engine and electric motor [traction motor]). Driving in EV
drive mode more than necessary may lower fuel economy. To prevent gasoline engine warm up in order
to reduce noises, start the hybrid system with-
out starting the gasoline engine, pressing the
power switch with fully depressing the brake
pedal and pressing the EV drive mode switch.
GS450h_OM_OM30F70U_(U).book Page 201 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
2054-2. Driving procedures
4
Driving

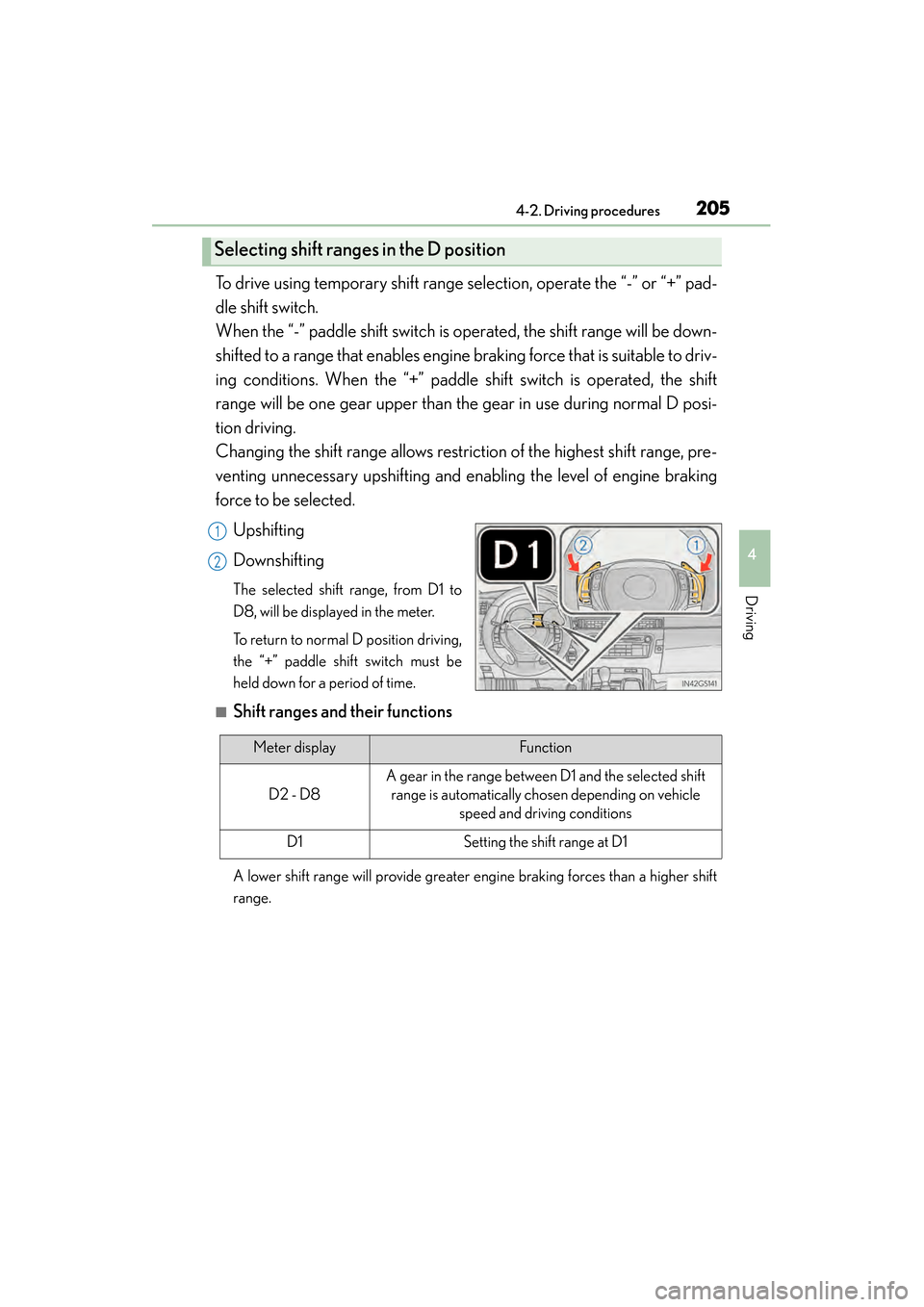

To drive using temporary shift range selection, operate the “-” or “+” pad-
dle shift switch.
When the “-” paddle shift switch is operated, the shift range will be down-
shifted to a range that enables engine braking force that is suitable to driv-
ing conditions. When the “+” paddle shift switch is operated, the shift
range will be one gear upper than the gear in use during normal D posi-
tion driving.
Changing the shift range allows restriction of the highest shift range, pre-
venting unnecessary upshifting and enabling the level of engine braking
force to be selected.
Upshifting
Downshifting
The selected shift range, from D1 to
D8, will be displayed in the meter.
To return to normal D position driving,
the “+” paddle shift switch must be
held down for a period of time.
■Shift ranges and their functions
A lower shift range will provide greater engine braking forces than a higher shift
range.
Selecting shift ranges in the D position
1
2
Meter displayFunction
D2 - D8
A gear in the range between D1 and the selected shift range is automatically chosen depending on vehicle speed and driving conditions
D1Setting the shift range at D1
GS450h_OM_OM30F70U_(U).book Page 205 Monday, January 19, 2015 9:34 AM

206
GS450h_OM_OM30F70U_(U)
4-2. Driving procedures
To enter S mode, shift the shift lever to S. Shift ranges can be selected by
operating the shift lever or paddle shift switches, allowing you to drive in
the shift range of your choosing.Upshifting
Downshifting
The selected shift range, from S1 to
S8, will be displayed in the meter.
The initial shift range in S mode is
automatically set to between S2 and
S6 according to vehicle speed.
■Shift ranges and their functions
●You can choose from 8 levels of accelerating force and engine brak-
ing force.
●A lower shift range will provide greater accelerating force and
engine braking force than a higher shift range, and the engine revo-
lutions will also increase.
●If you accelerate while in ranges 1 to 7, the shift range may automati-
cally range up in accordance with the vehicle’s speed.
Selecting shift ranges in the S position
1
2
GS450h_OM_OM30F70U_(U).book Page 206 Monday, January 19, 2015 9:34 AM

214
GS450h_OM_OM30F70U_(U)
4-2. Driving procedures
Brake Hold
Turns the brake hold system on
The brake hold standby indicator
(green) comes on. While the system is
holding the brake, the brake hold
operated indicator (yellow) comes on.
■Brake hold system operating conditions
The brake hold system cannot be turned on in the following conditions:
●The trunk or hood is not closed.
●The driver’s door is not closed.
●The driver is not wearing the seat belt.
If any of the conditions above are detected when the brake hold system is enabled,
the system will turn off and the brake hold standby indicator light will go off. In addi-
tion, if any of the conditions are detected while the system is holding the brake, a
warning buzzer will sound and a message will be shown on the multi-information dis-
play. The parking brake will then be set automatically.
■Brake hold function
●If the brake pedal is left released for a period of about 3 minutes after the system
has started holding the brake, the parking brake will be set automatically. In this
case, a warning buzzer sounds and a message is shown on the multi-information
display.
●To turn the system off while the system is holding the brake, firmly depress the
brake pedal and press the button again.
●The brake hold function may not hold the vehicle when the vehicle is on a steep
incline. In this situation, it may be necessary for the driver to apply the brakes. The
multi-information display will inform the driver of this situation.
The brake hold system keeps the brak e applied when the shift lever is in
D, S or N with the system on and the brake pedal has been depressed to
stop the vehicle. The system releases the brake when the accelerator
pedal is depressed with the shift lever in D or S to allow smooth start off.
GS450h_OM_OM30F70U_(U).book Page 214 Monday, January 19, 2015 9:34 AM

239
GS450h_OM_OM30F70U_(U)4-5. Using the driving support systems
4
Driving
Dynamic radar cruise control∗
Dynamic radar cruise control supplements conventional cruise control
with a vehicle-to-vehicle distance control. In vehicle-to-vehicle distance
control mode, the vehicle automatically accelerates or decelerates in
order to maintain a set following distance from vehicles ahead. Vehicle-to-vehicle distance but-
ton
Display
Set speed
Indicators
Cruise control switch
∗
: If equipped
Summary of functions
1
2
3
4
5
GS450h_OM_OM30F70U_(U).book Page 239 Monday, January 19, 2015 9:34 AM

240
GS450h_OM_OM30F70U_(U)
4-5. Using the driving support systems
Press the “ON/OFF” button to
activate the cruise control.
Radar cruise control indicator will
come on.
Press the button again to deactivate
the cruise control.
Accelerate or decelerate the
vehicle to the desired speed, and
push the lever down to set the
speed.
“SET” indicator will be displayed.
The vehicle speed at the moment the
lever is released becomes the set
speed.
Setting the vehicle speed (vehicle-to-vehicle distance control
mode)
1
2
GS450h_OM_OM30F70U_(U).book Page 240 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
2414-5. Using the driving support systems
4
Driving
To change the set speed, operate the lever until the desired set speed is
displayed.Increases the speed
Decreases the speed
Fine adjustment: Momentarily move
the lever in the desired direction.
Large adjustment: Hold the lever in
the desired direction.
In the vehicle-to-vehicle distance control mode, the set speed will be increased or
decreased as follows:• When the set speed is shown in “MPH”
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the lever is
operated
Large adjustment: By approximately 5 mph (8 km/h) for each 0.75 seconds
the lever is held
• When the set speed is shown in “km/h”
Fine adjustment: By approximately 0.6 mph (1 km/h) each time the lever is
operated
Large adjustment: By approximately 3.1 mph (5 km/h) for each 0.75 seconds
the lever is held
In the constant speed control mode ( →P. 246), the set speed will be increased or
decreased as follows:
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the lever is oper-
ated
Large adjustment: The set speed can be increased or decreased continually until
the lever is released.
Adjusting the set speed
1
2
GS450h_OM_OM30F70U_(U).book Page 241 Monday, January 19, 2015 9:34 AM

242
GS450h_OM_OM30F70U_(U)
4-5. Using the driving support systems
Pressing the button changes the
vehicle-to-vehicle distance as fol-
lows:Long
Medium
Short
The vehicle-to-vehicle distance is set
automatically to long mode when the
power switch is turned to ON mode.
If a vehicle is running ahead of you, the
preceding vehicle mark will also be
displayed.
Select a distance from the table below. Note that the distances shown cor-
respond to a vehicle speed of 50 mph (80 km/h). Vehicle-to-vehicle dis-
tance increases/decreases in accordance with vehicle speed.
Changing the vehicle-to-vehicle distance
Preceding
vehicle mark
1
2
3
Vehicle-to-vehicle distance settings
Distance optionsVehicle-to-vehicle distance
LongApproximately 160 ft. (50 m)
MediumApproximately 130 ft. (40 m)
ShortApproximately 100 ft. (30 m)
GS450h_OM_OM30F70U_(U).book Page 242 Monday, January 19, 2015 9:34 AM
