2. Instrument cluster
■“HUD” button
Pressing the switch turns the
head-up display on/off and
changes the vehicle speed dis-
play units as follows:
XU.S.A.
OFF → ON (MPH) →
ON (km/h) → OFF
XCanada
OFF → ON (km/h) →
ON (MPH) → OFF
■“DISP” button
Pressing the button changes the
display items (except vehicle
speed).
Off
Hybrid System Indicator
Tachometer
Switching the head-up display
1
2
3
GS450h_OM_OM30F70U_(U).book Page 106 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
1072. Instrument cluster
2
Instrument cluster
■Adjusting the display positionHigher
Lower
■Setting the brightness
The brightness of the display is automatically adjusted in accordance
with the brightness of the surrounding environment. However, the
brightness can also be manu ally adjusted in 9 stages.
Brighter
Darker
Making the display easier to see
1
2
1
2
GS450h_OM_OM30F70U_(U).book Page 107 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
1092. Instrument cluster
2
Instrument cluster
When the vehicle approaches an
intersection, the direction the vehi-
cle should go is guided by the arrow.
When the vehicle approaches an
intersection, the route guidance will
start and the distance* to the inter-
section will also be displayed.*
: The distance decreases in increments of 164 ft. (50 m) and the distance indi-
cation will disappear when the vehicle
passes through the intersection.
The audio display can be shown or hidden.
Press and hold the “DISP” button
until the screen changes.
Customization can be performed
when the head-up display is on and
the vehicle is traveling at less than
5 mph (8 km/h).
Press the “DISP” button to switch
between on and off.
On and off will be switched between
each time the button is pressed.
If the button is left alone without being
operated for a short time, setting will
be finished automatically.
Route guidance display (vehicles with navigation system)
Display customization
1
2
GS450h_OM_OM30F70U_(U).book Page 109 Monday, January 19, 2015 9:34 AM

110
GS450h_OM_OM30F70U_(U)
2. Instrument cluster
■Head-up display
●The head-up display may seem dark and hard to see when viewed through sun-
glasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
●When the head-up display is turned off, it will remain off even if the power switch is
turned to ON mode after the power switch has been turned off.
●The startup image will be displayed on the head-up display after the power switch
has been turned to ON mode while the head-up display switch is set to on.
■When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.
CAUTION
■Before using the head-up display
Check that the position and brightness of the head-up display image does not
interfere with safe driving. Incorrect adjustment of the image’s position or bright-
ness may obstruct the driver’s view and lead to an accident, resulting in death or
serious injury.
NOTICE
■To prevent damage to components
●Do not place any drinks near the head-up
display projector. If the projector gets wet,
electrical malfunctions may result.
●Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up display
indications.
●Do not touch the inside of the head-up dis-
play projector or thrust sharp edges or the
like into the projector.
Doing so could cause mechanical malfunc-
tions.
GS450h_OM_OM30F70U_(U).book Page 110 Monday, January 19, 2015 9:34 AM

111
GS450h_OM_OM30F70U_(U)2. Instrument cluster
2
Instrument cluster

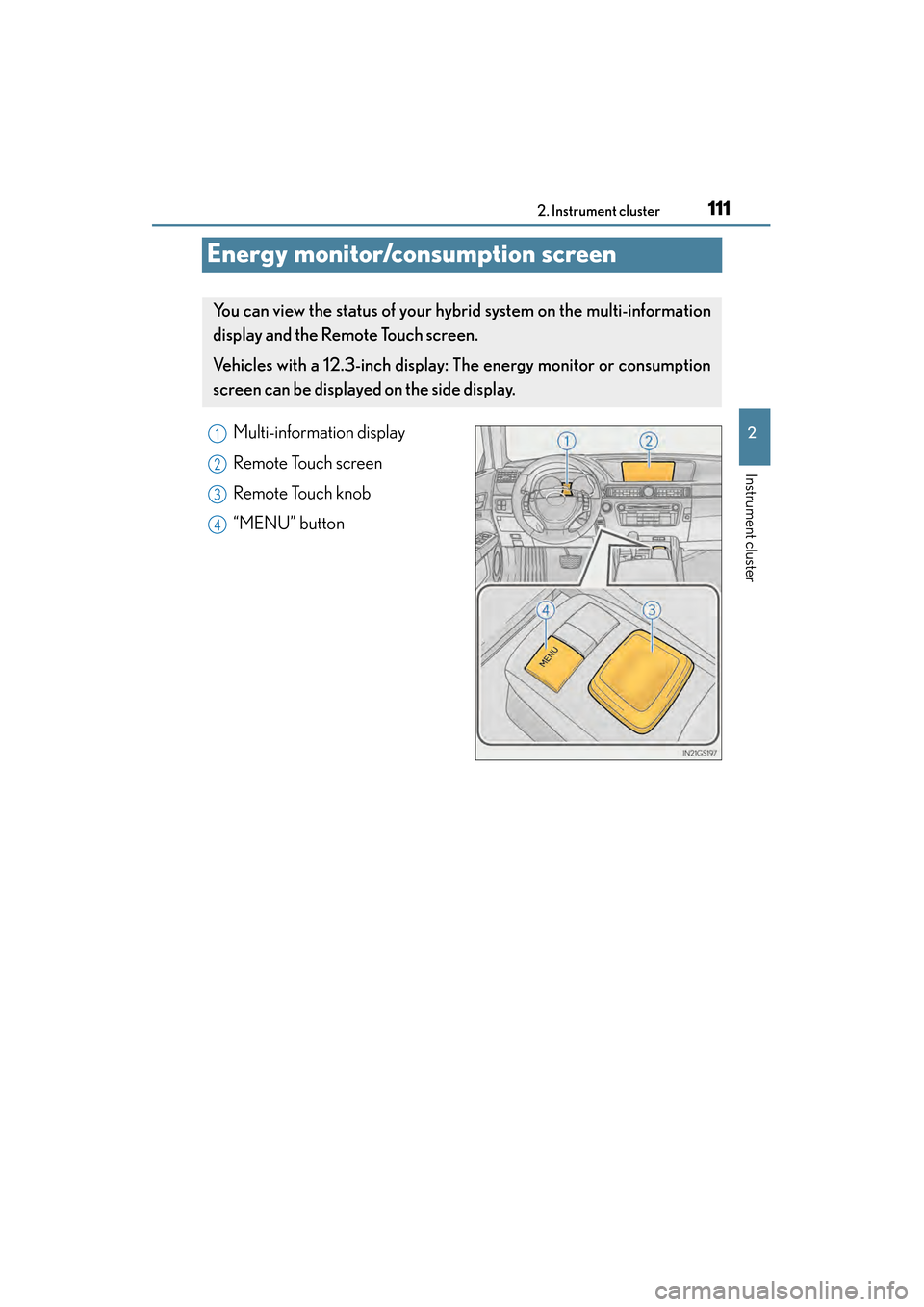

Energy monitor/consumption screen
Multi-information display
Remote Touch screen
Remote Touch knob
“MENU” button
You can view the status of your hy brid system on the multi-information
display and the Remote Touch screen.
Vehicles with a 12.3-inch display: The energy monitor or consumption
screen can be displayed on the side display.
1
2
3
4
GS450h_OM_OM30F70U_(U).book Page 111 Monday, January 19, 2015 9:34 AM

112
GS450h_OM_OM30F70U_(U)
2. Instrument cluster
■Remote Touch screen
Press the “MENU” button on the Remote Touch, then select on
the “Menu” screen, and then select “Fuel Consumption”.
If the “Trip Information” or “Past Record” screen is displayed, select “Energy”.
■Multi-information display
Press the “DISP” button on the
steering wheel several times to
select the energy monitor display.
Energy monitor
GS450h_OM_OM30F70U_(U).book Page 112 Monday, January 19, 2015 9:34 AM

GS450h_OM_OM30F70U_(U)
1132. Instrument cluster
2
Instrument cluster
These images are examples only, and may vary slightly from actual conditions.
Remote Touch screenMulti-information display
When the vehicle is pow-
ered by the electric motor
(traction motor)
When the vehicle is pow-
ered by both the gasoline
engine and the electric
motor (traction motor)
When the vehicle is pow-
ered by the gasoline engine
When the vehicle is charg-
ing the hybrid battery (trac-
tion battery)
When there is no energy
flow
Hybrid battery (traction bat-
tery) status
LowFullLowFull
GS450h_OM_OM30F70U_(U).book Page 113 Monday, January 19, 2015 9:34 AM

114
GS450h_OM_OM30F70U_(U)
2. Instrument cluster
Press the “MENU” button on the Remote Touch, then select on the
“Menu” screen, and then select “Fuel Consumption”.
■Trip information
If the “Energy Monitor” or “Past Record” screen is displayed, select
“Trip Information”.Resetting the consumption
data
Fuel consumption in the past
15 minutes
Current fuel consumption
Regenerated energy in the
past 15 minutes
One symbol indicates 50 Wh. Up to 5 symbols are shown.
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range ( →P. 115)
Average fuel consumption for the past 15 minutes is divided by color into past
averages and averages attained since the power switch was last turned to ON
mode. Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.
Consumption
1
2
3
4
5
6
7
