SCHEDULED MAINTENANCE LOG
Scheduled Maintenance Log
150 Months or 125,000 Miles
❑ Inspect and adjust all fluid levels
❑ Reset maintenance reminder light
❑ Rotate tires1
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
Note: If 0W-20 oil was not used at last oil
change, or if you drive primarily under certain
special operating conditions, you should also
replace the engine oil with 0W-20 oil and
replace the oil filter. See page 44 for conditions
that apply. Some conditions require additional
maintenance. See below.
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
156 Months or 130,000 Miles
❑ Replace engine oil with 0W-20 oil;
replace oil filter
❑ Replace cabin air filter
❑ Inspect engine coolant (see page 69)
❑ Reset maintenance reminder light
❑ Rotate tires1
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
1 Applies to models with same size front and rear tires and wheels.
Date: _______ Mileage: ________Date: _______ Mileage: ________
MAINTENANCE

65
SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log
162 Months or 135,000 Miles
❑ Inspect and adjust all fluid levels
❑ Replace Smart Key battery
❑ Reset maintenance reminder light
❑ Rotate tires1
❑ Visually inspect brake pads, calipers and rotors
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
❑ Inspect the following:
__ Axle shaft boots
__ Ball joints and dust covers
__ Body
__ Brake lines and hoses
__ Drive belt
__ Exhaust pipes and mountings
Note: If 0W-20 oil was not used at last oil change, or if you drive primarily under certain special operating
conditions, you should also replace the engine oil with 0W-20 oil and replace the oil filter. See page 44 for
conditions that apply. Some conditions require additional maintenance. See below.
If you drive primarily under this special operating condition, perform these
additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect engine air filter
❑ Tighten nuts and bolts on chassis __ Front differential oil (AWD)
__ Rack-and-pinion assembly
__ Rear differential oil
__ Steering linkage and boots
__ Wiper blades
1 Applies to models with same size front and rear tires and wheels.
Date: __________________________ Mileage: __________________________

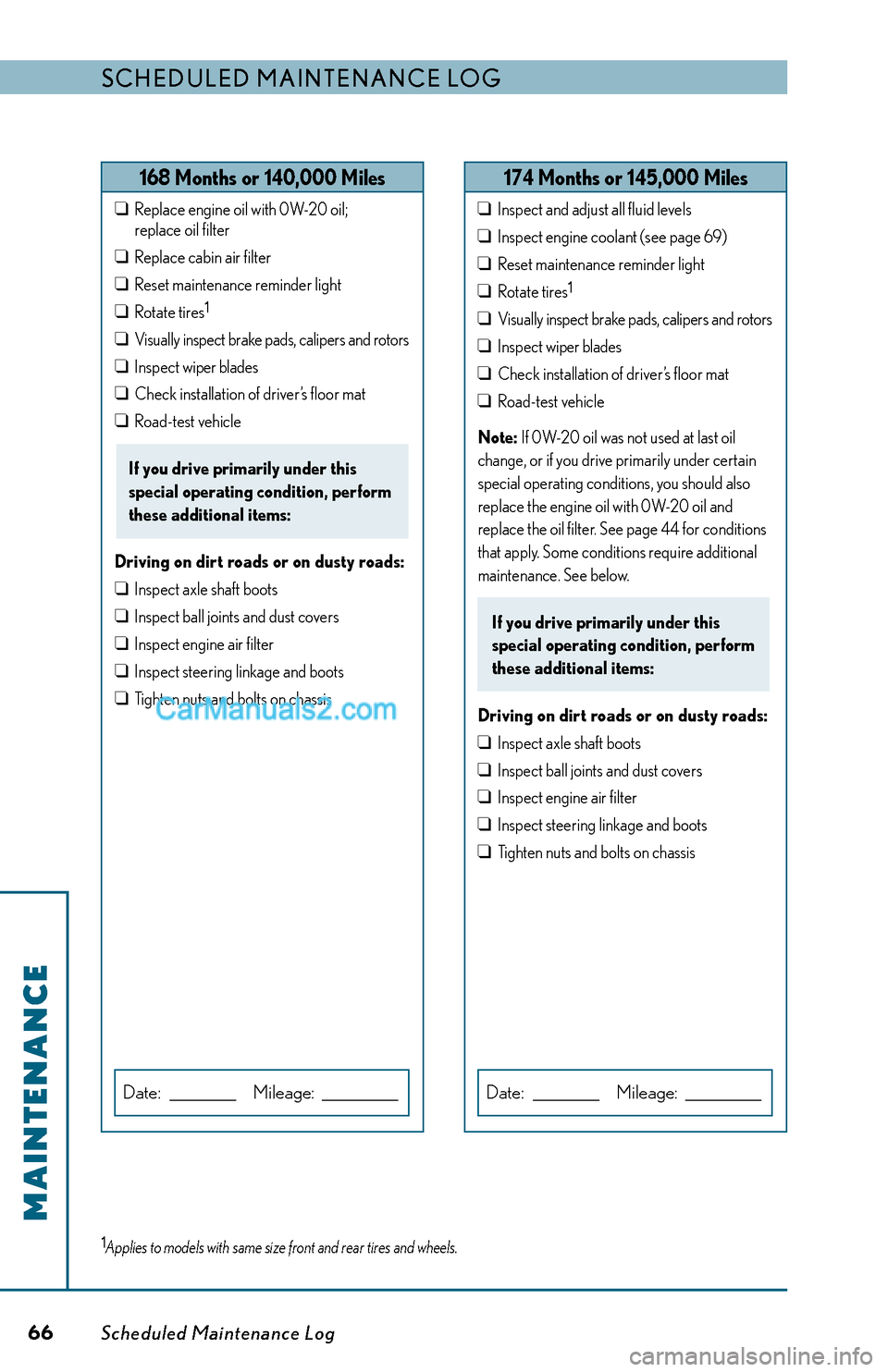

66
SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log
168 Months or 140,000 Miles
❑ Replace engine oil with 0W-20 oil;
replace oil filter
❑ Replace cabin air filter
❑ Reset maintenance reminder light
❑ Rotate tires1
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
174 Months or 145,000 Miles
❑ Inspect and adjust all fluid levels
❑ Inspect engine coolant (see page 69)
❑ Reset maintenance reminder light
❑ Rotate tires1
❑ Visually inspect brake pads, calipers and rotors
❑ Inspect wiper blades
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
Note: If 0W-20 oil was not used at last oil
change, or if you drive primarily under certain
special operating conditions, you should also
replace the engine oil with 0W-20 oil and
replace the oil filter. See page 44 for conditions
that apply. Some conditions require additional
maintenance. See below.
If you drive primarily under this
special operating condition, perform
these additional items:
Driving on dirt roads or on dusty roads:
❑ Inspect axle shaft boots
❑ Inspect ball joints and dust covers
❑ Inspect engine air filter
❑ Inspect steering linkage and boots
❑ Tighten nuts and bolts on chassis
1 Applies to models with same size front and rear tires and wheels.
Date: _______ Mileage: ________Date: _______ Mileage: ________

67
SCHEDULED MAINTENANCE LOG
MAINTENANCE
Scheduled Maintenance Log
180 Months or 150,000 Miles
❑ Replace engine oil with 0W-20 oil; replace oil filter
❑ Replace cabin air filter
❑ Replace brake fluid
❑ Replace engine air filter
❑ Replace engine coolant (see page 69)
❑ Replace Smart Key battery
❑ Inspect the following:
__ Axle shaft boots
__ Ball joints and dust covers
__ Body
__ Brake lines and hoses
__ Brake rotor thickness and runout
__ Drive belt
__ Exhaust pipes and mountings
__ Front differential oil (AWD)
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
If you drive primarily under this special operating condition, perform these
additional items:
Driving on dirt roads or on dusty roads:
❑ Tighten nuts and bolts on chassis __ Fuel tank cap gasket
__ Rack-and-pinion assembly
__ Rear differential oil
__ Steering linkage and boots
__ Transfer case for signs of leakage (AWD)
__ Transmission for signs of leakage
__ Wiper blades
❑ Reset maintenance reminder light
❑ Rotate tires1
❑ Visually inspect brake pads, calipers and rotors
❑ Check installation of driver’s floor mat
❑ Road-test vehicle
1 Applies to models with same size front and rear tires and wheels.
Date: __________________________ Mileage: __________________________

68
EXPLANATION OF MAINTENANCE ITEMS
MAINTENANCE
Scheduled Maintenance Log
The following descriptions are provided
to give you a better understanding of
the maintenance services that should
be performed on your vehicle. The
scheduled maintenance log indicates
at which time/mileage intervals each
service should be performed. Please
note that many maintenance services
should be performed only by a
qualified technician.
Axle Shaft Boots
Check the axle shaft boots and
clamps for cracks, deterioration
and damage. Replace any damaged
parts and, if necessary, repack
the grease. A qualified technician
should perform these operations.
Ball Joints and Dust Covers
Check the suspension and steering
linkage ball joints for looseness
and damage. Check all dust covers
for deterioration and damage. A
qualified technician should perform
these inspections.
Body Inspection
Visually check for corrosion, scratches
and other damage. Check outer
body panels, inner panels of the
hood and doors, and underneath the
vehicle. Apply touch-up paint to any
chips and scratches or have them
repaired by a qualified technician.
Brake Fluid
Replace using fluid type specified in
your Owner’s Manual. A qualified tech-
nician should perform this operation.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts.
A qualified technician should perform
these operations.
Brake Pads, Calipers and Rotors
Check brake pads and rotors for
excessive wear; check brake rotors for
runout. Check brake calipers for fluid
leakage. Some models are equipped
with directional rotors. When servicing
these rotors, reinstall at same location.
A qualified technician should perform
these operations.
For further information on
maintenance services that you
can perform yourself, see the
maintenance sections of your
Owner’s Manual.

71
EXPLANATION OF MAINTENANCE ITEMS
MAINTENANCE
Scheduled Maintenance Log
Spark Plugs
Replace at specified interval. Install
new plugs of the same type as origi-
nally equipped. A qualified technician
should perform this operation.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for deterio-
ration, cracks and damage. Replace any
damaged parts. A qualified technician
should perform these operations.
Timing Chain
The timing chain requires no
periodic inspection.
Tire Rotation
See your Owner’s Manual for tire
rotation requirements. Check tire
pressure and check tires for damage
and uneven wear. If the vehicle is
equipped with a spare tire, check the
condition and pressure of the spare.
Tire-Pressure Warning Sensors
A tire-pressure sensor is mounted on
each full-size wheel. These sensors
do not require periodic maintenance.
When a sensor’s long-life lithium battery
becomes discharged, the battery should
be replaced by a qualified technician
following procedures in Lexus service
and repair publications.
Transmission/Transfer Case
Inspect transmission/transfer case for
signs of leakage. If you discover any
leakage, have it repaired immediately
by a qualified technician.
Note: The trans mission/transfer case
and transmission fluid are a completely
sealed unit. Therefore, periodic checks
and replacement of the transmission
fluid are not required, and there is no
dipstick on the transmission. Any repairs
that require adding or replacing fluid
should be performed by a qualified
technician following procedures in
Lexus service and repair publications.
Wiper Blades
The wiper blades should not show
any signs of cracking, splitting, wear,
contamination or deformation. The
wiper blades should clear the wind-
shield without streaking or skipping.

INDEX
Axle shaft boots ....................................................... 48–67,* 6 8
Ball joints and dust covers ............................................. 48–67,* 6 8
Body inspection ....................................................... 48–67,* 6 8
Body repairs......................................................................7
Brakes
Fluid...................................................................42, 68
Lines and hoses .................................................. 48–67,* 6 8
Pads, calipers and rotors ......................................... 48–67,* 6 8
Cabin air filter ......................................................... 48–67,* 69
Complimentary services
Maintenance services ..............................................4, 45–46
Other services ...........................................................5–6
Differential oil ......................................................... 48–67,* 69
Dispute resolution .........................................................9–13, 21
Drive belt.............................................................. 48–67,* 69
Driver’s floor mat...................................................... 48–67,* 69
Emergency repairs ......................................................... 37–38
Engine air filter ........................................................ 48–67,* 69
Engine coolant .................................................... 42, 48–67,* 69
Engine oil and oil filter ............................................. 42, 48–67,* 70
Exhaust pipes and mountings.......................................... 48–67,* 70
Fuel lines and connections, fuel tank band and
fuel tank vapor vent system hoses ..................................... 48–67,* 70
Fuel tank cap gasket................................................... 48–67,* 70
Inspections, general maintenance ..........................................42–43
*See scheduled maintenance log for maintenance interval.
73

75
INDEX
Steering linkage and boots ............................................. 48–67,* 7 1
Timing chain..................................................................... 71
Tire inspections................................................................. 42
Tire rotation ............................................................ 48–67,* 7 1
Tire-pressure warning sensors................................................... 71
Tires, warranty coverage ....................................................... 34
Transfer case ........................................................... 48–67,* 7 1
Transmission............................................................ 48–67,* 7 1
Travel protection .................................................................5
Warranty coverages
Basic .......................................................................18
California Emission Control ...........................................28–33
Corrosion perforation......................................................19
Coverages at a glance .....................................................15
Federal Emission Control.............................................. 22–27
General provisions ......................................................16–17
Powertrain..................................................................18
Restraint systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Tires ....................................................................... 34
Towing .....................................................................19
What is not covered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17, 19–21, 23, 30
Wiper blades........................................................... 48–67,* 7 1
*See scheduled maintenance log for maintenance interval.
