2015 Lexus GS350 Warranty and Services Guide

71
EXPLANATION OF MAINTENANCE ITEMS
MAINTENANCE
Scheduled Maintenance Log
Spark Plugs
Replace at specified interval. Install
new plugs of the same type as origi-
nally equipped. A qualified technician
should perform this operation.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for deterio-
ration, cracks and damage. Replace any
damaged parts. A qualified technician
should perform these operations.
Timing Chain
The timing chain requires no
periodic inspection.
Tire Rotation
See your Owner’s Manual for tire
rotation requirements. Check tire
pressure and check tires for damage
and uneven wear. If the vehicle is
equipped with a spare tire, check the
condition and pressure of the spare.
Tire-Pressure Warning Sensors
A tire-pressure sensor is mounted on
each full-size wheel. These sensors
do not require periodic maintenance.
When a sensor’s long-life lithium battery
becomes discharged, the battery should
be replaced by a qualified technician
following procedures in Lexus service
and repair publications.
Transmission/Transfer Case
Inspect transmission/transfer case for
signs of leakage. If you discover any
leakage, have it repaired immediately
by a qualified technician.
Note: The trans mission/transfer case
and transmission fluid are a completely
sealed unit. Therefore, periodic checks
and replacement of the transmission
fluid are not required, and there is no
dipstick on the transmission. Any repairs
that require adding or replacing fluid
should be performed by a qualified
technician following procedures in
Lexus service and repair publications.
Wiper Blades
The wiper blades should not show
any signs of cracking, splitting, wear,
contamination or deformation. The
wiper blades should clear the wind-
shield without streaking or skipping.

72
Model
In-service date
Mileage at delivery
Selling dealership
Selling dealership phone number
Vehicle Identification Number
VEHICLE IDENTIFICATION
MAINTENANCE
Scheduled Maintenance Log

INDEX
Axle shaft boots ....................................................... 48–67,* 6 8
Ball joints and dust covers ............................................. 48–67,* 6 8
Body inspection ....................................................... 48–67,* 6 8
Body repairs......................................................................7
Brakes
Fluid...................................................................42, 68
Lines and hoses .................................................. 48–67,* 6 8
Pads, calipers and rotors ......................................... 48–67,* 6 8
Cabin air filter ......................................................... 48–67,* 69
Complimentary services
Maintenance services ..............................................4, 45–46
Other services ...........................................................5–6
Differential oil ......................................................... 48–67,* 69
Dispute resolution .........................................................9–13, 21
Drive belt.............................................................. 48–67,* 69
Driver’s floor mat...................................................... 48–67,* 69
Emergency repairs ......................................................... 37–38
Engine air filter ........................................................ 48–67,* 69
Engine coolant .................................................... 42, 48–67,* 69
Engine oil and oil filter ............................................. 42, 48–67,* 70
Exhaust pipes and mountings.......................................... 48–67,* 70
Fuel lines and connections, fuel tank band and
fuel tank vapor vent system hoses ..................................... 48–67,* 70
Fuel tank cap gasket................................................... 48–67,* 70
Inspections, general maintenance ..........................................42–43
*See scheduled maintenance log for maintenance interval.
73

74
INDEX
Keys..............................................................................8
Lexus Personalized Settings................................................1, 4, 45
Loaner vehicle....................................................................5
Maintenance
As related to warranty coverage ..........................25, 29, 31, 35, 40
Complimentary first and second services ..........................4, 45–46
Explanation of maintenance items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68–71
General maintenance and inspections ................................42–43
Importance of maintenance ............................................... 39
Maintenance intervals..................................................... 44
Scheduled maintenance log...........................................48–67
Where to obtain maintenance.......................inside front cover, 35, 41
Nuts and bolts on chassis.............................................. 48–67,* 70
Oil change ............................................................ 48–67,* 70
Owner responsibilities .........................................25, 29, 31, 35–38
Parts replacement................................................7, 16, 25, 32, 36
Pre-delivery service...............................................................1
Quality control ...................................................................7
Rack-and-pinion assembly ............................................ 48–67,* 70
Road test .............................................................. 48–67,* 70
Roadside assistance ............................................................1, 6
Service agreements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Service history ...................................................................7
Smog-check tests .......................................................... 26, 32
Spark plugs..............................................................55, 63, 71
*See scheduled maintenance log for maintenance interval.

75
INDEX
Steering linkage and boots ............................................. 48–67,* 7 1
Timing chain..................................................................... 71
Tire inspections................................................................. 42
Tire rotation ............................................................ 48–67,* 7 1
Tire-pressure warning sensors................................................... 71
Tires, warranty coverage ....................................................... 34
Transfer case ........................................................... 48–67,* 7 1
Transmission............................................................ 48–67,* 7 1
Travel protection .................................................................5
Warranty coverages
Basic .......................................................................18
California Emission Control ...........................................28–33
Corrosion perforation......................................................19
Coverages at a glance .....................................................15
Federal Emission Control.............................................. 22–27
General provisions ......................................................16–17
Powertrain..................................................................18
Restraint systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Tires ....................................................................... 34
Towing .....................................................................19
What is not covered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17, 19–21, 23, 30
Wiper blades........................................................... 48–67,* 7 1
*See scheduled maintenance log for maintenance interval.

76

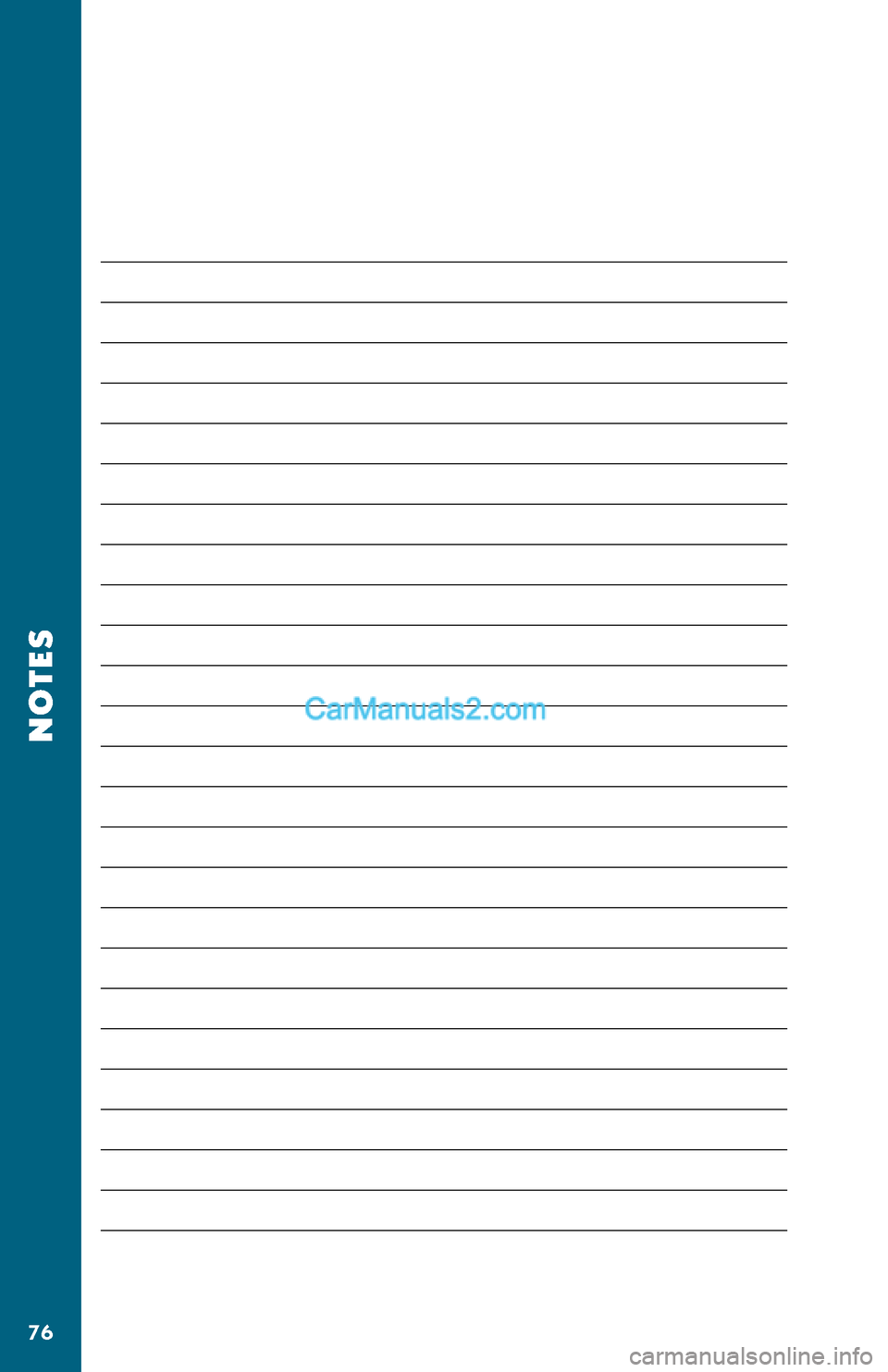

NOTES

If your name or address
has changed or if you
purchased your Lexus
as a used vehicle, please
complete and mail
the attached card,
even if your warranty
coverage has expired.
This will enable Lexus
to contact you with
important product or
safety updates concerning
your vehicle. If there is no
longer a card attached,
please call the Lexus
Customer Satisfaction
Department at
(800) 255-3987.
