2015 Lexus GS200t Owner's Manual

731-1. For safe use
1
For safety and security
GS350_200t_GS F_OM_OM30E87E_(EE)
When using a “LEXUS MINI” or “LEXUS MIDI”, adjust the support leg and
ISOFIX connectors as follows:Lock the ISOFIX connectors where
numbers 4 and 5 can be seen.
Lock the support leg where 4th hole
can be seen.
X: ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class.
*: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
The child restraint systems mentioned in the table may not be available outside of
the EU area.
Other child restraint systems which are different from the systems mentioned in
the table can be used, but the suitability of the systems must be carefully checked
with the child restraint system manufacturer concerned and the seller of those
seats.
1
2

741-1. For safe use
GS350_200t_GS F_OM_OM30E87E_(EE)
■When installing a child restraint system on the front passenger seat
■Selecting an appropriate child restraint system
●Use a child restraint system appropriate for the child until the child becomes large
enough to properly wear the vehicle’s seat belt.
●If the child is too large for a child restraint sy stem, sit the child on a rear seat and use the
vehicle’s seat belt. ( →P. 4 6 )
ISOFIX child rest raint system list
Mass groupsSize
classFixtureISOFIX child
restraint systemsCategory
0
Up to 10 kg (22 lb.)
(0 - 9 months)EISO/R1LEXUS MINISemi-universal
EISO/R1LEXUS MIDISemi-universal
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
EISO/R1LEXUS MINISemi-universal
EISO/R1LEXUS MIDISemi-universal
DISO/R2LEXUS MINISemi-universal
DISO/R2LEXUS MIDISemi-universal
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)BISO/F2LEXUS MIDISemi-universal
B1ISO/F2XLEXUS MIDISemi-universal
AISO/F3LEXUS MIDISemi-universal
When you have to use a child restraint system
on the front passenger seat, adjust the following:
●The seatback to the most upright position
●The seat cushion to the highest position
●The seat cushion to the fully rearward position

751-1. For safe use
1
For safety and security
GS350_200t_GS F_OM_OM30E87E_(EE)
WA R N I N G
■Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not properly secure
the infant or child. It may result in death or serious injury (in the event of sudden braking
or an accident).
■Child restraint precautions
●For effective protection in automobile ac cidents and sudden stops, a child must be
properly restrained, using a seat belt or child restraint system depending on the age
and size of the child. Holding a child in your arms is not a substitute for a child restraint
system. In an accident, the child can be crushed against the windshield, or between
you and the vehicle’s interior.
●Lexus strongly urges the use of a proper ch ild restraint system that conforms to the
size of the child, installed on the rear seat. According to accident statistics, the child is
safer when properly restrained in th e rear seat than in the front seat.
●Never use a rear-facing child restraint system on the front passenger seat when the
airbag manual on-off switch is on. (→P. 6 1 )
In the event of an accident, the force of the rapid inflation of the front passenger air-
bag can cause death or serious injury to the child.
●A forward-facing child restraint system may be installed on the front passenger seat
only when it is unavoidable. A child restra int system that requires a top strap should
not be used in the front passenger seat since there is no top strap anchor for the front
passenger seat. Adjust the seatback as upright as possible and always move the seat
as far back as possible because the front passenger airbag could inflate with consid-
erable speed and force. Otherwise, the child may be killed or seriously injured.
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front and rear pillars or roof side rails from which the SRS
side airbags or SRS curtain shield airbags depl oy even if the child is seated in the child
restraint system. It is dangerous if the SR S side airbags and curtain shield airbags
inflate, and the impact could cause death or serious injury to the child.
●Make sure you have complied with all installation instructions provided by the child
restraint manufacturer and that the system is properly secured. If it is not secured
properly, it may cause death or serious inju ry to the child in the event of a sudden
stop, sudden swerve or accident.
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around
a child’s neck, it may lead to choking or othe r serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.
■When the child restraint system is not in use
●Keep the child restraint system properly secure d on the seat even if it is not in use. Do
not store the child restraint system unsecured in the passenger compartment.
●If it is necessary to detach the child rest raint system, remove it from the vehicle or
store it securely in the trunk. If a head restraint was removed when installing a child
restraint system, always install the head re straint before driving. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or accident.

761-1. For safe use
GS350_200t_GS F_OM_OM30E87E_(EE)
Installing child restraints
Seat belts (An ELR belt requires a lock-
ing clip)
ISOFIX rigid anchors
Lower anchors are provided for the out-
board rear seats. (Buttons displaying the
location of the anchors are attached to
the seats.)
Anchor brackets (for top strap)
Anchor brackets are provided for the
outboard rear seats.
Follow the child restraint system manufacturer’s instructions. Firmly secure
child restraints to the seats using a seat belt or ISOFIX rigid anchors. Attach
the top strap when installing a child restraint.

771-1. For safe use
1
For safety and security
GS350_200t_GS F_OM_OM30E87E_(EE)
■Rear-facing  Baby seat/child seat
Place the child restraint system
on the rear seat facing the rear of
the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip. Buckle the belt
again. If the belt has any slack,
release the buckle and reinstall
the locking clip.
Installing child restraints using a seat belt
1
2
3

781-1. For safe use
GS350_200t_GS F_OM_OM30E87E_(EE)
■Forward-facing  Child seat
Remove the head restraint if it
interferes with your child restraint
system.
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip. Buckle the belt
again. If the belt has any slack,
release the buckle and reinstall
the locking clip.
1
2
3
4

791-1. For safe use
1
For safety and security
GS350_200t_GS F_OM_OM30E87E_(EE)
■Junior seatRemove the head restraint if it
interferes with your child restraint
system.
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instructions
and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder and that the lap belt is as
low as possible. ( →P. 4 6 )
1
2
3

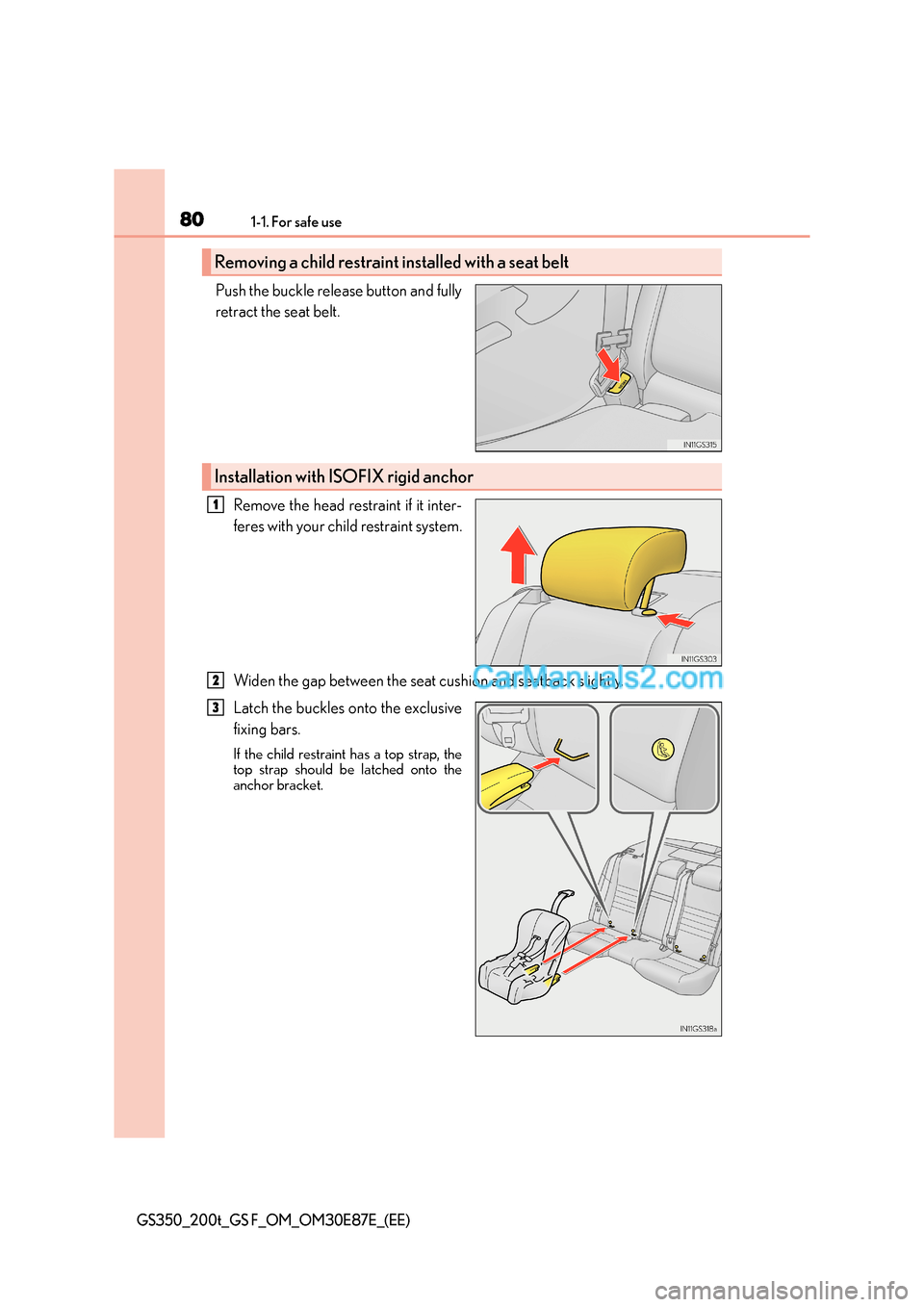

801-1. For safe use
GS350_200t_GS F_OM_OM30E87E_(EE)
Push the buckle release button and fully
retract the seat belt. Remove the head restraint if it inter-
feres with your child restraint system.
Widen the gap between the seat cushion and seatback slightly.
Latch the buckles onto the exclusive
fixing bars.
If the child restraint has a top strap, the
top strap should be latched onto the
anchor bracket.
Removing a child restraint installed with a seat belt
Installation with ISOFIX rigid anchor
1
2
3
