6-3. Do-it-yourself maintenance
Maintenance and care
GS350_200t_GS F_OM_OM30E87E_(EE)

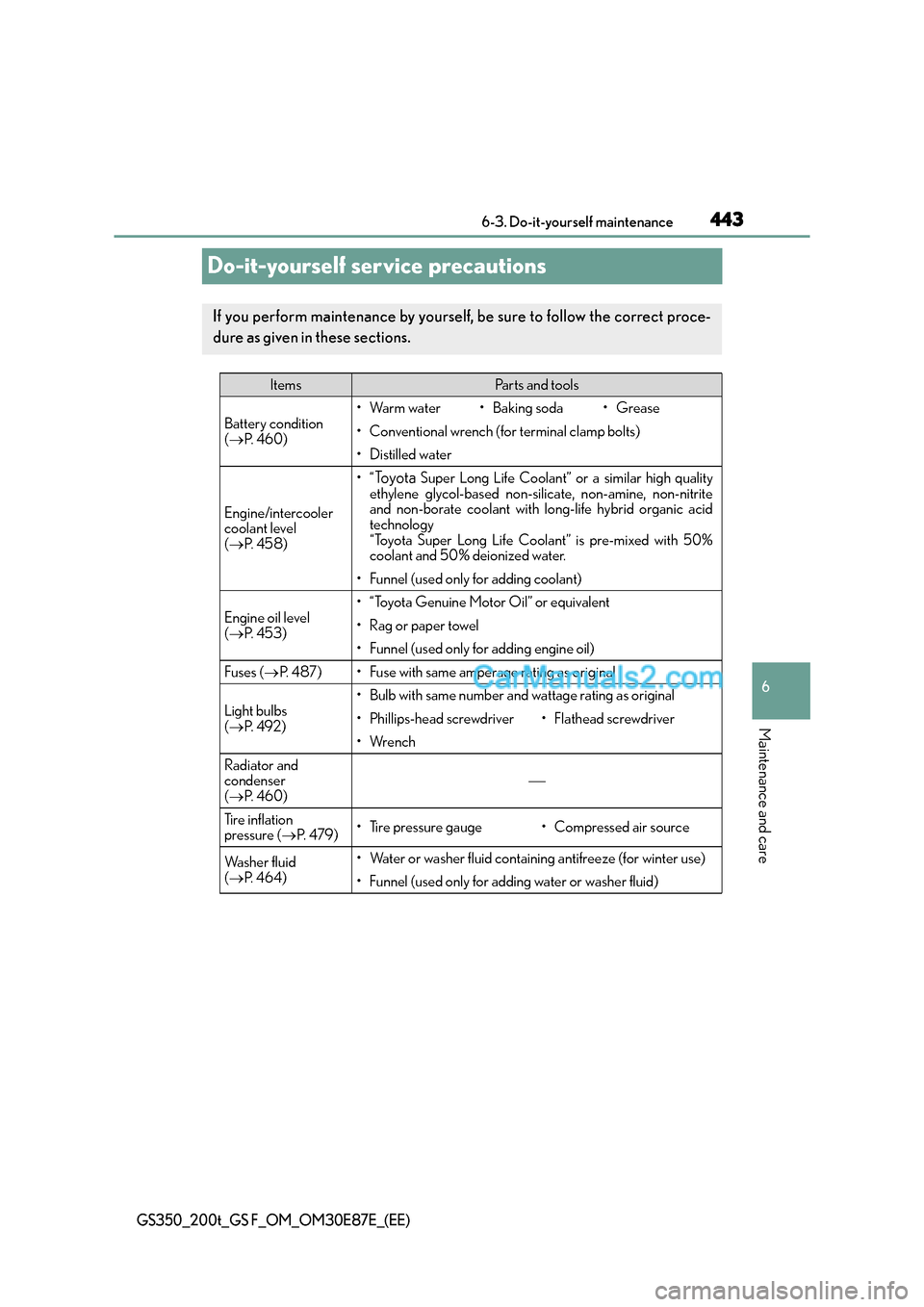

Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the correct proce-
dure as given in these sections.
ItemsParts and tools
Battery condition
(
→ P. 4 6 0 ) •Warm water •Baking soda •Grease
• Conventional wrench (for terminal clamp bolts)
• Distilled water
Engine/intercooler
coolant level
(
→ P. 4 5 8 ) •“
To y o t a Super Long Life Coolant” or a similar high quality
ethylene glycol-based non-silicate, non-amine, non-nitrite
and non-borate coolant with long-life hybrid organic acid
technology
“Toyota Super Long Life Coolant” is pre-mixed with 50%
coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( → P. 4 5 3 )• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( →P. 4 8 7 )• Fuse with same amperage rating as original
Light bulbs
(→ P. 4 9 2 )• Bulb with same number and wattage rating as original
• Phillips-head screwdriver•Flathead screwdriver
•Wrench
Radiator and
condenser
(→ P. 4 6 0 )
Tire inflation
pressure ( →P. 4 7 9 )• Tire pressure gauge• Compressed air source
Wa s h e r f l u i d
(→ P. 464)• Water or washer fluid containing antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)
455 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_200t_GS F_OM_OM30E87E_(EE)
■Adding engine oil
If the oil level is below or near the low level mark, add engine oil of the same
type as that already in the engine.
Make sure to check the oil type and prepare the items needed before adding
oil.Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
XGS350 XGS200t
XGS F
Engine oil selection →P. 612, 615 , 617
Oil quantity (Low → Full) 1.5 L (1.6 qt., 1.3 Imp.qt.)
Items Clean funnel
