2015 Lexus ES300h Owner's Manual

6968-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding
cool coolant to a hot hybrid system too quickly can cause damage to the hybrid
system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additives.

697
ES350_300h_OM_OM33B36U_(U)
8-2. Steps to take in an emergency
8
When trouble arises
If the vehicle becomes stuck
Stop the engine . Set the parking brake and shift the
shift lever to P.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels to
help provide traction.
Restart the engine .
Shift the shift lever to D or R and release the parking brake. Then, while
exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC. ( →P. 3 1 5 )
1
2
3
4
5

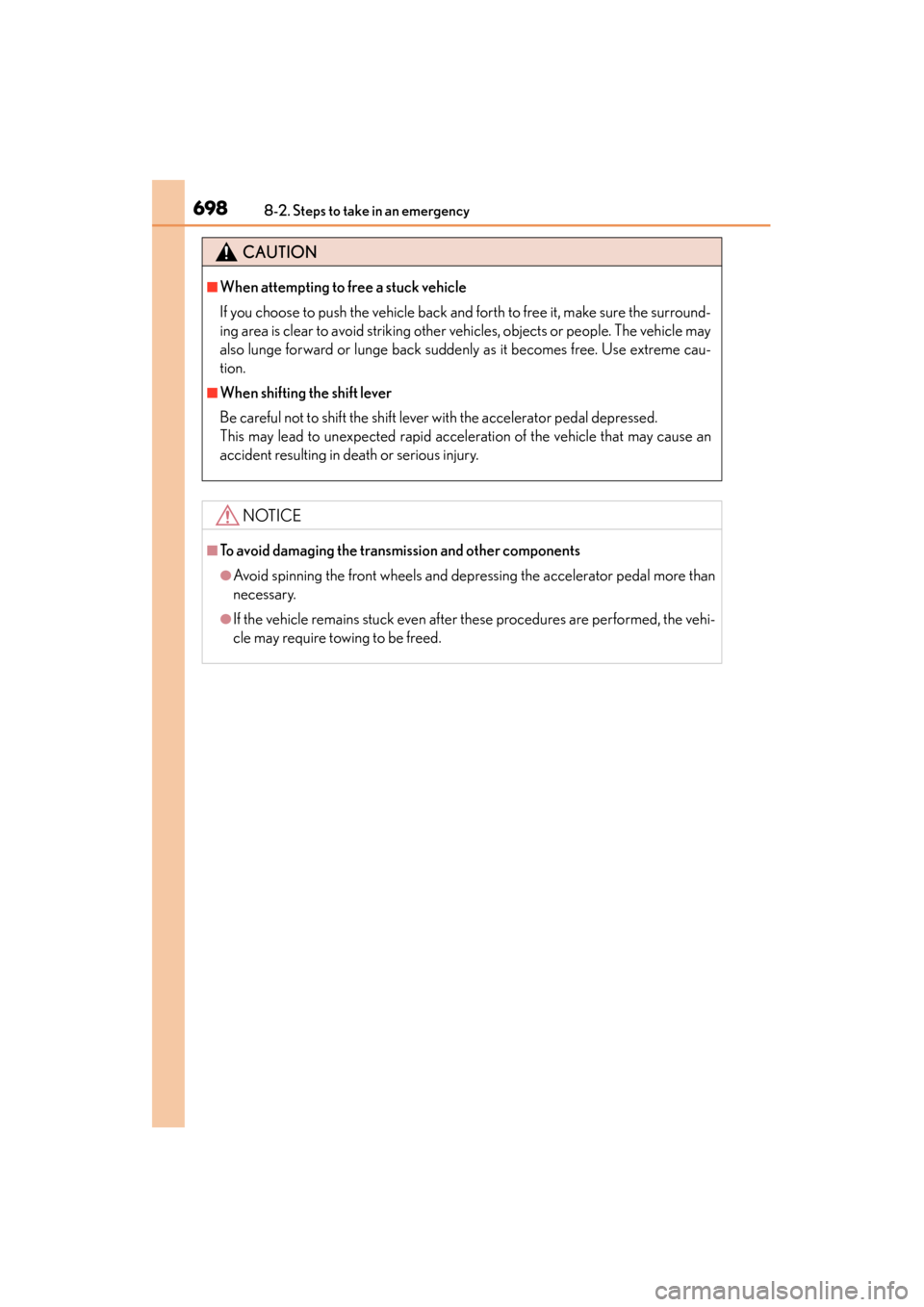

6988-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear to avoid striking other vehicles, objects or people. The vehicle may
also lunge forward or lunge back suddenly as it becomes free. Use extreme cau-
tion.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the front wheels and depressing the accelerator pedal more than
necessary.
●If the vehicle remains stuck even after these procedures are performed, the vehi-
cle may require towing to be freed.

699
ES350_300h_OM_OM33B36U_(U)
9Vehicle specifications
9-1. SpecificationsMaintenance data (fuel, oil level, etc.)................... 700
Fuel information............................715
Tire information ............................ 718
9-2. Customization Customizable features ............ 730
9-3. Items to initialize Items to initialize ..........................743

700
ES350_300h_OM_OM33B36U_(U)
9-1. Specifications
Maintenance data (fuel, oil level, etc.)
*: Unladen vehicle
Dimensions and weight
Overall length192.7 in. (4895mm)
Overall width71.7 in. (1820mm)
Overall height*57.1 in. (1450mm)
Wheelbase111.0 in. (2820mm)
TreadFront62.6 in. (1590mm)
Rear62.0 in. (1575mm)
Vehicle capacity weight
(Occupants + luggage)905 lb. (410 kg)

ES350_300h_OM_OM33B36U_(U)
7019-1. Specifications
9
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certifi-
cation Label.
This number is also stamped
under the right-hand front seat.
Vehicle identification

702
ES350_300h_OM_OM33B36U_(U)
9-1. Specifications
■Engine number
The engine number is stamped on the engine block as shown.
X2GR-FE engineX2AR-FXE engine

ES350_300h_OM_OM33B36U_(U)
7039-1. Specifications
9
Vehicle specifications
XGasoline vehicles
XHybrid vehicles
Engine
Model3.5L 6-cylinder (2GR-FE)
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Valve clearanceAutomatic adjustmentDrive belt tension
Model2.5L 4-cylinder (2AR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.54 × 3.86 in. (90.0 × 98.0 mm)
Displacement152.2 cu.in. (2494 cm3)
Valve clearanceAutomatic adjustment
