2015 Lexus ES300h stop start

6328-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure changes caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
Vehicles with a compact spare tire: The compact spare tire is not equipped with a tire
pressure warning valve and transmitter. If a tire goes flat, the tire pressure warning
light will not turn off even though the flat tire has been replaced with the spare tire.
Vehicles with a full-size spare tire: The spare tire is also equipped with a tire pressure
warning valve and transmitter. The tire pressure warning light will turn on if the tire
inflation pressure of the spare tire is low. If a tire goes flat, the tire pressure warning
light will not turn off even though the flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
→P. 5 7 1
■If the tire pressure warning light freque ntly comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when
the “START STOP ENGINE” <“POWER”> switch is turned to IGNITION ON
mode, have it checked by your Lexus dealer.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the warn-
ing buzzer may sound.
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an audio
sound.

6348-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [tire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure warning system) that illuminates a low tire
pressure telltale (tire pressure warning light) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale (tire pres-
sure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver’s responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when the system is not operating properly. The
TPMS (tire pressure warning system) malfunction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended.

6428-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
Indicates that the trunk is
not fully closedIf the vehicle reaches a
speed of 3 mph (5
km/h), flashes
and a buzzer sounds
to indicate that the
trunk is not yet fully
closed.
Close the trunk.
Indicates that the win-
dows are not fully closed
(with the “START STOP
ENGINE” <“POWER”>
switch off, and the driver’s
door open)
Close all the windows.
Indicates that the moon
roof is not fully closed
(with the “START STOP
ENGINE” <“POWER”>
switch off, and the driver’s
door open)
Close the moon roof.
Indicates that the win-
dows and the moon roof
are not fully closed (with
the “START STOP
ENGINE” <“POWER”>
switch off, and the driver’s
door open)
Close all the windows
and the moon roof.
Warning messageDetailsCorrection procedure
(Flashes)
(Flashes)
(Flashes)

6438-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
8
When trouble arises
Indicates that the parking
brake is still engagedIf the vehicle reaches a
speed of 3 mph
(5 km/h),
flashes and a buzzer
sounds to indicate that
the parking brake is
still engaged.
Release the parking
brake.
Indicates that the hybrid
battery (traction battery)
is low
When stopping the vehi-
cle for a long period of
time, shift the shift lever to
P. The battery cannot be
charged with the shift
lever in N.
Indicates that the hybrid
battery (traction battery)
power has dropped
because a long period of
time has elapsed after
shifting the shift lever to
N
Restart the hybrid system
when starting the vehicle.
Indicates that the accel-
erator pedal is depressed
while the shift position is
in NRelease the accelerator
pedal and shift the shift
lever to D or R.
Warning messageDetailsCorrection procedure
(Flashes)
(Hybrid vehicles)
(Flashes)
(Hybrid vehicles)
(Flashes)
(Hybrid vehicles)

6478-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
8
When trouble arises
Indicates that the Blind
Spot Monitor sensors or
the surrounding area on
the bumper is dirty or
covered with ice
Clean the sensor and its
surrounding area on the
bumper.
Indicates that the hybrid
system has overheatedThis message may be
displayed when driving
under severe operating
conditions. (For exam-
ple, when driving up a
long steep hill.)
Stop and check.
(→ P. 6 9 1 )
Indicates that remaining
fuel is approximately 2.6
gal. (9.7 L, 2.1 Imp.gal.) or
less
Refuel the vehicle.
Indicates that the “START
STOP ENGINE”
<“POWER”> switch is
turned off or turned to
ACCESSORY mode and
the driver’s door is
opened while the lights
are turned on
Turn the lights off.
Indicates that the driver’s
door was opened with the
shift position in any posi-
tion other than P
Shift the shift position to P.
Warning messageDetailsCorrection procedure
(If equipped)
(Hybrid vehicles)
(Flashes)
(Flashes)
(Hybrid vehicles)

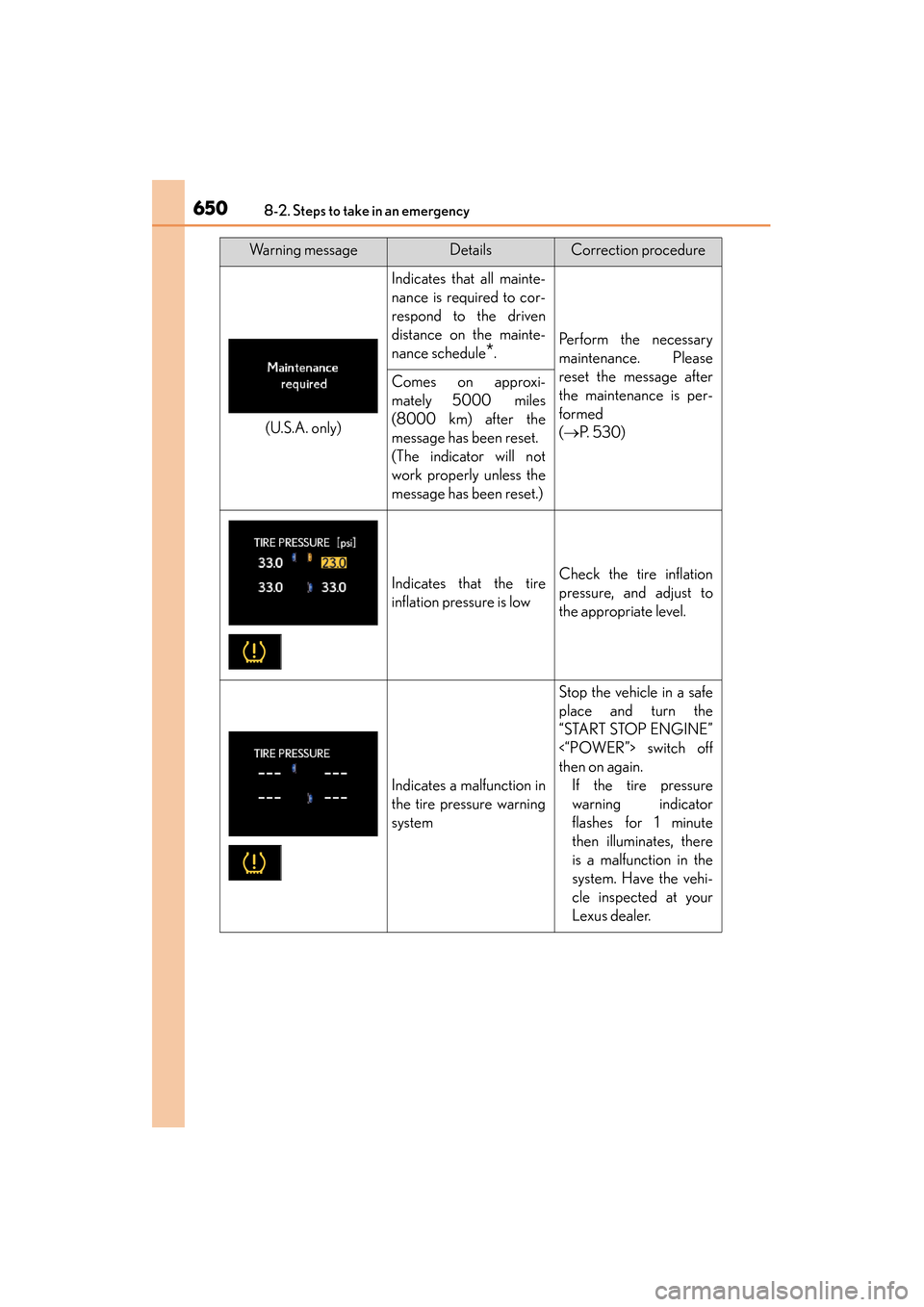

6508-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
Warning messageDetailsCorrection procedure
Indicates that all mainte-
nance is required to cor-
respond to the driven
distance on the mainte-
nance schedule
*.Perform the necessary
maintenance. Please
reset the message after
the maintenance is per-
formed
(→ P. 5 3 0 )
Comes on approxi-
mately 5000 miles
(8000 km) after the
message has been reset.
(The indicator will not
work properly unless the
message has been reset.)
Indicates that the tire
inflation pressure is lowCheck the tire inflation
pressure, and adjust to
the appropriate level.
Indicates a malfunction in
the tire pressure warning
system
Stop the vehicle in a safe
place and turn the
“START STOP ENGINE”
<“POWER”> switch off
then on again.
If the tire pressure
warning indicator
flashes for 1 minute
then illuminates, there
is a malfunction in the
system. Have the vehi-
cle inspected at your
Lexus dealer.
(U.S.A. only)

6518-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
8
When trouble arises
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supple-ment” for the maintenance interval applicable to your vehicle.
Warning messageDetailsCorrection procedure
Indicates that the tire
position information can-
not be recognized
Drive for a short while
and check if the display
updates. If the radio wave condi-
tions improve, the dis-
play may return to
normal. If the tire pres-
sure is still not dis-
played after driving for
several minutes, stop
the vehicle in a safe
place, turn the “START
STOP ENGINE”
<“POWER”> switch off
then on again, and start
driving.
If the tire pressure is still
not displayed even
after repeating this sev-
eral times, have the
vehicle inspected at
your Lexus dealer.
Indicates that the pre-col-
lision system is not cur-
rently functional because
the grille cover or the
sensor is dirtyThis message also
appears when the pre-
collision system is not
functional due to over-
heating.
• Check the grille coverand the sensor and
clean them if they are
dirty.
• In case of overheating, the system will become
functional once the sys-
tem cools down.
(Flashes)
(If equipped)

6528-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
After taking the specified steps to correct the suspected problem, check
that the warning message and light go off.
Have the malfunction repaired immediately.
InteriorbuzzerExterior
buzzerWarning messageDetailsCorrection procedure
Once
The electronic key
is not detected
when an attempt is
made to start the
engine tem>.Start the
engine
system>
with the
electronic
key present.
Once3
times
The electronic key
was carried out-
side the vehicle and
a door other than
the driver’s door
was opened and
closed while the
“START STOP
ENGINE”
<“POWER”> switch
was in a mode
other than off.
Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was in
P and the “START
STOP ENGINE”
<“POWER”> switch
was not turned off.Tu r n t h e
“START
STOP
ENGINE”
<“POWER”>
switch off or
bring the
electronic
key back
into the
vehicle.
(Flashes)
(Flashes)
