ES350_300h_OM_OM33B36U_(U)
2. Instrument cluster
■Setting display automatic cancelation
In the following situations, setting display in which the settings can be changed
through the “DISP” button will automatically be turned off.
●When a warning message appears while the setting display is displayed
●When the vehicle begins to move while the setting display is displayed
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the “START
STOP ENGINE” <“POWER”> switch is turned to IGNITION ON mode. It
may also take a few minutes to display the tire inflation pressure after inflation pres-
sure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Customizable features →P. 7 3 0 )

ES350_300h_OM_OM33B36U_(U)
1192. Instrument cluster
2
Instrument cluster
XLexus Display Audio screen
Press the “MENU” button on the Lexus Display Audio controller, then
select “Info” on the “Menu” screen, and then select “Fuel Consump-
tion”.
If the “Trip Information” screen does not appear, move the controller to the
right and select “Trip Information”.
Fuel consumption in the past
15 minutes
Current fuel consumption
Regenerated energy in the
past 15 minutes (hybrid vehi-
cles)
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the engine was started.
Elapsed time since the engine was started.
Cruising range ( →P. 122)
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the “START STOP
ENGINE” <“POWER”> switch was last turned to IGNITION ON
mode. Use the displayed average fuel consumption as a refer-
ence.
The image is an example only.
1
2
3
4
5
6

130
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk
■Effective range (areas within which the electronic key is detected)
When locking or unlocking the
doors
The system can be operated when
the electronic key is within about
2.3 ft. (0.7 m) of an outside door
handle. (Only the doors detecting
the key can be operated.)
When opening the trunk
The system can be operated when
the electronic key is within about
2.3 ft. (0.7 m) of the trunk release
button.
When starting the engine
or changing
“START STOP ENGINE”
<“POWER”> switch modes
The system can be operated when
the electronic key is inside the vehi-
cle.
■When the door cannot be locked by the lock sensor on the upper part of the door
handle
If the door will not lock even when the topside
sensor area is touched, try touching both the
topside and underside sensor areas at the
same time.

132
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk
■Changing the door unlock function setting
It is possible to set which doors the entry function unlocks using the wireless remote
control. Turn the “START STOP ENGINE” <“POWER”> switch off.
When the indicator light on the key surface is not on, press and hold ,
or for approximately 5 seconds while pressing and holding .
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open and close a door once after the settings have been
changed. (If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. ( →P. 88)
1
2
2
Multi-information
displayUnlocking functionBeep
Holding the driver’s door han-
dle unlocks only the driver’s
door.
Exterior: Beeps 3 times
Interior: Pings once
Holding a passenger’s door
handle unlocks all the doors.
Holding a door handle unlocks
all the doors.Exterior: Beeps twice
Interior: Pings once

ES350_300h_OM_OM33B36U_(U)
1333-2. Opening, closing and locking the doors and trunk
3
Operation of each component
■Battery-saving function
The battery-saving function will be activated in order to prevent the electronic key
battery and the vehicle battery from being discharged while the vehicle is not in
operation for a long time.
●In the following situations, the smart access system with push-button start may take
some time to unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of theoutside of the vehicle for 10 minutes or longer.
• The smart access system with push-button start has not been used for 5 days or longer.
●If the smart access system with push-button start has not been used for 14 days or
longer, the doors cannot be unlocked at any doors except the driver’s door. In this
case, take hold of the driver’s door handle, or use the wireless remote control or the
mechanical key, to unlock the doors.
■Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping the
electronic key from receiving radio waves.
Press twice while pressing and holding
. Confirm that the electronic key indi-
cator flashes 4 times.
While the battery-saving mode is set, the
smart access system with push-button start
cannot be used. To cancel the function, press
any of the electronic key buttons.

138
ES350_300h_OM_OM33B36U_(U)
3-2. Opening, closing and locking the doors and trunk

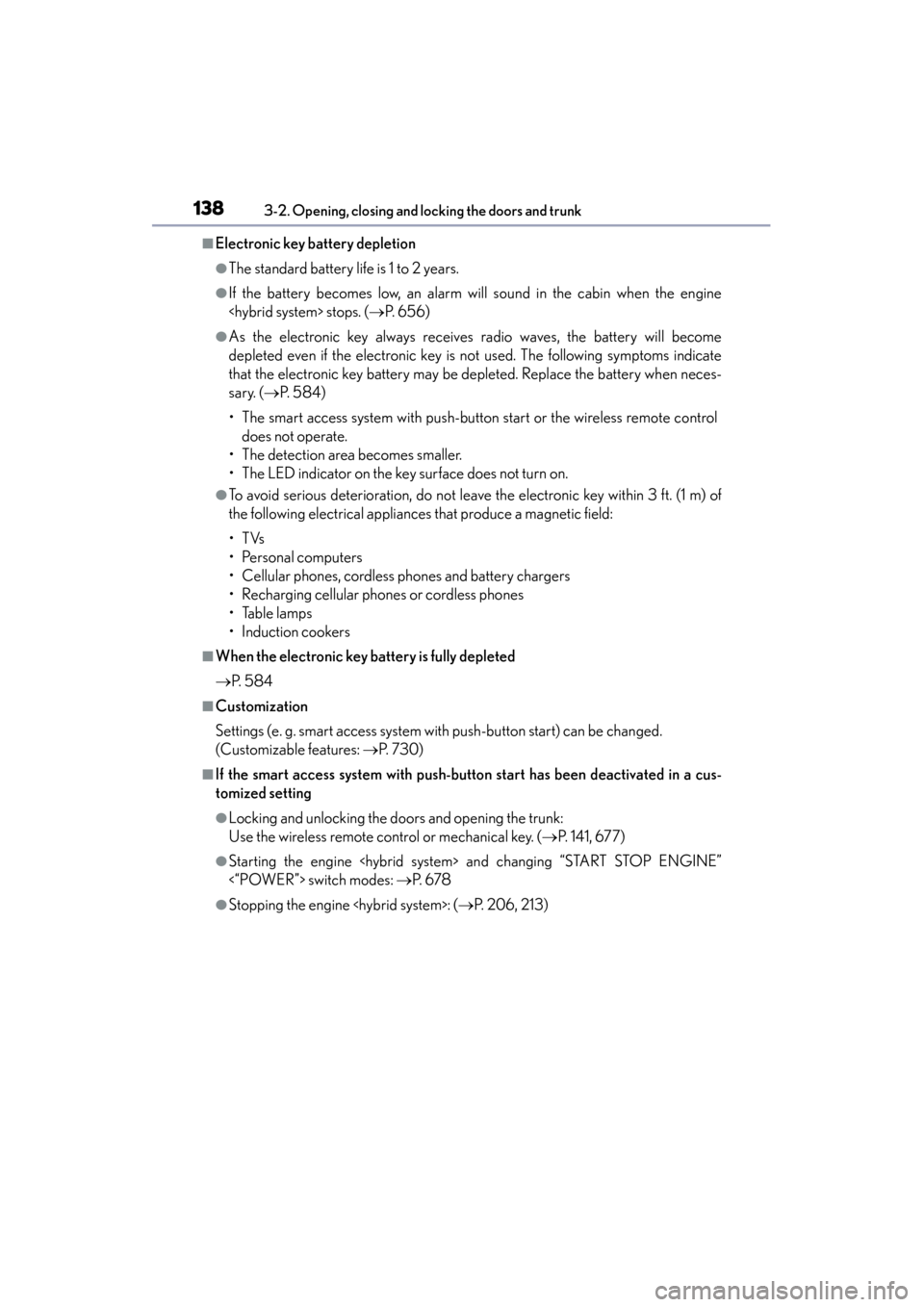

■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (→P. 6 5 6 )
●As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indicate
that the electronic key battery may be depleted. Replace the battery when neces-
sary. ( →P. 5 8 4 )
• The smart access system with push-button start or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■When the electronic key battery is fully depleted
→ P. 5 8 4
■Customization
Settings (e. g. smart access system with push-button start) can be changed.
(Customizable features: → P. 7 3 0 )
■If the smart access system with push-button start has been deactivated in a cus-
tomized setting
●Locking and unlocking the doors and opening the trunk:
Use the wireless remote control or mechanical key. ( →P. 141, 677)
●Starting the engine and changing “START STOP ENGINE”
<“POWER”> switch modes: →P. 6 7 8
●Stopping the engine : ( →P. 206, 213)

ES350_300h_OM_OM33B36U_(U)
1453-2. Opening, closing and locking the doors and trunk
3
Operation of each component
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the “START STOP ENGINE” <“POWER”>
switch is in ACCESSORY or IGNITION ON mode, or the elec-
tronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent chil-
dren from opening the rear doors.
Push down on each rear door switch
to lock both rear doors.
Locking the front doors from the outside without a key
Rear door child-protector lock
1
2
1
2

160
ES350_300h_OM_OM33B36U_(U)
3-3. Adjusting the seats
■Operation of the power easy access system
When exiting the vehicle, the power easy access system may not operate if the seat
is already close to the rearmost position, etc.
■Customization
The seat movement amount settings of the power easy access system can be cus-
tomized. (Customizable features: →P. 7 3 0 )
Your preferred driving position (the position of the driver’s seat, steering
wheel and outside rear view mirrors) can be recorded and recalled by
pressing a button.
Three different driving positions can be recorded into memory.
■Recording procedure
Check that the shift lever is in P.
Turn the “START STOP ENGINE” <“POWER”> switch to IGNI-
TION ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view mirrors
to the desired positions.
While pressing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pressed,
press button “1”, “2” or “3” until
the buzzer sounds.
If the selected button has already
been preset, the previously
recorded position will be overwrit-
ten.
Vehicles with the driving position memory for the front passenger’s
seat: To record the position of the front passenger’s seat, adjust the front
passenger’s seat to the desired position and perform step using the
buttons on the front passenger’s side.
Driving position memory
1
2
3
4
4
