ES350_300h_OM_OM33B36U_(U)
5-7. Connecting Bluetooth®
5
Lexus Display Audio system
Connecting a Bluetooth® audio player
When the portable audio player is in standby for a connection, it will be
automatically connected whenever the “START STOP ENGINE”
<“POWER”> switch is in either ACCESSORY or IGNITION ON
mode.
Operate the portable player and connect it to the Bluetooth
® audio sys-
tem.
Go to “Bluetooth
* Setup”: “MENU” button → “Setup” → “Bluetooth*”
Select the device to connect.
Select “Connect All” or “Connect as an Audio player”.
If the desired Bluetooth
® device is not displayed, register the device.
(→ P. 4 0 8 )
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
There are 2 portable audio player connection settings available: con-
necting from the vehicle and conn ecting from the portable player.
Connecting method is set to “Vehicle”
Connecting method is set to “Device”
1
2
3

412
ES350_300h_OM_OM33B36U_(U)
5-7. Connecting Bluetooth®
Connecting a Bluetooth® phone
When you register a phone, auto connection will be activated. Always set
it to this mode and leave the Bluetooth
® phone in a place where a con-
nection can be established.
When the “START STOP ENGINE” <“POWER”> switch is turned to
ACCESSORY or IGNITION ON mode, the system will search for
a nearby cellular phone you have registered.
Next, the system automatically connects with the most recent phone that
was connected. The connected result is displayed.
When auto connection has failed or “Bluetooth
* Power” is turned off, you
must connect the Bluetooth
® device manually.
Go to “Bluetooth
* Setup”: “MENU” button → “Setup” → “Bluetooth*”
Select the device to connect.
Select “Connect All”, “Connect as a Phone” or “Connect as an Audio
player”.
If the desired Bluetooth
® device is not displayed, register the device.
(→ P. 4 0 8 )
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
There are two connecting methods available: automatic and manual.
Auto connection
Manual connection
1
2
3

ES350_300h_OM_OM33B36U_(U)
4736-1. Using the air conditioning system and defogger
6
Interior features
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and the
ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow immedi-
ately after the “AUTO” button is pressed or “AUTO” is selected.
■When the outside temperature exceeds 75 °F (24 °C) and the air conditioning sys-
tem is on
●In order to reduce the air conditioning power consumption, the air conditioning
system may switch to recirculated air mode automatically.
This may also reduce fuel consumption.
●Recirculated air mode is selected as a default mode when the “START STOP
ENGINE” <“POWER”> switch is turned to IGNITION ON mode.
●It is possible to switch to outside air mode at any time by pressing .
■Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high. Selecting
“A/C” on the option control screen will dehumidify the air from the outlets and
defog the windshield effectively.
●If you turn “A/C” off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
■Windshield fog detection function (if equipped)
When automatic mode is set, the humidity sensor (→P. 476) detects fog on the
windshield and controls the air conditioning system to prevent fog.
■Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set to
the recirculated air mode. This is effective in preventing outside air from entering
the vehicle interior. During cooling operation, setting the recirculated air mode will
also cool the vehicle interior effectively.
●Outside/recirculated air mode may automatically switch depending on the tem-
perature setting or the inside temperature.
■When the outside temperature is low
The dehumidification function may not operate even when “A/C” on the option con-
trol screen is selected.

496
ES350_300h_OM_OM33B36U_(U)
6-4. Other interior features
■The rear sunshade can be used when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■Operating the rear sunshade after the engine is turned off
The rear sunshade can be operated for approximately 1 minute even after the
“START STOP ENGINE” <“POWER”> switch is turned to ACCESSORY mode or
turned off.
■Reverse operation feature
To ensure adequate rear visibility, the rear sunshade automatically lowers when the
shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
●The button is pressed again.*
●Shift the shift lever into P.
●The shift lever is shifted out of R, and the vehicle reaches a speed of 9 mph
(15 km/h).
If the engine is off when the rear sunshade has been lowered due
to the reverse operation feature, it will not be raised even when the engine
is turned on again and the vehicle reaches a speed of 9 mph (15
km/h). To raise the sunshade again, press the button.
*: Occasionally, the reverse function may not be carried out after the switch has been pressed. Repeat the above operation to operate the function.
■Customization
Time elapsed before the reverse operation feature activates can be changed.
(Customizable features: → P. 7 3 0 )

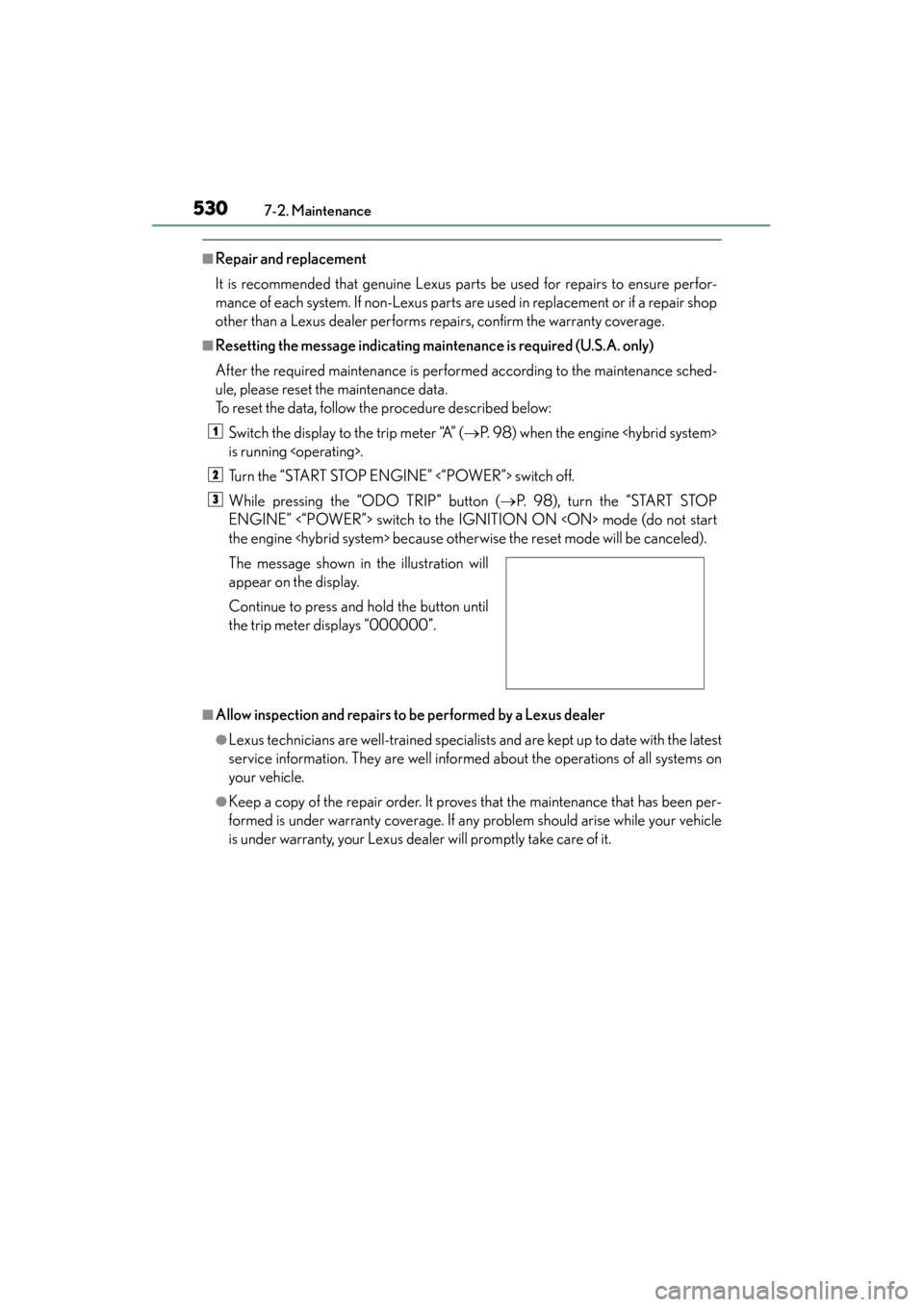

530
ES350_300h_OM_OM33B36U_(U)
7-2. Maintenance
■Repair and replacement
It is recommended that genuine Lexus parts be used for repairs to ensure perfor-
mance of each system. If non-Lexus parts are used in replacement or if a repair shop
other than a Lexus dealer performs repairs, confirm the warranty coverage.
■Resetting the message indicating maintenance is required (U.S.A. only)
After the required maintenance is performed according to the maintenance sched-
ule, please reset the maintenance data.
To reset the data, follow the procedure described below:Switch the display to the trip meter “A” ( →P. 98) when the engine
is running .
Turn the “START STOP ENGINE” <“POWER”> switch off.
While pressing the “ODO TRIP” button ( →P. 98), turn the “START STOP
ENGINE” <“POWER”> switch to the IGNITION ON mode (do not start
the engine because otherwise the reset mode will be canceled).
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained specialists and are kept up to date with the latest
service information. They are well informed about the operations of all systems on
your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been per-
formed is under warranty coverage. If any problem should arise while your vehicle
is under warranty, your Lexus dealer will promptly take care of it. The message shown in the illustration will
appear on the display.
Continue to press and hold the button until
the trip meter displays “000000”.
1
2
3

ES350_300h_OM_OM33B36U_(U)
5597-3. Do-it-yourself maintenance
7
Maintenance and care
■After recharging/reconnecting the 12-volt battery
The engine may not start. Follow the procedure below to initialize the system.Shift the shift lever to P.
Open and close any of the doors.
Restart the engine.
●Unlocking the doors using the smart access system with push-button start may not
be possible immediately after reconnecting the 12-volt battery. If this happens, use
the wireless remote control or the mechanical key to lock/unlock the doors.
●Start the engine with the “START STOP ENGINE” switch in ACCESSORY mode.
The engine may not start with the “START STOP ENGINE” switch turned off. How-
ever, the engine will operate normally from the second attempt.
●The “START STOP ENGINE” switch mode is recorded by the vehicle. If the 12-volt
battery is reconnected, the vehicle will return the “START STOP ENGINE” switch
mode to the status it was in before the 12-volt battery was disconnected. Make sure
to turn off the engine before disconnect the 12-volt battery. Take extra care when
connecting the 12-volt battery if the “START STOP ENGINE” switch mode prior to
discharge is unknown.
If the engine will not start even after multiple attempts, contact your Lexus dealer.
CAUTION
■Chemicals in the 12-volt battery
Batteries contain poisonous and corrosive sulfuric acid and may produce hydro-
gen gas which is flammable and explosive. To reduce the risk of death or serious
injury, take the following precautions while working on or near the 12-volt battery:
●Do not cause sparks by touching the 12-volt battery terminals with tools.
●Do not smoke or light a match near the 12-volt battery.
●Avoid contact with eyes, skin and clothes.
●Never inhale or swallow electrolyte.
●Wear protective safety glasses when working near the 12-volt battery.
●Keep children away from the 12-volt battery.
1
2
3

ES350_300h_OM_OM33B36U_(U)
5957-3. Do-it-yourself maintenance
7
Maintenance and care
12WIPER25Windshield wipers
13BKUP LP7. 5
Multiport fuel injection system, sequential
multiport fuel system, electronic controlled
transmission, audio system, navigation sys-
tem, back-up lights
14FUEL OPN10Fuel filler door opener
15EPS-IG110Electric power steering
16P/O U T L E T R R15Po w e r o u t l e t
17RADIO-ACC5Audio system, Remote Touch, multi-informa-
tion display, audio display, navigation system
18S / H T R & FA N F/ R10Seat heaters and ventilators
19S / H T R & FA N F/ L10Seat heaters and ventilators
20OBD7. 5On-Board diagnosis system
21ECU-B NO.210
Power window master switch, air condition-
ing system, smart access system with push-
button start, tire pressure warning system,
rear sunshade
22STRG HTR10Heated steering wheel
23PTL25Power trunk opener and closer ECU
24STOP7. 5
Power management system, multiport fuel
injection system, sequential multiport fuel
system, VSC, ABS, electronic controlled
transmission, driver support system, engine
room junction block assy, tail lights, high
mounted stoplight, smart access system with
push-button start, shift lock system
25P/ S E AT F/ L30Po w e r s e a t s
26A/C-B7. 5Air conditioning system
27S/ROOF10Moon roof
28P/ S E AT F/ R30Po w e r s e a t s
29PSB30Pre-collision seat belt
30D/L-A M120Main body ECU, power door lock system
FuseAmpereCircuit

6548-2. Steps to take in an emergency
ES350_300h_OM_OM33B36U_(U)
InteriorbuzzerExterior
buzzerWarning messageDetailsCorrection procedure
Con-
tinuousCon-
tinuous
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in P and the
“START STOP
ENGINE”
<“POWER”> switch
was not turned off.
•Shift the shift lever
to P.
•Bring the elec-
tronic key
back into
the vehi-
cle.
Con-
tinuous
An attempt was
made to lock the
doors using the
smart access sys-
tem with push-but-
ton start while the
electronic key was
still inside the vehi-
cle.
Retrieve the
electronic
key from the
vehicle and
lock the
doors again.
OnceCon-
tinuous
An attempt was
made to lock either
front door by open-
ing a door and put-
ting the inside lock
button into the lock
position, then clos-
ing the door with
the electronic key
still inside the vehi-
cle.
Retrieve the
electronic
key from the
vehicle and
lock the
doors again.
(Displayed alternately)
(Flashes)
(Flashes)
(Flashes)
