2015 Lexus ES300h stop start

530
ES350_300h_OM_OM33B36U_(U)
7-2. Maintenance
■Repair and replacement
It is recommended that genuine Lexus parts be used for repairs to ensure perfor-
mance of each system. If non-Lexus parts are used in replacement or if a repair shop
other than a Lexus dealer performs repairs, confirm the warranty coverage.
■Resetting the message indicating maintenance is required (U.S.A. only)
After the required maintenance is performed according to the maintenance sched-
ule, please reset the maintenance data.
To reset the data, follow the procedure described below:Switch the display to the trip meter “A” ( →P. 98) when the engine
is running .
Turn the “START STOP ENGINE” <“POWER”> switch off.
While pressing the “ODO TRIP” button ( →P. 98), turn the “START STOP
ENGINE” <“POWER”> switch to the IGNITION ON mode (do not start
the engine because otherwise the reset mode will be canceled).
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained specialists and are kept up to date with the latest
service information. They are well informed about the operations of all systems on
your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been per-
formed is under warranty coverage. If any problem should arise while your vehicle
is under warranty, your Lexus dealer will promptly take care of it. The message shown in the illustration will
appear on the display.
Continue to press and hold the button until
the trip meter displays “000000”.
1
2
3

540
ES350_300h_OM_OM33B36U_(U)
7-3. Do-it-yourself maintenance
CAUTION
■When working near the electric cooling fans or radiator grille
Be sure the “START STOP ENGINE” <“POWER”> switch is off.
With the “START STOP ENGINE” <“POWER”> switch in IGNITION ON
mode, the electric cooling fans may automatically start to run if the air conditioning
is on and/or the coolant temperature is high. (→P. 555)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air.

544
ES350_300h_OM_OM33B36U_(U)
7-3. Do-it-yourself maintenance
CAUTION
■When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of death
or serious injury:
●When using a floor jack, follow the instructions of the manual provided with the
jack.
●Do not use the jack that was supplied with your vehicle.
●Do not put any part of your body underneath the vehicle when it is supported
only by the floor jack.
●Always use floor jack and/or automotive jack stands on a solid, flat, level surface.
●Do not start the engine while the vehicle is supported by the floor
jack.
●Stop the vehicle on level, firm ground, firmly set the parking brake and shift the
shift lever to P.
●Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage the vehi-
cle and may cause the vehicle to fall off the floor jack.
●Do not raise the vehicle while someone is in the vehicle.
●When raising the vehicle, do not place any object on top of or underneath the
floor jack.
●Lift up the vehicle using a floor jack such as
the one shown in the illustration.

ES350_300h_OM_OM33B36U_(U)
5597-3. Do-it-yourself maintenance
7
Maintenance and care
■After recharging/reconnecting the 12-volt battery
The engine may not start. Follow the procedure below to initialize the system.Shift the shift lever to P.
Open and close any of the doors.
Restart the engine.
●Unlocking the doors using the smart access system with push-button start may not
be possible immediately after reconnecting the 12-volt battery. If this happens, use
the wireless remote control or the mechanical key to lock/unlock the doors.
●Start the engine with the “START STOP ENGINE” switch in ACCESSORY mode.
The engine may not start with the “START STOP ENGINE” switch turned off. How-
ever, the engine will operate normally from the second attempt.
●The “START STOP ENGINE” switch mode is recorded by the vehicle. If the 12-volt
battery is reconnected, the vehicle will return the “START STOP ENGINE” switch
mode to the status it was in before the 12-volt battery was disconnected. Make sure
to turn off the engine before disconnect the 12-volt battery. Take extra care when
connecting the 12-volt battery if the “START STOP ENGINE” switch mode prior to
discharge is unknown.
If the engine will not start even after multiple attempts, contact your Lexus dealer.
CAUTION
■Chemicals in the 12-volt battery
Batteries contain poisonous and corrosive sulfuric acid and may produce hydro-
gen gas which is flammable and explosive. To reduce the risk of death or serious
injury, take the following precautions while working on or near the 12-volt battery:
●Do not cause sparks by touching the 12-volt battery terminals with tools.
●Do not smoke or light a match near the 12-volt battery.
●Avoid contact with eyes, skin and clothes.
●Never inhale or swallow electrolyte.
●Wear protective safety glasses when working near the 12-volt battery.
●Keep children away from the 12-volt battery.
1
2
3

568
ES350_300h_OM_OM33B36U_(U)
7-3. Do-it-yourself maintenance
■How to initialize the tire pressure warning system
Park the vehicle in a safe place and turn the “START STOP
ENGINE” <“POWER”> switch off.
Initialization cannot be performed while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. ( →P. 712)
Make sure to adjust the tire pressure to the specified cold tire inflation pres-
sure level. The tire pressure warning system will operate based on this pressure
level.
Turn the “START STOP ENGINE” <“POWER”> switch to
IGNITION ON mode.
Press and hold the tire pres-
sure warning reset switch until
the tire pressure warning light
blinks slowly 3 times.
Wait for a few minutes with the “START STOP ENGINE”
<“POWER”> switch in IGNITION ON mode and then turn
the “START STOP ENGINE” <“POWER”> switch off.
1
2
3
4
5

ES350_300h_OM_OM33B36U_(U)
5697-3. Do-it-yourself maintenance
7
Maintenance and care

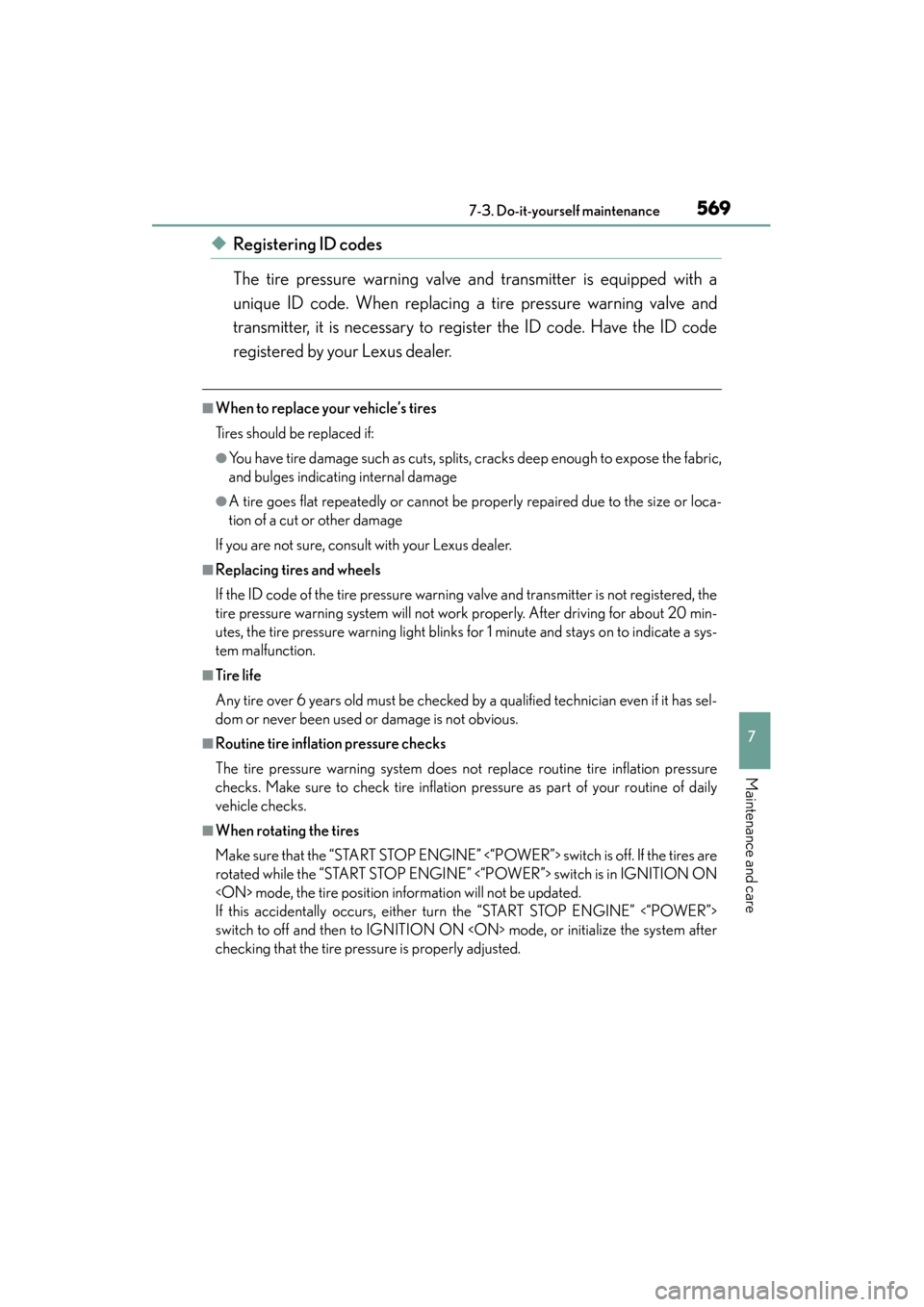

◆Registering ID codes
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to register the ID code. Have the ID code
registered by your Lexus dealer.
■When to replace your vehicle’s tires
Tires should be replaced if:
●You have tire damage such as cuts, splits, cracks deep enough to expose the fabric,
and bulges indicating internal damage
●A tire goes flat repeatedly or cannot be properly repaired due to the size or loca-
tion of a cut or other damage
If you are not sure, consult with your Lexus dealer.
■Replacing tires and wheels
If the ID code of the tire pressure warning valve and transmitter is not registered, the
tire pressure warning system will not work properly. After driving for about 20 min-
utes, the tire pressure warning light blinks for 1 minute and stays on to indicate a sys-
tem malfunction.
■Tire life
Any tire over 6 years old must be checked by a qualified technician even if it has sel-
dom or never been used or damage is not obvious.
■Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure
checks. Make sure to check tire inflation pressure as part of your routine of daily
vehicle checks.
■When rotating the tires
Make sure that the “START STOP ENGINE” <“POWER”> switch is off. If the tires are
rotated while the “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode, the tire position information will not be updated.
If this accidentally occurs, either turn the “START STOP ENGINE” <“POWER”>
switch to off and then to IGNITION ON mode, or initialize the system after
checking that the tire pressure is properly adjusted.

572
ES350_300h_OM_OM33B36U_(U)
7-3. Do-it-yourself maintenance
■The initialization operation
●Make sure to carry out initialization after adjusting the tire inflation pressure.
Also, make sure the tires are cold before carrying out initialization or tire inflation
pressure adjustment.
●If you have accidentally turned the “START STOP ENGINE” <“POWER”> switch
off during initialization, it is not necessary to press the reset switch again as initial-
ization will restart automatically when the “START STOP ENGINE” <“POWER”>
switch has been turned to IGNITION ON mode for the next time.
●If you accidentally press the reset switch when initialization is not necessary, adjust
the tire inflation pressure to the specified level when the tires are cold, and conduct
initialization again.
■When initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following cases, the
settings have not been recorded and the system will not operate properly. If
repeated attempts to record tire inflation pressure settings are unsuccessful, have
the vehicle inspected by your Lexus dealer.
●When operating the tire pressure warning reset switch, the tire pressure warning
light does not blink 3 times.
●After carrying out the initialization procedure, the tire pressure warning light blinks
for 1 minute then stays on after driving for 20 minutes.

582
ES350_300h_OM_OM33B36U_(U)
7-3. Do-it-yourself maintenance
Air conditioning filter
Turn the “START STOP ENGINE” <“POWER”> switch off.
Open the glove box. Lift and
remove the partition.
Remove the glove box cover.
Remove the filter cover.
The air conditioning filter must be changed regularly to maintain air
conditioning efficiency.
Removal method
1
2
3
4
