2015 Lexus ES300h Navigation Manual

208
3. MEDIA OPERATION
ES350/300h_Navi_OM33B43U_(U)14.06.23 09:44
1Select .
zEach time is selected, the mode
changes as follows:
X When random playback is off
• file repeat → folder repeat → off
XWhen random playback is on
• file repeat → off
1Select .
zEach time is selected, the mode
changes as follows:
•random (1 folder random)
→ folder random (1 disc random) → off
PLAYING AN MP3/WMA/
AAC DISC
REPEATING
The file or folder currently being listened
to can be repeated.
INFORMATION
●
Each time is selected, “RPT”/
“FLD.RPT” appears on the screen.
RANDOM ORDER
Files or folders can be automatically and
randomly selected.
INFORMATION
●
Each time is selected, “RAND”/
“FLD.RAND” appears on the screen.

209
3. MEDIA OPERATION
ES350/300h_Navi_OM33B43U_(U)14.06.23 09:44
AUDIO/VISUAL SYSTEM
4
2. DVD
For safety reasons, the DVD video discs can only be viewed when the following con-
ditions are met:
(a) The vehicle is completely stopped.
(b) The “START STOP ENGINE” <“POWER”> switch is turned to ACCESSORY orIGNITION ON mode.
(c) The parking brake is applied.
While driving in DVD video mode, only the DVD’s audio can be heard.
The playback condition of some DVD disc s may be determined by the DVD software
producer. This DVD player plays a disc as the software producer intended. As such,
some functions may not work properly. Be sure to read the instruction manual that
comes with the individual DVD disc. ( →P.253)
OVERVIEW
The DVD operation screen can be reached by the following methods:
XInserting a disc ( →P.174)
X Using the instrument panel
Press the “MEDIA” button to display the audio control screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, then select “Media” to display the
audio control screen.

210
3. MEDIA OPERATION
ES350/300h_Navi_OM33B43U_(U)14.06.23 09:44
■CONTROL SCREEN
■ CONTROL PANEL

211
3. MEDIA OPERATION
ES350/300h_Navi_OM33B43U_(U)14.06.23 09:44
AUDIO/VISUAL SYSTEM
4
No.Function
Select to display the audio source selection screen.
Select to display the password input screen.
Select to display the menu screen.
Select to display the option screen. (→P.213)
Select to display the sound setting screen.
Select to display the DVD setting screen.
Shows progress
•During playback: Select to fast forward.
• During a pause: Select to slow forward.
Select to play/pause.
Select to stop the video screen.
Select to rewind.
Select to display th e menu control key.
Select to display full screen video.
Press to eject a disc.
Disc slot
Press to play/pause.
Turn to select a chapter.
•Press to select a chapter.
• Press and hold to fast forward/rewind.
•Press to select a media mode.
• While in a media mode, pressing the “MEDIA” button changes media modes.
•Turn to adjust volume.
• Press to turn the audio system on/off.
• Press and hold to restart the audio system.

212
3. MEDIA OPERATION
ES350/300h_Navi_OM33B43U_(U)14.06.23 09:44

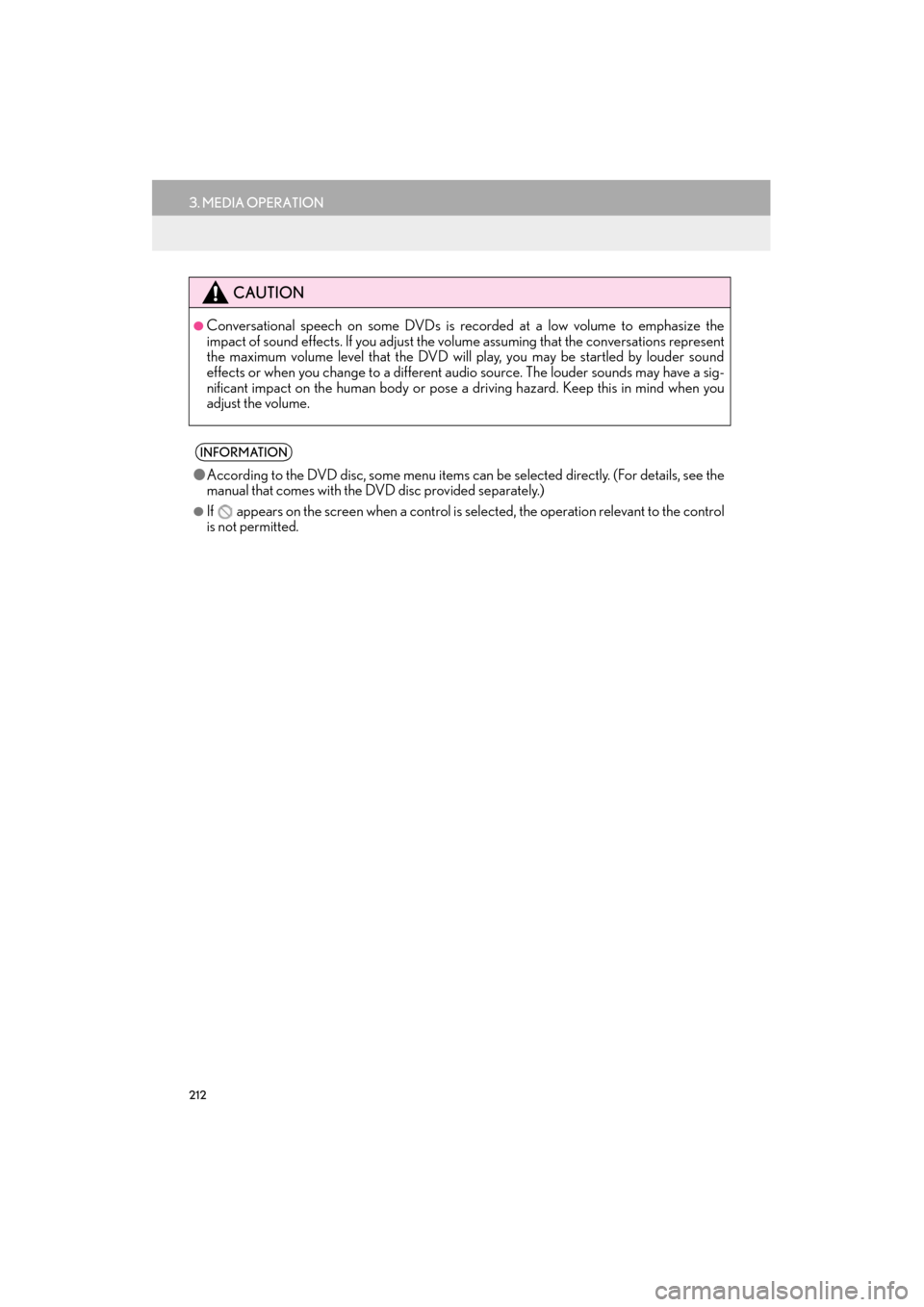

CAUTION
●Conversational speech on some DVDs is recorded at a low volume to emphasize the
impact of sound effects. If you adjust the volume assuming that the conversations represent
the maximum volume level that the DVD will play, you may be startled by louder sound
effects or when you change to a different audio source. The louder sounds may have a sig-
nificant impact on the human body or pose a driving hazard. Keep this in mind when you
adjust the volume.
INFORMATION
● According to the DVD disc, some menu items ca n be selected directly. (For details, see the
manual that comes with the DVD disc provided separately.)
●If appears on the screen when a control is selected, the operation relevant to the control
is not permitted.

213
3. MEDIA OPERATION
ES350/300h_Navi_OM33B43U_(U)14.06.23 09:44
AUDIO/VISUAL SYSTEM
4
1Select “Options” .
2The following screen is displayed.
DVD OPTIONSNo.FunctionPage
Select to display the title
search screen.214
Select to display the prede-
termined scene on the
screen and start playing.
Select to display the audio
selection screen.214
Select to display the subtitle
selection screen.214
Select to display the angle
selection screen.215
Select to change the screen
size. 178
Select to display the image
quality adjustment screen.178

214
3. MEDIA OPERATION
ES350/300h_Navi_OM33B43U_(U)14.06.23 09:44
1Select “Search” .
2Enter the title number and select “OK”.
zThe player starts playing video for that title
number.
1Select “A u d i o ” .
2Each time “Change” is selected, the au-
dio language is changed.
z The languages available are restricted to
those available on the DVD disc.
1Select “Subtitle” .
2Each time “Change” is selected, the lan-
guage the subtitles are displayed in is
changed.
z The languages available are restricted to
those available on the DVD disc.
z When “Hide” is selected, the subtitles can
be hidden.
SEARCHING BY TITLE
CHANGING THE AUDIO
LANGUAGE
CHANGING THE SUBTITLE
LANGUAGE

215
3. MEDIA OPERATION
ES350/300h_Navi_OM33B43U_(U)14.06.23 09:44
AUDIO/VISUAL SYSTEM
4
1Select “A n g l e ” .
2Each time “Change” is selected, the an-
gle is changed.
z The angles available are restricted to those
available on the DVD disc.
CHANGING THE ANGLE
The angle can be selected for discs that
are multi-angle compatible when the an-
gle mark appears on the screen.
