2015 KIA MORNING wipers

4
Keys / 4-3
Remote keyless entry / 4-6
Smart key / 4-9
Theft-alarm system / 4-11
Door locks / 4-14
Tailgate / 4-18
Windows / 4-20
Bonnet / 4-25
Fuel filler lid / 4-27
Sunroof / 4-30
Steering wheel / 4-34
Mirrors / 4-37
Instrument cluster / 4-41
Rear parking assist system / 4-63
Hazard warning flasher / 4-66
Lighting / 4-67
Wipers and washers / 4-74
Interior light / 4-78
Defroster / 4-80
Manual climate control system / 4-81
Automatic climate control system / 4-90
Windscreen defrosting and defogging / 4-97
Features of your vehicle

Features of your vehicle
74 4
A : Wiper speed control
· MIST ( ) – Single wipe
· OFF (O) – Off
· INT (---) – Intermittent wipe
· LO (1) – Low wiper speed
· HI (2) – High wiper speed
B : Intermittent wipe time adjustment
C : Wash with brief wipes (front)
(if equipped)
WIPERS AND WASHERS
Windscreen wiper/washer
■Type B
■Type C
■Type A
■Type E
■Type F
■Type D
ORBC040054E/ORB040054E/ORBI041054/OTA040053/ORB041405/OTA040053R

475
Features of your vehicle
D : Rear wiper/washer control
(if equipped)
· – Wash with brief wipes
· ON ( ) – Continuous wipe
· OFF (O) – OffWindscreen wipers
Operates as follows when the ignition
switch is turned ON.
MIST ( ) : For a single wiping cycle,
push the lever upward and
release it with the lever in
the OFF position. The
wipers will operate contin-
uously if the lever is
pushed upward and held.
OFF (O) : Wiper is not in operation
INT (---) : Wiper operates intermittently
at the same wiping intervals.
Use this mode in a light rain or
mist. To vary the speed setting,
turn the speed control knob.
LO (1) : Normal wiper speed
HI (2) : Fast wiper speed
✽ ✽
NOTICE
If there is heavy accumulation of snow
or ice on the windscreen, defrost the
windscreen for about 10 minutes, or
until the snow and/or ice is removed
before using the windscreen wipers to
ensure proper operation.
■Type E
■Type D
Rear window wiper/washer
(if equipped)
■Type F
OTA040054/ORB041406/OTA040054R

Features of your vehicle
76 4
Windscreen washers
In the OFF (O) position, pull the lever
gently toward you to spray washer fluid
on the windscreen and to run the wipers
1-3 cycles.
Use this function when the windscreen is
dirty.
The spray and wiper operation will con-
tinue until you release the lever.
If the washer does not work, check the
washer fluid level. If the fluid level is not
sufficient, you will need to add appropri-
ate non-abrasive windscreen washer
fluid to the washer reservoir.
The reservoir filler neck is located in the
front of the engine compartment on the
driver side.
■Type B
■Type A
■Type E
■Type C
ORBC040056E/ORB040056E/ORBI041056/OTA040056/ORB041408/OTA040056R
■Type F
■Type D
CAUTION
To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.

477
Features of your vehicle
Rear window wiper and washer
switch (if equipped)
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever. Turn the switch
to desired position to operate the rear
wiper and washer.
- Spraying washer fluid and wiping
ON
() - Normal wiper operation
OFF (O) - Wiper is not in operation
■Type D
■Type E
OTA040057/ORB041409/OTA040057R
■Type F
WARNING
Do not use the washer in freezing
temperatures without first warming
the windscreen with the defrosters;
the washer solution could freeze on
contact with the windscreen and
obscure your vision.
CAUTION
To prevent possible damage to
the wipers or windscreen, do not
operate the wipers when the
windscreen is dry.
To prevent damage to the wiper
blades, do not use petrol,
kerosene, paint thinner, or other
solvents on or near them.
To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.

Maintenance
34 7

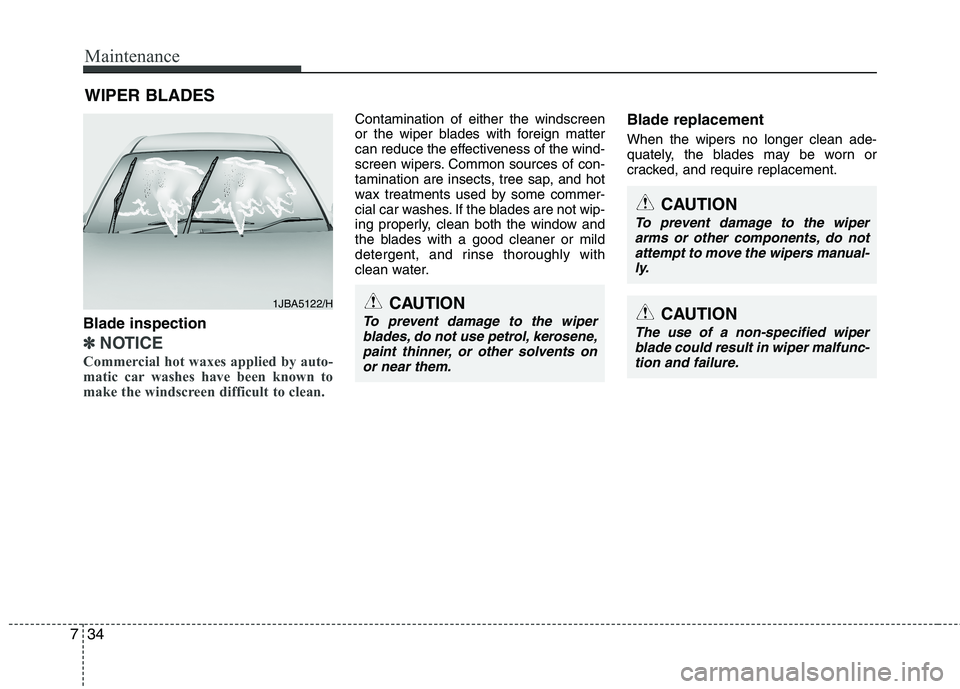

WIPER BLADES
Blade inspection
✽
✽
NOTICE
Commercial hot waxes applied by auto-
matic car washes have been known to
make the windscreen difficult to clean.
Contamination of either the windscreen
or the wiper blades with foreign matter
can reduce the effectiveness of the wind-
screen wipers. Common sources of con-
tamination are insects, tree sap, and hot
wax treatments used by some commer-
cial car washes. If the blades are not wip-
ing properly, clean both the window and
the blades with a good cleaner or mild
detergent, and rinse thoroughly with
clean water.Blade replacement
When the wipers no longer clean ade-
quately, the blades may be worn or
cracked, and require replacement.
1JBA5122/HCAUTION
To prevent damage to the wiper
blades, do not use petrol, kerosene,
paint thinner, or other solvents on
or near them.
CAUTION
To prevent damage to the wiper
arms or other components, do not
attempt to move the wipers manual-
ly.
CAUTION
The use of a non-specified wiper
blade could result in wiper malfunc-
tion and failure.

I9

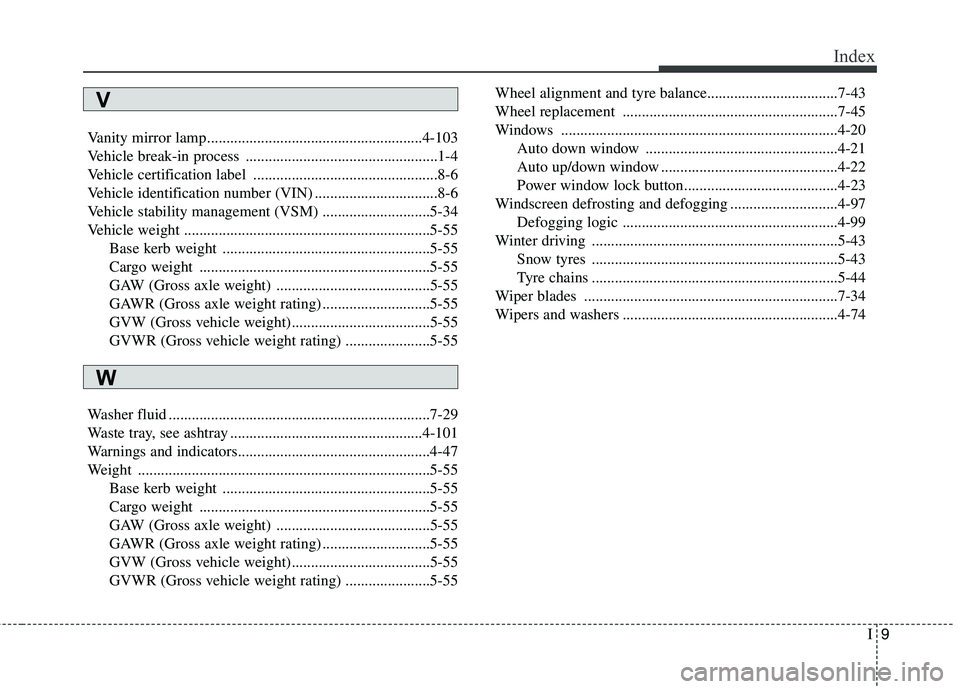

Index
Vanity mirror lamp........................................................4-103
Vehicle break-in process ..................................................1-4
Vehicle certification label ................................................8-6
Vehicle identification number (VIN) ................................8-6
Vehicle stability management (VSM) ............................5-34
Vehicle weight ................................................................5-55
Base kerb weight ......................................................5-55
Cargo weight ............................................................5-55
GAW (Gross axle weight) ........................................5-55
GAWR (Gross axle weight rating) ............................5-55
GVW (Gross vehicle weight)....................................5-55
GVWR (Gross vehicle weight rating) ......................5-55
Washer fluid ....................................................................7-29
Waste tray, see ashtray ..................................................4-101
Warnings and indicators..................................................4-47
Weight ............................................................................5-55
Base kerb weight ......................................................5-55
Cargo weight ............................................................5-55
GAW (Gross axle weight) ........................................5-55
GAWR (Gross axle weight rating) ............................5-55
GVW (Gross vehicle weight)....................................5-55
GVWR (Gross vehicle weight rating) ......................5-55Wheel alignment and tyre balance..................................7-43
Wheel replacement ........................................................7-45
Windows ........................................................................4-20
Auto down window ..................................................4-21
Auto up/down window ..............................................4-22
Power window lock button........................................4-23
Windscreen defrosting and defogging ............................4-97
Defogging logic ........................................................4-99
Winter driving ................................................................5-43
Snow tyres ................................................................5-43
Tyre chains ................................................................5-44
Wiper blades ..................................................................7-34
Wipers and washers ........................................................4-74
