Features of your vehicle
246
4
Deleting a Device
Press the key Select
[Phone] Select [Paired Phone List]
From the paired phone list, select the
device you want to delete and press the
button.
✽✽NOTICE
 When deleting the currently connect- ed device, the device will automatical-
ly be disconnected to proceed with the
deleting process.
 If a paired Bluetooth®
Wireless
Technology device is deleted, the
device’s call history and phone book
data will also be deleted.
 To re-use a deleted device, you must pair the device again.
USING Bluetooth®Wireless
Technology
Phone Menu Screen
Phone Menus
With a Bluetooth®Wireless
Technology device connected, press
the key to display the Phone
menu screen. (1) Dial Number : Displays the dial
screen where numbers can be dialed
to make calls
(2) Call History : Device that is currently connected
(3) Phone book : Displays the Phone book list screen (4) Setup : Displays Phone related set-
tings
✽✽NOTICE
 If you press the [Call History] button but there is no call history data, a
prompt is displayed which asks
whether to download call history data.
 If you press the [Phone book] button but there is no phone book data, a
prompt is displayed which asks
whether to download phone book data.
 This feature may not be supported in some mobile phones. For more infor-
mation on download support, refer to
your mobile phone user’s manual.
PHONE
SETUP
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 246

4 247
Features of your vehicle
Calling by Dialing a Number
Press the key Select [Dial Number]
(1) Dial Pad : Used to enter phone num-ber
(2) Call : If a number has been entered, calls the number If no number has
been entered, switches to call historyscreen
(3) End : Deletes the entered phone number
(4) Delete : Deletes entered numbers one digit at a time Answering Calls
Answering a Call
Answering a call with a Bluetooth®
Wireless Technology device connect-
ed will display the following screen. (1)
Caller : Displays the other part’s name when the incoming caller is
saved within your phone book
(2) Incoming Number : Displays the
incoming number
(3) Accept : Accept the incoming call
(4) Reject : Reject the incoming call
✽✽ NOTICE
 When the incoming call pop-up is dis- played, most Audio and SETUP mode
features will not operate. Only the call
volume can be operated.
 The telephone number may not be
properly displayed in some mobile
phones.
 When a call is answered with the mobile phone, the call mode will auto-
matically convert to Private mode.
PHONE
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 247

Features of your vehicle
248
4
During a Handsfree Call
(1) Caller : Displays the other party’s
name if the incoming caller is saved
within your phone book
( 2) Incoming Number : Displays the
incoming number
( 3) Call time : Displays the call time
( 4) End : Ends call
( 5) Private : Converts to Private mode
( 6) Out Vol. : Sets call volume as heard
by the other party
( 7) Mute : Turns Mic Mute On/Off
✽✽
NOTICE
If the mic is muted, the other party will
not be able to hear your voice.
Call History
Press the key Select [Call
History] A list of incoming, outgoing and missed
calls is displayed.
Press the [Download] button to download
the call history. ( 1) Call History :
- Displays recent calls (call history) - Connects call upon selection
( 2) Download : Download Recent Call
History✽✽NOTICE
 The call history list will display up to 30 outgoing, incoming, and missed
calls.
 Upon downloading call histories, pre- viously saved histories are deleted.
 Incoming calls with hidden caller IDs will not be saved in the call history
list.
 Previously saved phone book entries
are stored even if a device is discon-
nected and re-connected.
 The download feature may not be sup- ported in some mobile phones. Check
to see that the Bluetooth®
Wireless
Technology device supports the down-
load feature.
PHONE
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 248

4 249
Features of your vehicle
Phone Book
Press the key Select [Phone book]
The list of saved phone book entries is
displayed. Press the [Download] button
to download the call history. (1) Contact List :
- Displays downloaded phone bookentries
- Connects call upon selection
( 2) Download : Download phone book
entries✽✽NOTICE
 Up to 1,000 phone book entries can be copied into car phone book.
 Upon downloading phone book data,
previously saved phone book data will
be deleted.
 Downloading is not possible if the phone book download feature is
turned off within the Bluetooth®
Wireless Technology device. Also, some
devices may require device authoriza-
tion upon attempting to download. If
downloading cannot be normally con-
ducted, check the Bluetooth®
Wireless
Technology device setting or the screen
state.
 Caller ID information will not be dis- played for unsaved callers.
 The download feature may not be sup- ported in some mobile phones. Check
to see that the Bluetooth®
Wireless
Technology device supports the down-
load feature.
PHONE
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 249

Features of your vehicle
250
4
✽✽
NOTICE - USING THE Voice Recognition
 When using the voice recognition fea- ture, only commands listed within the
user's manual are supported.
 Be aware that during the operation of the voice recognition system, pressing
any key other than the key or
touching the screen will terminate
voice recognition mode.
 For superior voice recognition per-
formance, position the microphone
used for voice recognition above the
head of the driver’s seat and maintain
a proper position when saying com-
mands.
 Within the following situations, voice
recognition may not function properly
due to external sound.
- When the windows and sunroof areopen
- When the wind of the cooling / heat- ing device is strong
- When entering and passing through tunnels
- When driving on rugged and uneven roads
- During severe rain (heavy rains, windstorms)  Phone related voice commands can be
used only when a Bluetooth®
Wireless Technology device is con-
nected.
 When making calls by stating a name, the corresponding contact must be
downloaded and stored within the
audio system.
 After downloading the Bluetooth®
Wireless Technology phone book, it
takes some times to convert the phone
book data into voice information.
During this time, voice recognition
may not properly operate.
 Pronounce the voice commands natu-
rally and clearly as if in a normal con-
versation.
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 250

4 251
Features of your vehicle
VOICE RECOGNITION
Using Voice Recognition
Starting Voice Recognition
Shortly press the key on the
steering remote controller .Say acommandIf voice recognition is in [Normal Mode],
then the system will say “Please say a
command. Beep~”
 If voice recognition is in [Expert Mode],
then the system will only say a “Beep~”
 To change the Normal Mode/Expert Mode setting, go to [System] [Prompt Feedback].
✽✽ NOTICE
For proper recognition, say the com-
mand after the voice instruction and
beep tone.
Skipping Prompt Messages
Whilst prompt message is being stat-
ed Shortly press the key on the
steering remote controller (under 0.8seconds) The prompt message is immediately ended and the beep tone will sound.
After the “beep”, say the voice command.
Re-starting Voice Recognition
Whilst system waits for a command
Shortly press the key on the
steering remote controller (under 0.8seconds)
The command wait state is immediately
ended and the beep ton will sound. After
the “beep”, say the voice command.
SETUP
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 251

Features of your vehicle
252
4
ENDING VOICE RECOGNITION
Whilst Voice Recognition is operating
Press and hold the key on the
steering remote controller (over 0.8 seconds)
✽✽ NOTICE
 Whilst using voice command, pressing a steering wheel remote control or a
different key will end voice command.
 In a state where the system is waiting for a voice command, say “cancel” or
“end” to end voice command.
 In a state where the system is waiting
for a voice command, press and hold
the key on the steering remote
controller to end voice command.
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 252

4 253
Features of your vehicle

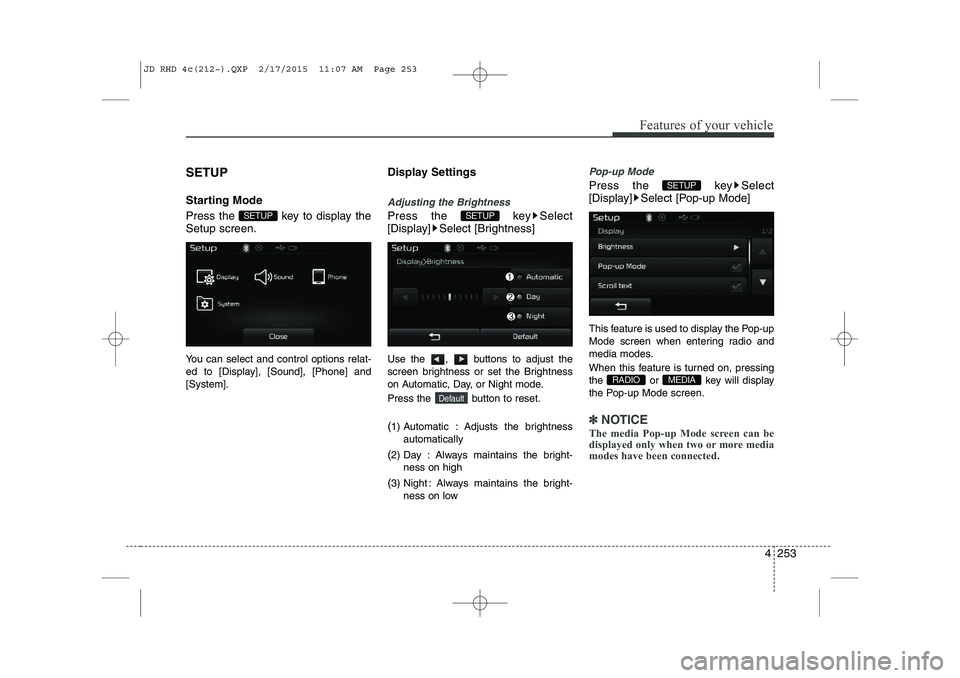

SETUP
Starting Mode
Press the key to display the Setup screen.
You can select and control options relat-
ed to [Display], [Sound], [Phone] and[System].Display Settings
Adjusting the Brightness
Press the key Select
[Display] Select [Brightness]
Use the , buttons to adjust the
screen brightness or set the Brightness
on Automatic, Day, or Night mode.
Press the button to reset. (
1) Automatic : Adjusts the brightness
automatically
( 2) Day : Always maintains the bright-
ness on high
( 3) Night : Always maintains the bright-
ness on low
Pop-up Mode
Press the key Select
[Display] Select [Pop-up Mode]
This feature is used to display the Pop-up
Mode screen when entering radio and
media modes.
When this feature is turned on, pressing
the or key will display
the Pop-up Mode screen.
✽✽NOTICE
The media Pop-up Mode screen can be
displayed only when two or more media
modes have been connected.
MEDIA RADIO
SETUP
Default
SETUP SETUP
