What to do in an emergency
Road warning ............................................................6-2 Hazard warning flasher .................................................6-2
In case of an emergency while driving ....................6-3  If the engine stalls at a crossroad or crossing..............6-3
 If you have a flat tire while driving ..............................6-3
 If engine stalls while driving .........................................6-3
If the engine will not start ........................................6-4  If engine doesn’t turn over or turns over slowly.........6-4
 If engine turns over normally but does not start ........6-4
Emergency starting ...................................................6-5  Jump starting ..................................................................6-5
 Push-starting ...................................................................6-7
If the engine overheats ..............................................6-8
If you have a flat tire (with spare tire) ....................6-9  Jack and tools .................................................................6-9
 Removing and storing the spare tire ..........................6-10
 Changing tires...............................................................6-10
 Wheel nut tightening torque .......................................6-14
 Jack label.......................................................................6-17
 EC Declaration of Conformity for Jack.....................6-18
If you have a flat tire
(with Tire Mobility Kit) ........................................6-19 Introduction ..................................................................6-19
 Components of the Tire Mobility Kit .........................6-20
 Using the Tire Mobility Kit .........................................6-21
 Distributing the sealant................................................6-22  Producing the tire inflation pressure..........................6-22
 Notes on the safe use of
the Tire Mobility Kit .............6-23
 Technical Data ..............................................................6-23
Tire Pressure Monitoring System (TPMS) ...........6-24  Tire Pressure Monitoring System (TPMS) malfunction indicator ...............................................6-26
 Changing a tire with TPMS ........................................6-27
Towing ......................................................................6-29  Towing service...............................................................6-29
 Removable towing hook...............................................6-30
 Emergency towing ........................................................6-30
Emergency commodity ...........................................6-33  Fire extinguisher...........................................................6-33
 First aid kit....................................................................6-33
 Triangle reflector ..........................................................6-33
 Tire pressure gauge ......................................................6-33
6
JD eng 6.QXP 3/12/2015 3:05 PM Page 1

623
What to do in an emergency
Notes on the safe use of the TireMobilityKit
 Park your car at the side of theroad so that you can work with the
TireMobilityKit away from moving
traffic. Place your warning triangle
in a prominent place to make pass-
ing vehicles aware of your location.
 To be sure your vehicle won't move, even when you're on fairly
level ground, always set your park-
ing brake.
 Only use the TireMobilityKit for sealing/inflation passenger car
tires. Do not use on motorcycles,
bicycles or any other type of tires.
 Do not remove any foreign objects- such as nails or screws -that have
penetrated the tire.
 Before using the TireMobilityKit, read the precautionary advice
printed on the sealant bottle!
 Provided the car is outdoors, leave the engine running. Otherwise
operating the compressor may
eventually drain the car battery.  Never leave the TireMobilityKit
unattended while it is being used.
 Do not leave the compressor run- ning for more than 10 min. at a time
or it may overheat.
 Do not use the TireMobilityKit if the ambient temperature is below -30°C(-22°F).
 Do not use the sealing compound after its expiration date which can
be found on the label of the bottle.
 Keep away from children. Technical Data
System voltage: DC 12 V
Working voltage: DC 10 - 15 V
Amperage rating: max. 10A ± 1A
(at DC 12V operation)
Suitable for use at temperatures: -30 ~ +70°C (-22 ~ +158°F)
Max. working pressure: 6 bar (87 psi)
Size
Compressor: 161 X 150 X 55.8 mm (6.3 X 5.9 X 2.2 in.)
Sealant bottle: 81 x ø 85 mm (3.2 x ø 3.3 in.)
Compressor weight: 735 g ± 25 g (1.62 lbs ± 0.06 lbs)
Sealant volume: 200 ml (12.2 cu. in.)
❈ Sealing compound and spare
parts can be obtained and
replaced at an authorized vehicle
or tire dealer. Empty sealing com-
pound bottles may be disposed of
at home. Liquid residue from thesealing compound should be dis-
posed of by your vehicle or tiredealer or in accordance with local
waste disposal regulations.
JD eng 6.QXP 3/12/2015 3:05 PM Page 23

What to do in an emergency
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2 Hazard warning flasher. . . . . . . . . . . . . . . . . . . . . . . . 6-2
In case of an emergency whilst driving . . . . . . . . . 6-3  If the engine stalls at a crossroad or crossing . . . . . . 6-3
 If you have a flat tyre whilst driving . . . . . . . . . . . . . 6-3
 If engine stalls whilst driving . . . . . . . . . . . . . . . . . . . 6-3
If the engine will not start . . . . . . . . . . . . . . . . . . . . 6-4  If engine doesn’t turn over or turns over slowly. . . . 6-4
 If engine turns over normally but does not start . . . 6-4
Emergency starting . . . . . . . . . . . . . . . . . . . . . . . . . 6-5  Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
 Push-starting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
If the engine overheats . . . . . . . . . . . . . . . . . . . . . . 6-8
If you have a flat tyre (with spare tyre). . . . . . . . . 6-9  Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
 Removing and storing the spare tyre . . . . . . . . . . . . . 6-10
 Changing tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
 Wheel nut tightening torque . . . . . . . . . . . . . . . . . . . . 6-14
 Jack label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17
 EC Declaration of Conformity for Jack . . . . . . . . . . 6-18
If you have a flat tyre (with Tyre Mobility Kit) . . 6-19  Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-19
 Components of the Tyre Mobility Kit . . . . . . . . . . . . 6-20
 Using the Tyre Mobility Kit . . . . . . . . . . . . . . . . . . . . 6-21
 Distributing the sealant . . . . . . . . . . . . . . . . . . . . . . . . 6-22
 Producing the tyre inflation pressure. . . . . . . . . . . . . 6-22  Notes on the safe use of the Tyre
Mobility Kit . . . . . . 6-23
 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23
Tyre Pressure Monitoring System (TPMS) . . . . . . 6-24  Tyre Pressure Monitoring System (TPMS) malfunction indicator . . . . . . . . . . . . . . . . . . . . . . . . 6-26
 Changing a tyre with TPMS . . . . . . . . . . . . . . . . . . . . 6-27
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-29  Towing service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-29
 Removable towing hook. . . . . . . . . . . . . . . . . . . . . . . . 6-30
 Emergency towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-30
Emergency commodity . . . . . . . . . . . . . . . . . . . . . . 6-33  Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-33
 First aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-33
 Triangle reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-33
 Tyre pressure gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-33
6
JD RHD 6.QXP 2/17/2015 11:15 AM Page 1

623
What to do in an emergency

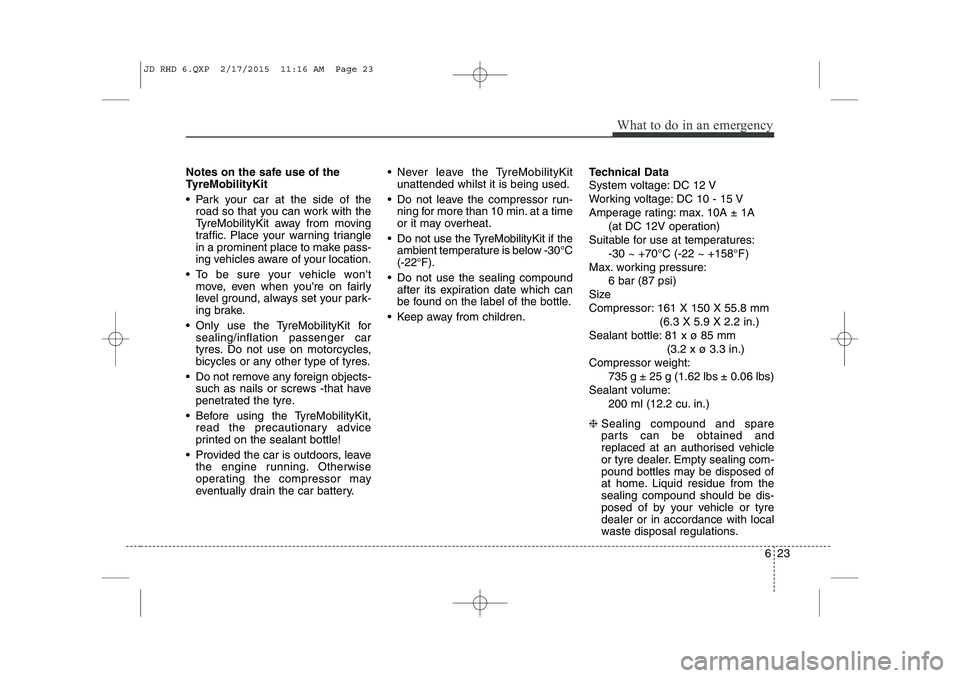

Notes on the safe use of the
TyreMobilityKit
 Park your car at the side of theroad so that you can work with the
TyreMobilityKit away from moving
traffic. Place your warning triangle
in a prominent place to make pass-
ing vehicles aware of your location.
 To be sure your vehicle won't move, even when you're on fairly
level ground, always set your park-
ing brake.
 Only use the TyreMobilityKit for sealing/inflation passenger car
tyres. Do not use on motorcycles,
bicycles or any other type of tyres.
 Do not remove any foreign objects- such as nails or screws -that have
penetrated the tyre.
 Before using the TyreMobilityKit, read the precautionary advice
printed on the sealant bottle!
 Provided the car is outdoors, leave the engine running. Otherwise
operating the compressor may
eventually drain the car battery.  Never leave the TyreMobilityKit
unattended whilst it is being used.
 Do not leave the compressor run- ning for more than 10 min. at a time
or it may overheat.
 Do not use the TyreMobilityKit if the ambient temperature is below -30°C(-22°F).
 Do not use the sealing compound after its expiration date which can
be found on the label of the bottle.
 Keep away from children. Technical Data
System voltage: DC 12 V
Working voltage: DC 10 - 15 V
Amperage rating: max. 10A ± 1A
(at DC 12V operation)
Suitable for use at temperatures: -30 ~ +70°C (-22 ~ +158°F)
Max. working pressure: 6 bar (87 psi)
Size
Compressor: 161 X 150 X 55.8 mm (6.3 X 5.9 X 2.2 in.)
Sealant bottle: 81 x ø 85 mm (3.2 x ø 3.3 in.)
Compressor weight: 735 g ± 25 g (1.62 lbs ± 0.06 lbs)
Sealant volume: 200 ml (12.2 cu. in.)
❈ Sealing compound and spare
parts can be obtained and
replaced at an authorised vehicle
or tyre dealer. Empty sealing com-
pound bottles may be disposed of
at home. Liquid residue from thesealing compound should be dis-
posed of by your vehicle or tyredealer or in accordance with local
waste disposal regulations.
