2015 KIA CEED display

4 221
Features of your vehicle
Using Audio CD Mode
Playing/Pausing CD Tracks
Once an audio CD is inserted, the
mode will automatically start and
begin playing.
Whilst playing, press the but-
ton to pause and press button
to play.
✽✽NOTICE
 Only genuine audio CDs are support- ed. Other discs may result in recogni-
tion failure (e.g. copy CD-R, CDs with
labels)
 The artist and title information are
displayed on the screen if track infor-
mation is included within the audio
CD.
Changing Tracks
Press the key to move to
the previous or next track.
✽✽ NOTICE
 Pressing the key after the track has been playing for 1 seconds
will start the current track from the
beginning.
 Pressing the key before the track has been playing for 1 seconds
will start the previous track.
Selecting from the List
Turn the TUNE knob left/right to
search for the desired track.
Once you find the desired track, press
the TUNE knob to start playing.
Rewinding / Fast-forwarding Tracks
Whilst playing, press and hold the
key (over 0.8 seconds) to
rewind or fast-forward the current
track.
Scan
Press the key to play the first
10 seconds of each file.SCAN
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 221

Features of your vehicle
222
4
Audio CD Mode Menu
Within this mode, you will have
access to the Info, Random, Repeat
and List features.Info
Press the button to display details about the current disc.
Random
Press the button to play tracks
in random order.
Press the button again to turn the
Random feature off.
Repeat
Press the button to repeat the
current track. Press the button again
to turn the repeat feature off.
List
Press the button to display the
track list screen.
Turn the TUNE knob left/right to
search for tracks. Once the desired track
is displayed, press the knob to select and
play.
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 222

4 223
Features of your vehicle

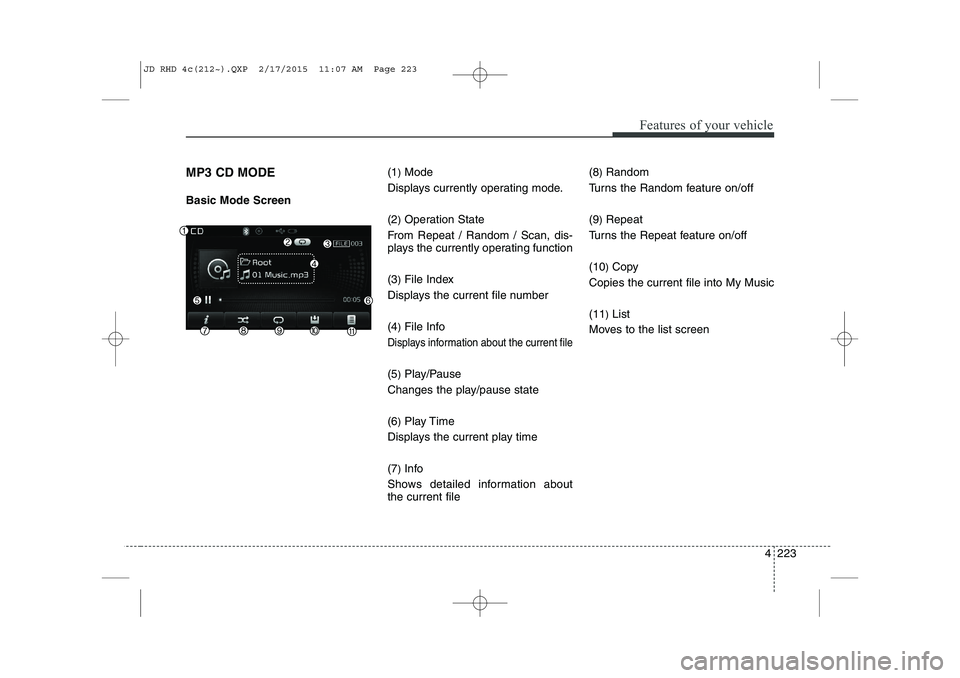

MP3 CD MODE Basic Mode Screen(1
)Mode
Displays currently operating mode. (2 )Operation State
From Repeat / Random / Scan, dis-
plays the currently operating function (3 )File Index
Displays the current file number(4 )File Info
Displays information about the current file
(5 )Play/Pause
Changes the play/pause state(6 )Play Time
Displays the current play time(7 )Info
Shows detailed information about the current file (8
)Random
Turns the Random feature on/off (9 )Repeat
Turns the Repeat feature on/off(10 )Copy
Copies the current file into My Music(11 )List
Moves to the list screen
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 223

Features of your vehicle
224
4
Using MP3 CD Mode
Playing/Pausing MP3 Files
Once an MP3 disc is inserted the
mode will automatically start and
being playing.
Whilst playing, press the but-
ton to pause and press button
to play.
✽✽
NOTICE
If there are numerous files and folders
within the disc, reading time could take
more than 10 seconds and the list may
not be displayed or song searches may
not operate. Once loading is complete,
try again.
Changing Files
Press the key to move to
the previous or next file.
✽✽ NOTICE
 Pressing the key after the file has been playing for 1 seconds will
start the current file from the begin-
ning.
 Pressing the key before the file has been playing for 1 seconds will
start the previous file.
Selecting from the List
Turn the TUNE knob left/right to
search for the desired file.
Once you find the desired file, press the
TUNE knob to start playing.
Rewinding / Fast-forwarding Files
Whilst playing, press and hold the key (over 0.8 seconds) to
rewind or fast-forward the current file.
Scan
Press the key to play the first
10 seconds of each file.SCAN
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 224

4 225
Features of your vehicle
Searching Folders
Press the key to select
and search folders.
Once the desired folder is displayed,
press the TUNE knob to select.
The first file within the selected folder will
begin playing.MP3 CD Mode Menu
Within this mode, you will have
access to the Info, Random, Repeat,
Copy and List features.
Info
Press the button to display
details about the current file.
✽✽
NOTICE
 When the ‘Folder File’ option is set as the default display within Display
setup, the album/artist/file informa-
tion are displayed as detailed file infor-
mation.
 When the ‘Album Artist Song’ option
is set as the default display, the folder
name/file name are displayed as
detailed file information.  The title, artist and album info are dis-
played only when such information are
recorded within the MP3 file ID3 tag.
Random
Press the button to play files in
random order.
Each time the button is pressed, the fea-
ture changes in order of Random Folder➟ Random All ➟ Off.
 Random Folder : Plays all files within the current folder in Random order.
 Random All : Plays all files in Random order.
PTY
FOLDER
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 225

Features of your vehicle
226
4
Repeat
Press the button to repeat the
current file or folder.
Each time the button is pressed, the fea- ture changes in order of Repeat ➟Repeat
Folder ➟Off.
 Repeat: Repeats the current file.
 Repeat Folder: Repeats all files within the current Folder.
Copying Files
Press the button to copy the current file into My Music.
✽✽ NOTICE
Selecting another feature during copy-
ing will display a pop-up asking whether
you wish to cancel copying. To cancel,
select 'Yes’.
List
Press the button to display the file list screen.
Turn the TUNE knob left/right to
search for files. Once the desired file is
displayed, press the knob to select and
play.
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 226

4 227
Features of your vehicle
USB MODE Basic Mode Screen(1
)Mode
Displays currently operating mode (2 )Operation State
From Repeat / Random / Scan, dis-
plays the currently operating function (3 )File Index
Displays the current file number(4 )File Info
Displays information about the current file(5 )Play/Pause
Changes the play/pause state(6 )Play Time
Displays the current play time(7 )Info
Displays detailed information for the current file (8
)Random
Turns the Random feature on/off (9 )Repeat
Turns the Repeat feature on/off(10 )Copy
Copies the current file into My Music(11 )List
Moves to the list screen
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 227

Features of your vehicle
228
4
Using USB Mode
Playing/Pausing USB Files
Once a USB is connected, the mode
will automatically start and begin
playing a USB file.
Whilst playing, press the but-
ton to pause and press button
to play.
✽✽
NOTICE
 Loading may require additional time if there are many files and folders within
the USB and result in faulty list display
or file searching. Normal operations
will resume once loading is complete.
 The device may not support normal operation when using a USB memory
type besides (Metal Cover Type) USB
Memory.
Changing Files
Press the keys to move to
the previous or next file.
✽✽ NOTICE
 Pressing the key after the file has been playing for 1 seconds will
start the current file from the begin-
ning.
 Pressing the key before the file has been playing for 1 seconds will
start the previous file.
Selecting from the List
Turn the TUNE knob left/right to
search for the desired file.
Once you find the desired file, press the
TUNE knob to start playing.
Rewinding / Fast-forwarding Files
Whilst playing, press and hold the key (over 0.8 seconds) to
rewind or fast-forward the current file.
Scan
Press the key to play the first
10 seconds of each file.SCAN
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 228
