2015 KIA CEED display

4 229
Features of your vehicle
Searching Folders
Press the key to select
and search folders.
Once the desired folder is displayed,
press the TUNE knob to select.
The first file within the selected folder will
begin playing.USB Mode Menu
Within this mode, you will have
access to the Info, Random, Repeat,
Copy and List features.
Info
Press the button to display
details about the current file.
✽✽
NOTICE
 When the ‘Folder File’ option is set as the default display within Display
setup, the album/artist/file informa-
tion are displayed as detailed file infor-
mation.
 When the ‘Album Artist Song’ option is set as the default display, the folder
name/file name are displayed as
detailed file information.
 The title, artist and album info are dis- played only when such information are
recorded within the MP3 file ID3 tag.
Random
Press the button to play files in
random order.
Each time the button is pressed, the
feature changes in order of Random
Folder ➟Random All ➟Off.
 Random Folder : Plays the files in the current folder in random order.
 Random All : Plays all files in random order.
PTY
FOLDER
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 229

Features of your vehicle
230
4

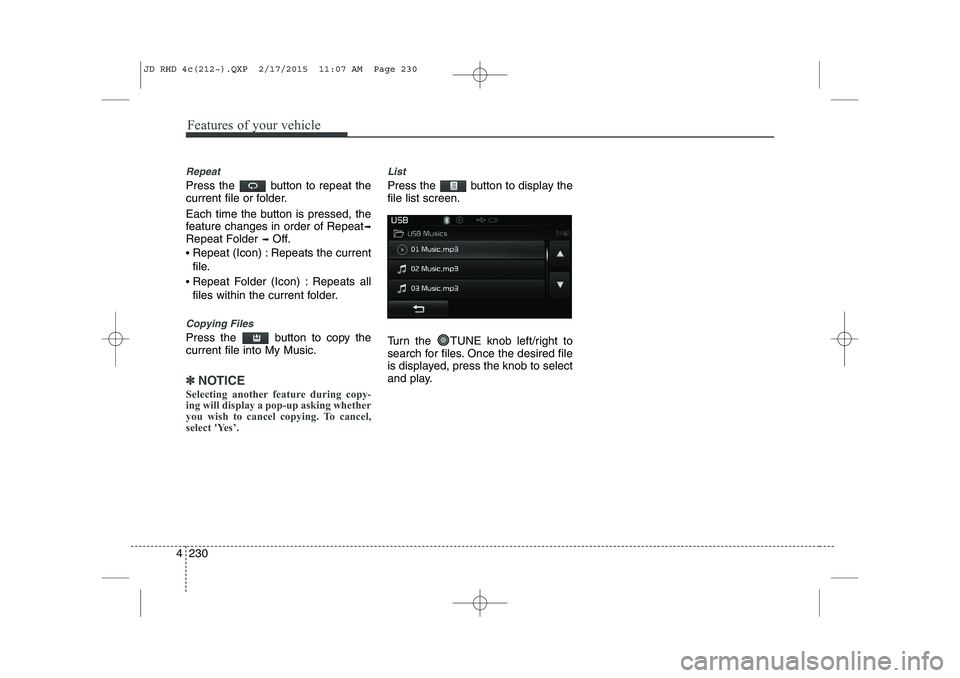

Repeat
Press the button to repeat the
current file or folder.
Each time the button is pressed, the
feature changes in order of Repeat ➟
Repeat Folder ➟Off.
 Repeat (Icon) : Repeats the current
file.
 Repeat Folder (Icon) : Repeats all
files within the current folder.
Copying Files
Press the button to copy the current file into My Music.
✽✽
NOTICE
Selecting another feature during copy-
ing will display a pop-up asking whether
you wish to cancel copying. To cancel,
select 'Yes’.
List
Press the button to display the file list screen.
Turn the TUNE knob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 230

4 231
Features of your vehicle
iPod MODE Basic Mode Screen(1
)Mode
Displays currently operating mode (2 )Operation State
From Repeat / Random, displays the
currently operating function (3 )Song Index
Displays the current song/total num- ber of songs (4 )Song Info
Displays information about the cur- rent song (5 )Play/Pause
Changes the play/pause state(6 )Play Time
Displays the current play time(7 )Random
Turns the Random feature on/off (8
)Repeat
Turns the Repeat feature on/off(9 )List
Moves to the list screen
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 231

4 233
Features of your vehicle
Category Menu
Within the iPod Category menu, you
will have access to the , Home,
and features.
(1) : Displays the play screen
(2) Home : Moves to the iPod root catego-ry screen
(3) : Moves to the previous cate- gory
✽✽NOTICE
 If the search mode is accessed whilst playing a song, the most recently
searched category is displayed.
 Search steps upon initial connection
may differ depending on the type of
iPod device.
iPod Mode Menu
Within this mode, you will have access to the Random, Repeat and
List features.
Random
Press the button to play songs
in random order.
Each time the button is pressed, the
feature changes in order of Random
Album ➟Random All ➟Off.
 Random Album : Shuffle Album plays album in Random order.
 Random All : Plays all songs in Random order.
Repeat
Press the button to repeat the
current song. Press the button again
to turn the repeat feature off.
 Repeat : Repeats the current song
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 233

Features of your vehicle
234
4
List
Press the button to display the
Category Menu.
Turn the TUNE knob left/right to
search for the desired category.
Once you find the desired category,
press the TUNE knob to select
and play. AUX MODE
Using AUX Mode
Press the key Select [AUX]
An external device can be connected to
play music.
Connecting an External Device
External audio players (Camcorders, car
VCR, etc.) can be played through a ded-
icated cable.
✽✽
NOTICE
 If an external device connector is con- nected with the AUX terminal, then
AUX mode will automatically operate.
Once the connector is disconnected,
the previous mode will be restored.
 AUX mode can be used only when an external audio player (camcorder, car
VCR, etc.) has been connected.
 The AUX volume can be controlled
separately from other audio modes.
 Connecting a connector jack to the
AUX terminal without an external
device will convert the system to AUX
mode, but only output noise. When an
external device is not being used, also
remove the connector jack.
 When the external device power is
connected to the power jack, playing
the external device may output noise.
In such cases, disconnect the power
connection before use.
 Fully insert the AUX cable to the AUX jack upon use.
MEDIA
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 234

4 235
Features of your vehicle
MY MUSIC MODE Basic Mode Screen(1
)Mode
Displays currently operating mode (2 )Operation State
From Repeat / Random / Scan, dis-
plays the currently operating function (3 )File Index
Displays the current file/total number of files (4 )File Info
Displays information about the cur- rent file (5 )Play/Pause
Changes the play/pause state(6 )Play Time
Displays the current play time (7
)
Info
Displays detailed information for the current file (8 )Random
Turns the Random feature on/off(9 )Repeat
Turns the Repeat feature on/off(10 )Delete
Deletes the current file(11 )List
Moves to the list screen
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 235

4 237
Features of your vehicle
My Music Mode Menu
Within this mode, you will have
access to the Info, Random, Repeat,
Delete and List features.
Info
Press the button to display
details about the current file.
✽✽NOTICE
The title, artist and album info are dis-
played only when such information is
recorded within the MP3 file ID3 tag.
Random
Press the button to play files in
random order. Press the button again
to turn the Random feature off.
Repeat
Press the button to repeat the
current song. Press the button again
to turn the repeat feature off.
Deleting Files
Press the button to delete the
current file.
List
Press the button to display the file list screen.
Turn the TUNE knob left/right to
search for files. Once the desired file is
displayed, press the knob to select and
play. List Menu
From the List screen, it is possible to
delete files you previously saved intoMy Music.
Press the button or individually
select the files you want to delete. Oncefiles are selected, the
button and
buttons will be enabled.
(1) : Moves to the previous screen
(2) Sellect All: Selects all files
(3) Unsellet All: Des elects all selected
files
(4) Delete: Deletes selected files
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 237

4 239
Features of your vehicle
✽✽NOTICE
The play/pause feature may operate dif-
ferently depending on the mobile phone.
Changing Files
Press the key to move to
the previous or next file.
Setting Connection
If a Bluetooth®Wireless Technology
device has not been connected, press
the key [Phone] button to
display the
Bluetooth®Wireless
Technology connection screen.
It is possible to use the pair phone, con-
nect/disconnect and delete features from
your
Bluetooth®Wireless Technology
phone.
✽✽ NOTICE
 If the Bluetooth ®
Wireless Technology
audio is not operating properly, check
whether the feature is turned off at [Phone] [Audio stream-
ing]. If the feature is off, turn back on
and try again.
 If music is not yet playing from your
mobile device after converting to
Bluetooth ®
Wireless Technology
Audio mode, pressing the play button
once may start playing the mode.
Check to see that music is playing
from the Bluetooth®
Wireless
Technology device after converting to
Bluetooth ®
Wireless Technology Audio
Mode.
SETUP
SETUP
SEEK
TRACK
JD RHD 4c(212~).QXP 2/17/2015 11:07 AM Page 239
