2015 JEEP RENEGADE interior lights

▫General Information....................95
!EXTERIOR LIGHTS......................95
▫Headlights...........................95
▫Automatic Lighting — If Equipped.........96
▫Daytime Running Lights (DRL) — If Equipped . .97
▫Front Fog Lights — If Equipped...........97
▫Parking Lights........................98
▫Headlight Time Delay...................98
▫High Beam Headlights..................98
▫Turn Signals.........................99
!INTERIOR LIGHTS.....................100
▫Front Courtesy Light...................100
▫Rear Dome Light — If Equipped...........103
▫Cargo Area Lights.....................104
▫Instrument Panel Dimmer And Ambient Light
Control............................105
!WINDSHIELD WIPER/WASHER...........106
▫Rear Window Wiper/Washer.............107
▫Windshield Wiper De-Icer — If Equipped . . . .109
!WINDOWS...........................110
▫Power Windows......................110
!CLIMATE CONTROLS...................113
▫Air Outlet And Diffuser Locations — Passenger
Compartment........................113
▫Manual Climate Controls — If Equipped.....115
▫Dual Zone Automatic Climate Controls — If
Equipped...........................119
4
GETTING TO KNOW YOUR VEHICLE 29

General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.
NOTE:Changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. A weak battery in the transmitter. The expected life of
the battery is a minimum of three years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB
radios.
To Unlock The Doors And Liftgate
The driver ’s door may be unlocked by inserting the
vehicle key into the exterior driver’s door lock cylinder.
To unlock all the doors, push the interior door unlock
button on the door panel.
Push and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door or twice
within five seconds to unlock all doors and the liftgate.
The turn signal lights will flash to acknowledge the
unlock signal. The illuminated entry system will also
turn on.
34 GETTING TO KNOW YOUR VEHICLE

General Information
This vehicle has systems that operate on radio frequency
that comply with Part 15 of the Federal Communications
Commission (FCC) rules and with Industry Canada
Standards RSS- GEN/210/220/310.
Operation is subject to the following two conditions:
1. The device may not cause harmful interference.
2. The device must accept any interference received,
including interference that may cause undesired op-
eration of the device.
Changes or modifications to any of these systems by
other than an authorized service facility could void
authorization to use this equipment.
EXTERIOR LIGHTS
Headlights
The headlight switch is located on the left side of the
instrument panel. The headlight switch controls the
operation of the headlights, side marker lights, daytime
running lights, fog lights and the dimming of the instru-
ment cluster and interior lighting.
4
GETTING TO KNOW YOUR VEHICLE 95

INTERIOR LIGHTS
Front Courtesy Light
The courtesy light switches is used to turn the courtesy
lights On/Off.
To operate the courtesy lights, push either the drivers or
passenger light switch.Courtesy Lights1 — Drivers Courtesy Lights
Courtesy Light Switches
1— Left Switch2— Right Switch
100 GETTING TO KNOW YOUR VEHICLE

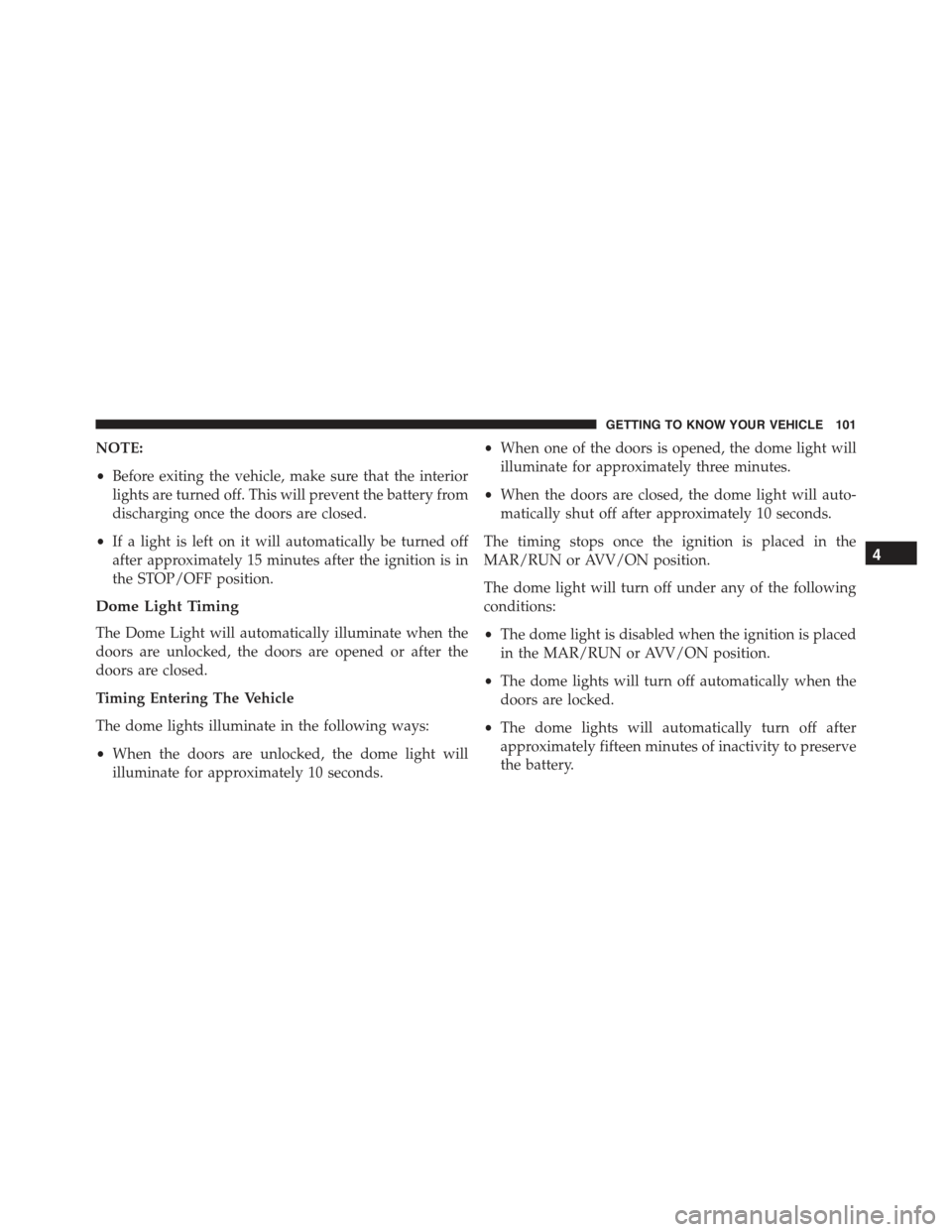

NOTE:
•Before exiting the vehicle, make sure that the interior
lights are turned off. This will prevent the battery from
discharging once the doors are closed.
•If a light is left on it will automatically be turned off
after approximately 15 minutes after the ignition is in
the STOP/OFF position.
Dome Light Timing
The Dome Light will automatically illuminate when the
doors are unlocked, the doors are opened or after the
doors are closed.
Timing Entering The Vehicle
The dome lights illuminate in the following ways:
•When the doors are unlocked, the dome light will
illuminate for approximately 10 seconds.
•When one of the doors is opened, the dome light will
illuminate for approximately three minutes.
•When the doors are closed, the dome light will auto-
matically shut off after approximately 10 seconds.
The timing stops once the ignition is placed in the
MAR/RUN or AVV/ON position.
The dome light will turn off under any of the following
conditions:
•The dome light is disabled when the ignition is placed
in the MAR/RUN or AVV/ON position.
•The dome lights will turn off automatically when the
doors are locked.
•The dome lights will automatically turn off after
approximately fifteen minutes of inactivity to preserve
the battery.
4
GETTING TO KNOW YOUR VEHICLE 101

Rear Dome Light — If Equipped
Push the button on the rear dome light once to turn the
light On, the light will remain On at all times. Push the
button a second time to turn the light Off, the lights will
remain Off at all times.
Vehicles With Retractable Roof
For vehicles equipped with a retractable roof, there are
two interior lights located above the grab handles of the
rear doors.
Rear Dome Light
Rear Interior Light
4
GETTING TO KNOW YOUR VEHICLE 103

The lights come on by opening any of the doors.
Cargo Area Lights
Two interior lights are located in the cargo area.
These lights automatically turn on/off when the liftgate
is opened and closed, regardless of the position of the
ignition.
Interior Light Locations
Cargo Light Locations
104 GETTING TO KNOW YOUR VEHICLE

Instrument Panel Dimmer And Ambient Light
Control
Rotate the ambient dimmer control upward or down-
ward to increase or decrease the brightness of the ambi-
ent light located in the overhead console, door handle
lights, lower instrument panel lights, door map pocket
lights, and cubby bin lights.
With the parking lights or headlights on, rotate the
instrument panel dimmer control upward or downward
to increase or decrease the brightness of the instrument
panel. At the top detent of the instrument panel dimmer,
all the interior lights will also illuminate. At the bottom
most setting of the thumb wheel will turn all the interior
lights to their lowest dimmable setting.
Headlight Switch
1—AmbientLightControl2—InstrumentPanelDimmer
4
GETTING TO KNOW YOUR VEHICLE 105
