2015 JEEP RENEGADE rear view mirror

▫Disabling............................53
!DOORS..............................53
▫Manual Door Locks.....................53
▫Power Door Locks......................55
▫Keyless Enter-N-Go™...................56
▫Child Locks..........................64
!SEATS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
▫Manual Front Seats.....................66
▫Power Seats — If Equipped...............68
▫Heated Seats — If Equipped...............69
▫Rear Seats............................71
!HEAD RESTRAINTS.....................77
▫Front Head Restraints...................77
▫Rear Head Restraints....................78
!TILT/TELESCOPING STEERING COLUMN....79
!HEATED STEERING WHEEL — IF EQUIPPED . .80
!REAR-VIEW MIRRORS...................81
▫Inside Day/Night Mirror................81
▫Dimming Mirror — If Equipped............82
▫Outside Mirrors.......................83
▫Heated Mirrors — If Equipped............85
!BLIND SPOT MONITORING (BSM) — IF
EQUIPPED............................85
▫Rear Cross Path (RCP)..................91
▫Mode Of Operation.....................93
▫Blind Spot Monitoring Fault Warnings.......94
28 GETTING TO KNOW YOUR VEHICLE

early or may not turn on when the steering wheel is
already warm. The heated steering wheel control
button is located on the center of the instrument panel
below the radio screen.
WARNING!
•Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion, or other physical conditions must exercise
care when using the steering wheel heater. It may
cause burns even at low temperatures, especially if
used for long periods.
•Do not place anything on the steering wheel that
insulates against heat, such as a blanket or steering
wheel covers of any type and material. This may
cause the steering wheel heater to overheat.
REAR-VIEW MIRRORS
Inside Day/Night Mirror
The mirror can be adjusted up, down, left, and right. The
mirror should be adjusted to center on the view through
the rear window. Headlight glare from vehicles behind
you can be reduced by moving the lever under the mirror
to the night position (toward the rear of the vehicle). The
mirror should be adjusted while the lever under the
mirror is set in the day position (toward the windshield).
4
GETTING TO KNOW YOUR VEHICLE 81

Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature can be activated whenever you turn on the
Rear Window Defroster.
BLIND SPOT MONITORING (BSM) — IF
EQUIPPED
The Blind Spot Monitoring (BSM) system uses two radar-
based sensors, located inside the rear bumper fascia, to
detect highway licensable vehicles (automobiles, trucks,
motorcycles, etc.) that enter the blind spot zones from the
rear/front/side of the vehicle.When the vehicle is started, the BSM warning light will
momentarily illuminate in both outside rear view mirrors
to let the driver know that the system is operational. The
BSM system sensors operate when the vehicle is in any
forward gear or REVERSE and enters stand-by mode
when the vehicle is in PARK.
Rear Detection Zones
4
GETTING TO KNOW YOUR VEHICLE 85

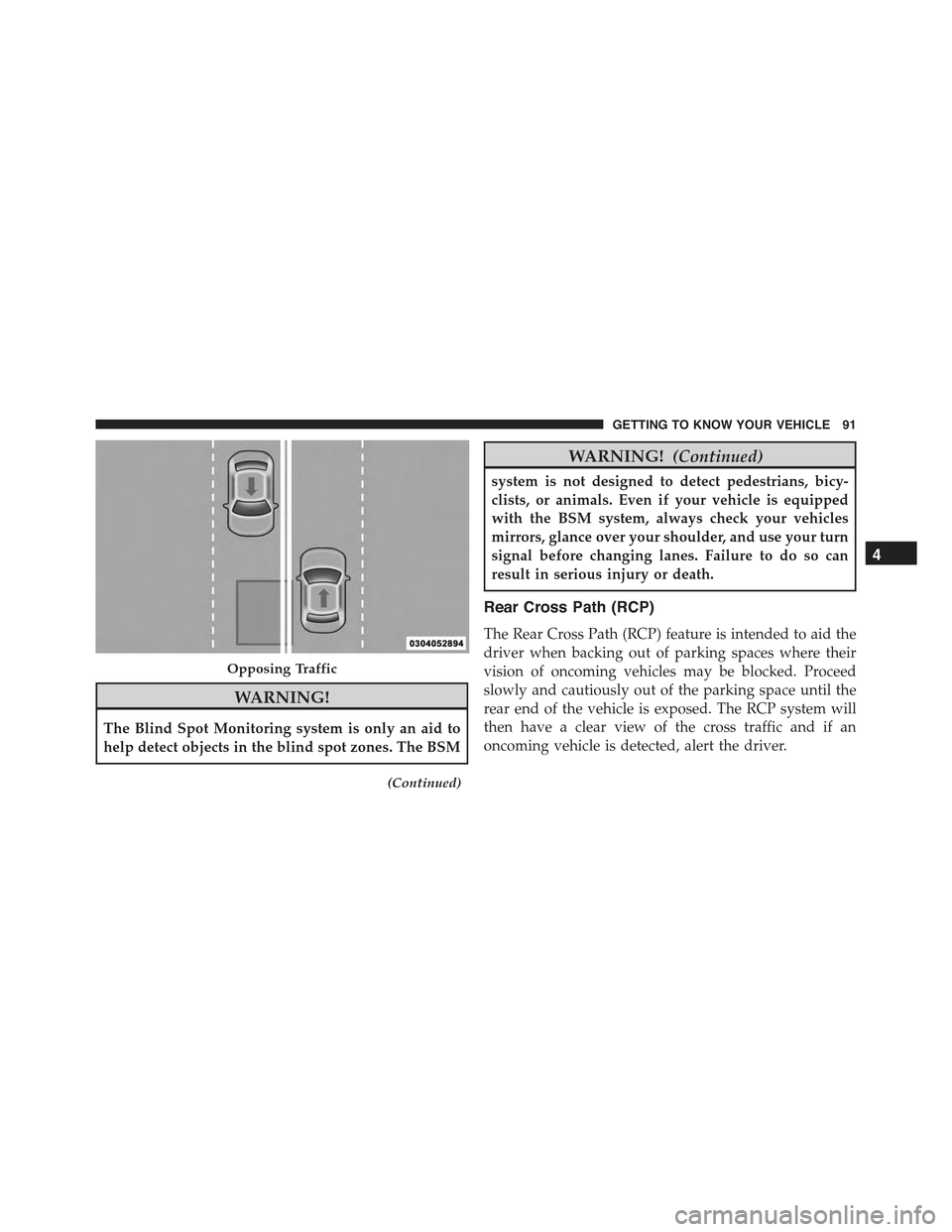

WARNING!
The Blind Spot Monitoring system is only an aid to
help detect objects in the blind spot zones. The BSM
(Continued)
WARNING!(Continued)
system is not designed to detect pedestrians, bicy-
clists, or animals. Even if your vehicle is equipped
with the BSM system, always check your vehicles
mirrors, glance over your shoulder, and use your turn
signal before changing lanes. Failure to do so can
result in serious injury or death.
Rear Cross Path (RCP)
The Rear Cross Path (RCP) feature is intended to aid the
driver when backing out of parking spaces where their
vision of oncoming vehicles may be blocked. Proceed
slowly and cautiously out of the parking space until the
rear end of the vehicle is exposed. The RCP system will
then have a clear view of the cross traffic and if an
oncoming vehicle is detected, alert the driver.
Opposing Traffic
4
GETTING TO KNOW YOUR VEHICLE 91

Mode Of Operation
Three selectable modes of operation are available in the
Uconnect® System. Refer to “Uconnect® Settings” in
“Multimedia” for further information.
Blind Spot Alert Lights Only
When operating in Blind Spot Alert mode, the BSM
system will provide a visual alert in the appropriate side
view mirror based on a detected object. However, when
the system is operating in Rear Cross Path (RCP) mode,
the system will respond with both visual and audible
alerts when a detected object is present. Whenever an
audible alert is requested, the radio is muted.
Blind Spot Alert Lights/Chime
When operating in Blind Spot Alert Lights/Chime mode,
the BSM system will provide a visual alert in the appro-
priate side view mirror based on a detected object. If the
turn signal is then activated, and it corresponds to an
alert present on that side of the vehicle, an audible chime
will also be sounded. Whenever a turn signal and de-
tected object are present on the same side at the same
time, both the visual and audible alerts will be issued. In
addition to the audible alert, the radio (if on) will also be
muted.
NOTE:Whenever an audible alert is requested by the
BSM system, the radio is also muted.
When the system is in RCP, the system will respond with
both visual and audible alerts when a detected object is
present. Whenever an audible alert is requested, the radio
is also muted. Turn/hazard signal status is ignored; the
RCP state always requests the chime.
Blind Spot Alert Off
When the BSM system is turned off, there will be no
visual or audible alerts from either the BSM or RCP
systems.
4
GETTING TO KNOW YOUR VEHICLE 93

•Heated rear window
•System deactivation
NOTE:The Climate Control system detects the passenger
compartment temperature using a temperature sensor
located in the interior rearview mirror and protected by a
specific cover. Obstructing the field of view of this sensor
with any object could cause the climate control system to
operate with less than optimal efficiency.
Turning On The Climate Control System
The Climate Control system can be turned on in different
ways: it is recommended to push the AUTO button and
turn the Temperature Control knobs to set the desired
temperatures.
The system operates automatically to adjust the tempera-
ture, quantity and distribution of the air introduced into
the passenger compartment. It also manages the air
recirculation function and the activation of the air condi-
tioning compressor.
During automatic operation, you can change the set
temperatures, air distribution and blower speed at any
time by using the relevant buttons or knobs: the system
will automatically change the settings to adjust to the
new requirements.
During automatic operation (AUTO), varying the air
flow and/or distribution (which are not displayed)
causes the AUTO function LED to turn off and the system
to operate in MANUAL mode (displaying both the flow
and distribution requested).
When the compressor is deactivated, the AUTO opera-
tion remains active only if the system can guarantee
in-car comfort. Otherwise, the system changes to
124 GETTING TO KNOW YOUR VEHICLE

NOTE:
•Do not insert objects in the glove compartment that
will not allow the compartment to fully close.
•The glove compartment should be completely closed
while the vehicle is in motion.
Sun Visors “Slide-On-Rod”
Sun visors are located on both sides of the rearview
mirror. The visors can be lowered or moved to the side to
help block sunlight from entering the windshield or door
glass.
To move the sun visor against the driver or passenger
door glass, remove the sun visor from the hook and turn
it toward the side window.
The visors also have illuminated vanity mirrors to allow
use in low light conditions.
Lift upward on the mirror cover to access the mirror.
Sun Visor Mirror
1 — Sun Visor Mirror Cover
162 GETTING TO KNOW YOUR VEHICLE

5. Remove the bulb from the socket
6. Insert the new bulb in the socket.
7. Reinstall the bulb and socket into the lamp assembly
by turning it clockwise, making sure it is locked into
place.
8. Reconnect the electrical connector.
9. Reinstall the lamp assembly on the car, making sure it
is locked into place.
Side Indicators on External Rear View Mirrors – (If
Equipped)
CAUTION!
The procedure is described as a guideline. For the
replacement of the lamp it is recommended that you
contact your authorized dealer.
Bulb8
IN CASE OF EMERGENCY 445
