2015 JEEP RENEGADE fuse

Mounting Fuse Cover and Locking Screw
Proceed as follows:
•Properly secure the fuse cover to the box, slide com-
pletely from top to bottom.
•Fully depress the screw, using the special screwdriver
supplied.
•Slowly turn the screw clockwise.
•Release the screw.
Battery Fuse Cover Location
1—FuseCoverTabs2—FuseCover
464 IN CASE OF EMERGENCY

Cavity Maxi FuseMini FuseMicro Fuse Description
F0170 Amp Tan——Module Body
Computer
F0270 Amp Tan——Module Body
Computer, Rear
Distribution Units
F03—20 Amp Yellow—Controller Power
Supply Body
Computer
F04—30 Amp Green—Brake Control
Electronics Module
F0570 Amp Tan——Electric Power-
Assisted Steering
F06 20 Amp Yellow——Engine Cooling fan
F06 40 Amp Orange——Engine Cooling fan
F07 30 Amp Green——Engine Cooling fan
F07 40 Amp Orange——Engine Cooling fan
8
IN CASE OF EMERGENCY 465

Cavity Maxi FuseMini FuseMicro Fuse Description
F0830 Amp GreenAutomatic
Transmission, GSM
F09——5 Amp Tan Control Module
Engine
F10——10 Amp Red Horn
F11——10 Amp Red Supply Secondary
Loads
F14——7.5 Amp Brown Heater#Blow By#
F14——5 Amp Tan Pump Power#After
run#
F15 40 Amp Orange——Brake Control Module
Pump
F16——5 Amp Tan Engine Control
Module Power,
Automatic
Transmission
466 IN CASE OF EMERGENCY

Cavity Maxi FuseMini FuseMicro Fuse Description
F17——10 Amp Red Supply Primary Loads
F18——20 Amp Yellow 12V Rear Cargo Outlet
Ignition Powered
F19——7.5 Amp Brown Air Conditioner
Compressor
F20——5 Amp Tan Electronic Power
Four-Wheel Drive
F21——15 Amp Blue Fuel Pump
F22——7.5 Amp Brown Power Control Module
Engine
F23——30 Amp Green Heated Windshield –
If Equipped
F24——15 Amp Blue Electronic Unit Supply
Automatic
Transmission
F83—40 Amp Orange—Air Conditioning Fan
8
IN CASE OF EMERGENCY 467

Cavity Maxi FuseMini FuseMicro Fuse Description
F84——30 Amp Green Power Supply All
Wheel Drive
F87——5 Amp Tan Shift Lever Automatic
Transmission
F88——7.5 Amp Brown Heated Outside
Mirrors
F89——30 Amp Green Heated Rear Window
F90——5 Amp Tan IBS Sensor (Battery
State of Charge)
Body Computer Fuse Center
The controller is located at the left side of the steering
column at the bottom of the instrument panel.
468 IN CASE OF EMERGENCY

For the fuse replacement see your authorized dealer.

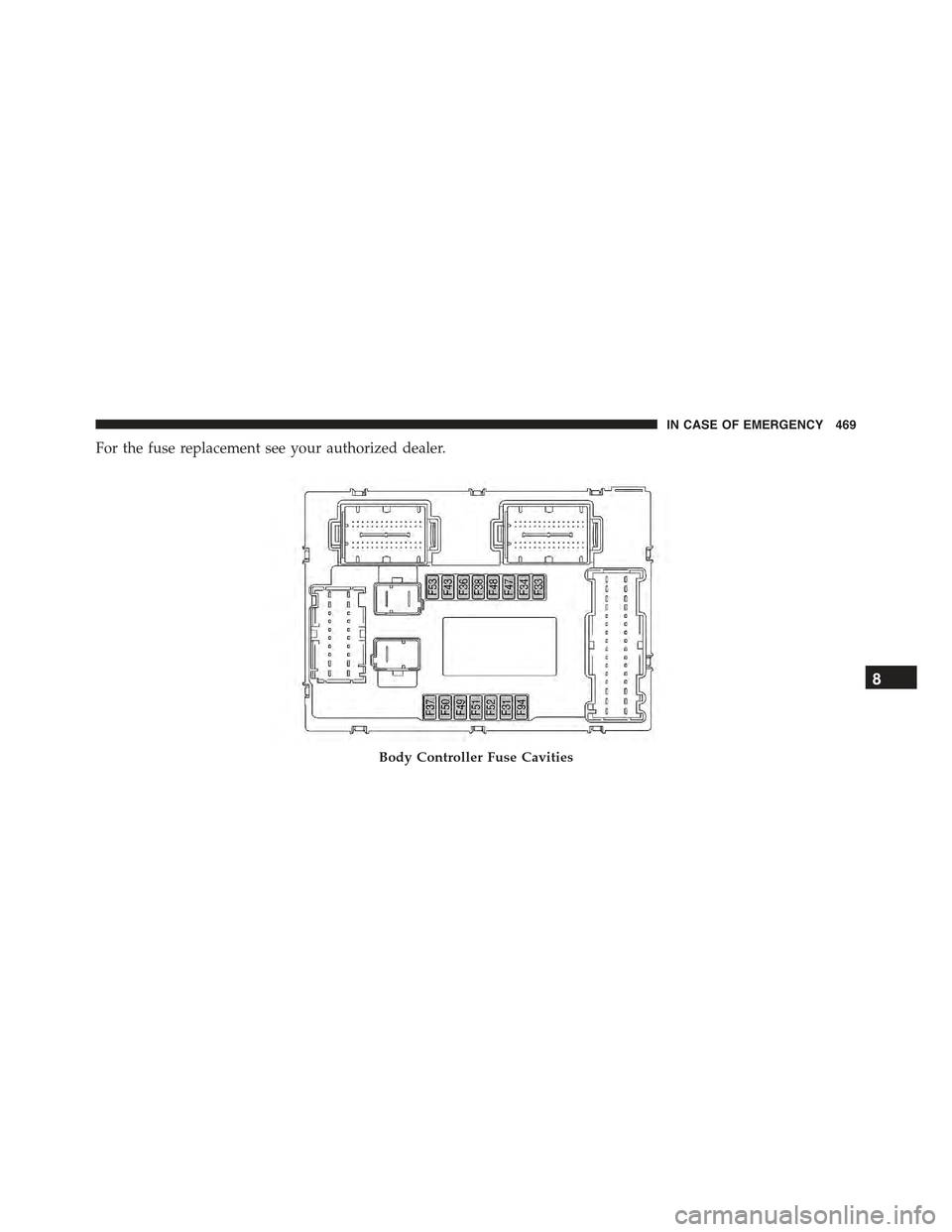

Body Controller Fuse Cavities
8
IN CASE OF EMERGENCY 469

CavityMini FuseDescription
F317.5 Amp BrownFlashes/Electrical Movement Front Seats/
Fan Air Conditioning
F3325 Amp ClearPower Window Front (driver side)
F3425 Amp ClearPower Window Front (passenger side)
F3620 Amp YellowSupply Uconnect® System, Air Condition-
ing, Alarm, Power Folding Outside Mir-
rors, USB Port
F3710 Amp RedSystem Power Forward Collision Warning
Plus, All Wheel Drive (AWD), IPC
F3820 Amp YellowCentral Locking
F427.5 Amp BrownPower Under Lock and Key
F4320 Amp YellowBi-directional Pump Washer
F4725 Amp ClearPower Rear Window (driver side)
F4825 Amp ClearPower Rear Window (passenger side)
F497.5 Amp BrownSupply ParkSense, Spot Lights Front
470 IN CASE OF EMERGENCY

CavityMini FuseDescription
Dome, Mirror, Electric Motor Retractable
Roof, Heated Front Seats, Stabilizer Battery,
ESC System, ESL
F507.5 Amp BrownSupply Air Bag
F517.5 Amp BrownAlarm Power, Front Courtesy Light, Air
Conditioning Compressor, Brake Pedal
Switch (NC), Plaque Automatic Transmis-
sion, Compass, Rear Camera, Leveling
Headlights, Air Conditioning
F537.5 Amp BrownSupply IPC/Starter Device/System Keyless
Enter-N-Go™
F9415 Amp BluePower Socket
8
IN CASE OF EMERGENCY 471
