The cigar lighter is located on the center console. Push
lighter inward to heat.
After a few seconds, the lighter automatically returns to
its initial position and is ready to be used.
WARNING!
When the cigar lighter is in use it becomes very hot.
To avoid serious injury, handle the cigar lighter with
care. Always check that the cigar lighter has turned
off.
CAUTION!
Do not connect devices with power higher than 180
Watts (15 Amps) to the socket. Do not damage the
socket by using unsuitable adaptors. If the 180 Watt
(15 Amp) power rating is exceeded the fuse protect-
ing the system will need to be replaced.

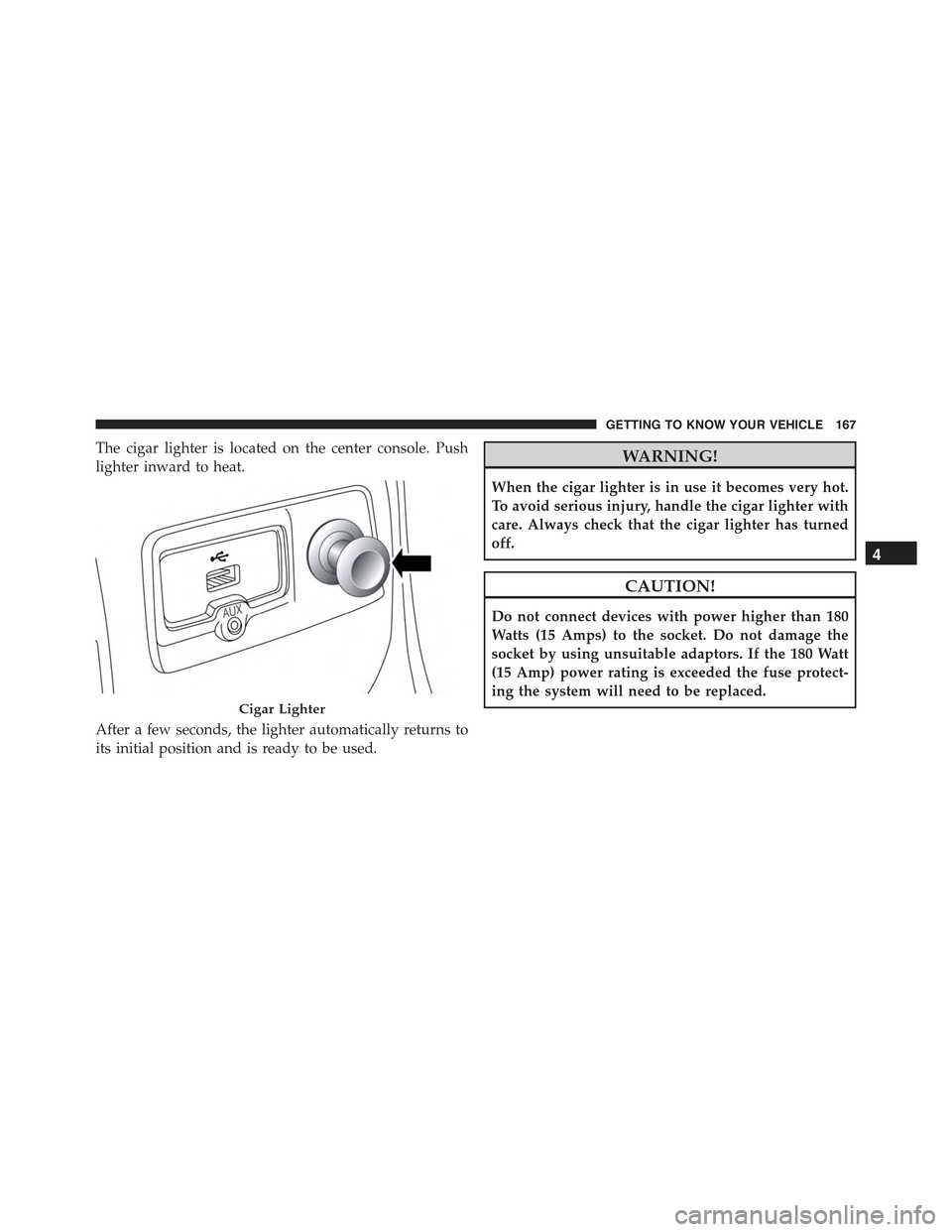

Cigar Lighter
4
GETTING TO KNOW YOUR VEHICLE 167

Light Sensor Failure
•What Does It Mean
The light illuminates in a the light sensor
failure.
•What To Do
Please contact an authorized dealer.
Exterior Light Failure
•What Does It Mean
This light illuminates to indicate a failure of
any of the following lights:
1. Daytime Running Lights (DRL)
2. Parking lights
3. Turn Signals for trailer (if equipped)
4. Trailer lights (if equipped)
5. Position lights
6. Turn Signals
7. Rear Fog light
8. Reverse light
9. Stop lights
10. License Plate lights
The failure could be due to the burning out of the
lamp or protection fuse, or the interruption of the
electrical connection.
•What To Do
Replace the lamp or its fuse. Please contact an autho-
rized dealer.
Keyless Enter-N-Go™ System Failure
•What Does It Mean
The light illuminates in case of failure of
the Keyless Enter-N-Go™.
•What To Do
Please contact an authorized dealer.
198 GETTING TO KNOW YOUR INSTRUMENT PANEL

IN CASE OF EMERGENCY
CONTENTS
!HAZARD WARNING...................427
!ASSIST AND 9–1–1 — IF EQUIPPED........427
!BULB REPLACEMENT...................433
▫General Information....................433
▫Replacement Bulbs.....................433
▫Replacement Of An External Lamp.........435
▫Replacement Of A Internal Lamp..........453
!FUSES...............................460
▫General Information....................460
▫Access To The Fuses...................462
▫Engine Compartment Fuses/Distribution Unit . .462
▫Body Computer Fuse Center..............468
▫Rear Cargo Fuse/Relay Distribution Unit.....472
!WHEEL AND TIRE TORQUE
SPECIFICATIONS......................474
▫Torque Specifications...................474
!JACKING AND TIRE CHANGING..........476
▫Jack Location/Spare Tire Stowage.........477
▫Preparations For Jacking................478
▫Jacking Instructions...................479
8

BULB REPLACEMENT
General Information
•Before you replace a bulb check the contacts to be sure
they are not oxidized.
•Replace the bulbs with the same type and wattage.
•After replacing a light bulb always check the correct
orientation.
•Before replacing a bulb that is not functioning check
that the fuse is intact.
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Replacement Bulbs
Interior Bulbs
LampsBulb Number
Front Courtesy LightC5W
Front Courtesy Lights (sun visors)C5W
Rear Dome Light (models without retractable roof)C5W
Rear Interior Lights (models with retractable roof)C5W
8
IN CASE OF EMERGENCY 433

FUSES
WARNING!
•When replacing a blown fuse, always use an ap-
propriate replacement fuse with the same amp
rating as the original fuse. Never replace a fuse
with another fuse of higher amp rating. Never
replace a blown fuse with metal wires or any other
material. Failure to use proper fuses may result in
serious personal injury, fire and/or property dam-
age.
•Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
•If the replaced fuse blows again, contact an autho-
rized dealer.
(Continued)
WARNING!(Continued)
•If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
General Information
The fuses protect electrical systems against excessive
current.
When a device does not work you must check the
electrical circuit inside the fuse for a break/melt.
460 IN CASE OF EMERGENCY

Fuse Removal
To replace a fuse use the extractor attached to the fuse
cover (located on the inside of the engine compartment
fuse cover.
Blade Fuses
1 — Electrical Circuit2 — Blade Fuse With Good Electrical Circuit3 — Blade Fuse With Bad Electrical Circuit
Fuse Extractor Location
8
IN CASE OF EMERGENCY 461

Access To The Fuses
The fuses are grouped into four controllers located in the
engine compartment, under the instrument panel and on
the inside of the left side cargo trim panel.
Engine Compartment Fuses/Distribution Unit
The engine compartment fuse panel is located on the left
side of the engine compartment.
Engine Compartment Fuse Cavities
462 IN CASE OF EMERGENCY

Removing Fuse Cover and Locking Screw
Proceed as follows:
•Slowly turn the screw counterclockwise.
•Slowly release the screw.
•Remove the fuse cover by sliding it upward.

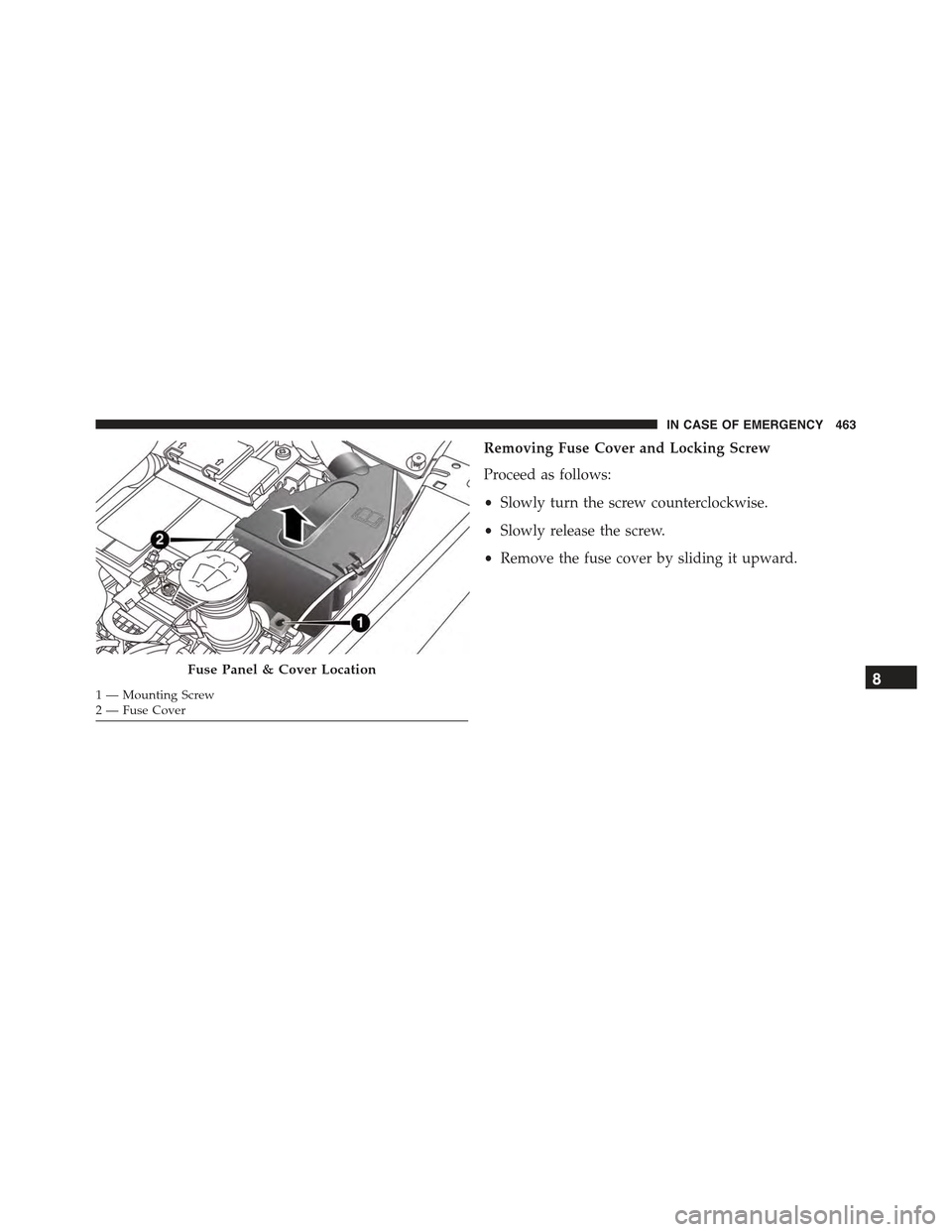

Fuse Panel & Cover Location
1 — Mounting Screw2—FuseCover
8
