2015 JEEP PATRIOT Owners Manual

CavityCartridge FuseMini-FuseDescription
1320 Amp YellowCigar Lighter
1410 Amp RedInstrument Cluster
1540 Amp GreenRadiator Fan
1615 Amp Lt BlueDome Lamp/Sunroof/Rear
Wiper Motor
1710 Amp RedWireless Control Module
1840 Amp GreenAuto Shutdown Relay
1920 Amp YellowRadio Amplifiers
2015 Amp Lt BlueRadio
2110 Amp RedIntrusion Module/Siren – If
Equipped
2210 Amp RedHeating, AC/Compass
2315 Amp Lt BlueAuto Shutdown Relay
2415 Amp Lt Blue Power Sunroof – If Equipped
2510 Amp RedHeated Mirror – If Equipped
7
MAINTAINING YOUR VEHICLE 519

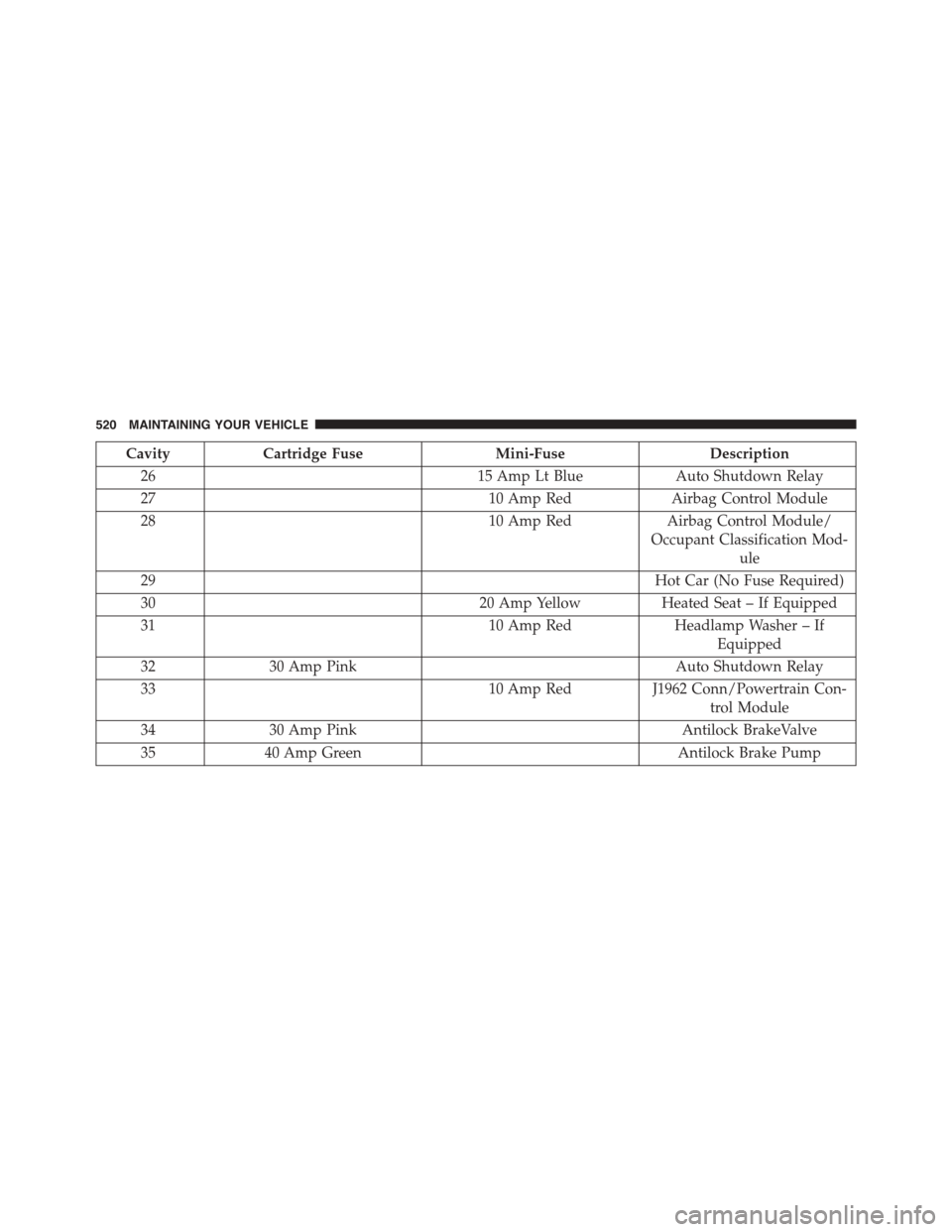

CavityCartridge FuseMini-FuseDescription
2615 Amp Lt BlueAuto Shutdown Relay
2710 Amp RedAirbag Control Module
2810 Amp RedAirbag Control Module/
Occupant Classification Mod-
ule
29Hot Car (No Fuse Required)
3020 Amp YellowHeated Seat – If Equipped
3110 Amp RedHeadlamp Washer – If
Equipped
3230 Amp PinkAuto Shutdown Relay
3310 Amp RedJ1962 Conn/Powertrain Con-
trol Module
3430 Amp PinkAntilock BrakeValve
3540 Amp GreenAntilock Brake Pump
520 MAINTAINING YOUR VEHICLE

CavityCartridge FuseMini-FuseDescription
3630 Amp PinkHeadlamp/Washer Control/
Smart Glass – If Equipped
3725 Amp Clear Diesel Heater and H2/MOD
power top
CAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get into
the IPM, and possibly result in an electrical system
failure.
(Continued)
CAUTION!(Continued)
•When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
7
MAINTAINING YOUR VEHICLE 521

VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Or disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement
522 MAINTAINING YOUR VEHICLE

Interior Bulbs
Bulb Number
Front Header LampT578
Center Dome LampT578
Rear Cargo Lamp/Flashlight8–A35LF
Exterior Bulbs
Bulb Number
Low Beam/High Beam HeadlampH13
Front Park/Turn Signal/Side Marker Lamp3757KA
Front Fog LampPSX24W
Center High Mounted Stop Lamp (CHMSL)LED Assembly (Serviced At Authorized Dealer)
Rear Tail/Turn/Stop Lamp3157
Backup LampW16W (921)
License LampW5W
7
MAINTAINING YOUR VEHICLE 523

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamps
1. Raise the hood and locate the connector behind the
headlamp.
2. Reach into engine compartment and pull red lock out
at connector.
3. Remove the green connector from the back of the bulb
by pulling straight back.
4. Twist the bulb to the left.
5. Pull bulb outward from assembly.
NOTE:These are halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat buildup which reduces bulb
life.
Fog Lamps
1. Access lamp through the lower fascia cutout.
2. Remove electrical connector from bulb.
3. Remove bulb from housing.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
524 MAINTAINING YOUR VEHICLE

Rear Tail, Turn Signal And Backup Lamps
1. Raise the liftgate.
2. Remove the two push-pins from the taillamp housing.
3. Grasp the taillamp and pull firmly to disengage the
light from the aperture panel.
4. Twist and remove socket from the light.
5. Remove bulb from socket and replace.
License Lamps
1. Use a screw driver to gently pry against the side of the
snap tab to remove the lamp from the liftgate.
2. Rotate the socket 1/4 turn counterclockwise.
3. Pull the bulb from the socket.
Center High-Mounted Stoplamp
This light is an LED assembly. See your authorized dealer
for replacement.
7
MAINTAINING YOUR VEHICLE 525

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)13.6 Gallons51 Liters
Engine Oil with Filter
2.0L and 2.4L Engine (SAE 5W-20,
API Certified)
4.5 Quarts4.26 Liters
Cooling System *
2.0L and 2.4L Engine (MOPAR®
Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula or
equivalent)
7.2 Quarts6.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
